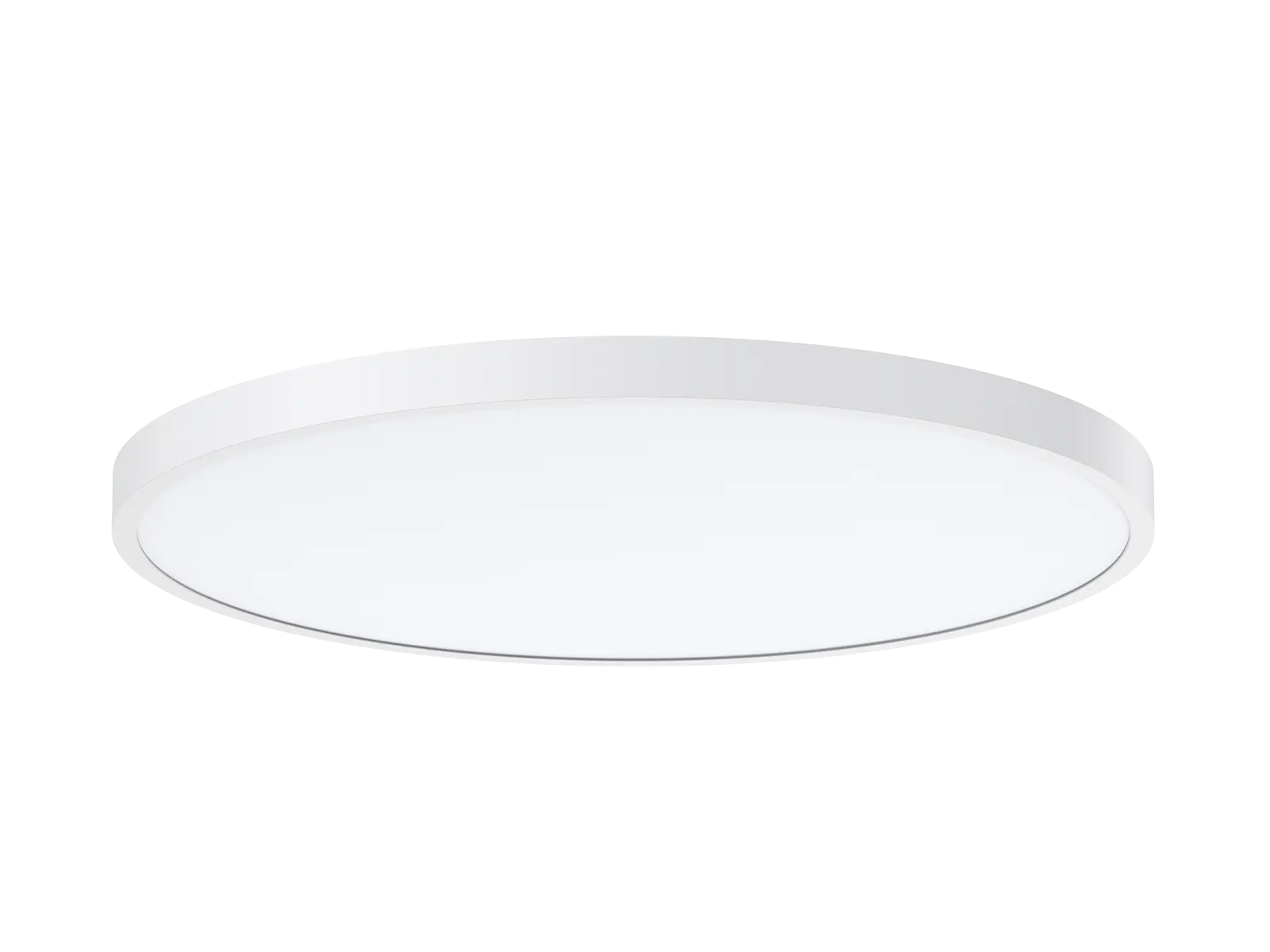

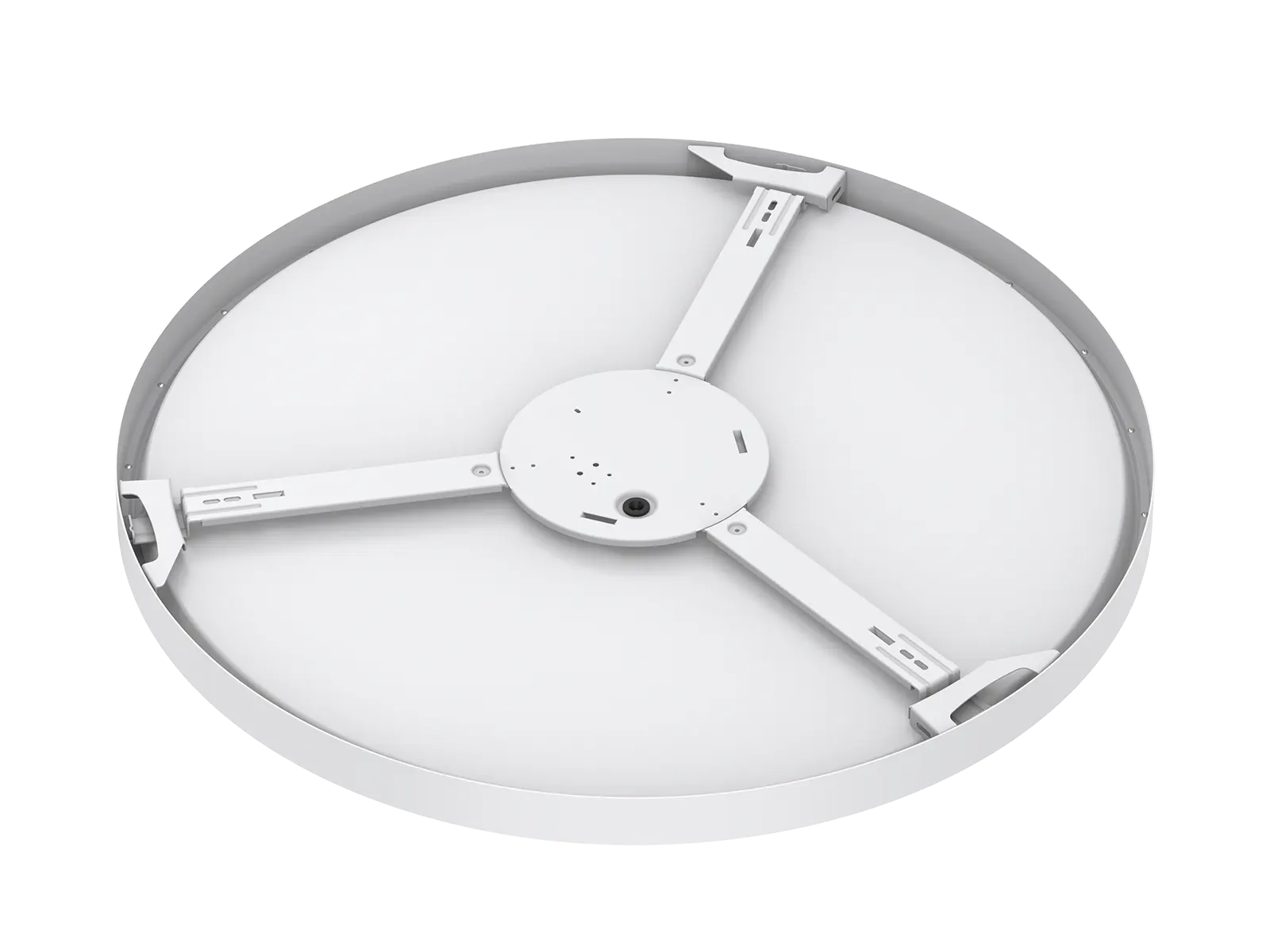

DR32 panel light is a back-lit panel light that supports ceiling mounted installation. Its ceiling-mounted clip-on design allows for convenient and quick installation for users. It adopts high-brightness SMD2835 led chip along with optical-grade lenses to ensure a uniform and full light output. The back-plate is crafted from stamped iron plate, enhancing its strength and
improving heat dissipation, effectively extending the lifespan of the light source and whole led panel light.
Applications: Office lighting: offices, meeting rooms, classrooms, libraries, etc. Commercial lighting: shopping malls, supermarkets,hotels.Other areas: hospitals, canteens, theaters, banks, subway stations, etc.

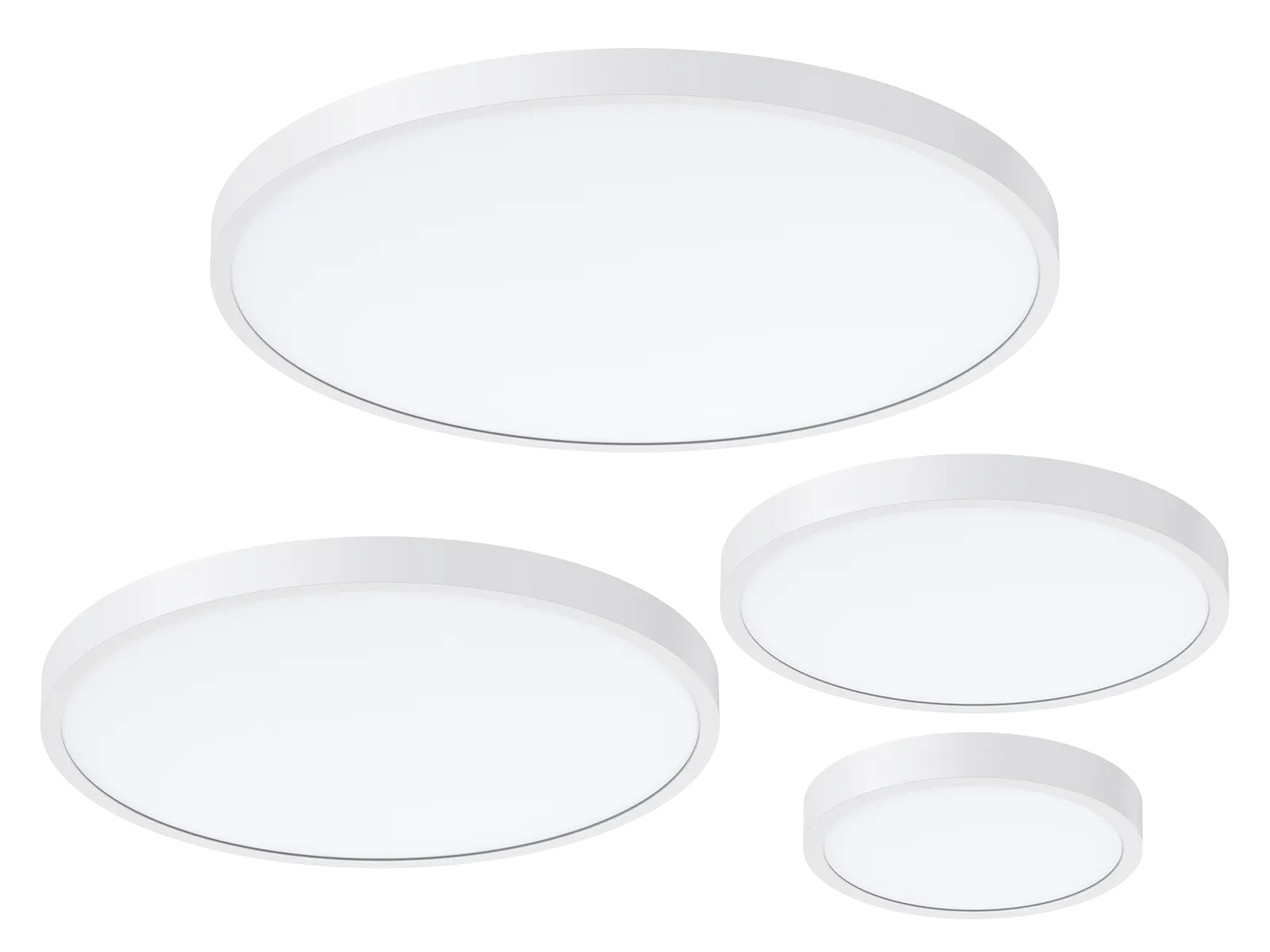

| Code No | DR32 400 25W | DR32 600 36W | DR32 800 60W | DR32 1000 80W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Φ400*58mm | Φ600*58mm | Φ800*58mm | Φ1000*58mm | ||
| Watt(W) | 25W | 36W | 60W | 80W | ||
| Rated Input Voltage(V) | AC220-240V | |||||
| Input Voltage(V) | AC200-264V | |||||
| LED Module Input | 33-38V | 40-45V | ||||
| Light Source | SMD | |||||
| SDCM | <5 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||
| CCT Selection DIP Switch | Yes | |||||
| Non-DIM | 1-CCT | 2850-3050lm | 4000-4200lm | 7200-7600lm | 9500-10500lm | |
| Luminous Flux (lm) ±5% | DIM | - | - | - | - | |
| Non-DIM | 3-CCT | 2800-3150lm | 4100-4400lm | 7150-7700lm | 9000-10000lm | |
| DIM | - | - | - | - | ||
| CRI | ≥80 | |||||
| Beam Angle (°) | 120° | |||||
| LED Driver | Built-in | |||||
| Electrical Class | Class I | |||||
| Ingress Protection (IP Rating) | IP40 | |||||
| Product Finishing(Base) | White | |||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||||
| Materials of Housing | Aluminium(frame), SPCC(back plate) | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (℃ ) | 650℃ | |||||
| Operating Temp. (℃ ) | -10℃~40℃ | |||||
| Storage Temp. (℃ ) | -20℃~50℃ | |||||
| Installation | Surface mount/Pendant | |||||
