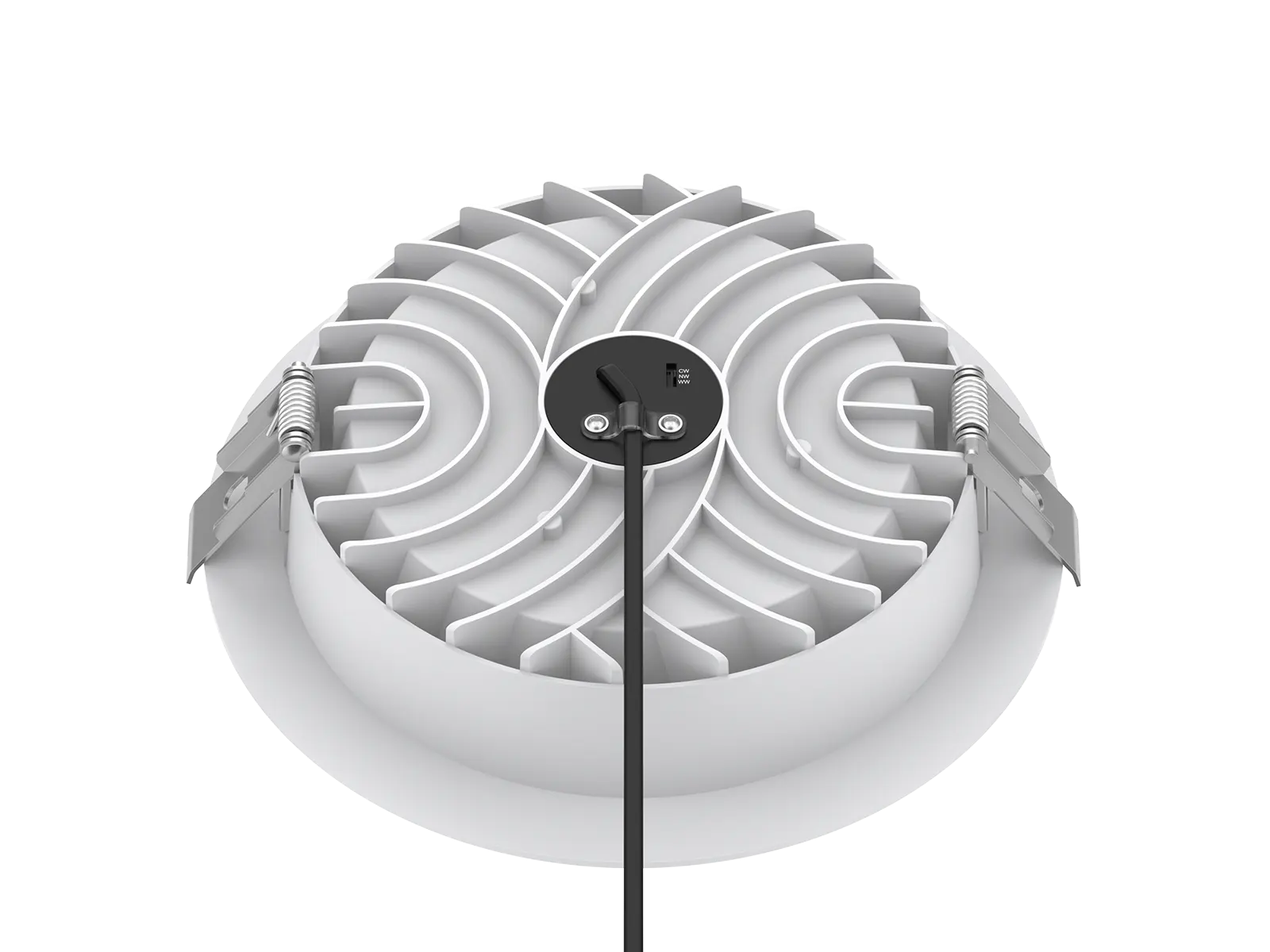

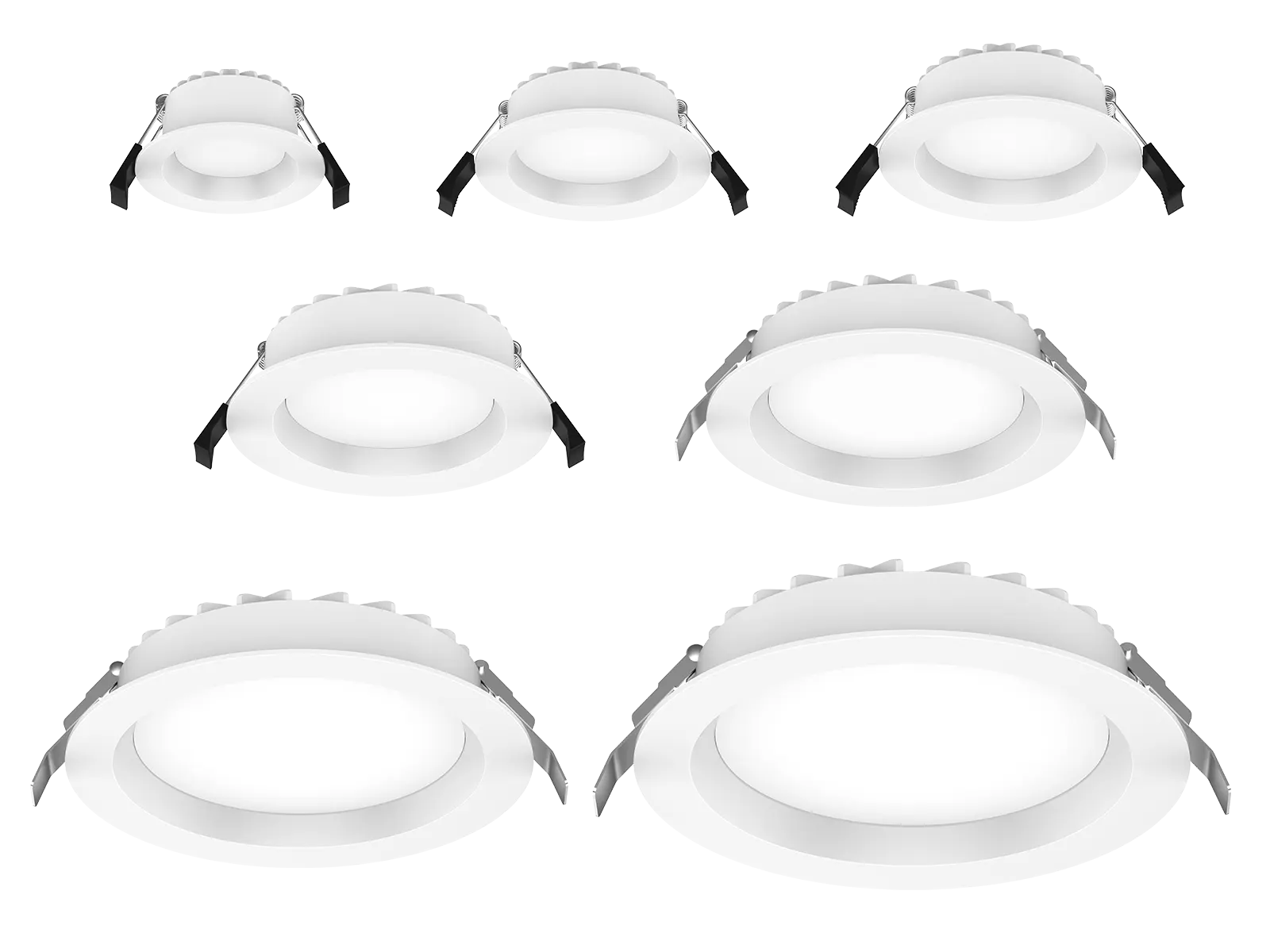

The DL97 series features a round ultra-slim design, ideal for seamless integration into commercial and office spaces.With a high-quality opal diffuser and optimized optics, it delivers a 90° beam angle with soft, uniform, and low-glare lighting.Rated IP54, it offers reliable protection against dust and moisture. Easy installation and flexible application make it suitable for various lighting scenarios.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc
| Code | DL97-2.5-7W | DL97-3-10W | DL97-3.5-13W | DL97-4-15W | DL97-5-18W | DL97-6-18W | DL97-6-25W | DL97-8-18W | DL97-8-25W | DL97-8-35W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø86*39 | Ø110*38 | Ø120*45 | Ø145*45 | Ø170*45 | Ø190*45 | Ø228*45 | |||||
| Cutout(mm) | Ø68-75 | Ø90-95 | Ø100-110 | Ø120-130 | Ø140-150 | Ø160-170 | Ø200-210 | |||||
| Non-DIM | 7W | 10W | 13W | 15W | 18W | 18W | 25W | 18W | 25W | 35W | ||
| Watt(W) | DIM | 7W Max | 10W Max | 13W Max | 15W Max | 18W Max | 18W Max | 25W Max | 18W Max | 25W Max | 35W Max | |
| (6W/5W/4W | (8W/6W/5W | (10W/8W/6W | (12W/10W/8W | (15W/13W/10W | (15W/13W/10W | (20W/18W/15W | (15W/13W/10W | (20W/18W/15W | (30W/25W/20W | |||
| optional) | optional) | optional) | optional) | optional) | optional) | optional) | optional) | optional) | optional) | |||
| Rated Input Voltage | AC220-240V | |||||||||||
| Input Voltage | AC198-264V | |||||||||||
| LED Module Input | DC33-38V | |||||||||||
| Light Source | SMD | |||||||||||
| SDCM | <6 | |||||||||||
| CCT(K) | 1-CCT:3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||||||||
| CCT Selection | By DIP Switch | |||||||||||
| Non-DIM | 850-870 | 1260-1270 | 1520-1540 | 1970-2160 | 2430-2650 | 2500-2740 | 3410-3740 | 2650-2870 | 3610-3910 | 4870-5290 | ||
| 1-CCT | 7W:870-900 | 10W:1290-1310 | 13W:1450-1470 | 15W:1800-1980 | 18W:2230-2440 | 18W:2290-2510 | 25W:3090-3380 | 18W:2420-2600 | 25W:3250-3470 | 35W:4760-4890 | ||
| Luminous Flux (lm) ±5% | DIM | 6W:760-790 | 8W:1060-1080 | 10W:1150-1170 | 12W:1440-1590 | 15W:1780-1960 | 15W:1830-2010 | 20W:2650-2910 | 15W:1930-2080 | 20W:2790-2990 | 30W:3950-4060 | |
| CRI80 | 5W:660-680 | 6W:710-730 | 8W:900-920 | 10W:1260-1390 | 13W:1560-1710 | 13W:1580-1760 | 18W:2180-2390 | 13W:1670-1810 | 18W:2300-2490 | 25W:3400-3600 | ||
| 4W:500-510 | 5W:550-560 | 6W:600-610 | 8W:900-990 | 10W:1200-1310 | 10W:1220-1350 | 15W:1820-1990 | 10W:1290-1390 | 15W:1920-2070 | 20W:2790-2950 | |||
| Non-DIM | 840-870 | 1210-1280 | 1600-1650 | 1920-2050 | 2390-2600 | 2480-2690 | 3370-3640 | 2610-2800 | 3540-3800 | 4770-5150 | ||
| 3-CCT | 7W:860-890 | 10W:1220-1290 | 13W:1520-1580 | 15W:1750-1900 | 18W:2200-2430 | 18W:2270-2470 | 25W:3040-3290 | 18W:2390-2560 | 25W:3200-3410 | 35W:4490-4990 | ||
| DIM | 6W:750-780 | 8W:1000-1060 | 10W:1200-1250 | 12W:1400-1520 | 15W:1760-1950 | 15W:1810-1980 | 20W:2610-2830 | 15W:1910-2050 | 20W:2750-2940 | 30W:3720-4150 | ||
| 5W:660-680 | 6W:690-720 | 8W:960-990 | 10W:1230-1330 | 13W:1530-1690 | 13W:1580-1750 | 18W:2170-2390 | 13W:1650-1790 | 18W:2240-2430 | 25W:3360-3600 | |||
| 4W:500-510 | 5W:530-550 | 6W:640-660 | 8W:880-950 | 10W:1180-1300 | 10W:1220-1340 | 15W:1810-1990 | 10W:1270-1370 | 15W:1870-2020 | 20W:2760-2950 | |||
| CRI | 80 | |||||||||||
| Beam Angle(°) | 90° | |||||||||||
| UGR | - | |||||||||||
| LED Driver | Built-out, Flicker Free | |||||||||||
| Dimming Option | Triac | |||||||||||
| Sensor | - | |||||||||||
| Emergency Kits | NO | |||||||||||
| Electrical Class | Class II | |||||||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP40(Inside Ceiling) | |||||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||||
| Product Finishing | White RAL9016 | |||||||||||
| Optics Material | PC | |||||||||||
| Housing Material | Die-Casting Aluminium | |||||||||||
| Lifetime(hr) | 50,000h | |||||||||||
| Glow wire test(°C) | 750°C | |||||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||||

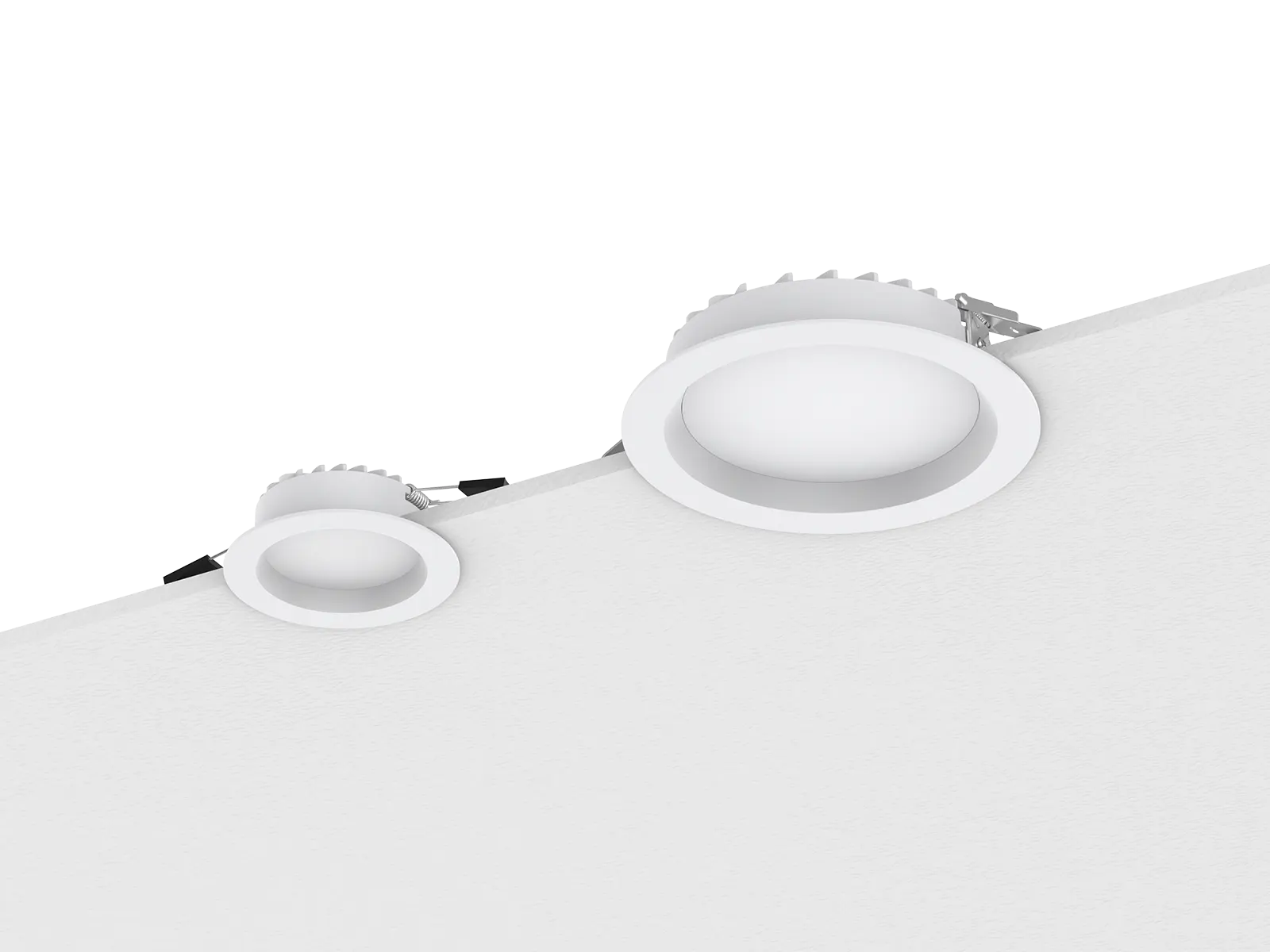

| Installation | Recessed | |||||||||||
