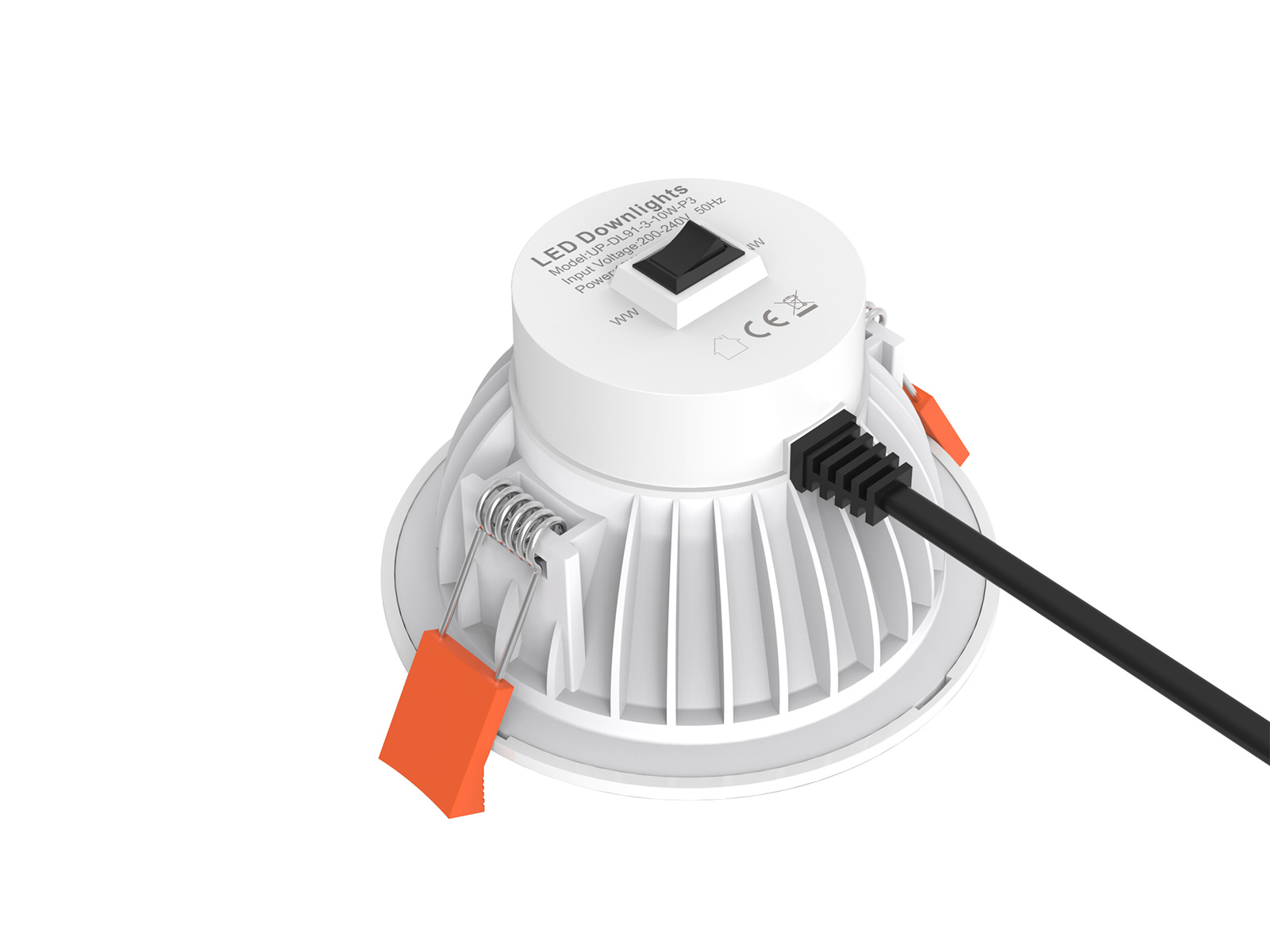

Up-shine SMD LED Down light adopts high lumen SMD LED, PC diffuser with even light output. 94-V0 fire rated plastic housing with internal driver design; it is our most economical and practical downlight version. Dimmable version available, it shares great popularity by the excellent dimming effect. The light color (CCT) can be switched among warm white and natural white by slide switch on the back of downlight. White color and silver color surface cover ring is optional.
Application notes
Application Areas：It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Model | Voltage | Power | Power Factor | Lumen (±5%) | Beam angle | CCT | Lifespan | CRI | Dimmable | Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| UP-DL91-3-8W-P2 | AC230V | 8W | ≥0.9 | 740 | 90° | 3000K | 40000h | ≥80 | Yes | Ø107.5*71.5mm |
| cutout 90-95mm | ||||||||||
| UP-DL91-3-8W-P2 | AC230V | 8W | ≥0.9 | 780 | 90° | 4000K | 40000h | ≥80 | Yes | Ø107.5*71.5mm |
| cutout 90-95mm | ||||||||||
| UP-DL91-3-10W-P2 | AC230V | 10W | ≥0.9 | 810 | 90° | 3000K | 40000h | ≥80 | Yes | Ø107.5*71.5mm |
| cutout 90-95mm | ||||||||||
| UP-DL91-3-10W-P2 | AC230V | 10W | ≥0.9 | 900 | 90° | 4000K | 40000h | ≥80 | Yes | Ø107.5*71.5mm |
| cutout 90-95mm |
