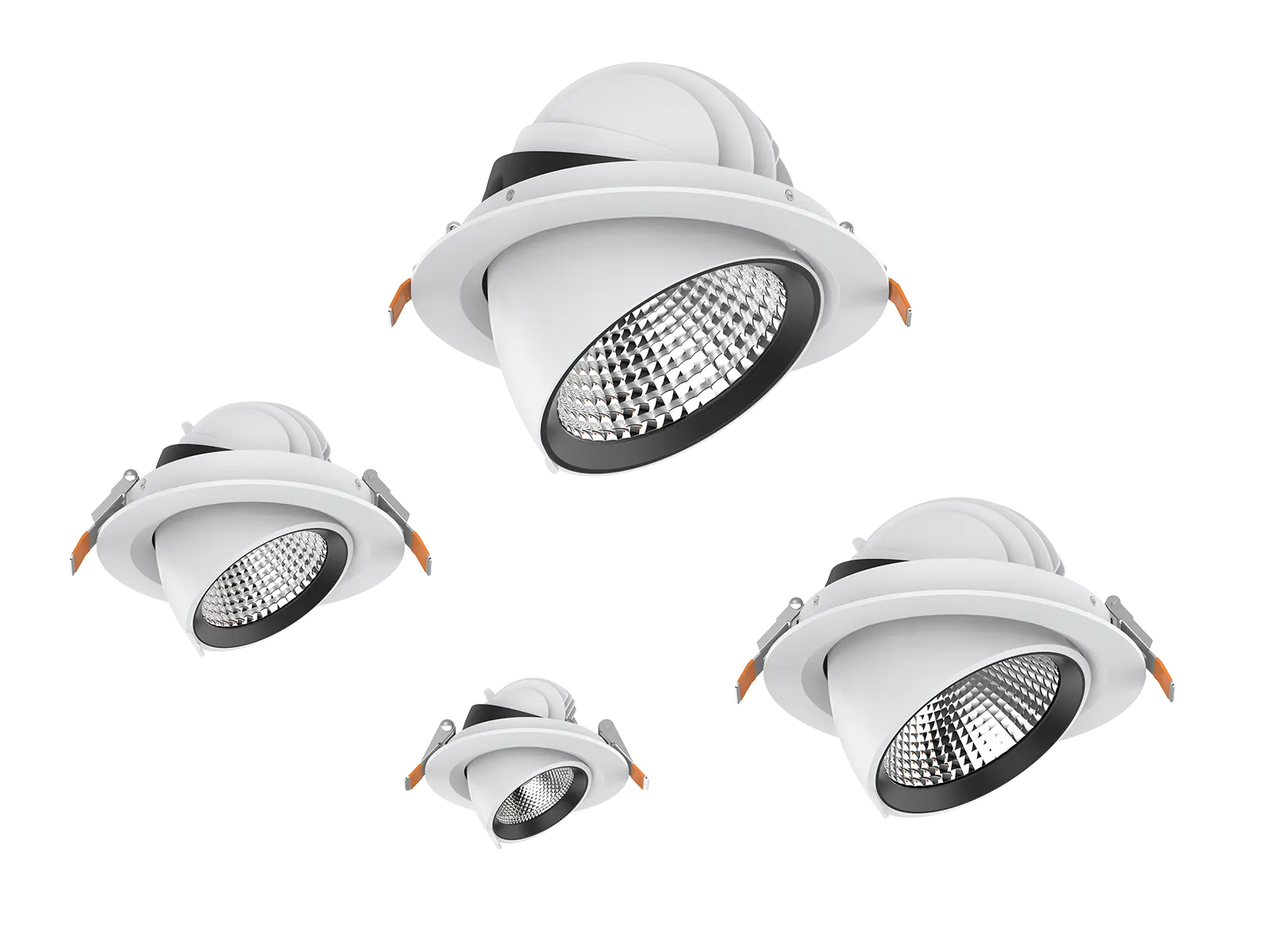

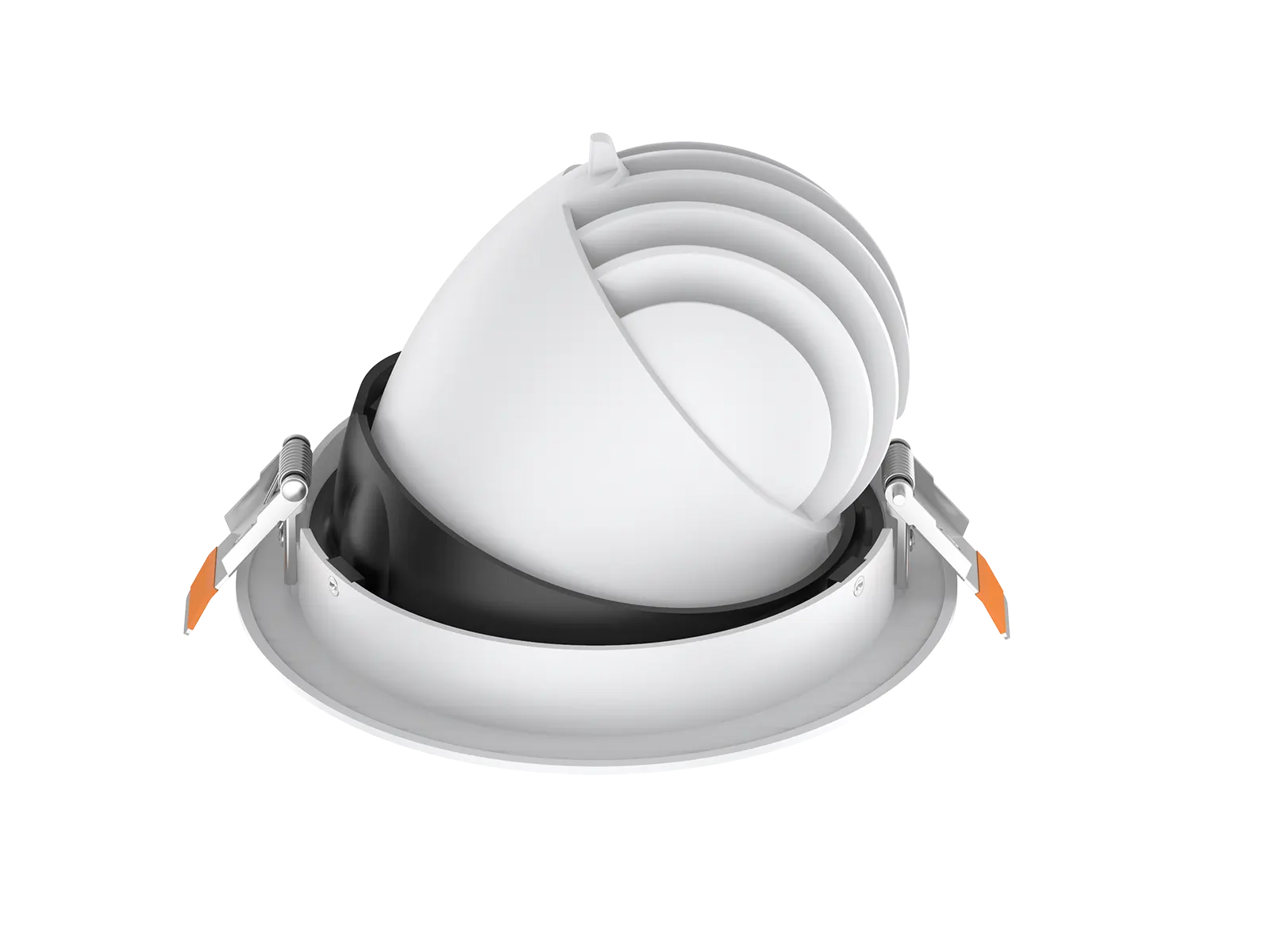

Up-shine COB downlight is unique designed with reflector and COB high power LED chip. ADC12 die-casting aluminium profile provides excellent thermal dissipation. Adjustable lighting direction provides all possible lighting effects. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL77-2.5-10W | DL77-4-15W | DL77-4-20W | DL77-6-35W | DL77-6-45W | DL77-8-25W | DL77-8-35W | DL77-8-45W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø96*68 | Ø 145*102 | Ø 180*128.5 | Ø225*157.5 | ||||||
| Cutout(mm) | Ø85-Ø90 | Ø 125-Ø130 | Ø 165-Ø170 | Ø200-Ø220 | ||||||
| Watt(W) | 10W | 15W | 20W | 35W | 45W | 25W | 35W | 45W | ||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| LED Module Input | DC33-38V | |||||||||
| Light Source | COB | |||||||||
| SDCM | ≤5 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | |||||||||
| CCT Selection DIP Switch | NO | YES | NO | YES | NO | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 720-800 | 1580-1800 | 1900-2100 | 3350-3800 | 4000-4350 | 3100-3250 | 4400-4650 | 5200-5500 |
| DIM | 700-770 | 1530-1730 | 1800-1960 | 3235-3670 | 3900-4200 | 3000-3150 | 4200-4450 | 4850-5150 | ||
| Luminous Flux (lm) ±5% CRI90 | 3-CCT | Non-DIM | - | 1200-1350 | 1800-1900 | 3150-3380 | - | 2250-2450 | 3300-3600 | - |
| DIM | - | 1200-1300 | 1700-1850 | 3100-3350 | - | 2100-2250 | 3220-3480 | - | ||
| CRI | 1-CCT: 80 / 3-CCT: 90 | |||||||||
| Beam Angle(°) | 15°/24° | 15°/24°/36°/60° | 24°/45°/60° | 24°/45°/60° | ||||||
| LED Driver | Driver built-out | |||||||||
| Dimming Option | Triac | |||||||||
| Sensor | NO | |||||||||
| Emergency Kits | NO | |||||||||
| Electrical Class | Class II | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK06 | |||||||||
| Product Finishing | White RAL9016 | |||||||||
| Optics Material | PC | |||||||||
| Housing Material | Aluminium | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp(°C) | -20°C~45°C | |||||||||
| Storage Temp(°C) | -20°C~65°C | |||||||||
| Installation | Recessed | |||||||||
