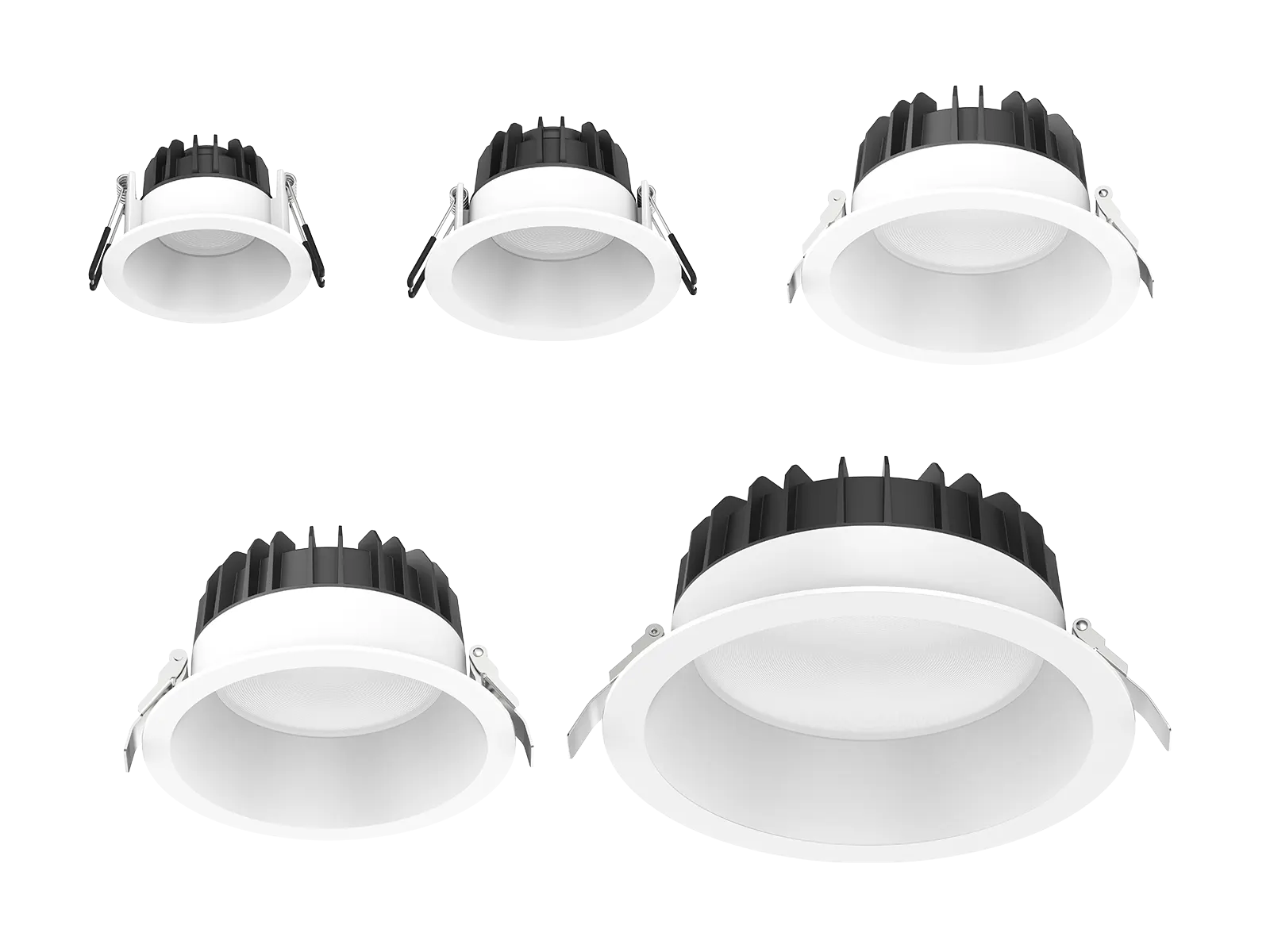

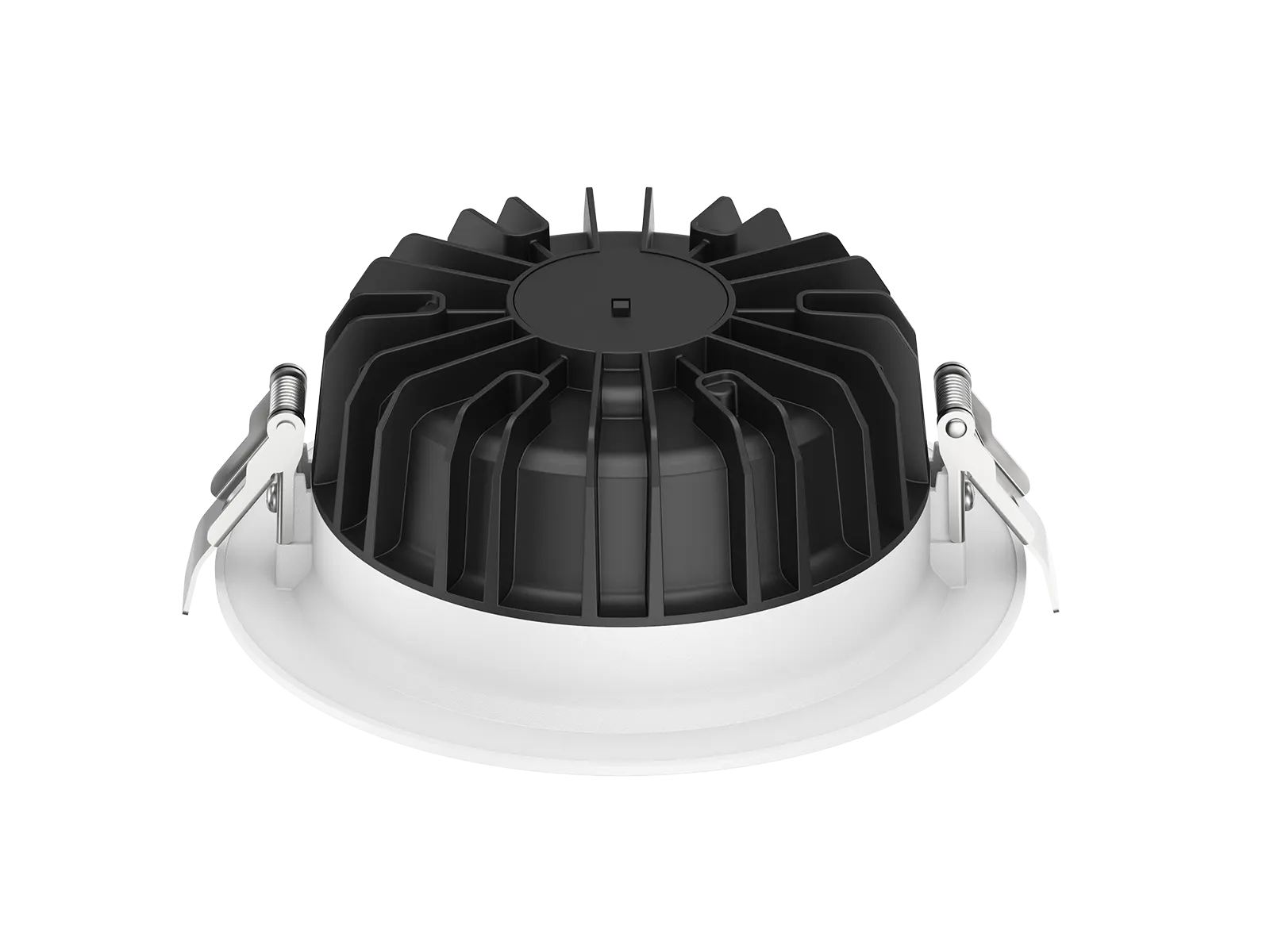

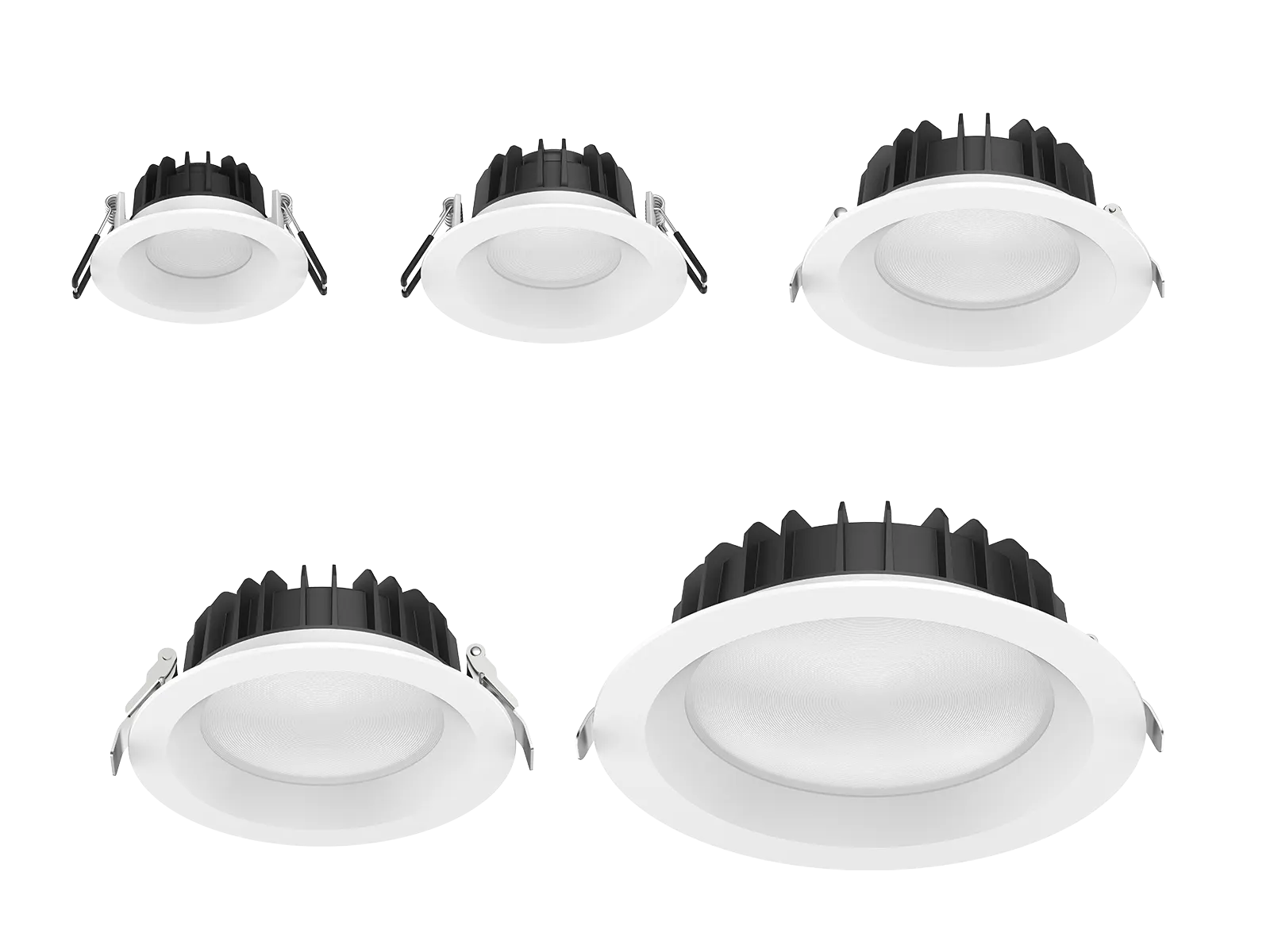

This is an aesthetically clean modular downlight, made of ADC12 die-cast aluminum combined with a PC Fresnel optical lens. It uses high-efficacy 2835 SMD LEDs, delivering a solid build with smooth, refined lines. Besides, it offers two front ring options,Type A: shallow trim, type B: deep strim, and which can be freely combined to meet different requirements. With IP65 protection from the front and a full range of sizes from 2.5” to 8”, it is suitable for a wide range of commercial lighting application.
Applications: It is designed for general lighting applications in supermarket, shop, School, hotel, home etc.
| Code | DL498A-2.5-7W | DL498A-3-10W | DL498A-4-15W | DL498A-5-18W | DL498A-6-24W | DL498A-8-38W | DL498B-2.5-7W | DL498B-3-10W | DL498B-4-15W | DL498B-5-18W | DL498B-6-24W | DL498B-8-38W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*45 | Ø110*52 | Ø145*57 | Ø160*62 | Ø172*66 | Ø228*70 | Ø90*57 | Ø110*66 | Ø145*75 | Ø160*84 | Ø172*89 | Ø228*96 | ||
| Cutout(mm) | Ø75-83 | Ø90-95 | Ø125-135 | Ø140-150 | Ø150-165 | Ø195-210 | Ø75-83 | Ø90-95 | Ø125-135 | Ø140-150 | Ø150-165 | Ø195-210 | ||
| Watt(W) | 7W | 10W | 7W/10W/12W/15W | 10W/12W/14W/18W | 14W/17W/21W/24W | 22W/28W/32W/38W | 7W | 10W | 7W/10W/12W/15W | 10W/12W/14W/18W | 14W/17W/21W/24W | 22W/28W/32W/38W | ||
| Rated Input Voltage | AC200-240V | |||||||||||||
| Input Voltage | AC198- 264V | |||||||||||||
| LED Module Input | DC32-38V | |||||||||||||
| Light Source | SMD | |||||||||||||
| SDCM | SDCM<6 | |||||||||||||
| CCT(K) | 2-CCT: 3000K/4000K | |||||||||||||
| CCT Selection DIP Switch | YES | |||||||||||||
| 640-680 | 1100-1160 | 15W: 1640-1780 | 18W: 2340-2370 | 24W: 3020-3270 | 38W: 4580-4950 | 620-670 | 15W: 1610-1710 | 18W: 2150-2290 | 24W: 2960-3150 | 38W: 4480-4820 | ||||
| Luminous Flux | Non-DIM | 12W: 1280-1420 | 14W: 1750-1950 | 21W: 2570-2860 | 32W: 3750-4160 | 1060-1160 | 12W: 1230-1370 | 14W: 1600-1780 | 21W: 2480-2760 | 32W: 3650-4060 | ||||
| (lm) ±5% CRI80 (White Ring) | 2-CCT | 10W: 1070-1190 | 12W: 1410-1570 | 17W: 2080-2320 | 28W: 3280-3650 | 10W: 1020-1140 | 12W: 1370-1530 | 17W: 2010-2230 | 28W: 3190-3560 | |||||
| 7W: 890-960 | 10W: 1300-1330 | 14W: 1860-1990 | 22W: 3200-3310 | 7W: 880-940 | 10W: 1200-1290 | 14W: 1820-1950 | 22W: 3150-3280 | |||||||
| 630-670 | 970-1020 | 15W: 1620-1760 | 18W: 2320-2350 | 24W: 2930-3170 | 38W: 4490-4850 | 610-660 | 15W: 1610-1710 | 18W: 2150-2290 | 24W: 2870-3050 | 38W: 4390-4720 | ||||
| DIM | 12W: 1260-1410 | 14W: 1730-1930 | 21W: 2550-2840 | 32W: 3730-4140 | 950-1040 | 12W: 1210-1350 | 14W: 1580-1760 | 21W: 2460-2740 | 32W: 3630-4040 | |||||
| 10W: 1050-1170 | 12W: 1400-1550 | 17W: 2060-2300 | 28W: 3260-3630 | 10W: 1000-1120 | 12W: 1350-1510 | 17W: 2000-2210 | 28W: 3160-3540 | |||||||
| 7W: 850-910 | 10W: 1300-1330 | 14W: 1800-1930 | 22W: 2700-2890 | 7W: 840-890 | 10W: 1200-1290 | 14W: 1760-1890 | 22W: 2670-2850 | |||||||
| 610-660 | 1060-1140 | 15W: 1620-1730 | 18W: 2150-2300 | 24W: 2980-3070 | 38W: 4550-4810 | 580-630 | 1000-1080 | 15W: 1510-1620 | 18W: 1950-2100 | 24W: 2700-2900 | 38W: 4210-4530 | |||
| Luminous Flux | Non-DIM | 12W: 1250-1390 | 14W: 1610-1790 | 21W: 2420-2690 | 32W: 3650-4050 | 12W: 1170-1300 | 14W: 1470-1630 | 21W: 2290-2350 | 32W: 3430-3810 | |||||
| (lm) ±5% CRI80 (Black Ring) | 2-CCT | 10W: 1030-1150 | 12W: 1370-1530 | 17W: 1960-2170 | 28W: 3190-3550 | 10W: 970-1080 | 12W: 1260-1400 | 17W: 1850-2050 | 28W: 3000-3340 | |||||
| 7W: 890-950 | 10W: 1200-1280 | 14W: 1830-1960 | 22W: 2830-3010 | 7W: 820-880 | 10W: 1100-1180 | 14W: 1660-1780 | 22W: 2610-2800 | |||||||
| 570-620 | 930-1000 | 15W: 1600-1710 | 18W: 2130-2280 | 24W: 2960-3050 | 38W: 4530-4790 | 570-620 | 930-1020 | 15W: 1490-1600 | 18W: 1930-2080 | 24W: 2680-2880 | 38W: 4190-4510 | |||
| DIM | 12W: 1230-1370 | 14W: 1590-1770 | 21W: 2400-2670 | 32W: 3620-4030 | 12W: 1150-1280 | 14W: 1450-1610 | 21W: 2260-2320 | 32W: 3410-3780 | ||||||
| 10W: 1010-1130 | 12W: 1350-1510 | 17W: 1940-2150 | 28W: 3170-3530 | 10W: 950-1060 | 12W: 1240-1380 | 17W: 1830-2030 | 28W: 2980-3320 | |||||||
| 7W: 830-890 | 10W: 1180-1260 | 14W: 1810-1940 | 22W: 2810-2980 | 7W: 800-860 | 10W: 1080-1160 | 14W: 1640-1760 | 22W: 2590-2780 | |||||||
| CRI | 80 | |||||||||||||
| Beam Angle(°) | 55° | |||||||||||||
| UGR | <22 | <19（lowest wattage per model only) | ||||||||||||
| LED Driver | Built-out,Flicker Free | |||||||||||||
| Dimming Option | Triac | |||||||||||||
| Sensor | NO | |||||||||||||
| Emergency Kits | NO | |||||||||||||
| Electrical Class | Class II | |||||||||||||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | |||||||||||||
| Impact Resistance(IK Rating) | IK06 | |||||||||||||
| Product Finishing | White RAL9016 / Black RAL9005 | |||||||||||||
| Optics Material | PC | |||||||||||||
| Housing Material | Die-Casting Aluminium | |||||||||||||
| Lifetime(hr) | 50,000h | |||||||||||||
| Glow wire test(°C) | 750°C | |||||||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||||||
| Installation | Recessed | |||||||||||||
