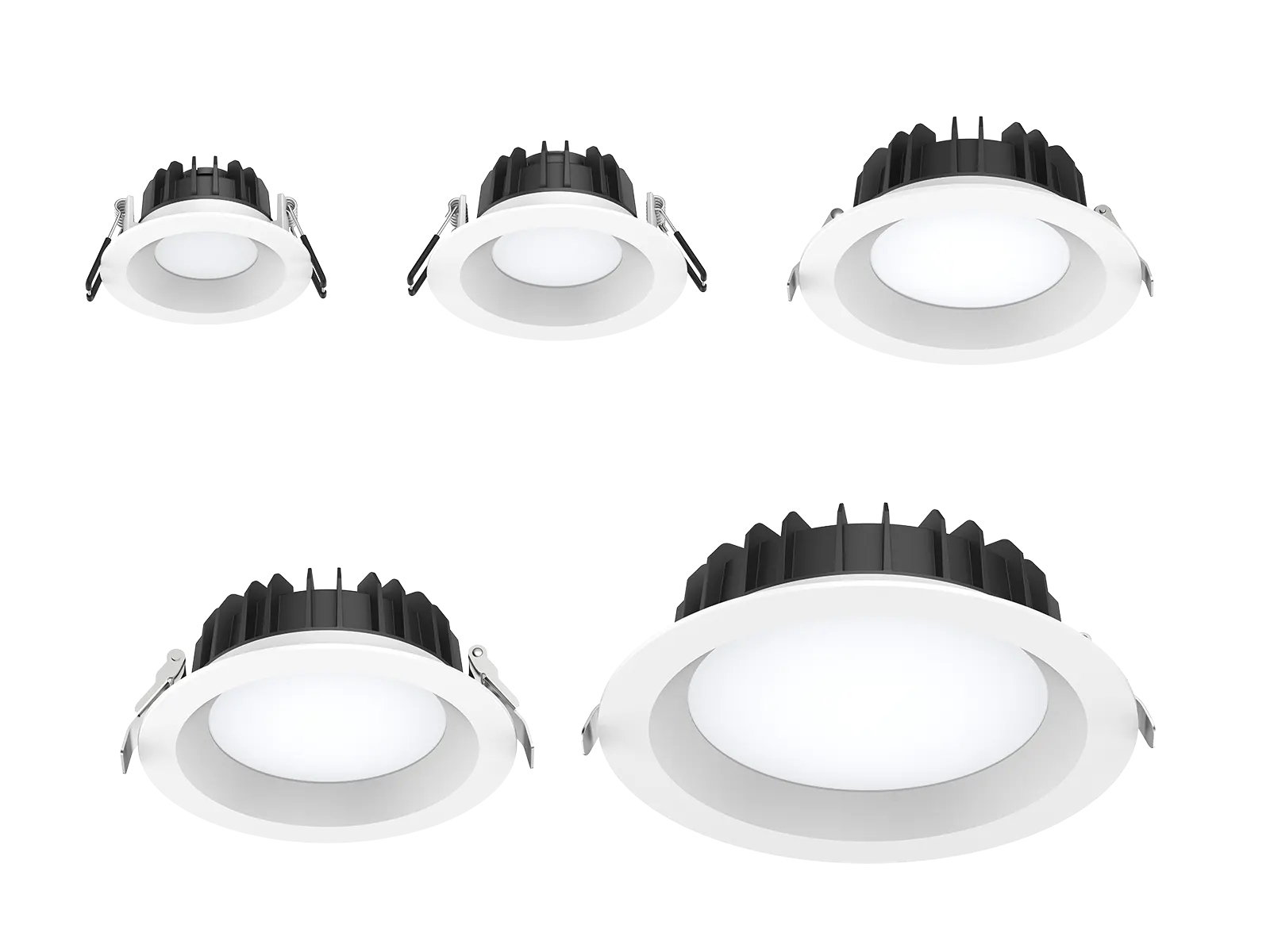

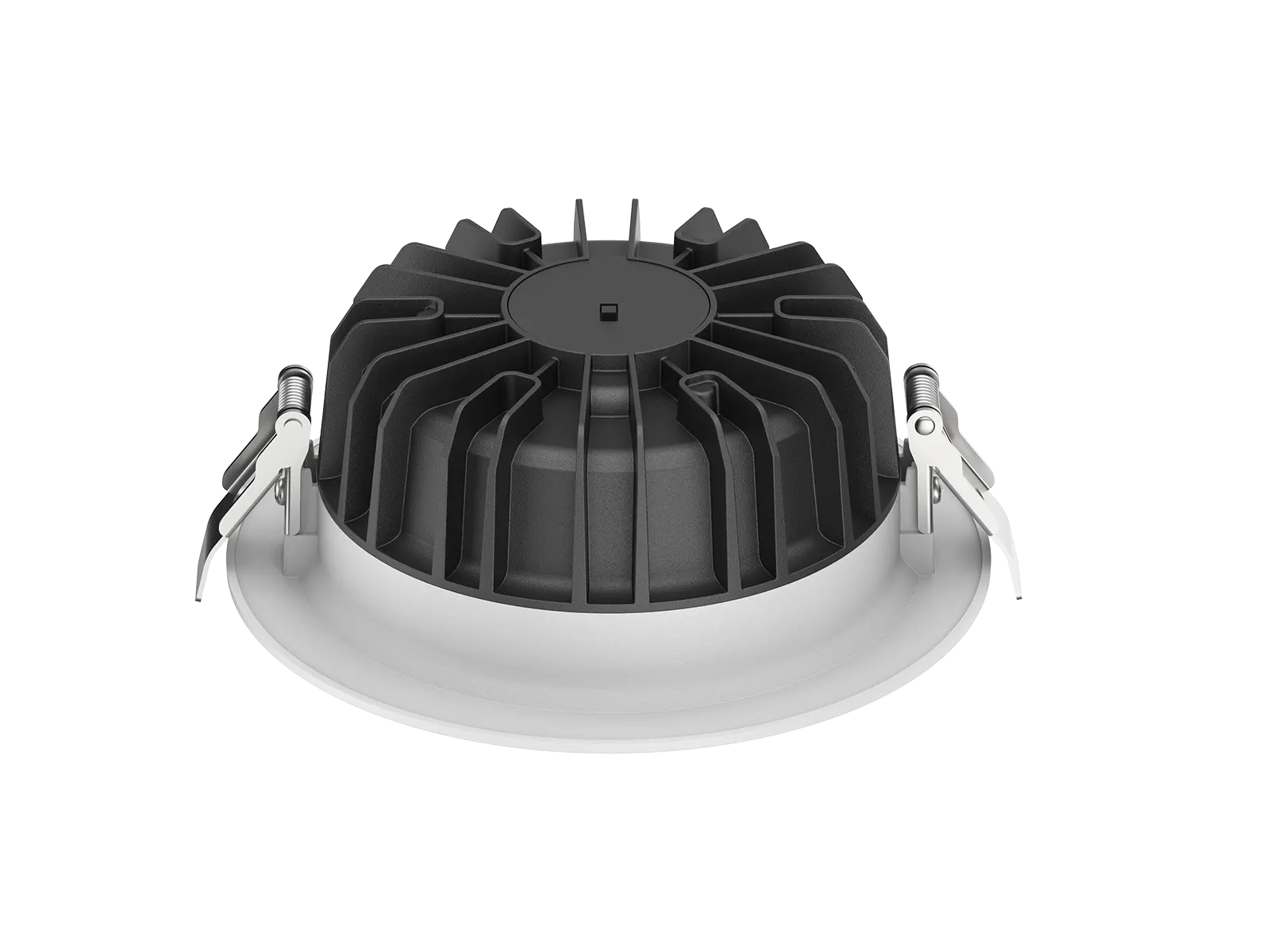

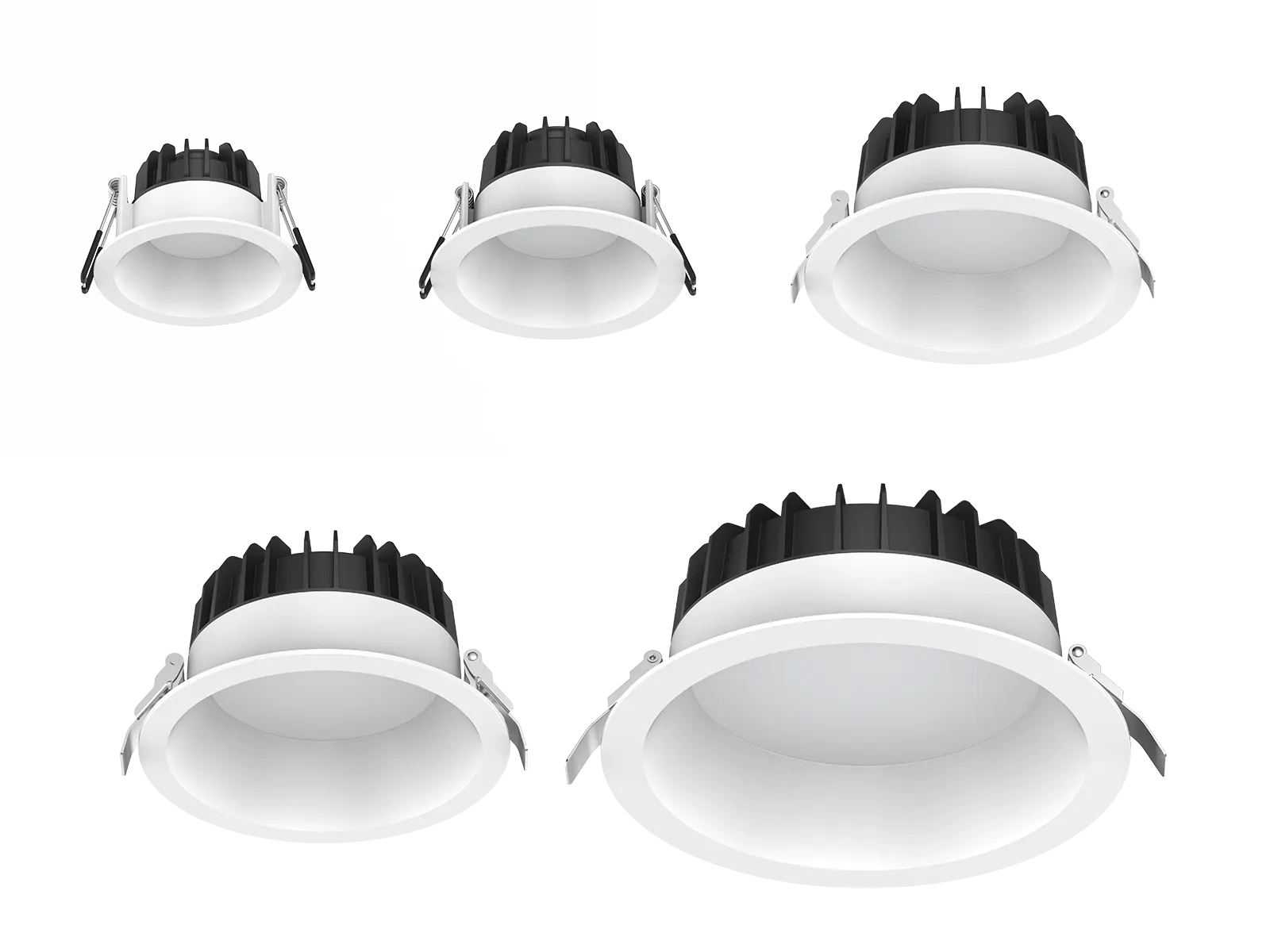

This is an aesthetically clean modular downlight, made of ADC12 die-cast aluminum combined with a PC optical diffuser. It uses high-efficacy 2835 SMD LEDs, delivering a solid build with smooth, refined lines. Besides, it offers two front ring options,Type A: shallow trim, type B: deep trim, and which can be freely combined to meet different requirements. With IP65 protection from the front and a full range of sizes from 2.5” to 8”, it is suitable for a wide range of commercial lighting application.
Applications: It is designed for general lighting applications in supermarket, shop, School, hotel, home etc
| Code | DL497A-2.5-7W | DL497A-3-10W | DL497A-4-15W | DL497A-5-18W | DL497A-6-24W | DL497A-8-38W | DL497B-2.5-7W | DL497B-3-10W | DL497B-4-15W | DL497B-5-18W | DL497B-6-24W | DL497B-8-38W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*45 | Ø110*52 | Ø145*57 | Ø160*62 | Ø172*66 | Ø228*70 | Ø90*57 | Ø110*66 | Ø145*75 | Ø160*84 | Ø172*89 | Ø228*96 | ||
| Cutout(mm) | Ø75-83 | Ø90-95 | Ø125-135 | Ø140-150 | Ø150-165 | Ø195-210 | Ø75-83 | Ø90-95 | Ø125-135 | Ø140-150 | Ø150-165 | Ø195-210 | ||
| Watt(W) | 7W | 10W | 7W/10W/12W/15W | 10W/12W/14W/18W | 14W/17W/21W/24W | 22W/28W/32W/38W | 7W | 10W | 7W/10W/12W/15W | 10W/12W/14W/18W | 14W/17W/21W/24W | 22W/28W/32W/38W | ||
| Rated Input Voltage | AC200-240V | |||||||||||||
| Input Voltage | AC198- 264V | |||||||||||||
| LED Module Input | DC32-38V | |||||||||||||
| Light Source | SMD | |||||||||||||
| SDCM | SDCM<6 | |||||||||||||
| CCT(K) | 2-CCT: 3000K+4000K | |||||||||||||
| CCT Selection DIP Switch | YES | |||||||||||||
| 580-620 | 940-1000 | 15W: 1680-1730 | 18W: 2100-2200 | 24W: 2950-3100 | 38W: 4740-5010 | 540-580 | 880-920 | 15W: 1600-1670 | 18W: 1970-2050 | 24W: 2830-2910 | 38W: 4560-4750 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 12W: 1240-1380 | 14W: 1550-1730 | 21W: 2490-2770 | 32W: 3740-4160 | 12W: 1200-1330 | 14W: 1440-1600 | 21W: 2290-2540 | 32W: 3600-4000 | |||||
| CRI80 | 2-CCT | 10W: 1040-1150 | 12W: 1330-1470 | 17W: 2020-2250 | 28W: 3280-3640 | 10W: 1000-1110 | 12W: 1230-1370 | 17W: 1860-2060 | 28W: 3150-3500 | |||||
| White Ring | 7W: 810-880 | 10W: 1150-1200 | 14W: 1780-1850 | 22W: 2880-3040 | 7W: 790-860 | 10W: 1080-1140 | 14W: 1670-1770 | 22W: 2780-2920 | ||||||
| 560-600 | 810-840 | 15W: 1630-1670 | 18W: 2030-2130 | 24W: 2860-3000 | 38W: 4600-4850 | 530-560 | 780-810 | 15W: 1550-1620 | 18W: 1910-1980 | 24W: 2740-2820 | 38W: 4420-4600 | |||
| DIM | 12W: 1200-1330 | 14W: 1450-1630 | 21W: 2390-2670 | 32W: 3640-4060 | 12W: 1160-1300 | 14W: 1380-1540 | 21W: 2220-2470 | 32W: 3490-3870 | ||||||
| 10W: 1000-1110 | 12W: 1230-1370 | 17W: 1920-2150 | 28W: 3180-3540 | 10W: 980-1080 | 12W: 1190-1320 | 17W: 1800-2000 | 28W: 3050-3390 | |||||||
| 7W: 780-850 | 10W: 1120-1160 | 14W: 1720-1790 | 22W: 2790-2950 | 7W: 760-830 | 10W: 1050-1100 | 14W: 1620-1710 | 22W: 2690-2830 | |||||||
| 550-580 | 910-950 | 15W: 1560-1640 | 18W: 1850-1940 | 24W: 2630-2730 | 38W: 4030-4260 | 460-480 | 750-780 | 15W: 1310-1360 | 18W: 1500-1550 | 24W: 2120-2200 | 38W: 3380-3520 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 12W: 1170-1300 | 14W: 1350-1500 | 21W: 2150-2390 | 32W: 3220-3580 | 12W: 980-1090 | 14W: 1080-1200 | 21W: 1730-1930 | 32W: 1670-2960 | |||||
| CRI80 | 2-CCT | 10W: 980-1090 | 12W: 1150-1280 | 17W: 1750-1940 | 28W: 2830-3140 | 10W: 820-910 | 12W: 930-1030 | 17W: 1400-1560 | 28W: 2330-2600 | |||||
| Black Ring | 7W: 780-820 | 10W: 1010-1050 | 14W: 1560-1620 | 22W: 2450-2580 | 7W: 690-720 | 10W: 820-850 | 14W: 1290-1320 | 22W: 2050-2150 | ||||||
| 530-560 | 760-800 | 15W: 1510-1600 | 18W: 1790-1880 | 24W: 2550-2640 | 38W: 3900-4130 | 440-460 | 730-760 | 15W: 1270-1310 | 18W: 1450-1500 | 24W: 2050-2130 | 38W: 3280-3150 | |||
| DIM | 12W: 1140-1270 | 14W: 1320-1470 | 21W: 2080-2310 | 32W: 3110-3450 | 12W: 940-1050 | 14W: 1050-1170 | 21W: 1680-1860 | 32W: 2390-2650 | ||||||
| 10W: 950-1060 | 12W: 1140-1260 | 17W: 1680-1870 | 28W: 2720-3020 | 10W: 800-880 | 12W: 900-1000 | 17W: 1360-1510 | 28W: 2090-2320 | |||||||
| 7W: 750-790 | 10W: 970-1010 | 14W: 1510-1570 | 22W: 2370-2500 | 7W: 670-690 | 10W: 790-820 | 14W: 1250-1280 | 22W: 2000-2080 | |||||||
| CRI | 80 | |||||||||||||
| Beam Angle(°) | 100° | 90° | ||||||||||||
| UGR | - | |||||||||||||
| LED Driver | Built-out,Flicker Free | |||||||||||||
| Dimming Option | Triac | |||||||||||||
| Sensor | NO | |||||||||||||
| Emergency Kits | NO | |||||||||||||
| Electrical Class | Class II | |||||||||||||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | |||||||||||||
| Impact Resistance(IK Rating) | IK06 | |||||||||||||
| Product Finishing | White RAL9016 / Black RAL9005 | |||||||||||||
| Optics Material | PC | |||||||||||||
| Housing Material | Die-Casting Aluminium | |||||||||||||
| Lifetime(hr) | 50,000h | |||||||||||||
| Glow wire test(°C) | 750°C | |||||||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||||||
| Installation | Recessed | |||||||||||||
