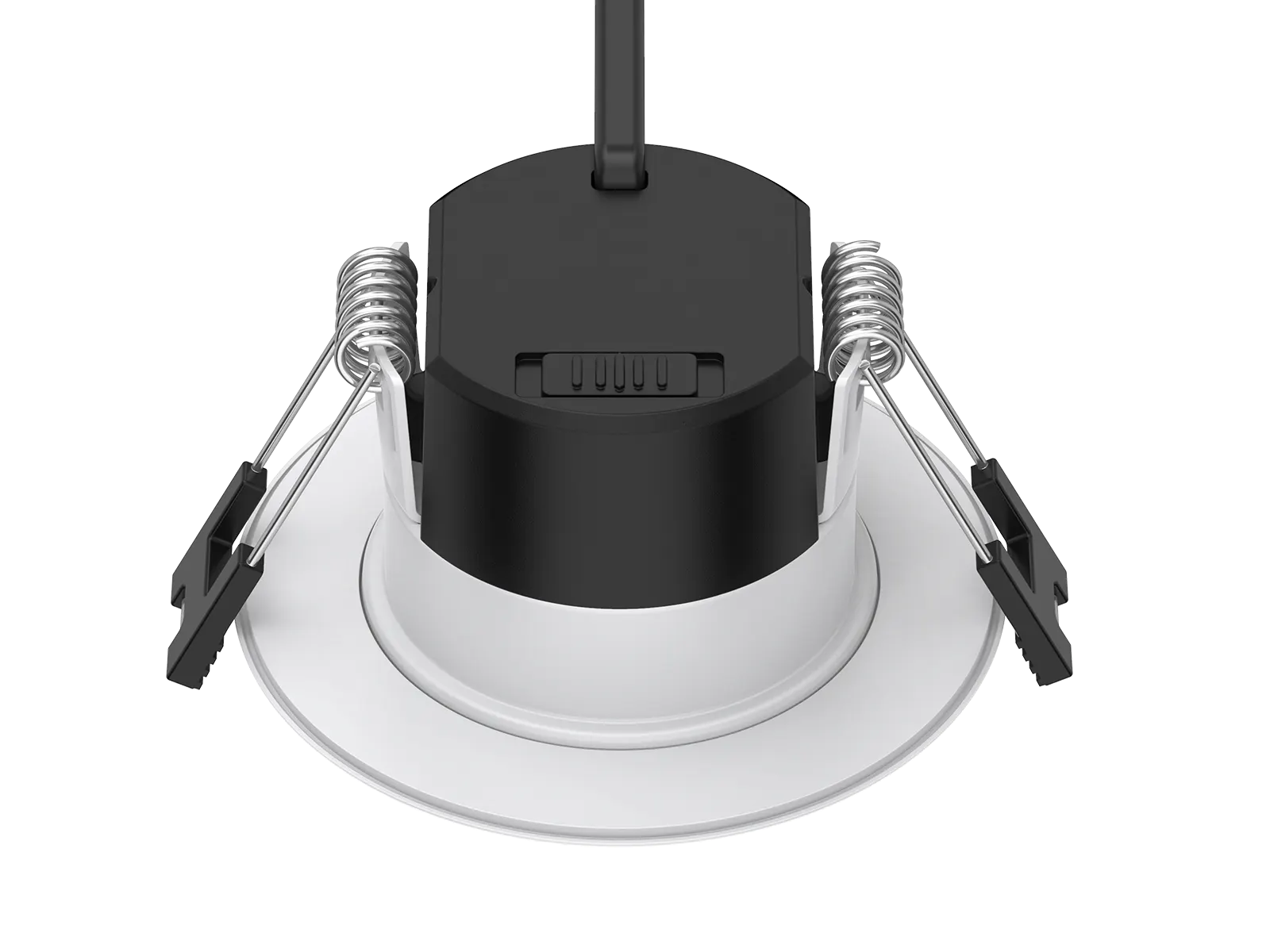

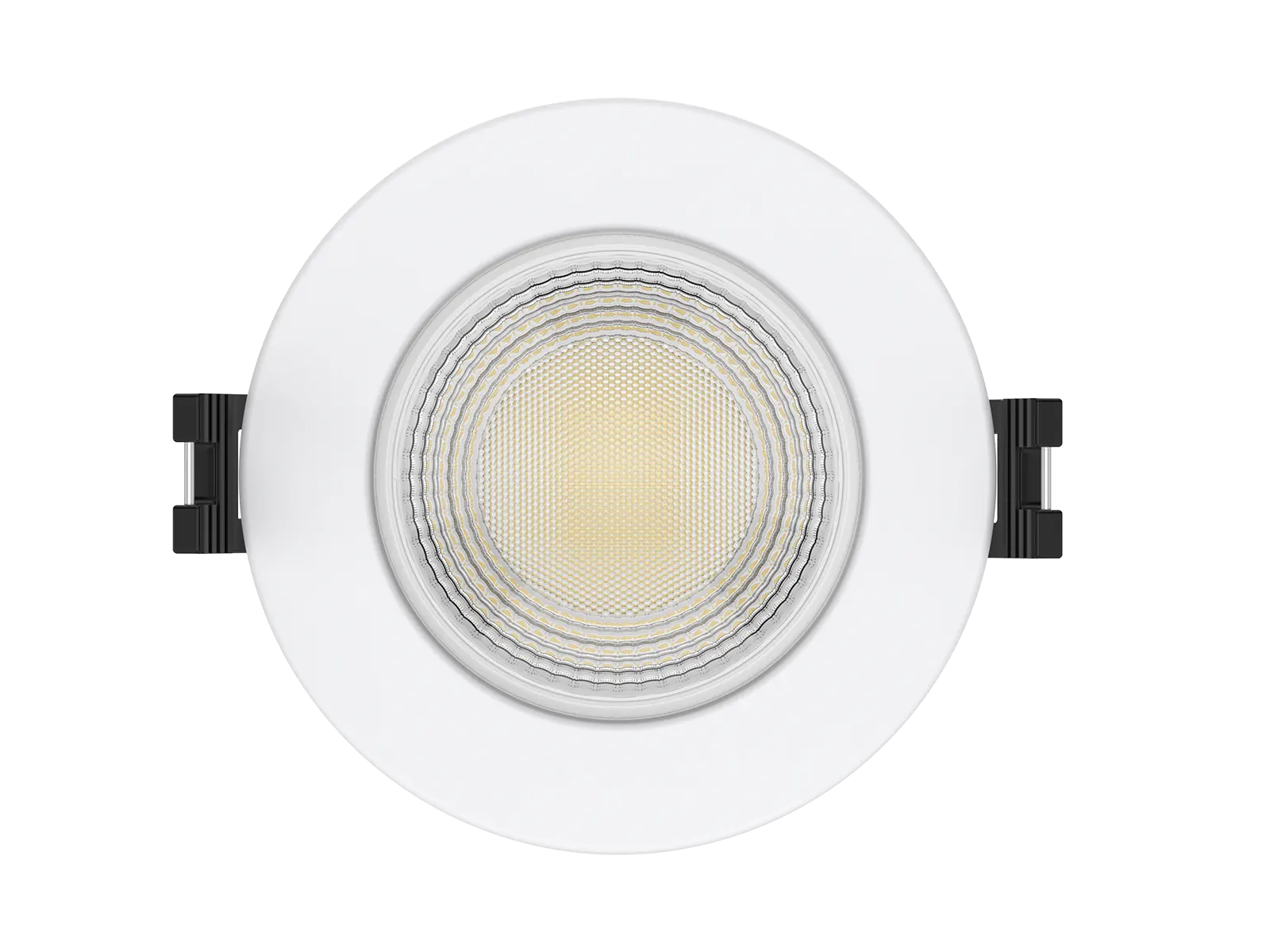

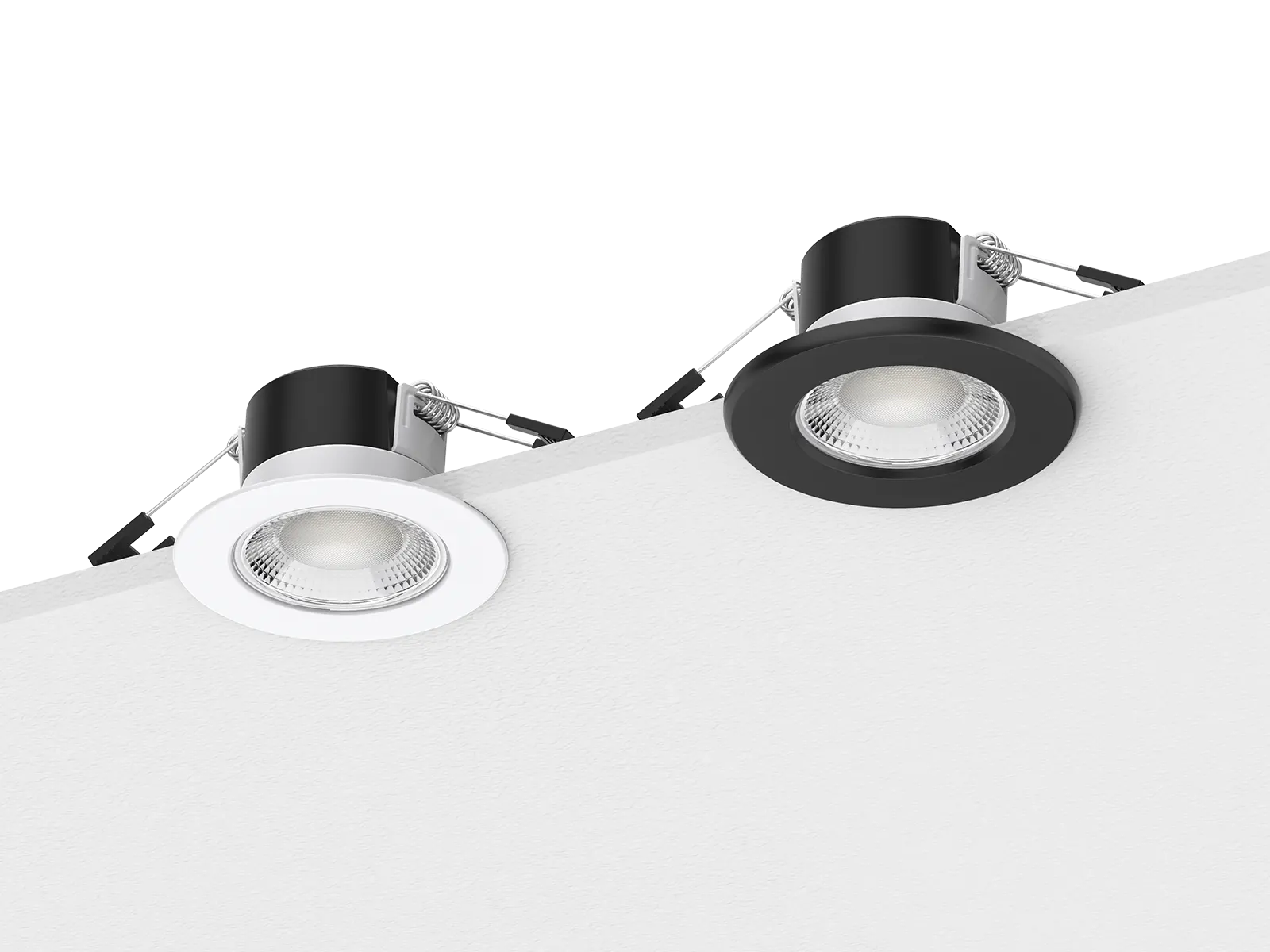

This fire-rated downlight complies with UK standards and offers a variety of decorative trim colors to choose from. It features rear dip-switch CCT selection, an IP65 front protection rating, and a fast connect terminal box for easy wiring. It is a highly cost- effective residential downlight.
Applications: Suitable for homes, offices, hotels, studios, cafés, corridors, museums, libraries, and more.
| Code | DL496-2.5-6W-DC3 | ||
|---|---|---|---|
| Dimension(mm) | Ø85*45 | ||
| Cutout(mm) | Ø60-70mm | ||
| Watt(W) | 6W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | ≤6 | ||
| CCT(K) | 3-CCT: 3000K + 4000K + 5700K | ||
| CCT Selection | YES | ||
| Luminous Flux (lm) ±5% CRI80 | 3-CCT | DIM | 700-800lm |
| CRI | CRI80 | ||
| Beam Angle(°) | 60° | ||
| UGR | - | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | PC | ||
| Housing Material | SPCC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C (25°C IC Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
