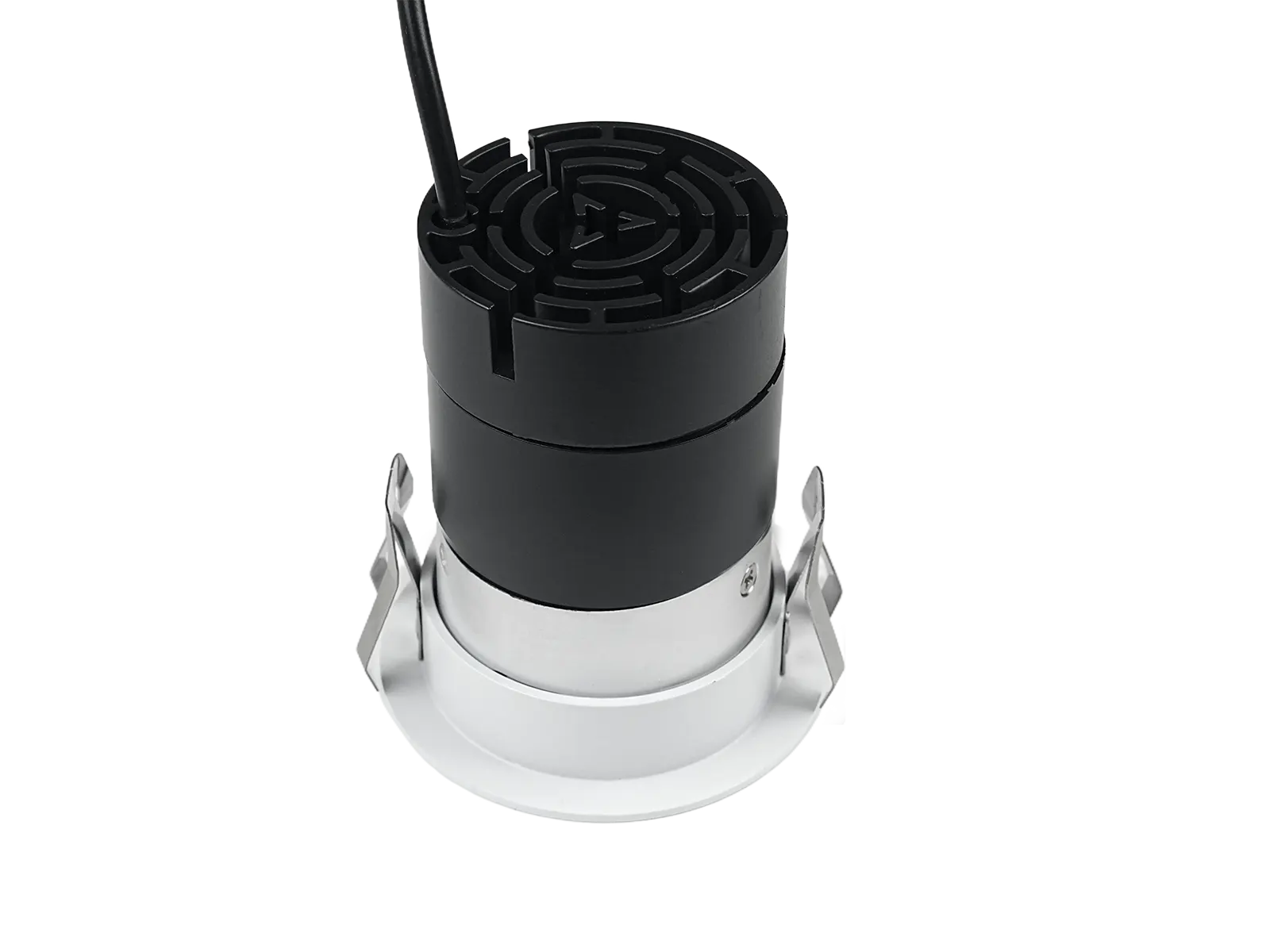

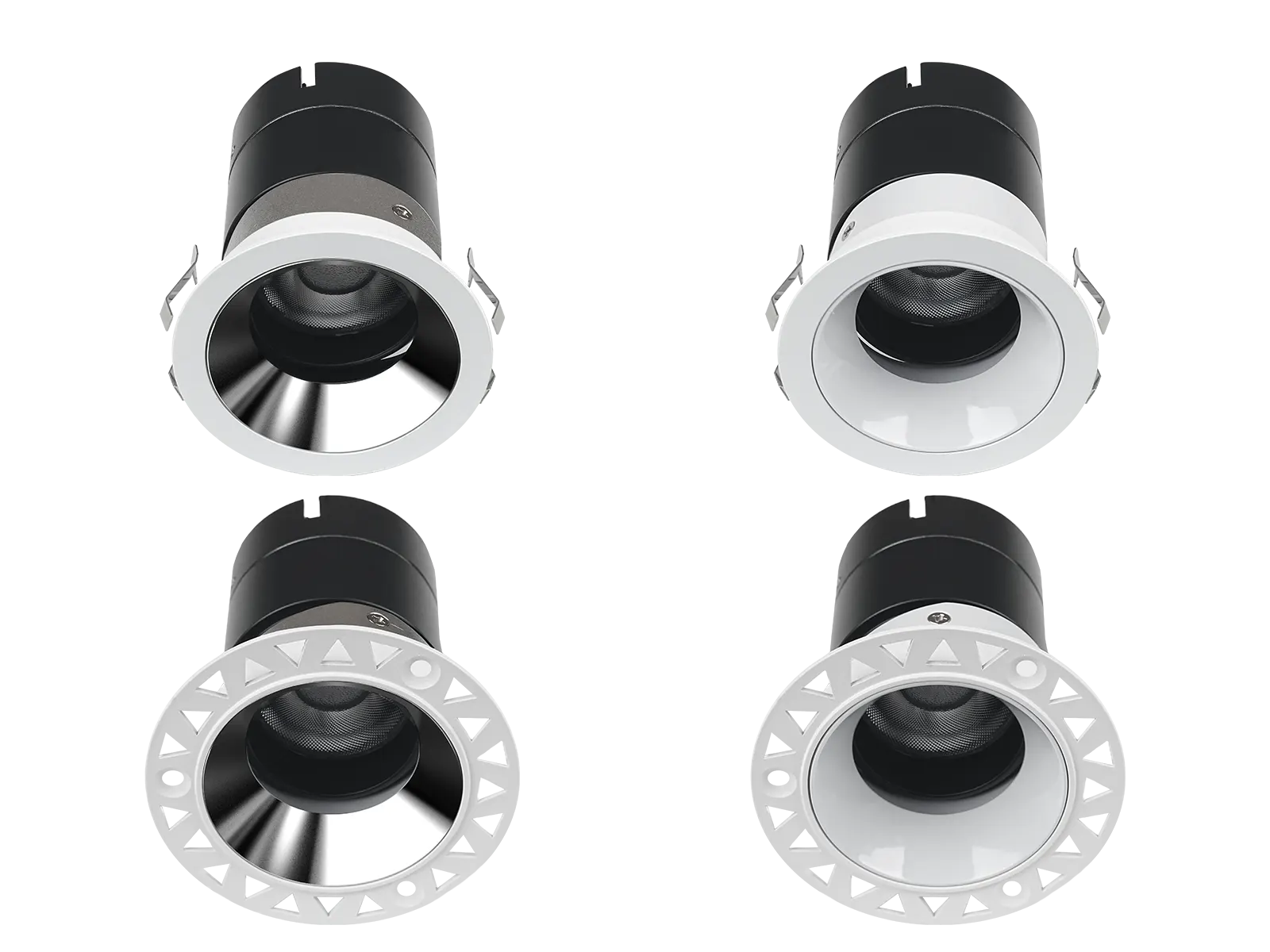

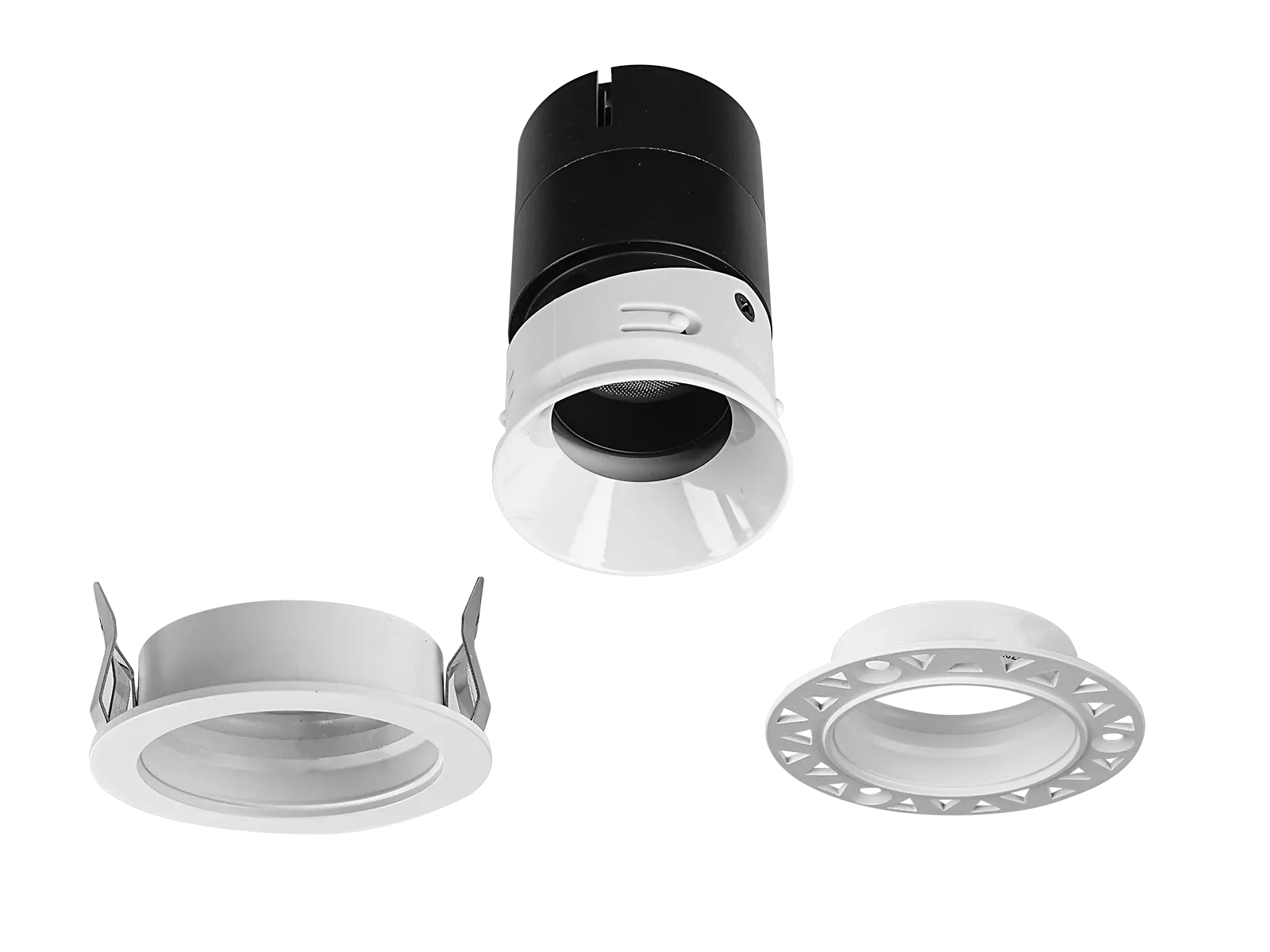

This is a small cut-out downlight series designed for accent lighting in hotels, homes, and similar applications. It offers narrow trim and trimless designs, which could be interchangeable. Featuring a deep anti-glare design, high CRI90 for true-to-life color rendering, and 15° adjustable tilt angle, it is a high-performance downlight solution.
Applications: It is designed for general lighting applications in office, hotel, living rooms, bedrooms, wall art, wall cabinets, and similar settings.
| Code | DL493A-40-5W | DL493A-45-7W | DL493A-55-10W | DL493A-65-12W | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø45*67 | Ø50*74 | Ø65*79 | Ø75*88 | |
| Cutout(mm) | Ø40 | Ø45 | Ø55 | Ø65 | |
| Watt(W) | 5W | 7W | 10W | 12W | |
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | COB | ||||
| SDCM | <5 | ||||
| CCT(K) | 1CCT: 2700K/3000K/4000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Luminous Flux (lm) ±5% CRI90 | Non-DIM | 230-250 (20º) | 440-460 (20º) | 770-800 (20º) | 840-870 (15°) |
| 350-380 (30°) | 630-700 (30°) | 920-980 (24°) | 1050-1160 (20º) | ||
| 350-400 (36°) | 570-680 (36°) | 940-970 (36°) | 1070-1170 (30°) | ||
| 350-390 (50°) | 600-660 (50°) | 770-870 (60°) | 890-990 (50°) | ||
| DIM | 220-230 (20º) | 400-470 (20º) | 710-810 (20º) | 800-880 (15°) | |
| 320-360 (30°) | 550-630 (30°) | 770-900 (24°) | 930-1020 (20º) | ||
| 290-310 (36°) | 500-530 (36°) | 850-900 (36°) | 1020-1100 (30°) | ||
| 280-310 (50°) | 420-490 (50°) | 720-810 (60°) | 830-950 (50°) | ||
| CRI | CRI90 | ||||
| Beam Angle(°) | 20°/30°/36°/50° | 20°/30°/36°/50° | 20°/24°/36°/60° | 15°/20°/30°/50° | |
| UGR | <13@ 20°/30°/36°, <19@50° | <13@ 20°/30°/36°, <19@50° | <13@ 20°/24°/36°, <22@60° | <13@ 15°/20°/30°, <24@50° | |
| LED Driver | Built-out, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 / Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium 6063 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C ~ 45°C | ||||
| Storage Temp.(°C) | -20°C ~ 65°C | ||||
| Installation | Recessed | ||||
| Code | DL493B-40-5W | DL493B-45-7W | DL493B-55-10W | DL493B-65-12W | |
|---|---|---|---|---|---|
| Dimension(mm) | Ø60*67 | Ø65*74 | Ø75*79 | Ø85*88 | |
| Cutout(mm) | Ø40 | Ø45 | Ø55 | Ø65 | |
| Watt(W) | 5W | 7W | 10W | 12W | |
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | COB | ||||
| SDCM | <5 | ||||
| CCT(K) | 1CCT: 2700K/3000K/4000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Luminous Flux (lm) ±5% CRI90 | Non-DIM | 230-250 (20°) | 230-250 (20°) | 230-250 (20°) | 230-250 (15°) |
| 350-380 (30°) | 350-380 (30°) | 350-380 (24°) | 350-380 (20°) | ||
| 350-400 (36°) | 350-400 (36°) | 350-400 (36°) | 350-400 (30°) | ||
| 350-390 (50°) | 350-390 (50°) | 350-390 (60°) | 350-390 (50°) | ||
| DIM | 220-230 (20°) | 220-230 (20°) | 220-230 (20°) | 220-230 (15°) | |
| 320-360 (30°) | 320-360 (30°) | 320-360 (24°) | 320-360 (20°) | ||
| 290-310 (36°) | 290-310 (36°) | 290-310 (36°) | 290-310 (30°) | ||
| 280-310 (50°) | 280-310 (50°) | 280-310 (60°) | 280-310 (50°) | ||
| CRI | CRI90 | ||||
| Beam Angle(°) | 20°/30°/36°/50° | 20°/30°/36°/50° | 20°/24°/36°/60° | 15°/20°/30°/50° | |
| UGR | <13@ 20°/30°/36°, <19@50° | <13@ 20°/30°/36°, <19@50° | <13@ 20°/24°/36°, <22@60° | <13@ 15°/20°/30°, <24@50° | |
| LED Driver | Built-out, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 / Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium 6063 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C ~ 45°C | ||||
| Storage Temp.(°C) | -20°C ~ 65°C | ||||
| Installation | Recessed | ||||
