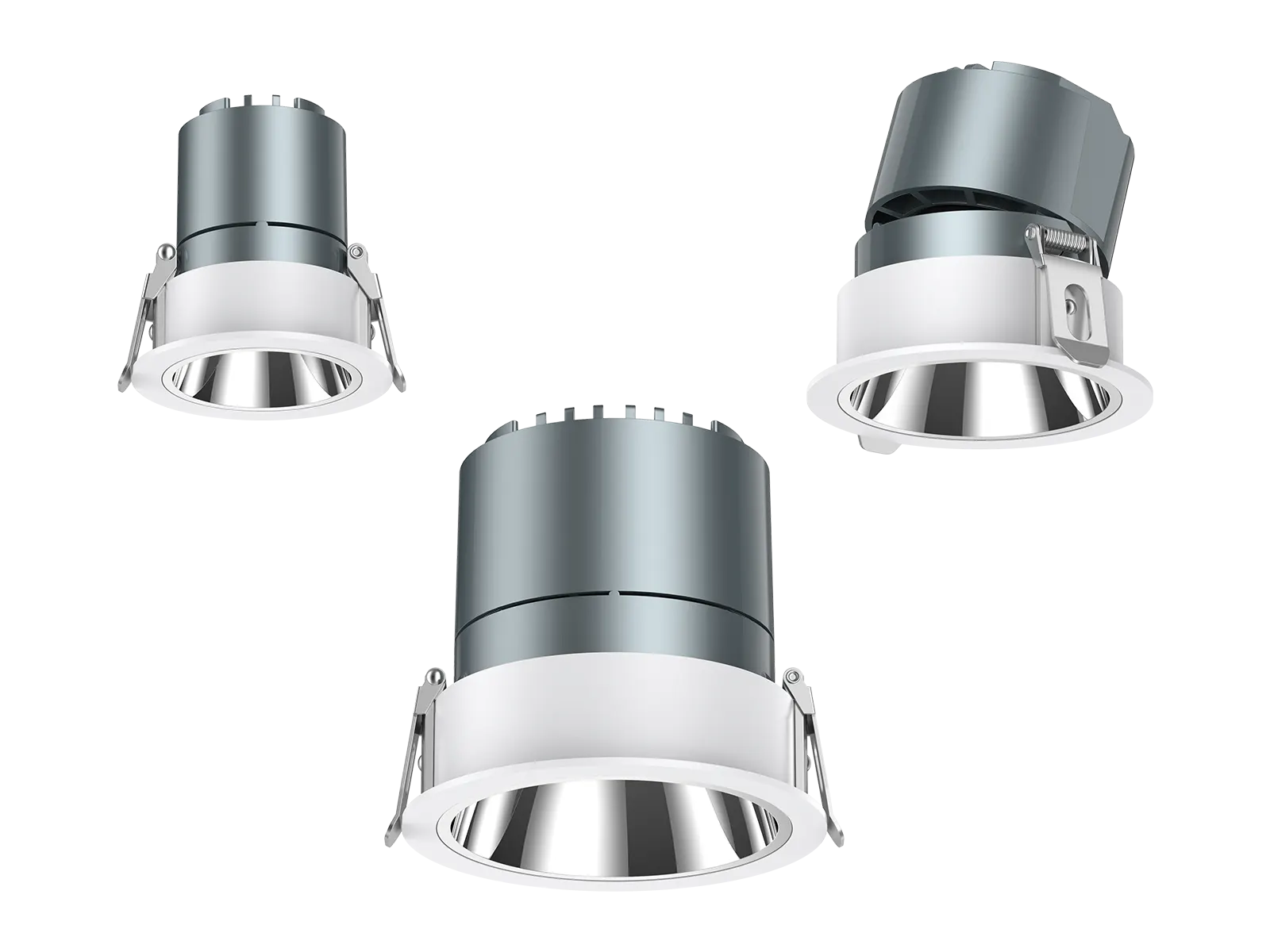

This is a flicker-free, deep-recessed anti-glare downlight series designed specifically for accent lighting in hotels, residences, and similar spaces. The product is available in two styles-narrow trim and trimless, featuring a modular structure with interchangeable reflectors and outer rings. With a high color rendering index of CRI90 for true-to-life color reproduction and a 20° adjustable angle, it offers a high-performance downlight solution.
Applications: It is designed for general lighting applications in office, hotel, living rooms, bedrooms, wall art, wall cabinets, and similar settings.
| Code | DL492A-55-5W | DL492A-55-7W | DL492A-75-8W | DL492A-75-10W | DL492A-95-13W | DL492A-95-15W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*H70 | Ø85*H80 | Ø105*H100 | |||||
| Cutout(mm) | Ø55 | Ø75 | Ø95 | |||||
| Watt(W) | 5W | 7W | 8W | 10W | 13W | 15W | ||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| LED Module Input | DC32-38V | |||||||
| Light Source | COB | |||||||
| SDCM | <5 | |||||||
| CCT(K) | 1CCT:2700K/3000K/4000K | |||||||
| CCT Selection | - | |||||||
| Luminous | 1-CCT | Non-DIM | 300-400 | 400-470 | 520-560 | 660-760 | 950-1000 | 1060-1150 |
| Flux (lm) ±5% CRI90 | DIM | 300-360 | 390-450 | 510-550 | 640-740 | 890-950 | 1060-1150 | |
| CRI | CRI90 | |||||||
| Beam Angle(°) | 24°/30°/40° | 30°/36°/40° | 30°/36°/45° | |||||
| UGR | <19 | |||||||
| LED Driver | Built-out, Flicker Free | |||||||
| Dimming Option | Triac | |||||||
| Sensor | NO | |||||||
| Emergency Kits | NO | |||||||
| Electrical Class | Class II | |||||||
| Ingress Protection(IP Rating) | IP20 | |||||||
| Impact Resistance(IK Rating) | IK06 | |||||||
| Product Finishing | White RAL9016 | |||||||
| Optics Material | PC | |||||||
| Housing Material | Die-Casting Aluminium | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||
| Installation | Recessed | |||||||
