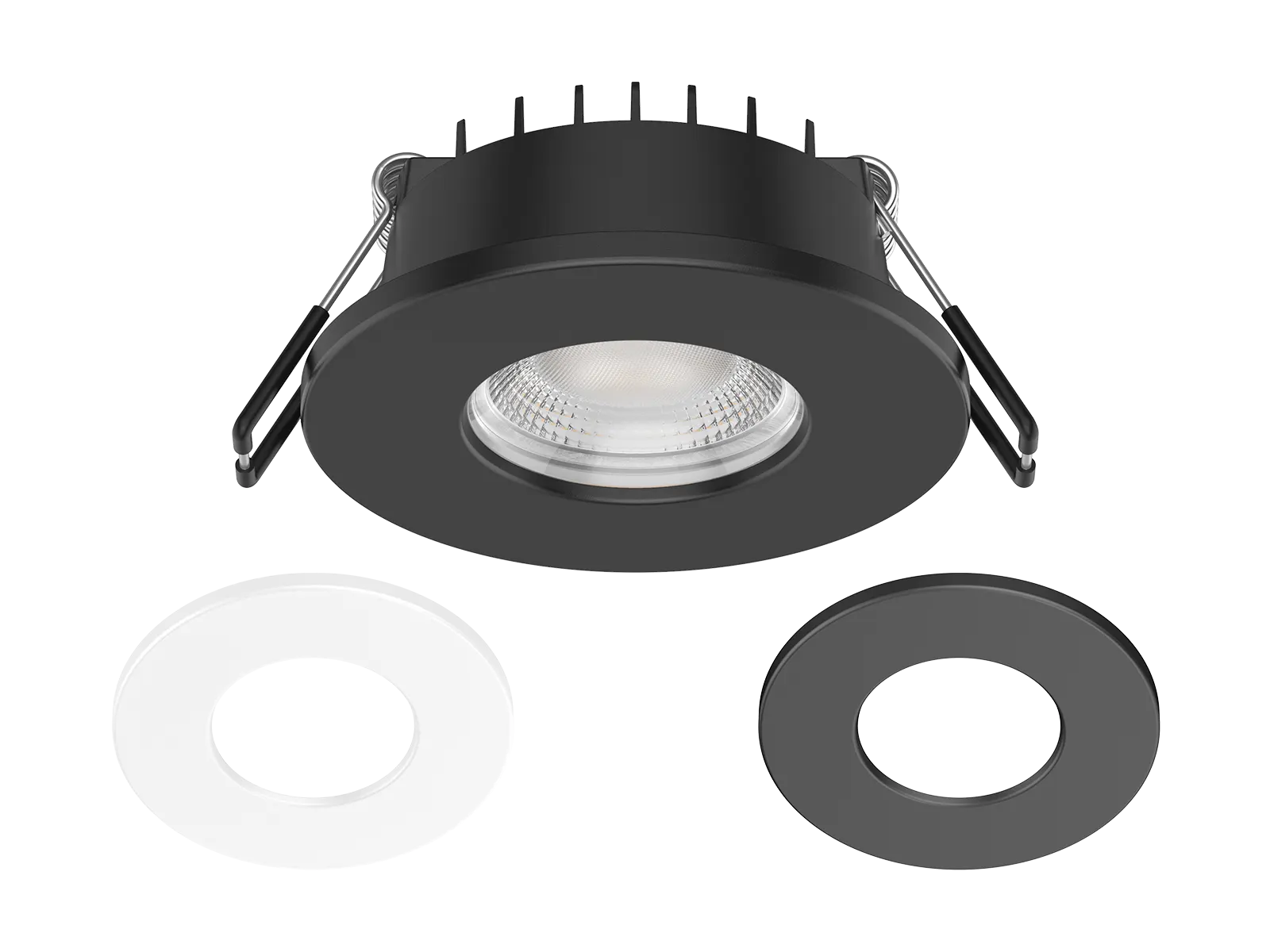

The product is made from ADC12 die-cast aluminum, which offers excellent heat dissipation. The overall height of the light is less than 40mm, making it suitable for installation in narrow ceiling spaces. It also supports multifunctionality with adjustable power of 10W/8.5W and a 60-degree beam angle. The front cover is magnetic design with replaceable white and black trims.
Applications: It is designed for general lighting applications in supermarket, shop, school, hotel etc. It is als o widely used for residential lighting areas, such as bedroom, living room, corridors etc.
| Code | DL489-2.5-10W | ||
|---|---|---|---|
| Dimension(mm) | Ø83*H33 | ||
| Cutout(mm) | Ø68 | ||
| Watt(W) | 10W/8.5W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-265V | ||
| LED Module Input | DC33-38V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 3-CCT: 2700K+3000K+4000K | ||

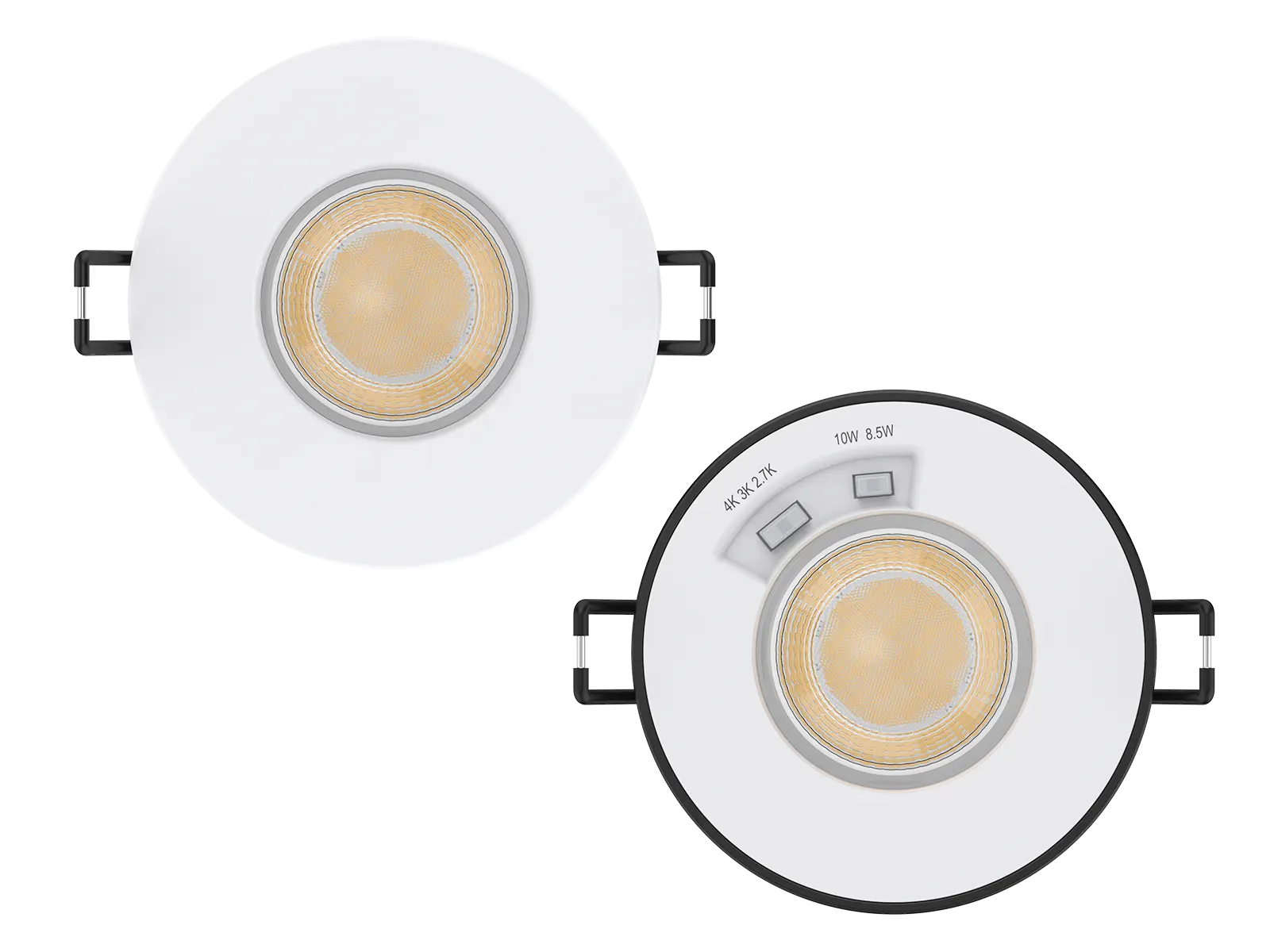

| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% | 3-CCT | Non- | 10W: 1100-1200 |
| CRI80 | DIM | 8.5W: 860-930 | |
| DIM | 10W: 1100-1200 | ||
| 8.5W: 860-930 | |||
| CRI | CRI80 | ||
| Beam Angle(°) | 60° | ||
| UGR | - | ||
| LED Driver | Built-out, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | - | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016/Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | Die-Casting Aluminum | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
