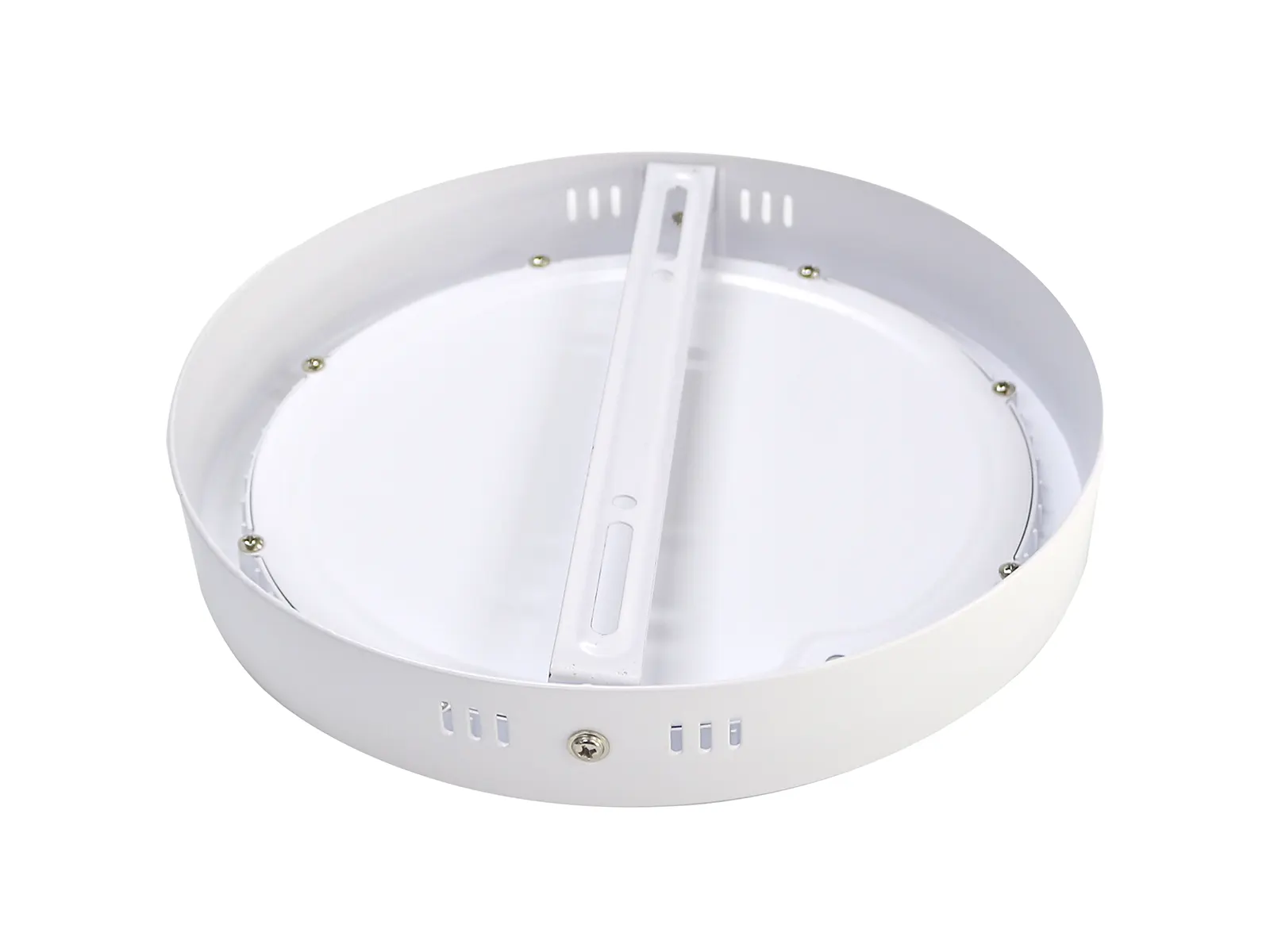

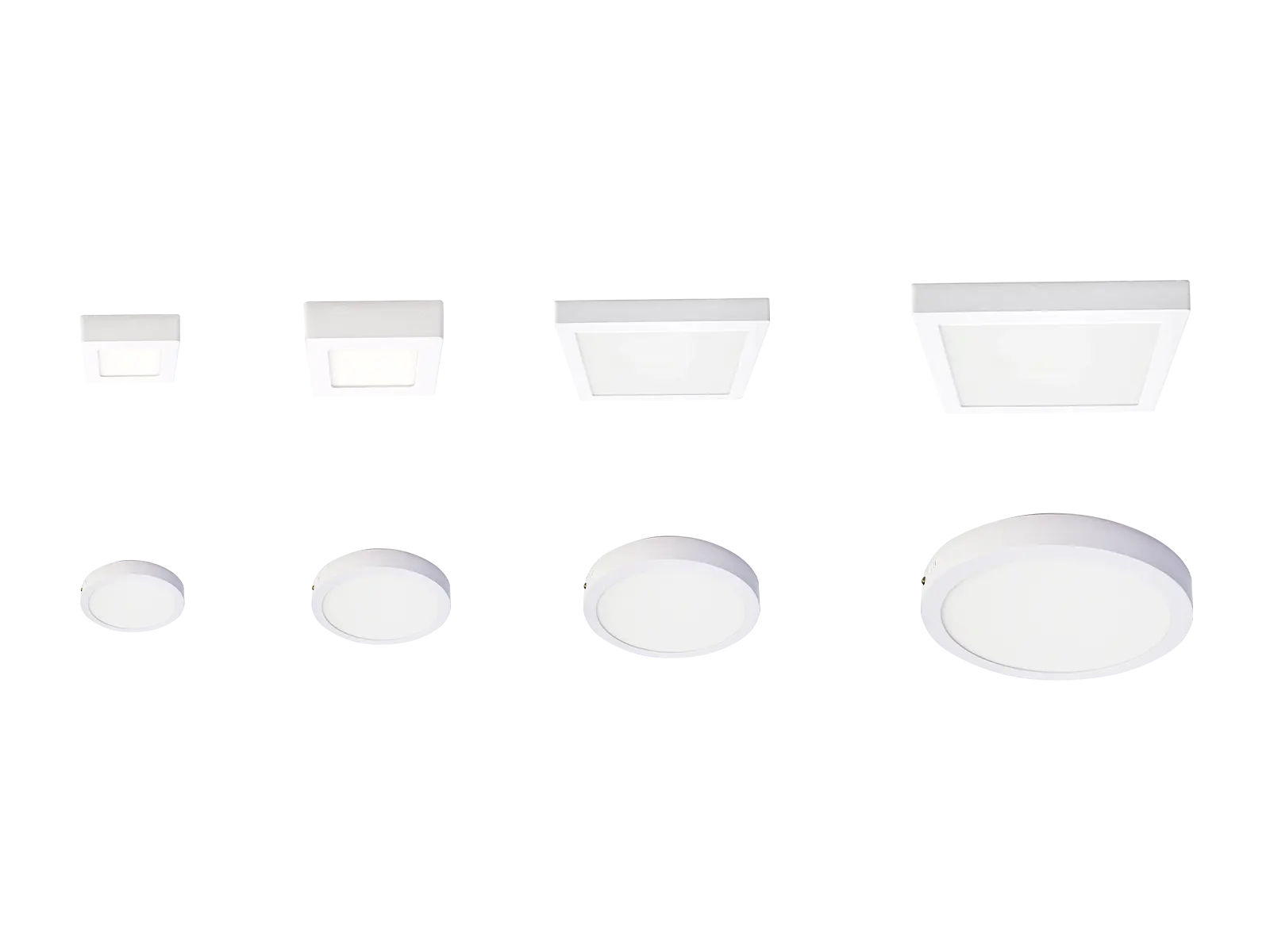

This is a surface mounted downlight available in square and round shapes, with various sizes options. The back cover is made of SPCC powder-coated steel with good thermal conductivity. It adopts milky diffuser which provides uniform and soft illumination, the light fixture is long-life span, eco-friendly, and energy-efficient.
Applications: Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc. Other situations: hospital, laboratory, dust-free workshop etc.
| Code No | DL480 120 7W | DL480 170 12W | DL480 225 18W | DL480 300 24W | DL480 1212 7W | DL480 1717 12W | DL480 2222 18W | DL480 3030 24W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø120*35 | Ø170*35 | Ø224*35 | Ø300*35 | 120*120*35 | 170*170*35 | 225*225*35 | 300*300*35 | ||
| Watt(W) | 7W | 12W | 18W | 24W | 7W | 12W | 18W | 24W | ||
| Rated Input Voltage(V) | AC/220-240V | |||||||||
| Input Voltage(V) | AC198-264V | |||||||||
| LED Module Input | 30-36V | 33-38V | 33-38V | 33-38V | 30-36V | 33-38V | 33-38V | 33-38V | ||
| Light Source | SMD2835 | |||||||||
| SDCM | < 6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K 3-CCT: 3000K+4000K+5700K | |||||||||
| CCT Selection DIP Switch | YES | |||||||||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 1-CCT | 500-620lm | 950-1100lm | 1500-1750lm | 2150-2650lm | 500-620lm | 950-1100lm | 1500-1750lm | 2150-2650lm |
| DIM | - | |||||||||
| Non-DIM | 3-CCT | 480-650lm | 900-1250lm | 1400-1850lm | 2150-2750lm | 480-650lm | 900-1250lm | 1400-1850lm | 2150-2750lm | |
| DIM | - | |||||||||
| CRI | ≥80 | |||||||||
| Beam Angle (°) | 120° | |||||||||
| LED Driver | Driver built-out | |||||||||
| Electrical Class | Class Ⅱ | |||||||||
| Ingress Protection (IP Rating) | IP20 | |||||||||
| Impact Resistance (IK Rating) | IK04 | |||||||||
| Product Finishing(Base) | White | |||||||||
| Materials of Optics | PS(Diffuser)+PMMA(LGP) | |||||||||
| Materials of Housing | Aluminium+SPCC | |||||||||
| Lifetime (hr) | 50000h | |||||||||
| Glow wire test (℃ ) | 650℃ | |||||||||
| Operating Temp. (℃ ) | -10-40℃ | |||||||||
Storage Temp. ( ) | -20-50℃ | |||||||||
| Installation | Surface mount | |||||||||
