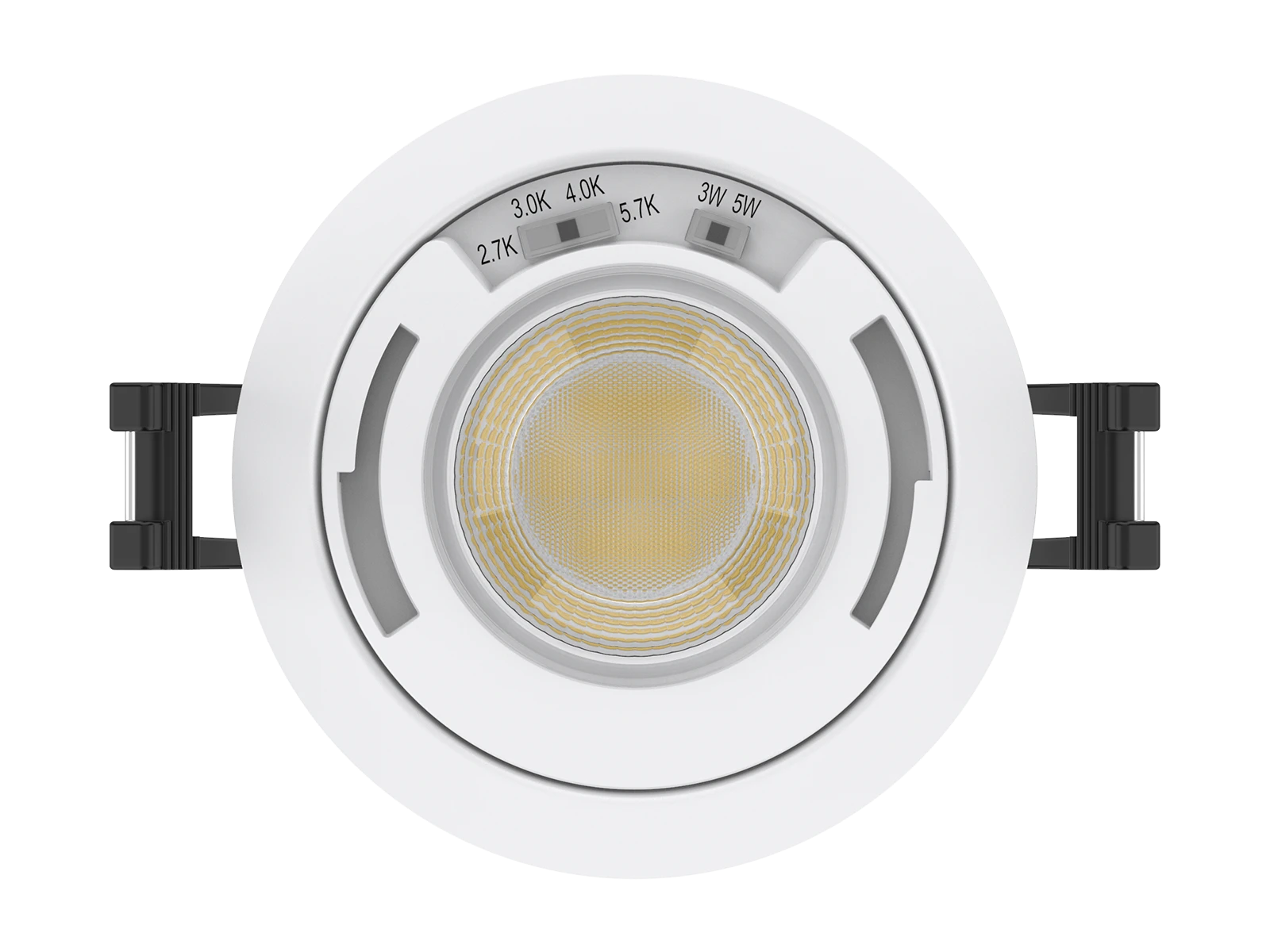

This UK fire-rated downlight cleverly hides the dip switches for power and color temperature adjustment beneath the front cover. It comes with multiple interchangeable cover colors to meet different users’ personalized needs. Tool-free male-female plug connection box enables fast installation and supports daisy-chained wiring for flexible lighting layouts. With a front IP65 rating, CRI 90, high efficacy, and excellent cost performance, it is a premium fire-rated downlight.
Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc.
| Code | DL479A-2.5-5W-D2 | DL479B-2.5-5W-D2 | ||
|---|---|---|---|---|
| Dimension(mm) | Ø85*45 | Ø85*65 | ||
| Cutout(mm) | 68 | |||
| Watt(W) | 5W-3W | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 4-CCT: 2700K+3000K + 4000K + 5700K | |||
| CCT Selection | YES | |||

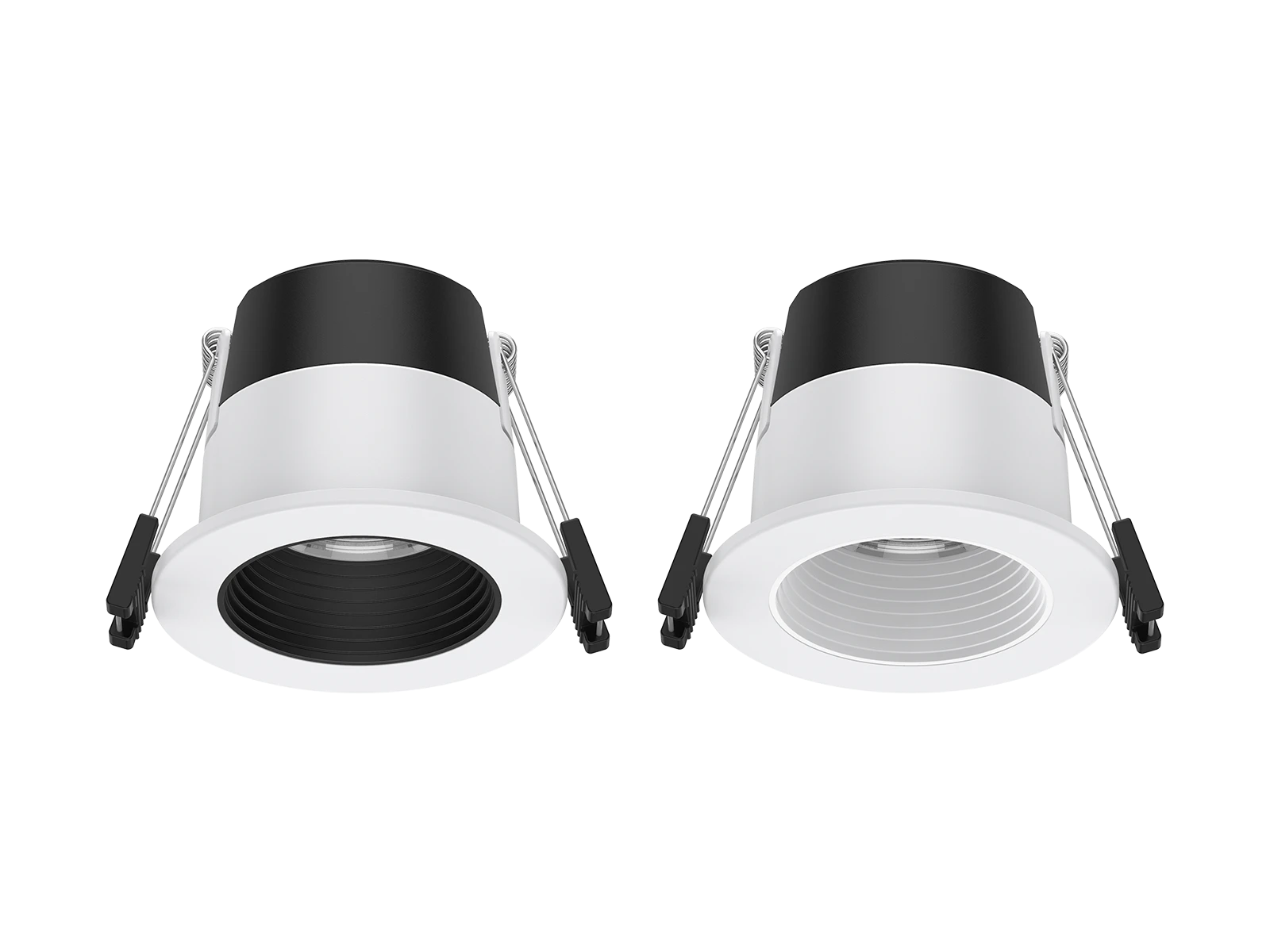

| Luminous Flux (lm) ±5% | 5W: 630-700 | Anti-glare baffle WT 5W: 580-650 | ||
| CRI90 | 4-CCT | DIM | 3W: 390-430 | Anti-glare baffle WT 3W: 360-400 |
| Anti-glare baffle BK 5W: 530-580 | ||||
| Anti-glare baffle BK 3W: 320-350 | ||||
| CRI | 90 | |||
| Beam Angle(°) | 60° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||

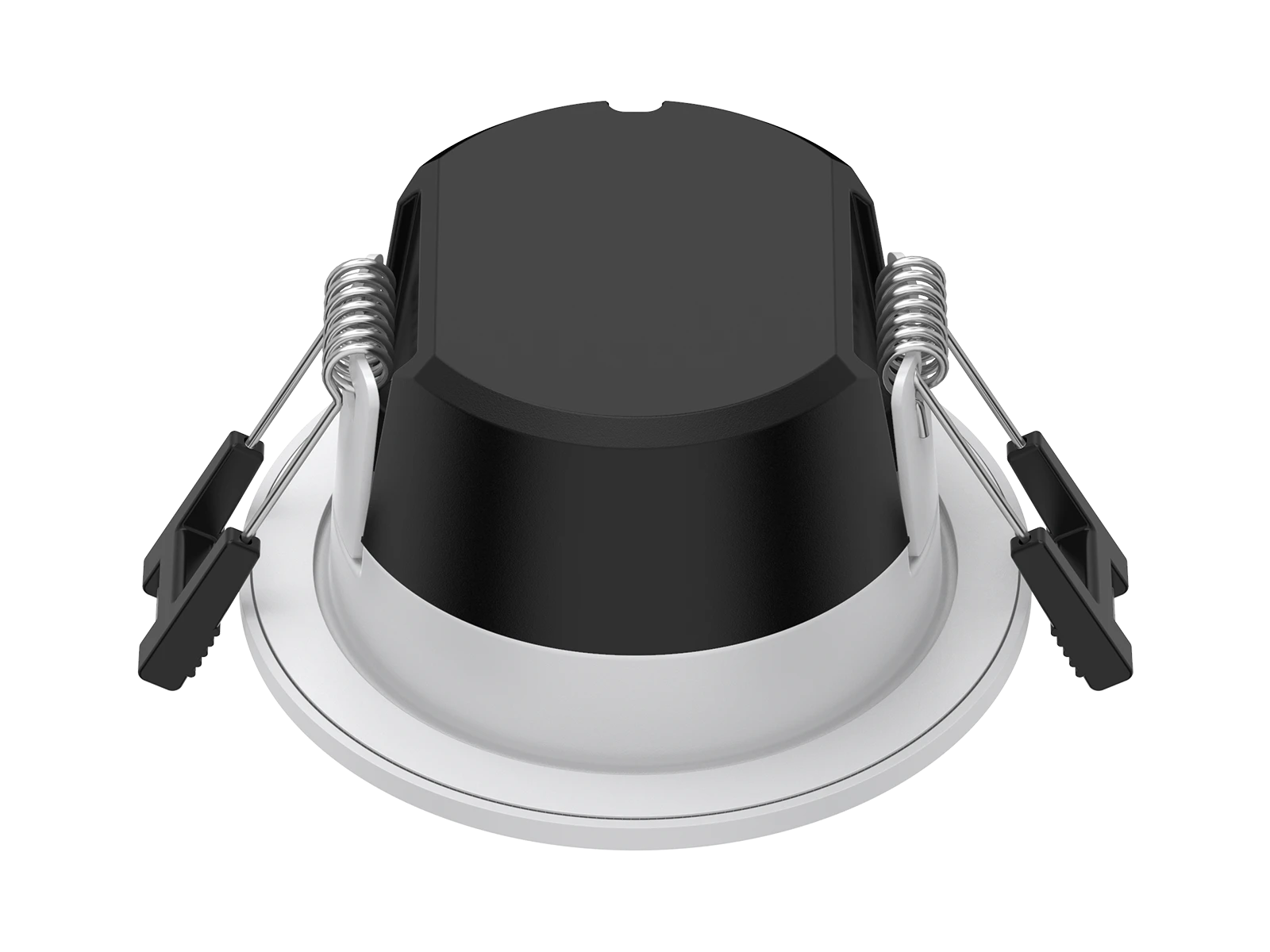

| Dimming Option | Triac | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | |||
| Impact Resistance(IK Rating) | IK04 | |||
| Product Finishing | White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | SPCC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~45°C (25°C IC-Rated) | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Recessed | |||
