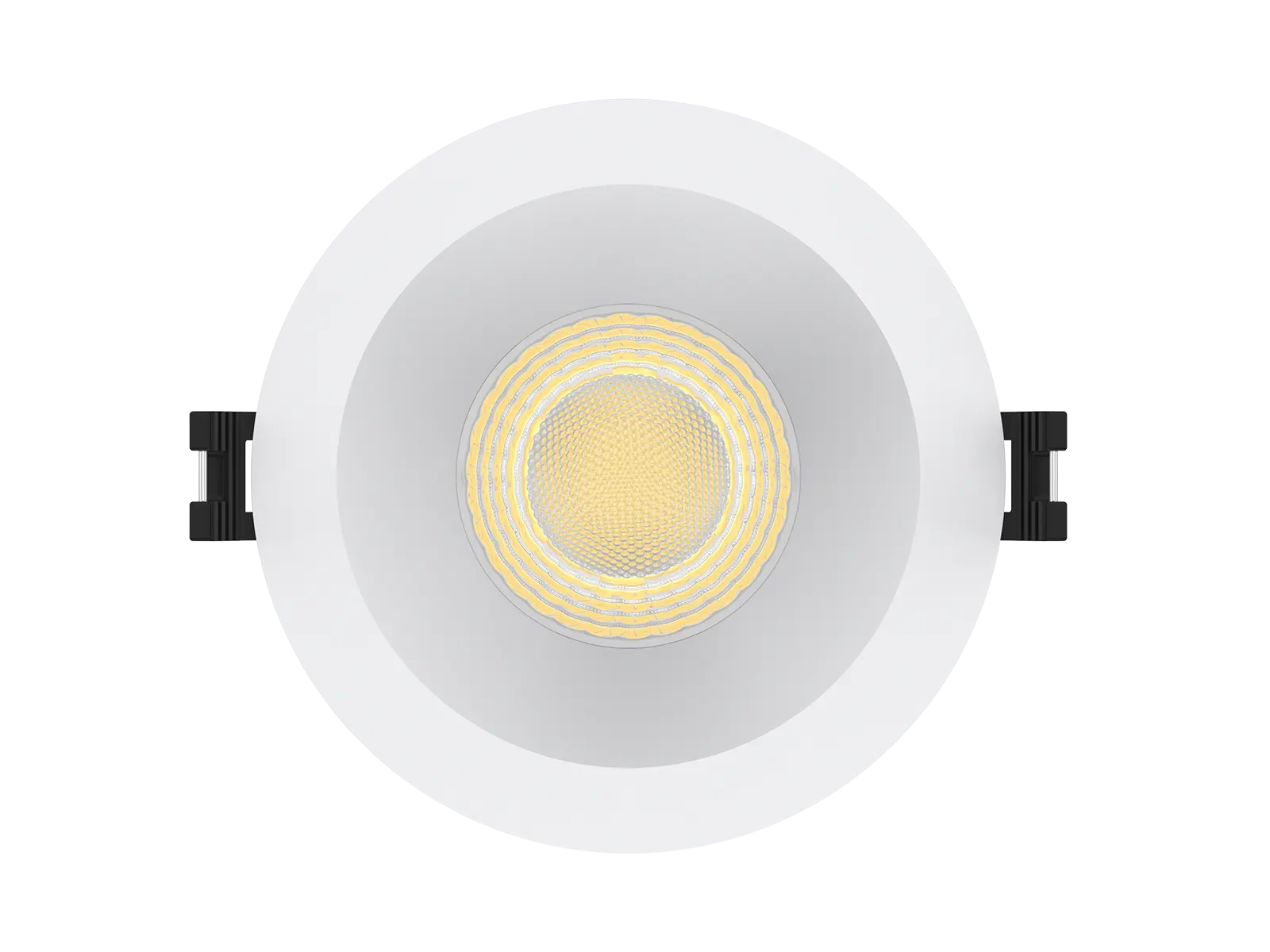

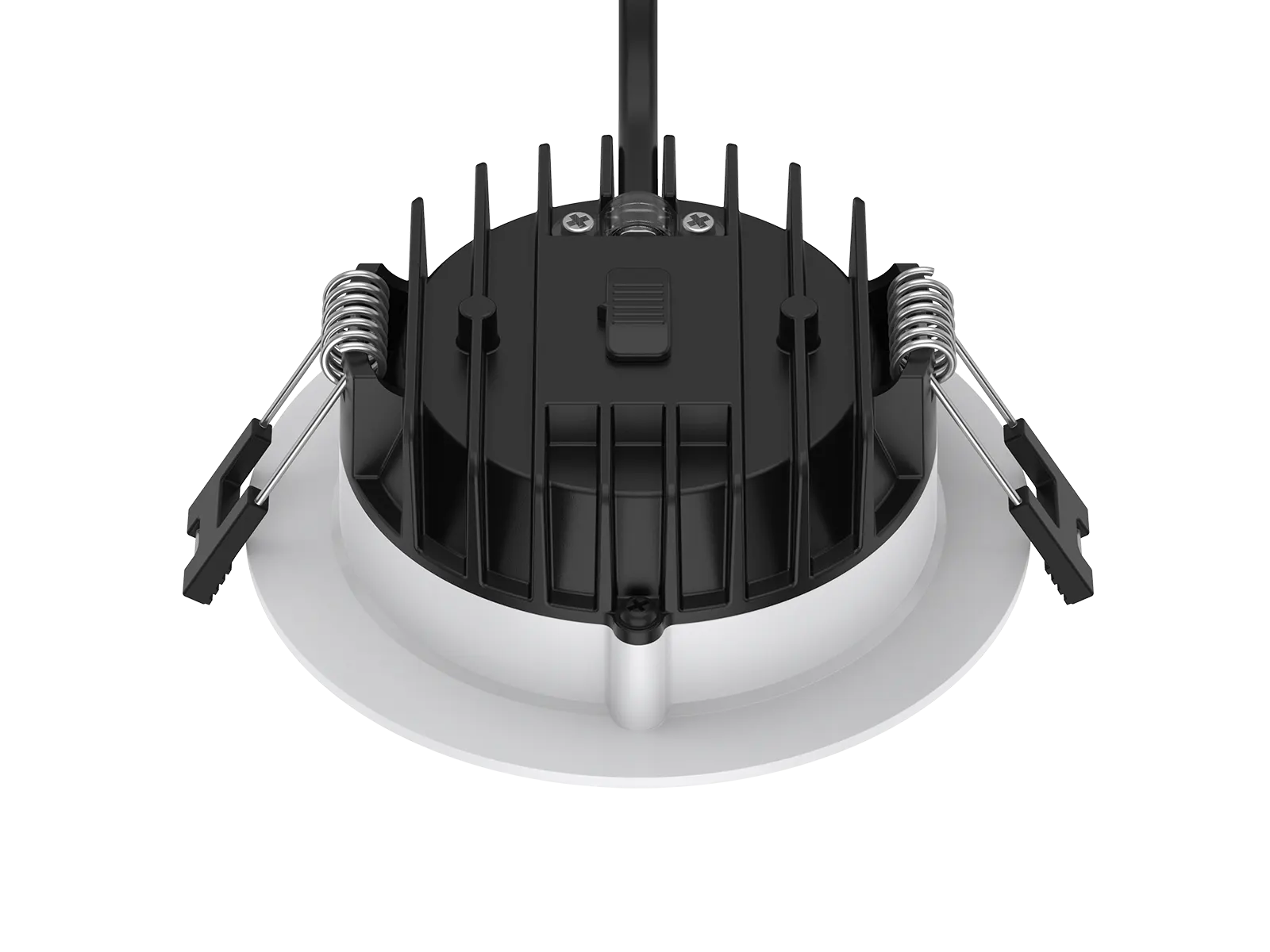

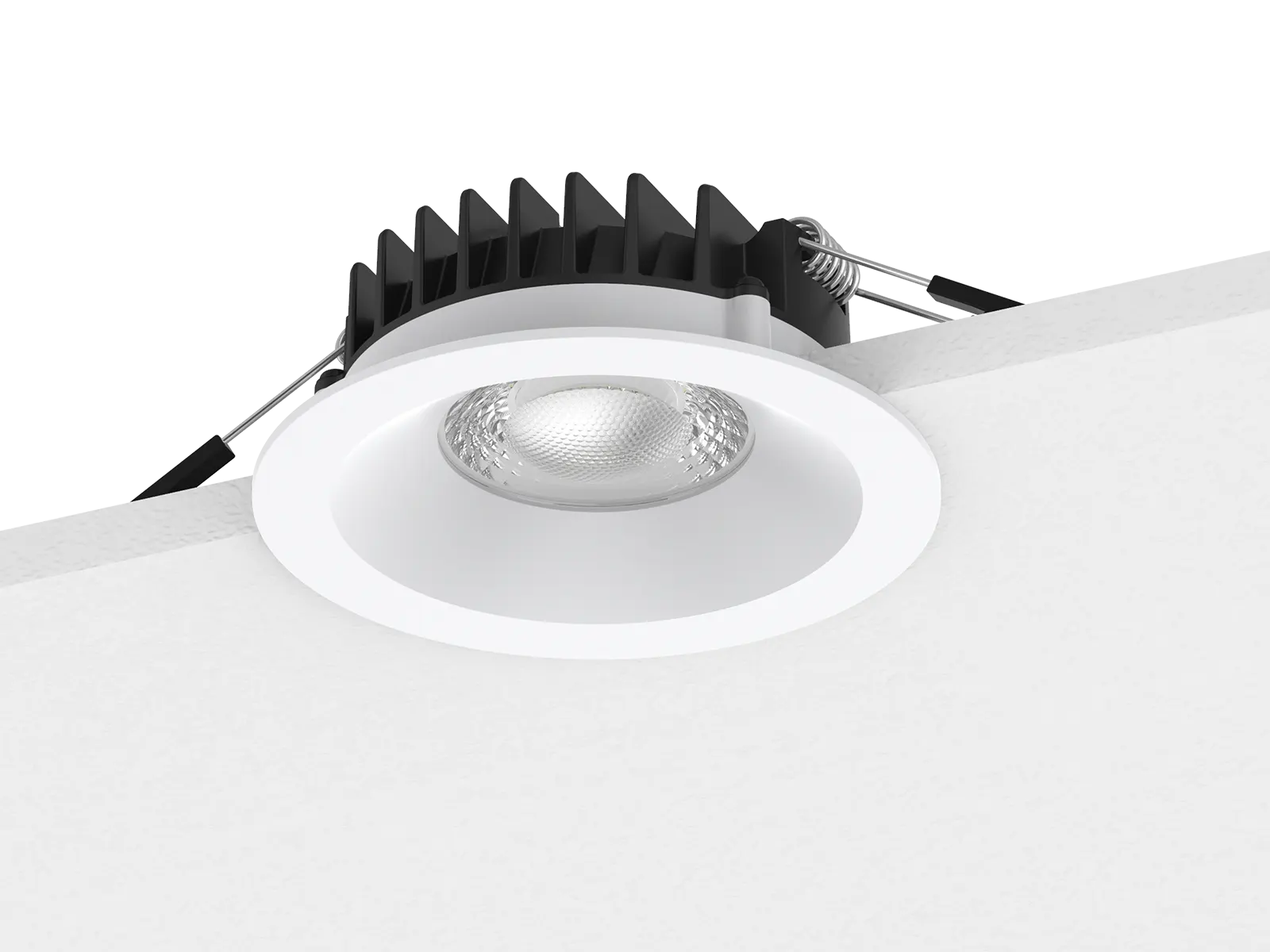

This is a super slim downlight with only 40mm height lamp body, using high lumen SMD 2835LEDs to achieve high efficiency. CRI90 presents more accurate and true color of the objects. The plastic-coated aluminum housing provides good thermal management and has a great popularity by the excellent dimming effect.
Applications: It is designed for general lighting applications in supermarket, shop, school, hotel etc. It is also widely used for residential lighting areas, such as bedroom, living room, corridors etc.
| Code | DL477-3-8W-DC3 | ||
|---|---|---|---|
| Dimension(mm) | Ø105*H40 | ||
| Cutout(mm) | Ø90-95 | ||
| Watt(W) | 8W | ||
| Rated Input Voltage | AC200-240V | ||
| Input Voltage | AC198-265V | ||
| LED Module Input | DC33-38V | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 3-CCT: 2700K+3000K+4000K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% CRI90 | 3-CCT | 50° | 720-800 |
| 90° | 850-950 | ||
| CRI | CRI90 | ||
| Beam Angle(°) | 50°/90° | ||
| UGR | 50° | UGR19 | |
| 90° | - | ||
| LED Driver | Built-out, Flicker Free | ||
| Dimming Option | Triac | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP40(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016/BlackRAL9005 | ||
| Optics Material | PC | ||
| Housing Material | Plastic coated Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~ 45°C (25°C IC Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
| Code | DL477-3-7W-DC3 | DL477-3-9W-DC3 | ||
|---|---|---|---|---|
| Dimension(mm) | Ø105*H40 | |||
| Cutout(mm) | Ø90-95 | |||
| Watt(W) | 7W | 9W | ||
| Rated Input Voltage | AC200-240V | |||
| Input Voltage | AC198-265V | |||
| LED Module Input | DC105-110V | |||
| Light Source | SMD | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 3-CCT: 2700K+3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% CRI90 | 3-CCT | 50° | 720-800 | 920-1000 |
| 90° | 850-920 | 980-1080 | ||
| CRI | CRI90 | |||
| Beam Angle(°) | 50° / 90° | |||
| UGR | 50° | UGR<19 | UGR<22 | |
| 90° | - | |||
| LED Driver | Built-out, Flicker Free | |||
| Dimming Option | Triac | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP54(Below Ceiling) IP40(Inside Ceiling) | |||
| Impact Resistance(IK Rating) | IK03 | |||
| Product Finishing | White RAL9016/BlackRAL9005 | |||
| Optics Material | PC | |||
| Housing Material | Plastic coated Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~ 45°C (25°C IC Rated) | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Recessed | |||
