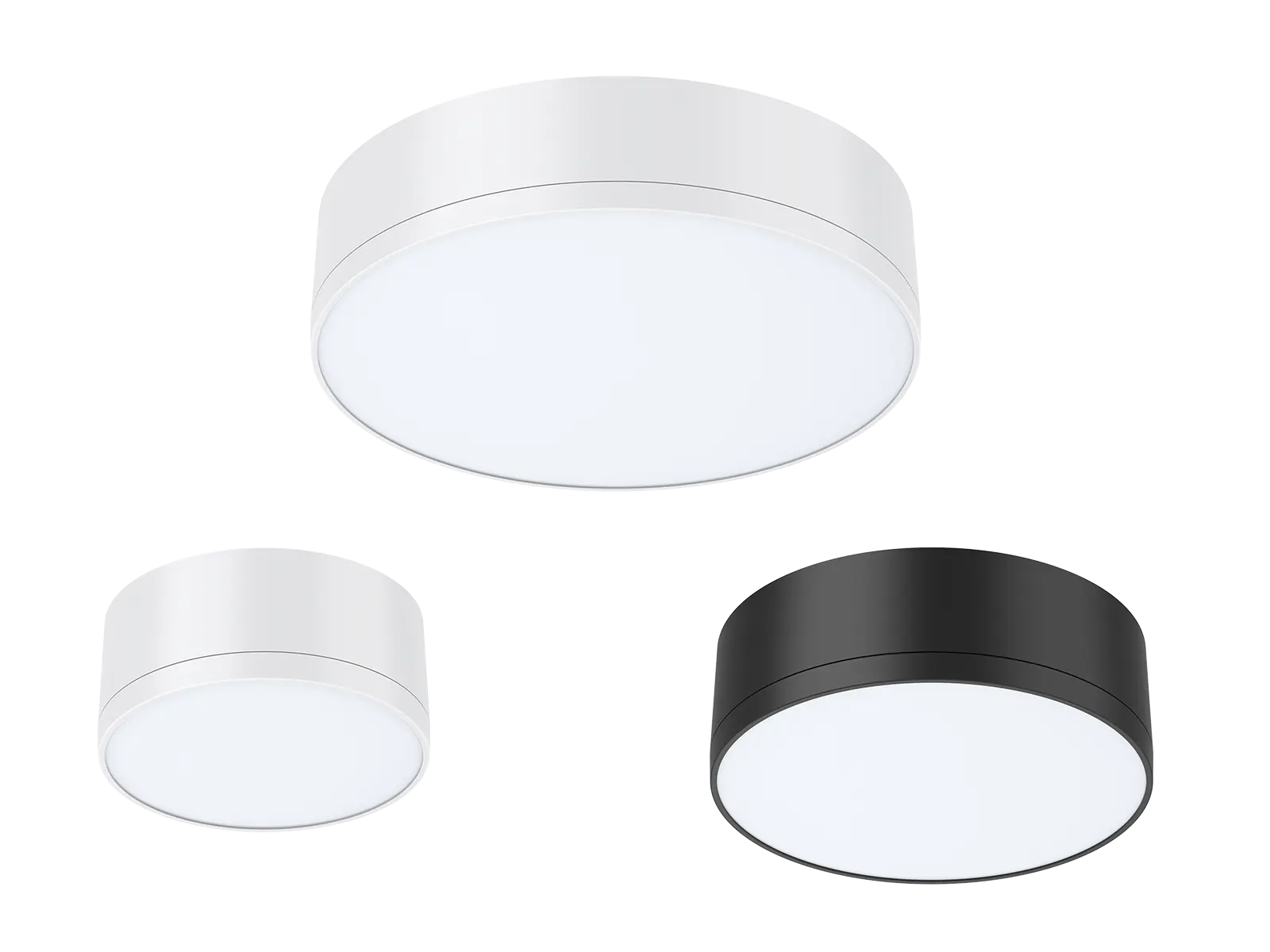

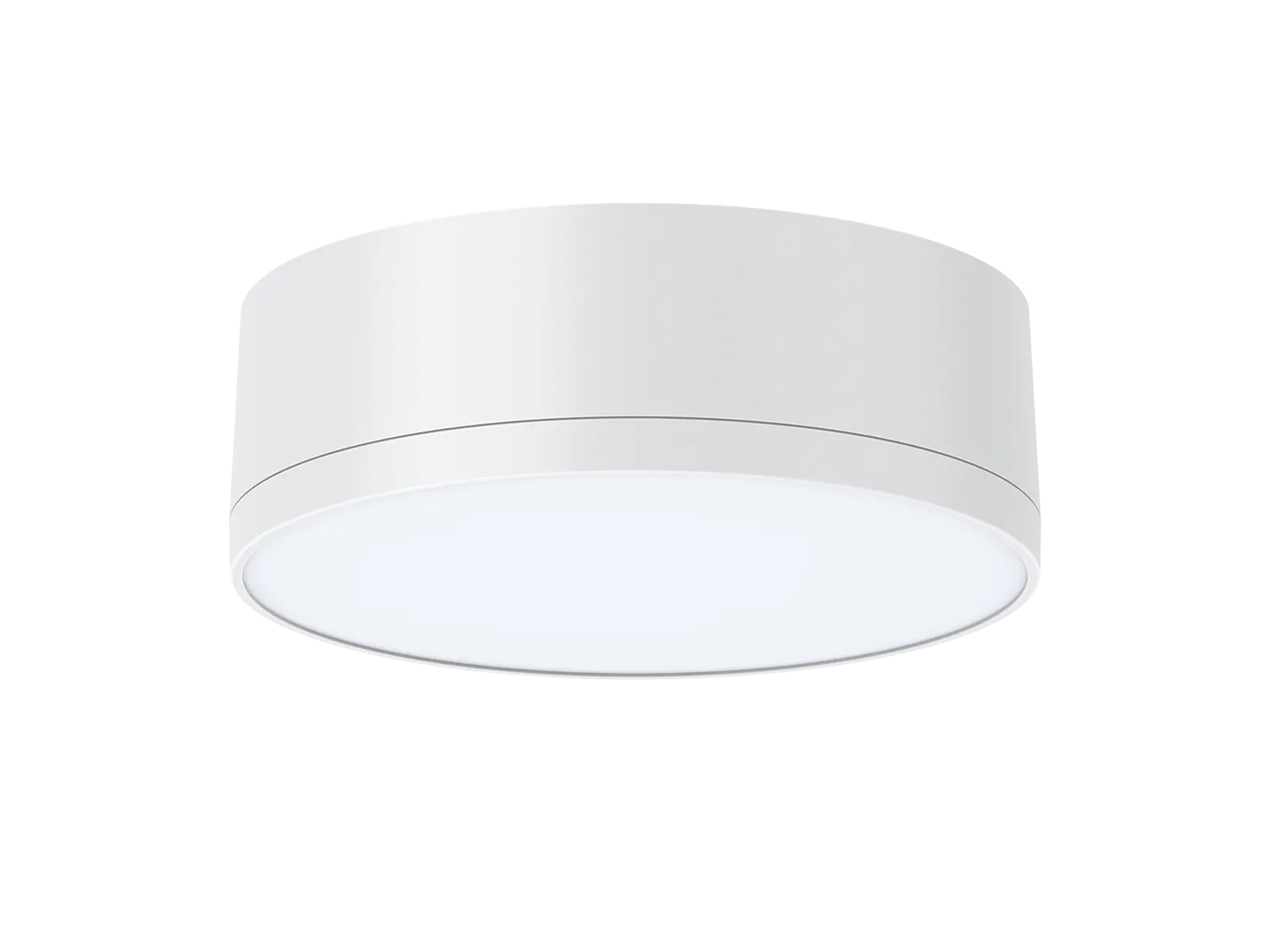

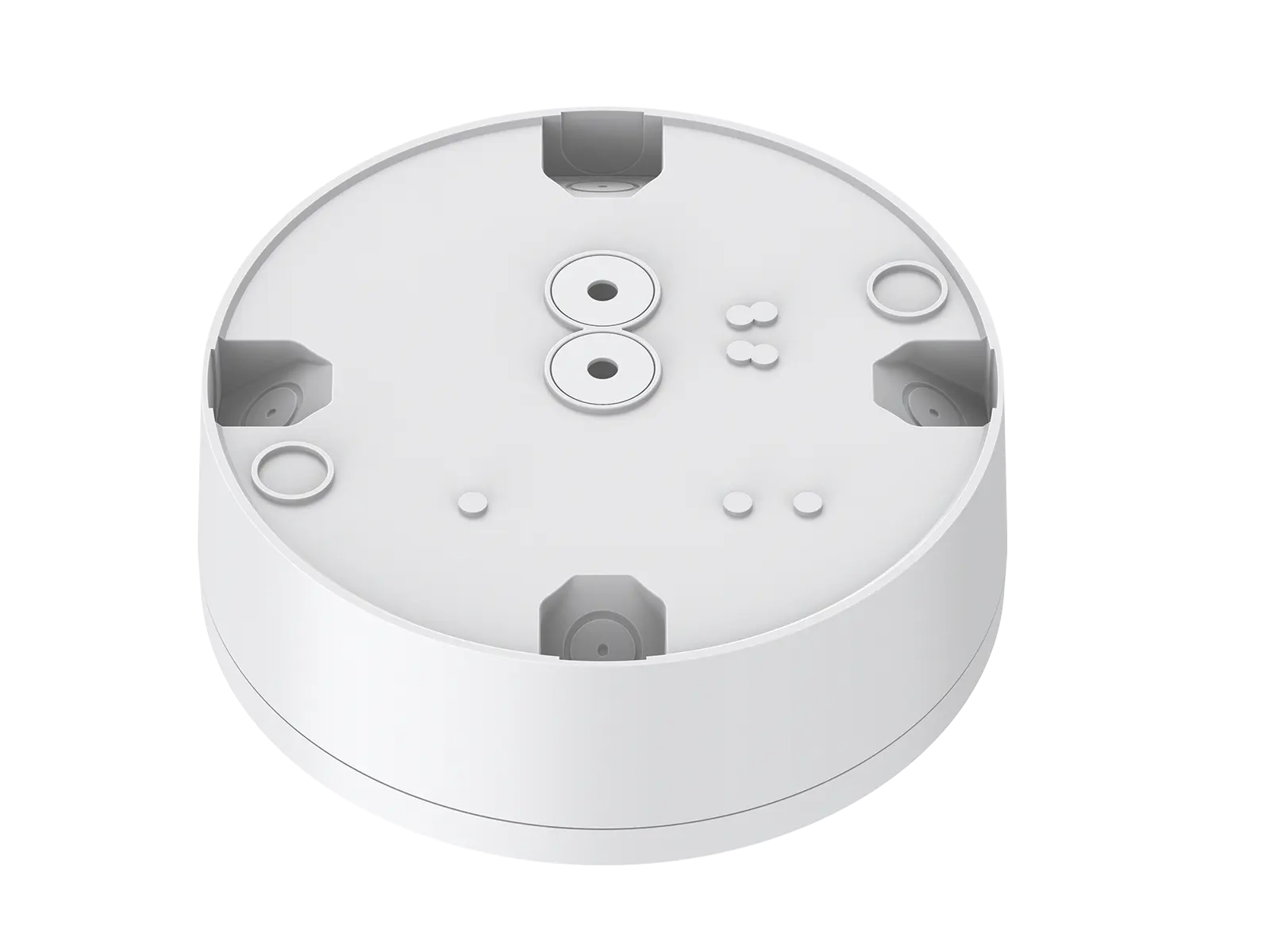

This is a sleek, and simple design, with no screws on appearance. With plastic-coated aluminum housing, it adopts high efficiency SMD LED source, and offers power and color temperature adjustment via DIP switch. And it supports loop in&loop out, and side cable entry. The whole lamp is IP54 rated, with a slim profile of only 54mm height, suitable for both wall and ceiling mounted.
Applications: It is designed for general lighting in homes, offices, stores, hotels, restaurants etc.
| Code | DL476-120-8W | DL476-160-12W | DL476-220-20W | DL476-160-12W-S1 | DL476-220-20W-S1 | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø120*54 | Ø160*54 | Ø220*54 | Ø160*54 | Ø220*54 | ||
| Watt(W) | 8W /6W | 12W/9W | 20W /16W | 12W/9W | 20W /16W | ||
| Rated Input Voltage | AC200-240V | ||||||
| Input Voltage | AC198- 264V | ||||||
| Light Source | SMD | ||||||
| SDCM | SDCM<6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT:3000K+ 4000K+5700K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | - | - | - | 12W: 1310-1450 9W: 1040-1150 | 20W: 2300-2540 16W: 1830-2040 |
| DIM | 8W: 850-940 6W: 670-730 | 12W: 1310-1450 9W: 1040-1150 | 20W: 2300-2540 16W: 1830-2040 | - | - | ||
| 3-CCT | Non-DIM | - | - | - | 12W: 1300-1440 9W: 1000-1080 | 20W: 2260-2500 16W: 1800-2000 | |
| DIM | 8W: 840-960 6W: 640-720 | 12W: 1300-1440 9W: 1000-1080 | 20W: 2260-2500 16W: 1800-2000 | - | - | ||
| CRI | 80 | ||||||
| Beam Angle(°) | 110° | ||||||
| LED Driver | Built-in,Flicker Free | ||||||
| Dimming Option | Triac | - | |||||
| Sensor | NO | PIR sensor | |||||
| Emergency Kits | NO | ||||||
| Electrical Class | Class II | ||||||
| Ingress Protection(IP Rating) | IP54 | ||||||
| Impact Resistance(IK Rating) | IK06 | ||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||
| Optics Material | PC | ||||||
| Housing Material | PC | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp.(°C) | -10°C~40°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Ceiling mount | ||||||
