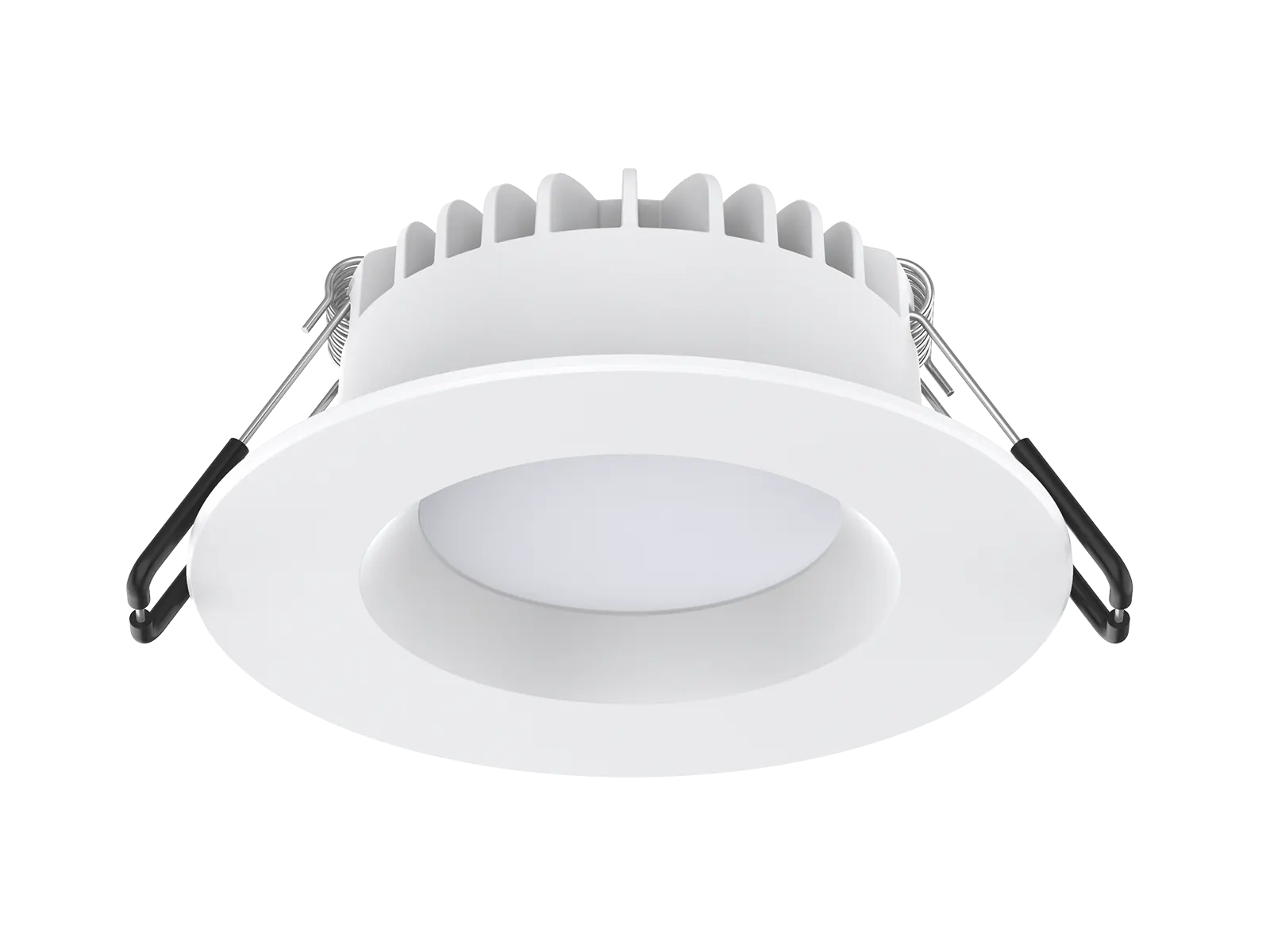

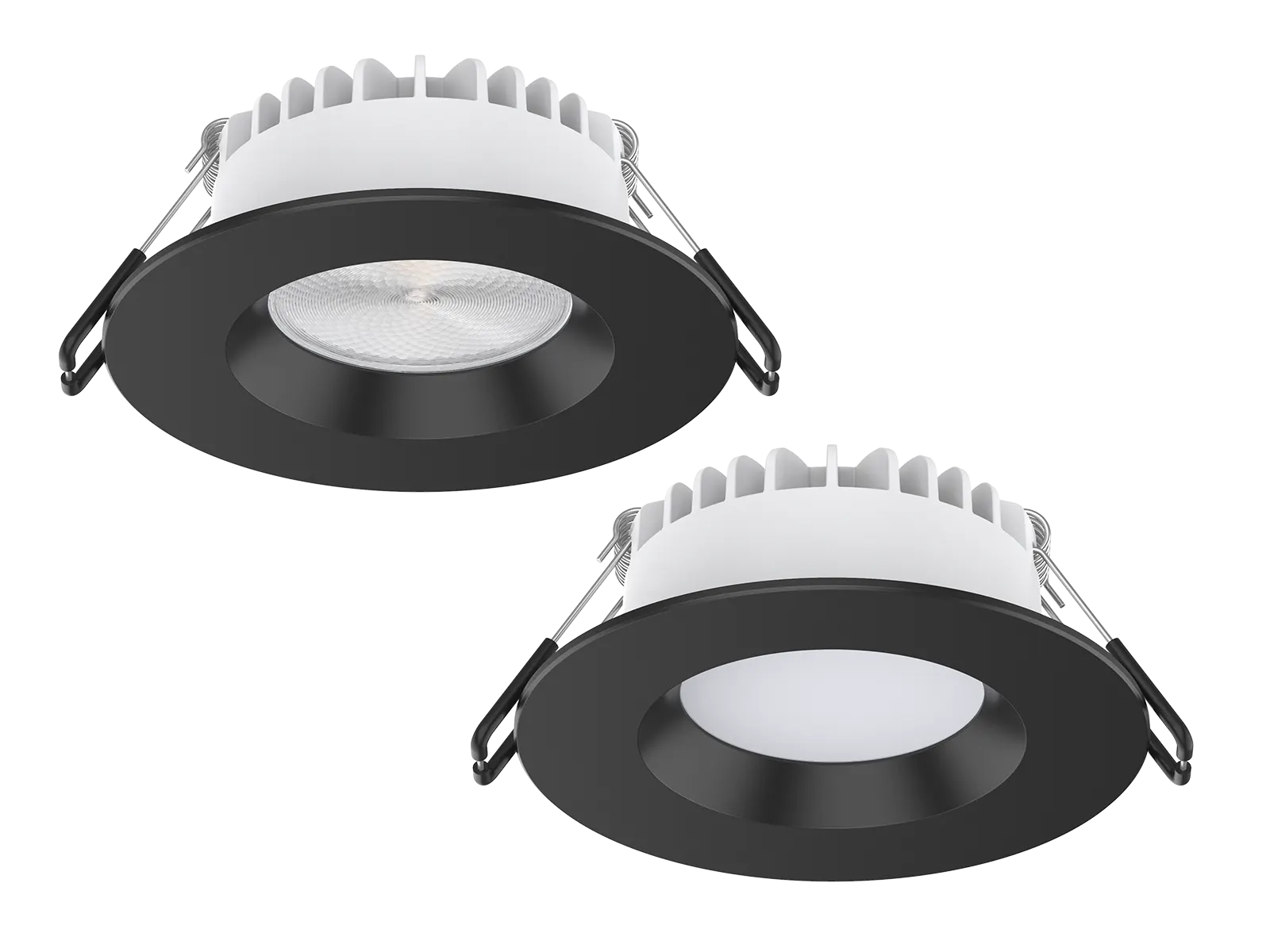

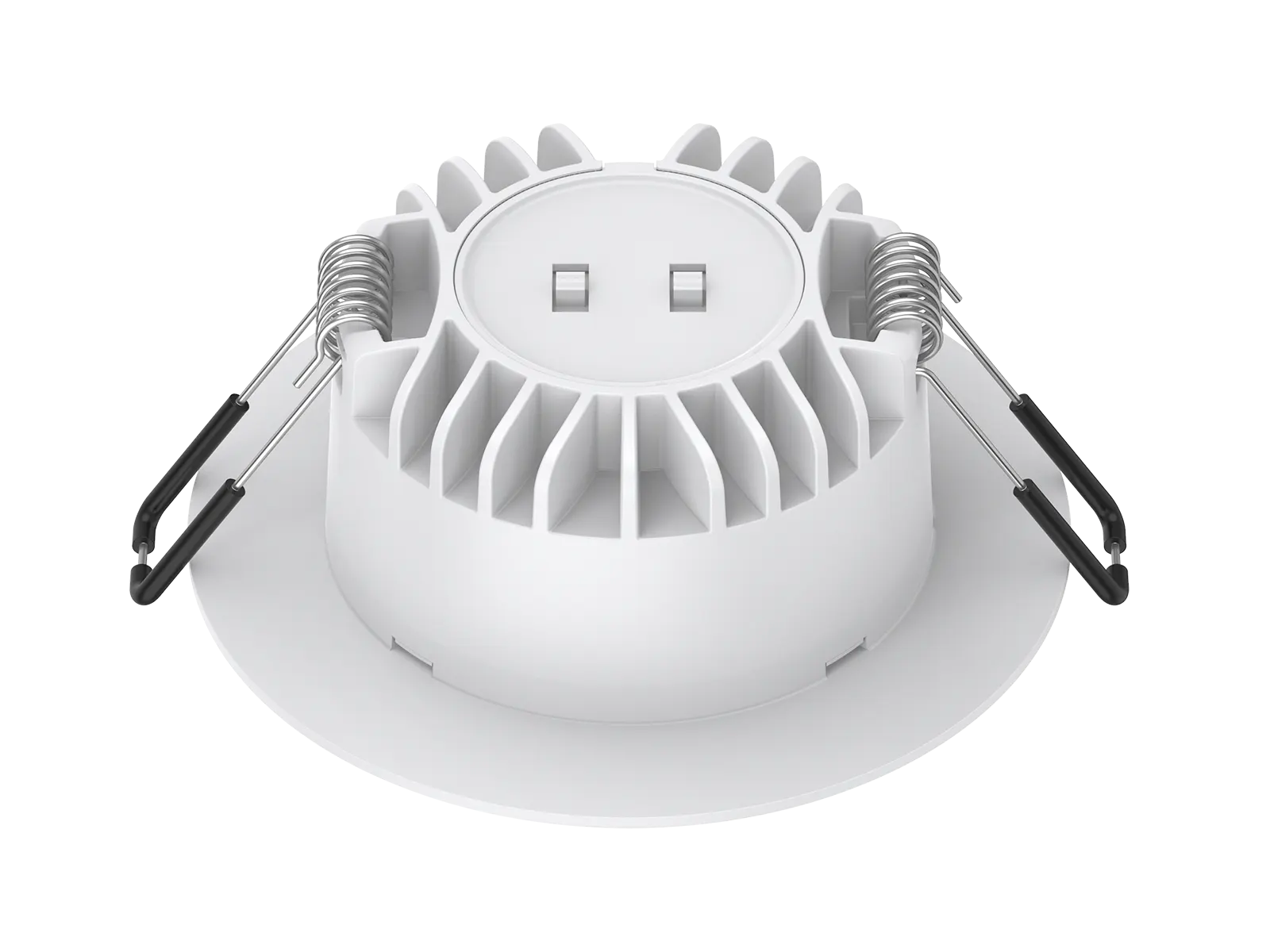

This is a recessed downlight with a height of only 38mm, perfect for low ceilings. It uses high-lumen SMD LEDs to provide bright and efficient lighting. You can choose between PC diffuser or PC lens, both offering soft and even light. A dip switch on the back lets you change the power and color temperature to fit different needs. The plastic-covered aluminum housing with a dimmable driver provides good heat management and stable dimming performance, making it a popular choice.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, suchas stairway, lobby, reception, corridors etc.
| Dimension(mm) | 100*38 | ||
|---|---|---|---|
| Cutout(mm) | 70-90 | ||
| Watt(W) | 7W / 5W | ||
| Rated Input Voltage | AC200-240V | ||
| Input Voltage | AC198- 264V | ||
| LED Module Input | DC68-74V | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | ||
| CCT Selection DIP Switch | YES | ||
| Luminous Flux (lm) ±5% CRI80 | DIM | 860-920 | 790-840 |
| CRI | CRI80 | ||
| Beam Angle(°) | 65° | 100° | |
| LED Driver | Built-out,Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | PC | ||
| Housing Material | Plastic coated Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
