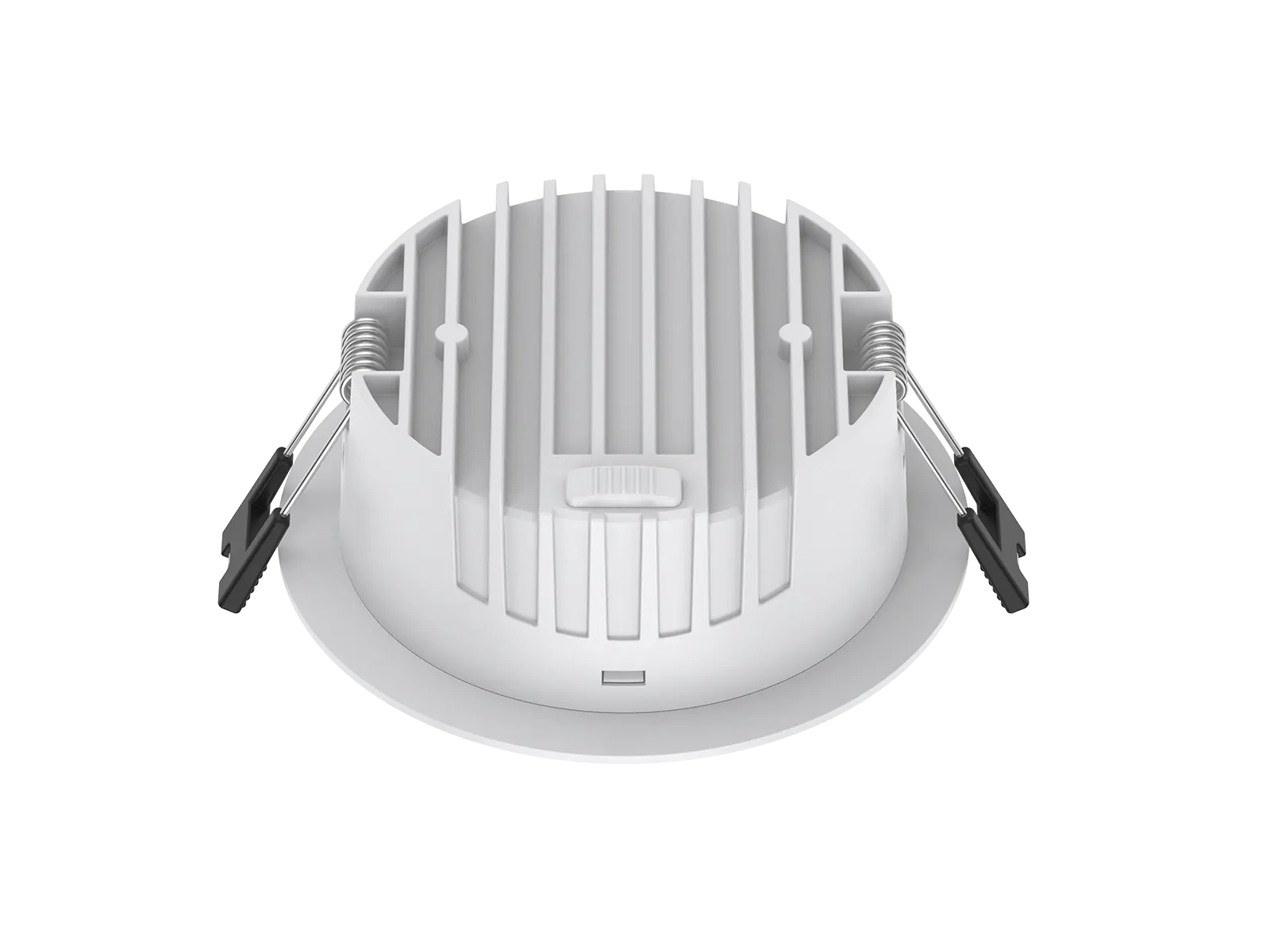

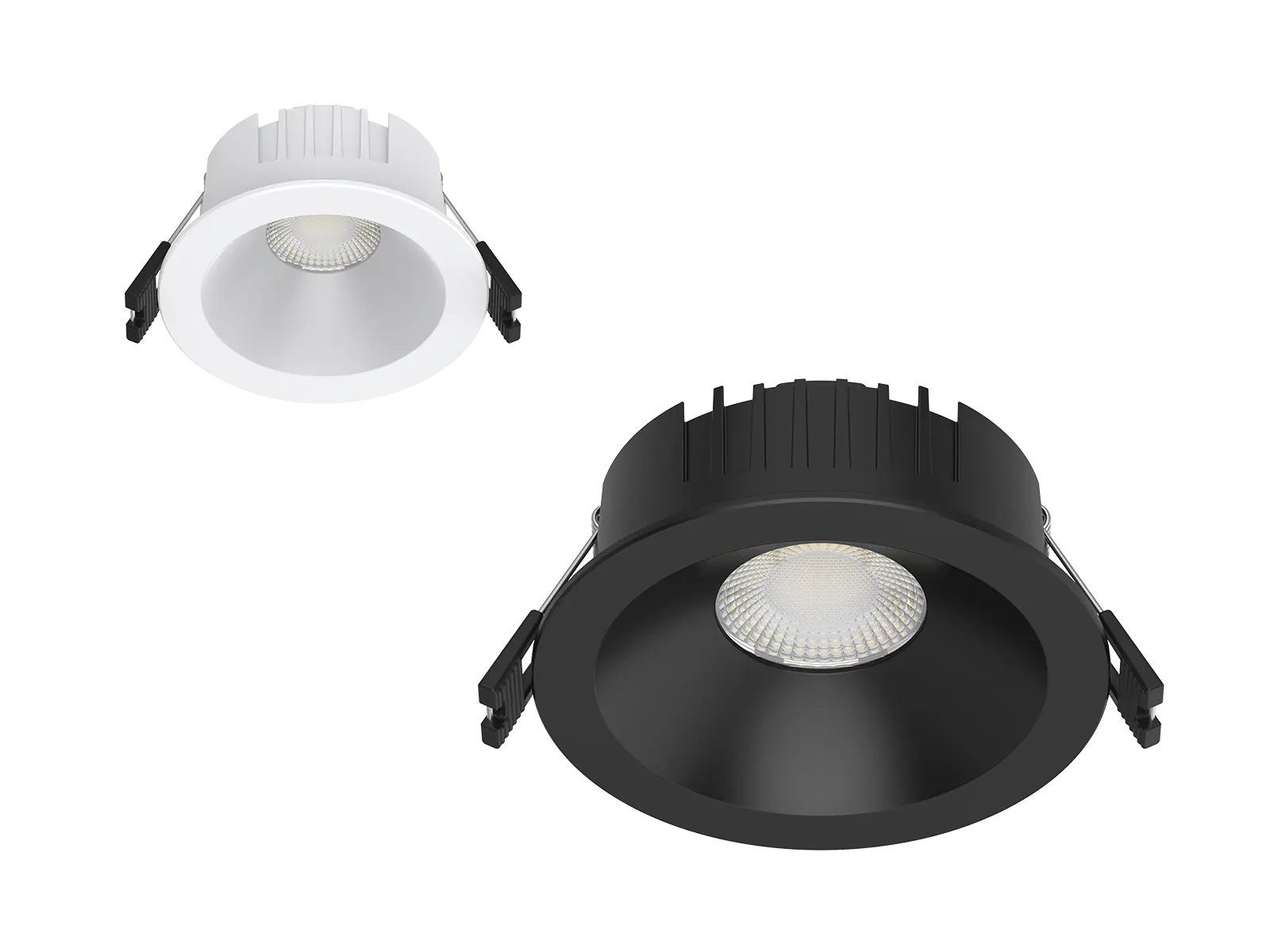

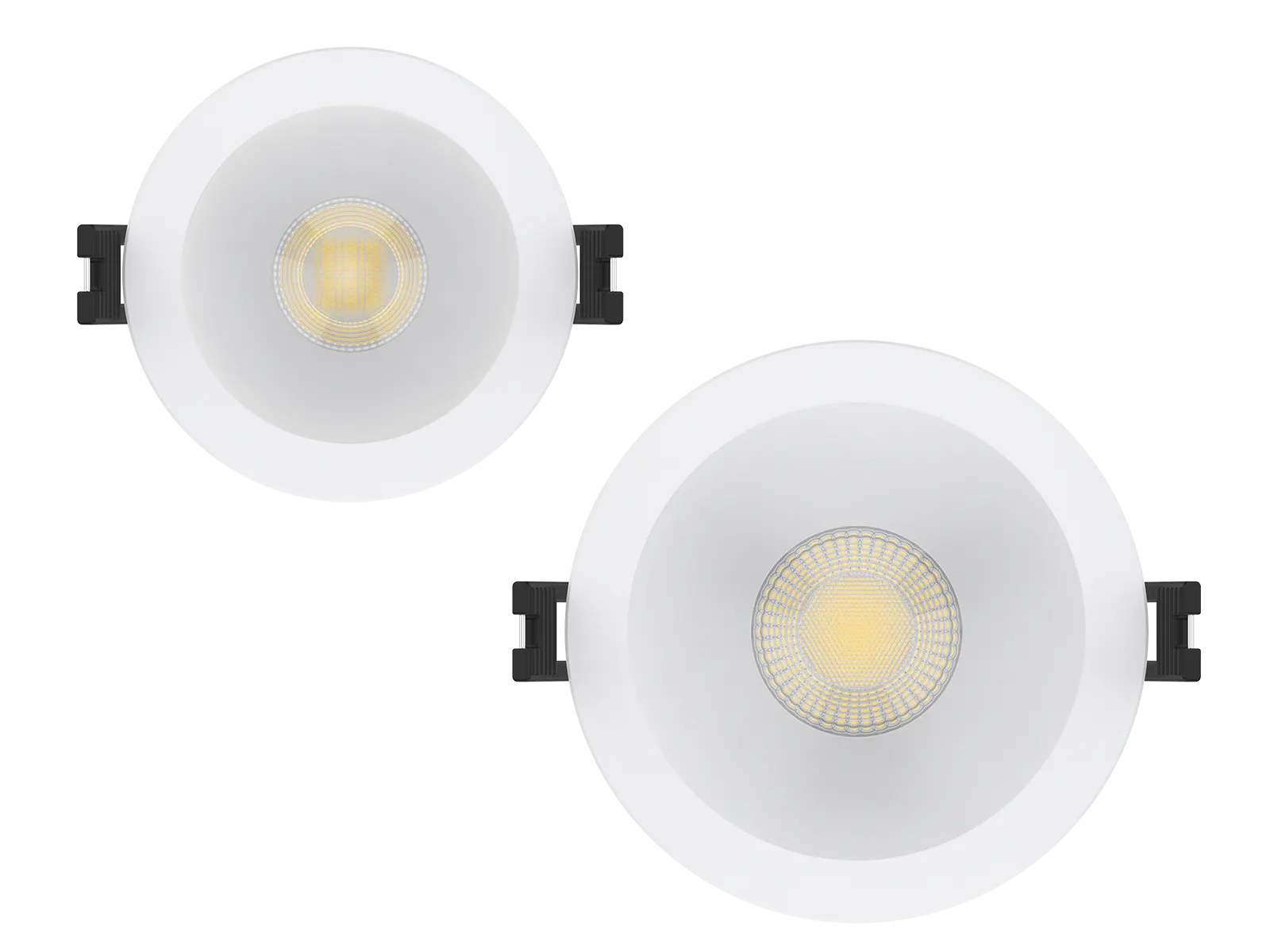

This is an ultra-slim recessed downlight. The plastic-coated aluminum housing offers an economical solution with excellent heat dissipation. Equipped with a PC frosted optical lens, together with the deeply hidden light source, it minimizes the glare to the greatest extent. The recessed installation is simple, and the fixture can be configured with either an integrated external driver with a 0.6 m Australian plug or a standard black connection box on the power input side.
Applications: Suitable for various residential and commercial environments, such as homes, offices, corridors, hotels, restaurants, shopping malls, and other indoor and semi outdoor applications
| Code | DL473-2.5-5W | DL473-3-8W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø82*40 | Ø105*40 | ||
| Cutout(mm) | Ø68-72 | Ø90-95 | ||
| Watt(W) | 5W | 8W | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | ≤6 | |||
| CCT(K) | 3000K+4000K+5700K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% CRI80 | 3-CCT | DIM(White) | 590-630 | 950-1000 |
| DIM(Black) | 500-540 | 880-940 | ||
| CRI | CRI80 | |||
| Beam Angle(°) | 65° | 60° | ||
| LED Driver | Built-out, Flicker Free | |||
| Dimming Option | Triac | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | |||
| Impact Resistance(IK Rating) | IK04 | |||
| Product Finishing | White RAL9016, Black RAL9005 | |||
| Optics Material | PC | |||
| Housing Material | Plastic coated Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750° | |||
| Operating Temp.(°C) | -20°C~45°C(25°C IC-rated) | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Recessed | |||
