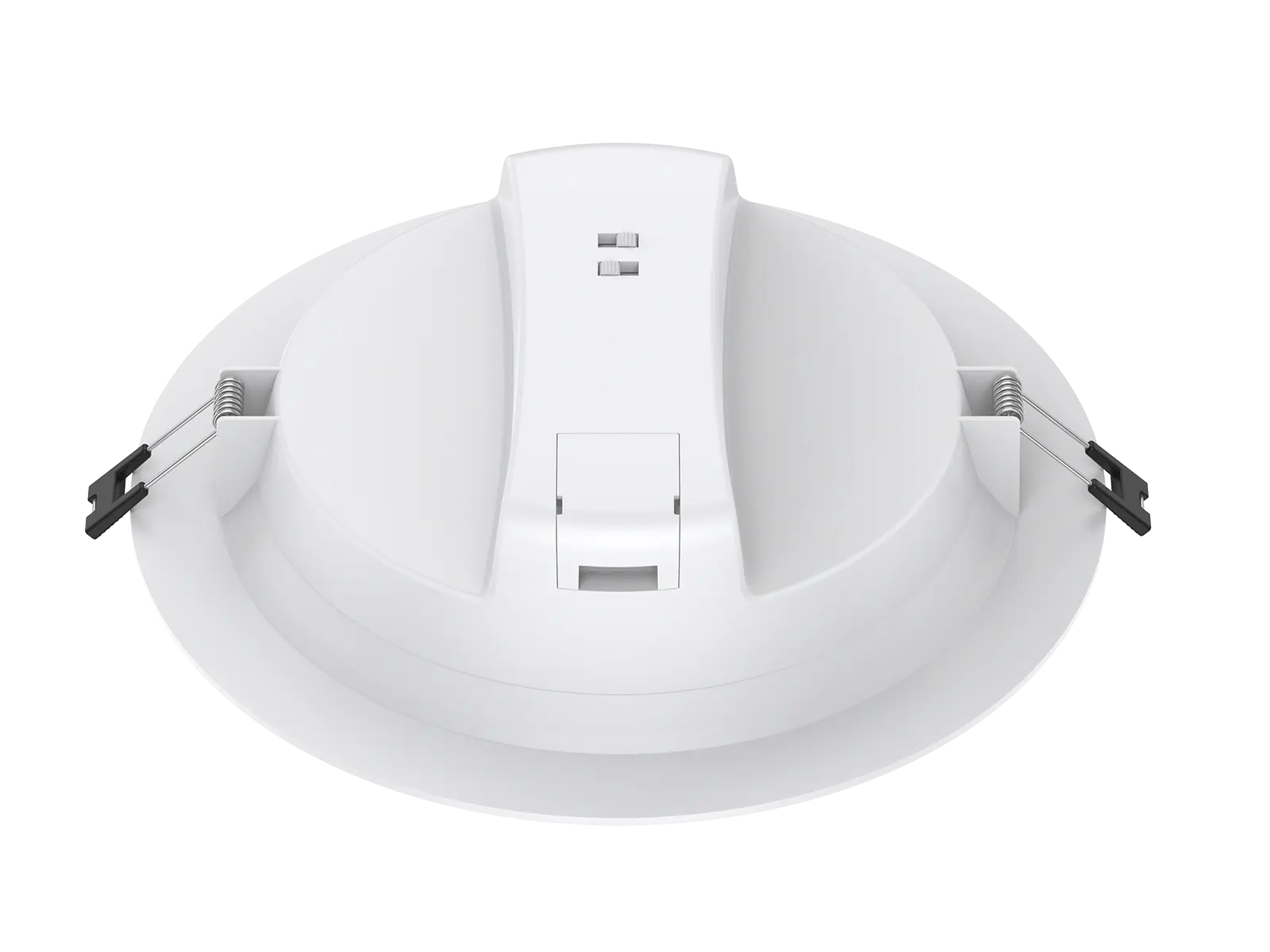

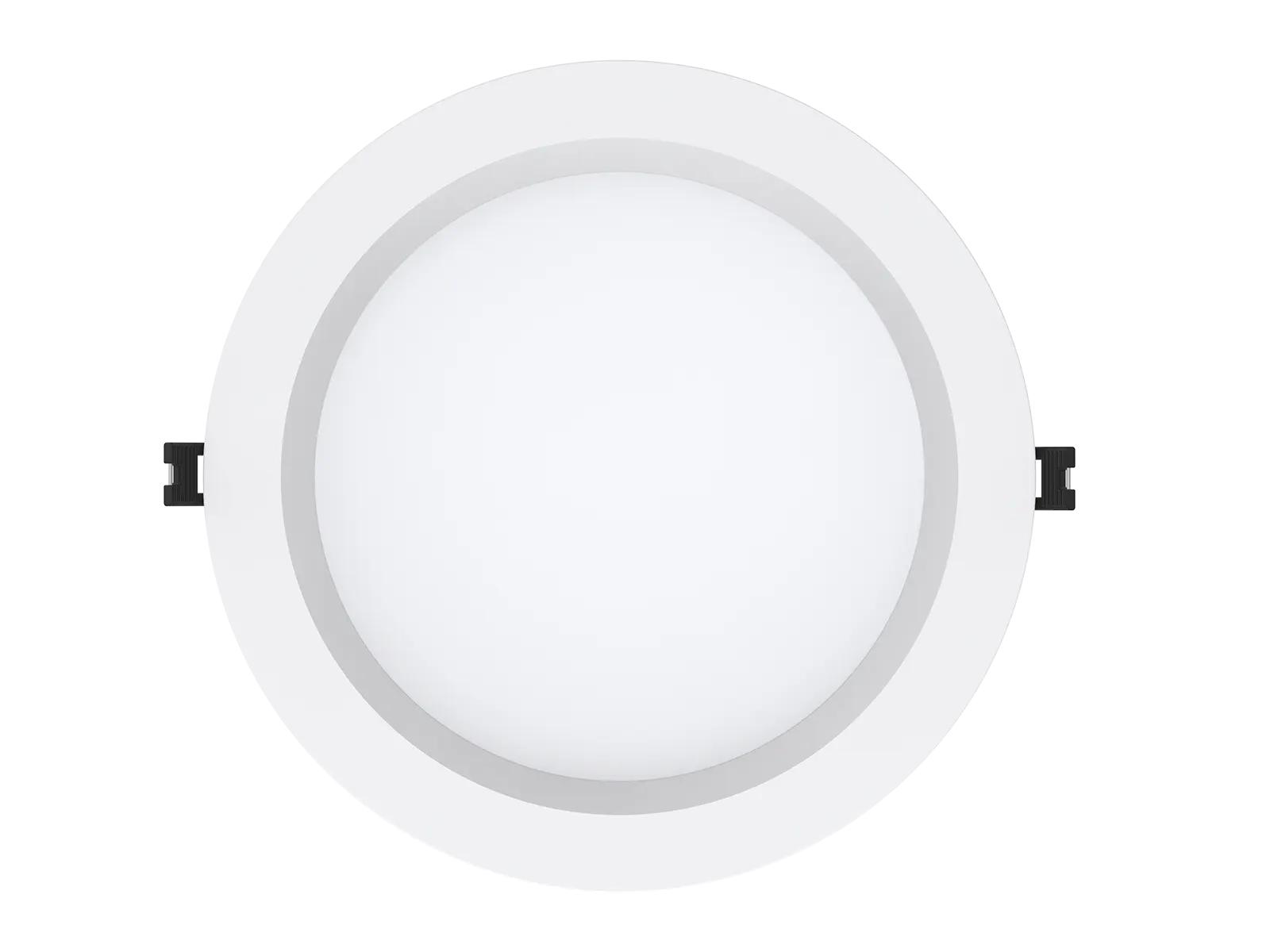

This recessed downlight features high-brightness SMD LED chips for energy-efficient performance. Equipped with a PC diffuser, it delivers uniform illumination for a comfortable lighting experience. The integrated full-plastic housing with built-in driver ensures excellent heat dissipation and superior dimming performance, making it highly favored by users.
Applications: Ideal for general lighting in offices, supermarkets, shops, schools, and hotels. Also widely used in public areas such as staircases, lobbies, reception areas, and corridors.

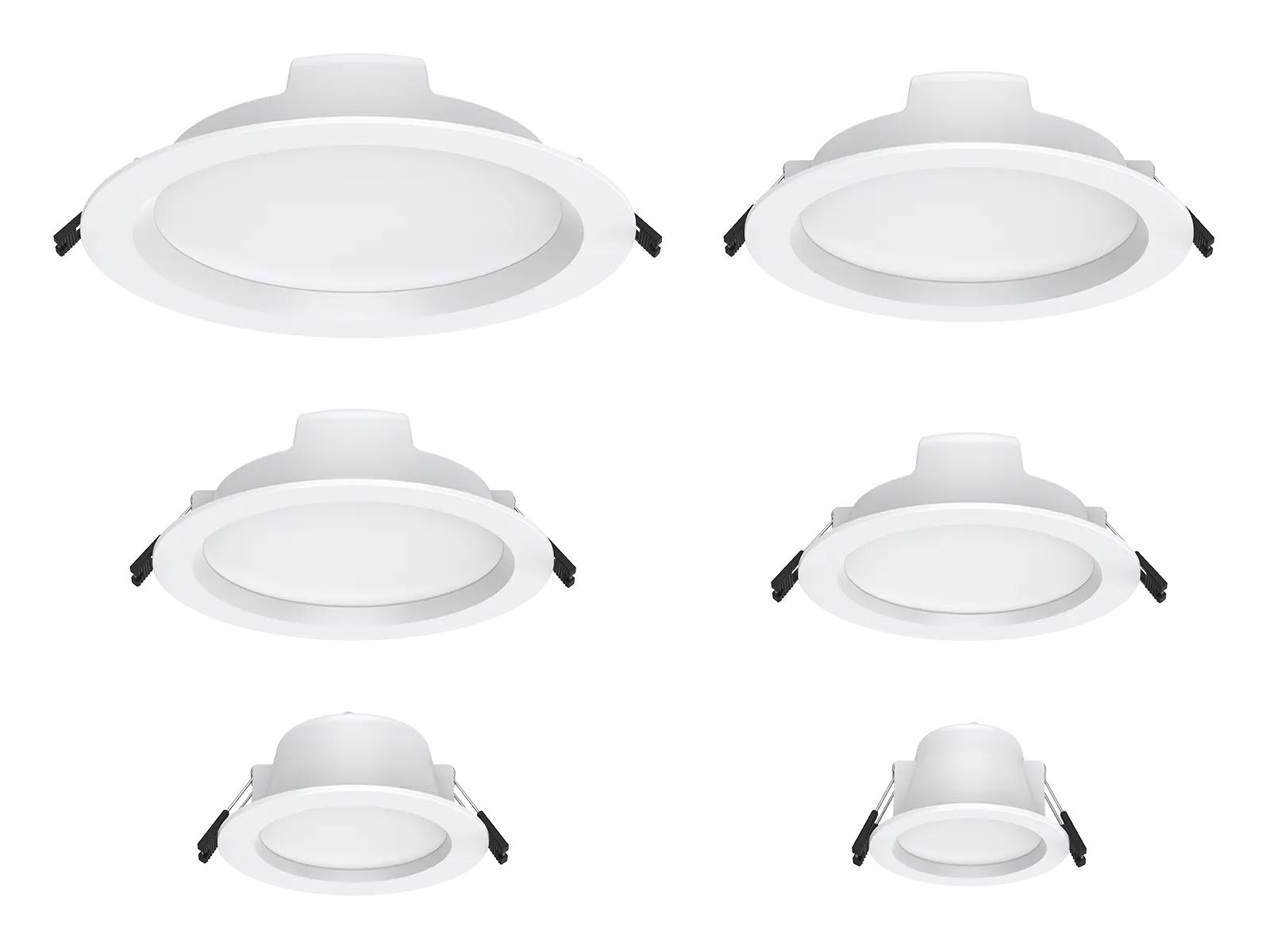

| Code | DL472-2.5-4W | DL472-3-6W | DL472-4-10W | DL472-5-12W | DL472-6-14W | DL472-8-18W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 85*50 | 115*50 | 145*50 | 170*52 | 190*54 | 235*54 | ||
| Cutout (mm) | Ø68-75 | Ø90-95 | Ø120-130 | Ø140-150 | Ø160-170 | Ø200-210 | ||
| Watt(W) | 4W | 6W/4W | 10W/8W | 12W/10W | 14W/12W | 18W/16W | ||
| Rated Input Voltage | AC200-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| Light Source | SMD | |||||||
| SDCM | ≤6 | |||||||
| CCT(K) | 2-CCT: 3000K+4000K ‖ 3-CCT: 3000K+4000K+5700K | |||||||
| CCT Selection | By DIP Switch | |||||||
| 2-CCT | DIM | 430-475 | 6W: 630-700 | 10W: 1140-1200 | 12W: 1470-1510 | 14W: 1660-1800 | 18W: 2320-2490 | |
| Luminous Flux (lm) ±5% | 4W: 430-460 | 8W: 930-1000 | 10W: 1200-1270 | 12W: 1460-1560 | 16W: 1990-2100 | |||
| CRI80 | 3-CCT | DIM | 430-475 | 6W: 630-700 | 10W: 1140-1200 | 12W: 1470-1510 | 14W: 1660-1800 | 18W: 2320-2490 |
| 4W: 430-460 | 8W: 930-1000 | 10W: 1200-1270 | 12W: 1460-1560 | 16W: 1990-2100 | ||||
| CRI | CRI80 | |||||||
| Beam Angle (°) | 100° | |||||||
| LED Driver | Built-in, Flicker Free | |||||||
| Dimming Option | Triac | |||||||
| Sensor | NO | |||||||
| Emergency Kits | NO | |||||||
| Electrical Class | Class II | |||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling) , IP20(Inside Ceiling) | |||||||
| Impact Resistance(IK Rating) | IK03 | |||||||
| Product Finishing | White RAL9016 | |||||||
| Optics Material | Diffuser/PC | |||||||
| Housing Material | Plastic PA6 | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~40°C (2.5"/3": -20°C~35°C) | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||
| Installation | Recessed | |||||||
