The product features a modular lamp body design, allowing for different installation methods by pairing it with surface-mounted ceiling plate accessory sets or suspended ceiling plate accessory sets. The lamp body is made of 6063 aluminum, which has fast thermal conductivity and high heat dissipation efficiency. It uses high-efficiency, long-life COB LEDs and a high-temperature resistant, high-transmittance PC semi-transparent lens. It features a deep-tube anti-glare design with UGR<16. Furthermore, the overall lamp has uniform proportions, a visually appealing appearance with no visible screws, and simple installation.
Applications: It's widely used in living rooms, hallways, bars, hotels, shops, etc.

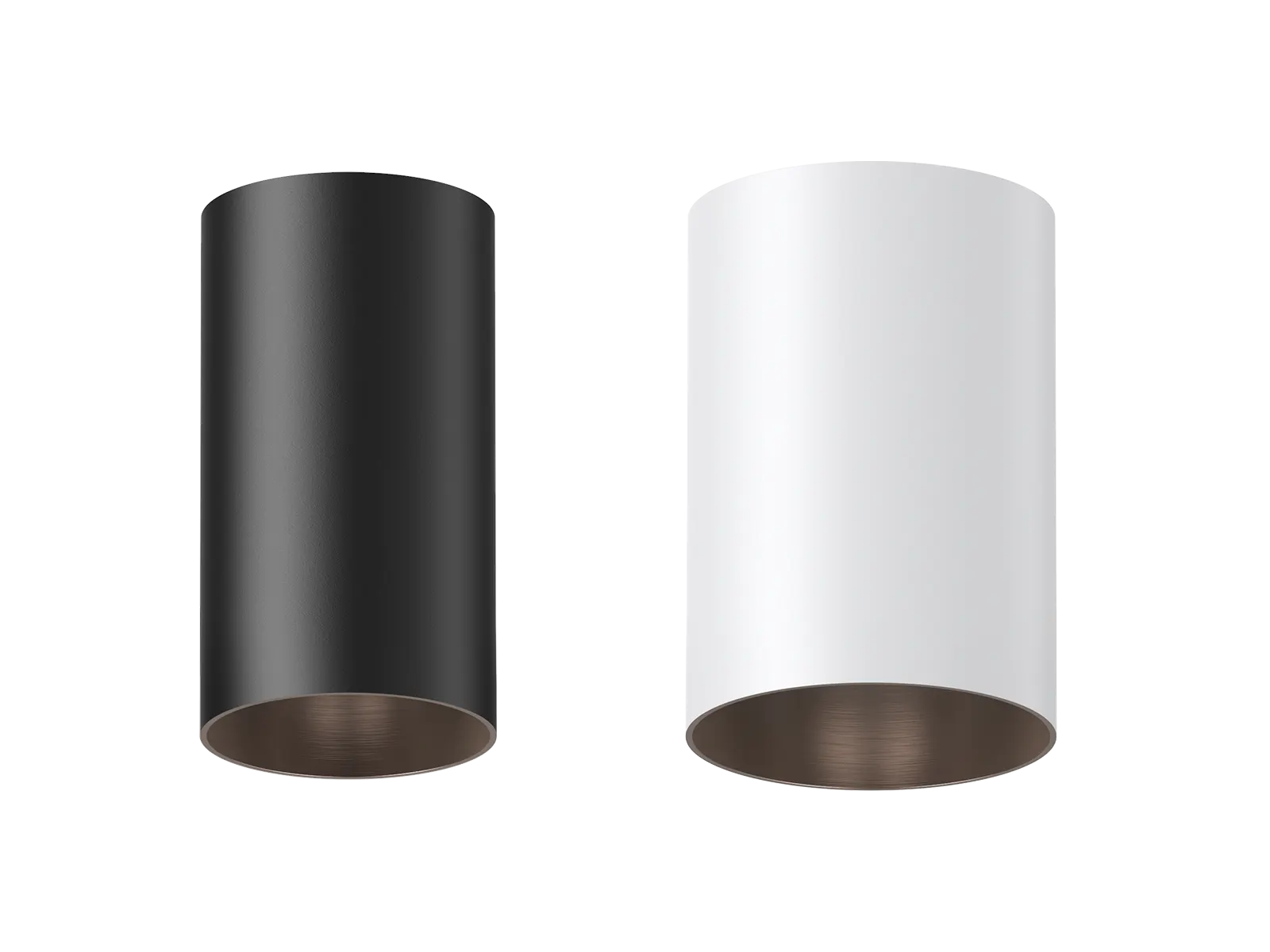

DL467
| Code | DL467-80-8W | DL467-100-15W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø80*H147 | Ø100*H147 | ||
| Watt(W) | 8W | 15W | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | COB | |||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | 1-CCT CRI80 | Non-DIM | 550-650 | 1050-1200 |
| DIM | 550-650 | 1050-1200 | ||
| DALI | 580-660 | 1070-1220 | ||
| 2-CCT CRI90 | Non-DIM | 430-500 | 920-1030 | |
| DIM | 430-500 | 920-1030 | ||
| DALI | 500-570 | 990-1120 | ||
| CRI | CRI80 / CRI90 | |||
| Beam Angle(°) | 50° | 55° | ||
| UGR | UGR<16 | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | Triac / DALl-2+pushDlM | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | Ceiling Surface Mount IP54 | |||
| Impact Resistance(IK Rating) | IK07 | |||
| Product Finishing | White RAL9016 /BlackRAL9005 | |||
| Optics Material | PC | |||
| Housing Material | Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -10°C~40°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Ceiling surface mount | |||

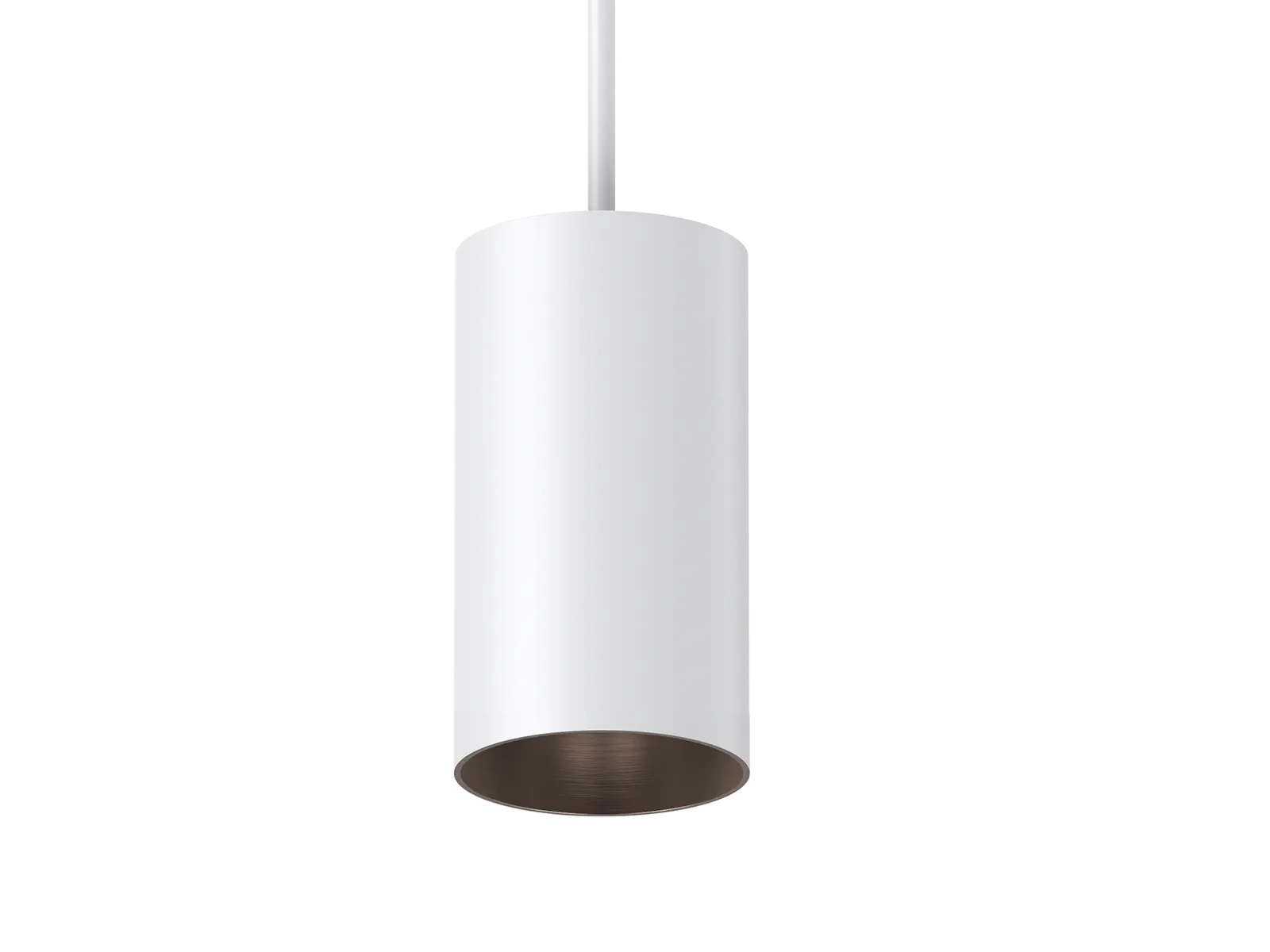

PD467
| Code | PD467-80-8W | PD467-100-15W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø80*H147 | Ø100*H147 | ||
| Watt(W) | 8W | 15W | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | COB | |||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | 1-CCT CRI80 | Non-DIM | 550-650 | 1050-1200 |
| DIM | 550-650 | 1050-1200 | ||
| DALI | 580-660 | 1070-1220 | ||
| 2-CCT CRI90 | Non-DIM | 430-560 | 920-1030 | |
| DIM | 430-500 | 920-1030 | ||
| DALI | 500-570 | 990-1120 | ||
| CRI | CRI80 / CRI90 | |||
| Beam Angle(°) | 50° | 55° | ||
| UGR | UGR<16 | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | Triac / DALl-2+pushDlM | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | Pendant IP40 | |||
| Impact Resistance(IK Rating) | IK07 | |||
| Product Finishing | White RAL9016 /BlackRAL9005 | |||
| Optics Material | PC | |||
| Housing Material | Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -10°C~40°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Pendant | |||
