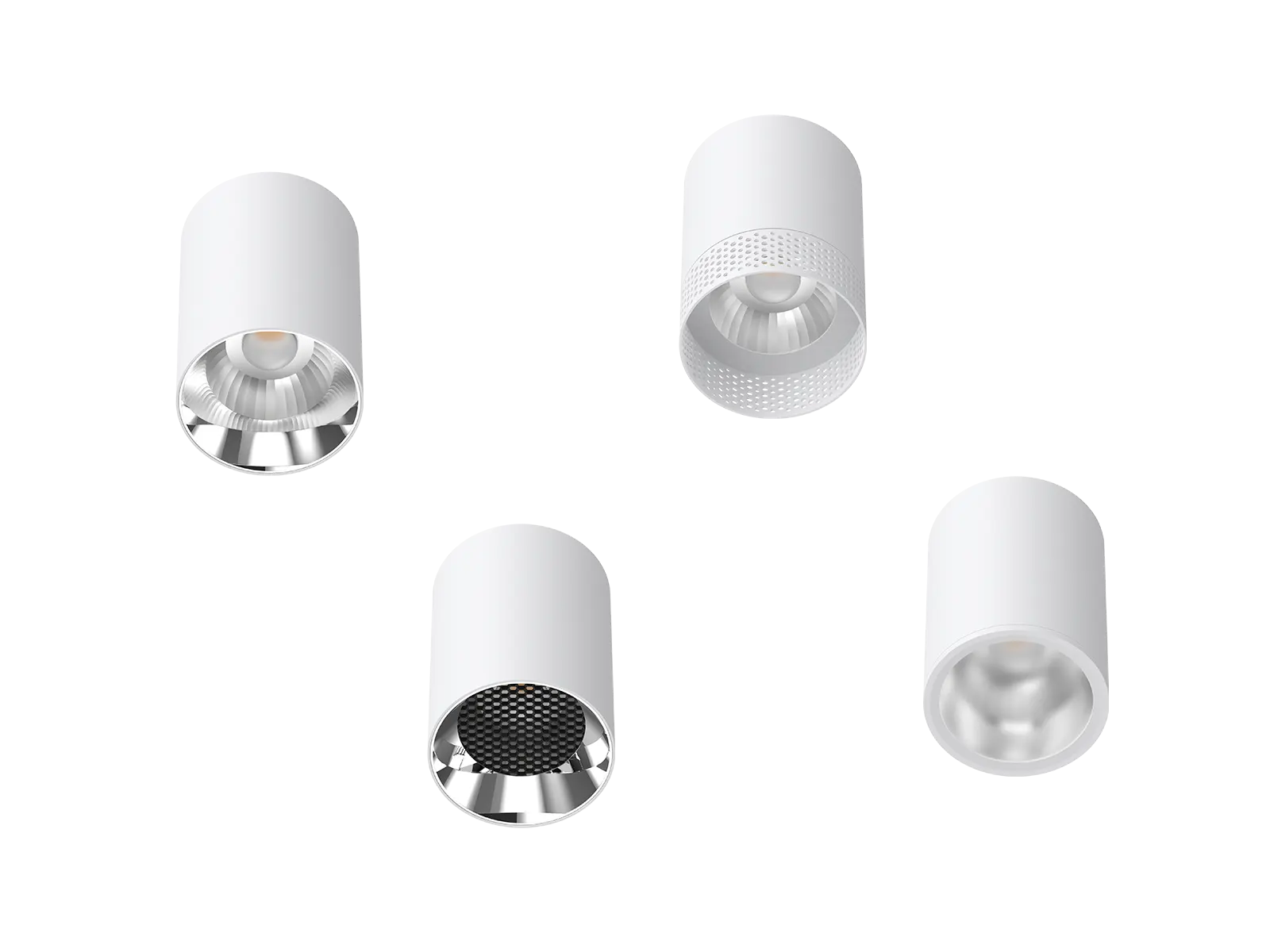

This is a surface-mounted downlight with a high-CRI COB light source, which shows colors more clearly and naturally. The deep anti-glare design makes the light softer and more comfortable for the eyes. It supports changeable CCT to fit different needs. The aluminum body provides good heat dissipation and ensures a long lifespan. With IP54 protection on the front, it can prevent dust and water splashes, so it works well in different indoor places. Multiple versions are available to match different design styles and meet customers' needs.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, suchas stairway, lobby, reception, corridors etc.
| Code | DL466A-90-8W | DL466A-90-8W Honeycomb Louver | DL466B-90-8W Perforated | DL466C-90-8W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*130 | |||||
| Watt(W) | 8W | |||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | ≤5 | |||||
| CCT(K) | 1CCT: 3000K/4000K || 2CCT: 3000K+4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 595-660 (36°) 810-890 (60°) | 345-365 (36°) 440-550 (50°) | 610-680 (40°) 780-895 (60°) | 575-615 (40°) 730-825 (50°) |
| DIM | 570-720 (36°) 745-835 (60°) | 330-380 (36°) 425-490 (50°) | 585-650 (40°) 750-860 (60°) | 550-590 (40°) 700-790 (50°) | ||
| DALI | 615-685 (36°) 805-905 (60°) | 330-350 (36°) 460-530 (50°) | 630-700 (40°) 810-930 (60°) | 595-640 (40°) 720-820 (50°) | ||
| 2-CCT | Non-DIM | 640-690 (36°) 735-775 (60°) | 340-370 (36°) 420-440 (50°) | 610-660 (40°) 660-670 (60°) | 580-630 (40°) 685-725 (50°) | |
| DIM | 540-575 (36°) 730-790 (60°) | 300-320 (36°) 420-460 (50°) | 460-470 (40°) 720-780 (60°) | 500-525 (40°) 650-700 (50°) | ||
| DALI | 630-690 (36°) 705-745 (60°) | 300-350 (36°) 400-420 (50°) | 620-660 (40°) 630-640 (60°) | 660-710 (40°) 655-695 (50°) | ||
| CRI | ≥90 | |||||
| Beam Angle(°) | 36°/60° | 36°/50° | 40°/60° | 40°/50° | ||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | Triac Dim/ DALI | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP54 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||

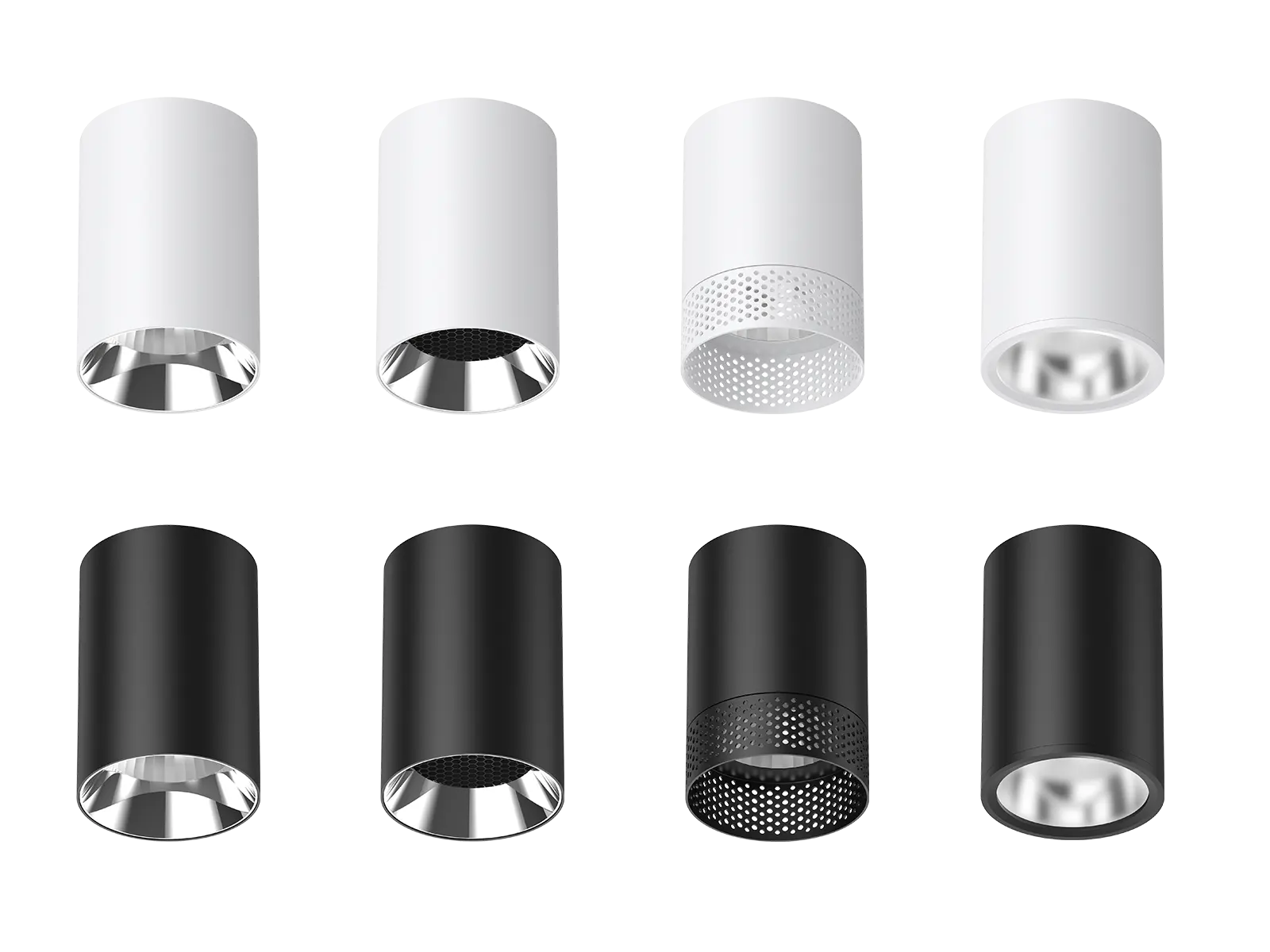

| Product Finishing | White RAL9016/Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | AL6063/ADC12 | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C-40°C | |||||
| Storage Temp.(°C) | -20°C-65°C | |||||
| Installation | Surface mount | |||||
