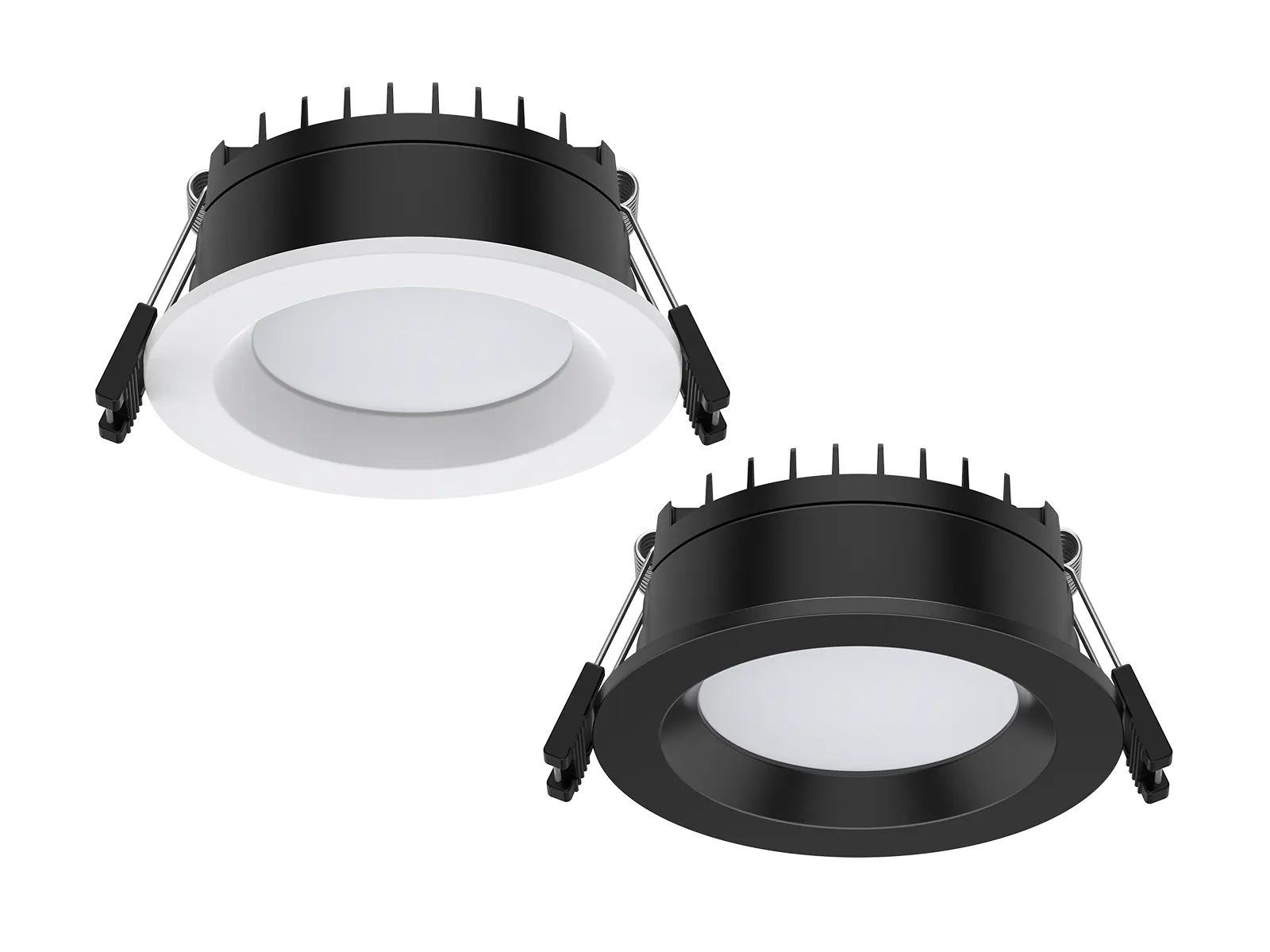

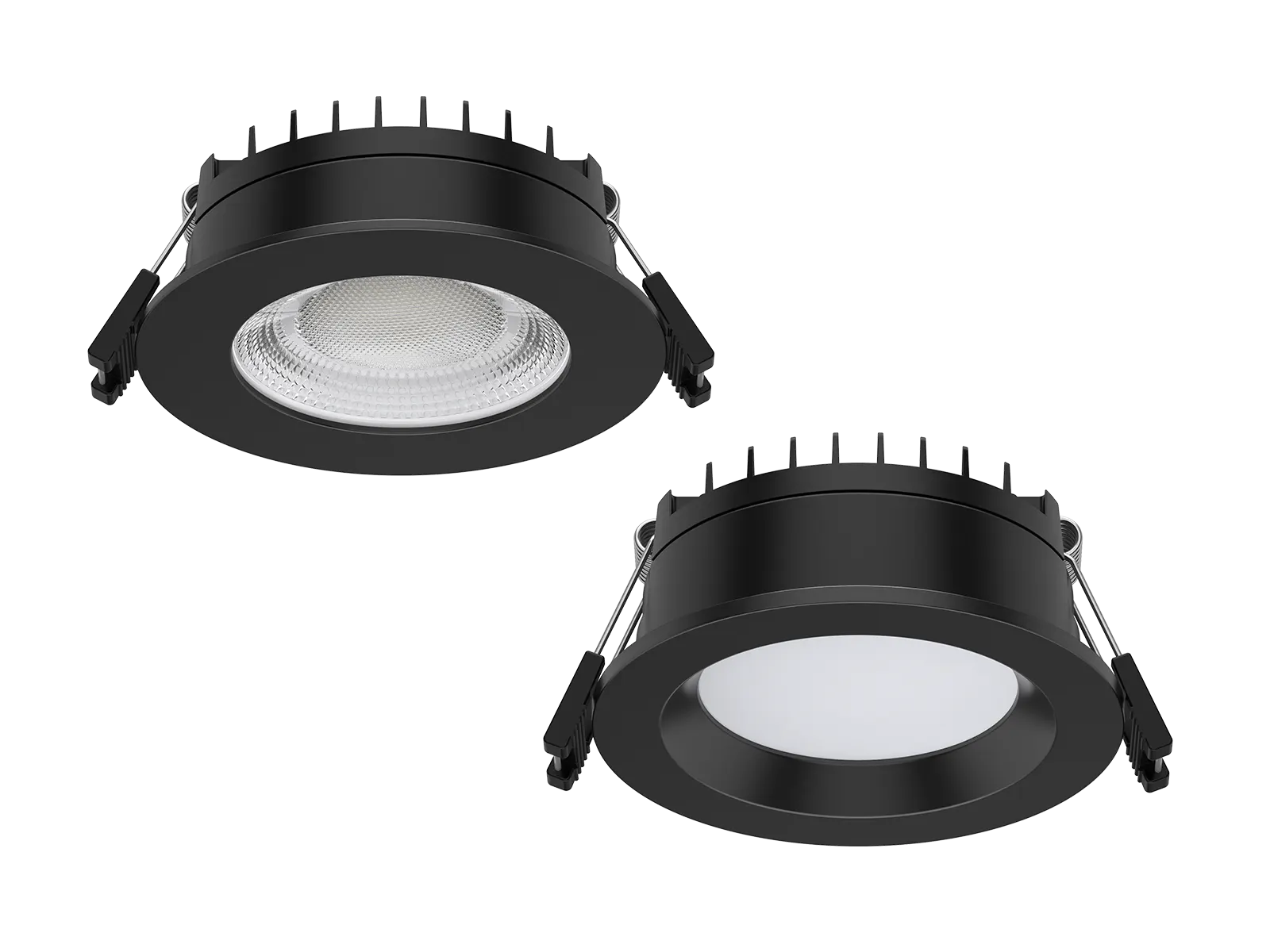

This fire-rated downlight is designed for the Australian market, featuring a sleek, ultra-thin profile with fixed mounting. The power and CCT adjustment are hidden under the front cover, maintaining a clean look. Made with high-efficiency aluminium alloy for optimal heat dissipation and premium LED chips, it offers lens and diffuser options. Multiple trim color options are available for each version, allowing users to personalize the fixture to match different styles.
Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc.
| Code | DL463B-3-10W | |
|---|---|---|
| Dimension(mm) | Ø105*44 | |
| Cutout(mm) | Ø90-95 | |
| Watt(W) | 10W/8W | |
| Rated Input Voltage | AC220V-240V | |
| Input Voltage | AC198-264V | |
| LED Module Input | DC33-38V | |
| Light Source | 2835 SMD | |
| SDCM | <6 | |
| CCT(K) | 3-CCT:3000K+4000K+5700K | |
| CCT Selection DIP Switch | YES | |
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 10W: 950-1000 8W: 750-800 |
| DIM | 10W: 950-1000 8W: 750-800 | |
| CRI | 80 | |
| Beam Angle(°) | 100° | |
| LED Driver | Driver built-out | |
| Dimming Option | Triac | |
| Sensor | NO | |
| Emergency Kits | NO | |
| Electrical Class | Class II | |
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | |
| Impact Resistance(IK Rating) | IK04 | |
| Product Finishing | Black RAL 9005 | |
| Optics Material | PC | |
| Housing Material | Aluminium /SPCC | |
| Lifetime(hr) | 50,000h | |
| Glow wire test(°C) | 750°C | |
| Operating Temp.(°C) | -20°C~40°C | |
| Storage Temp.(°C) | -20°C~65°C | |
| Installation | Recessed | |
