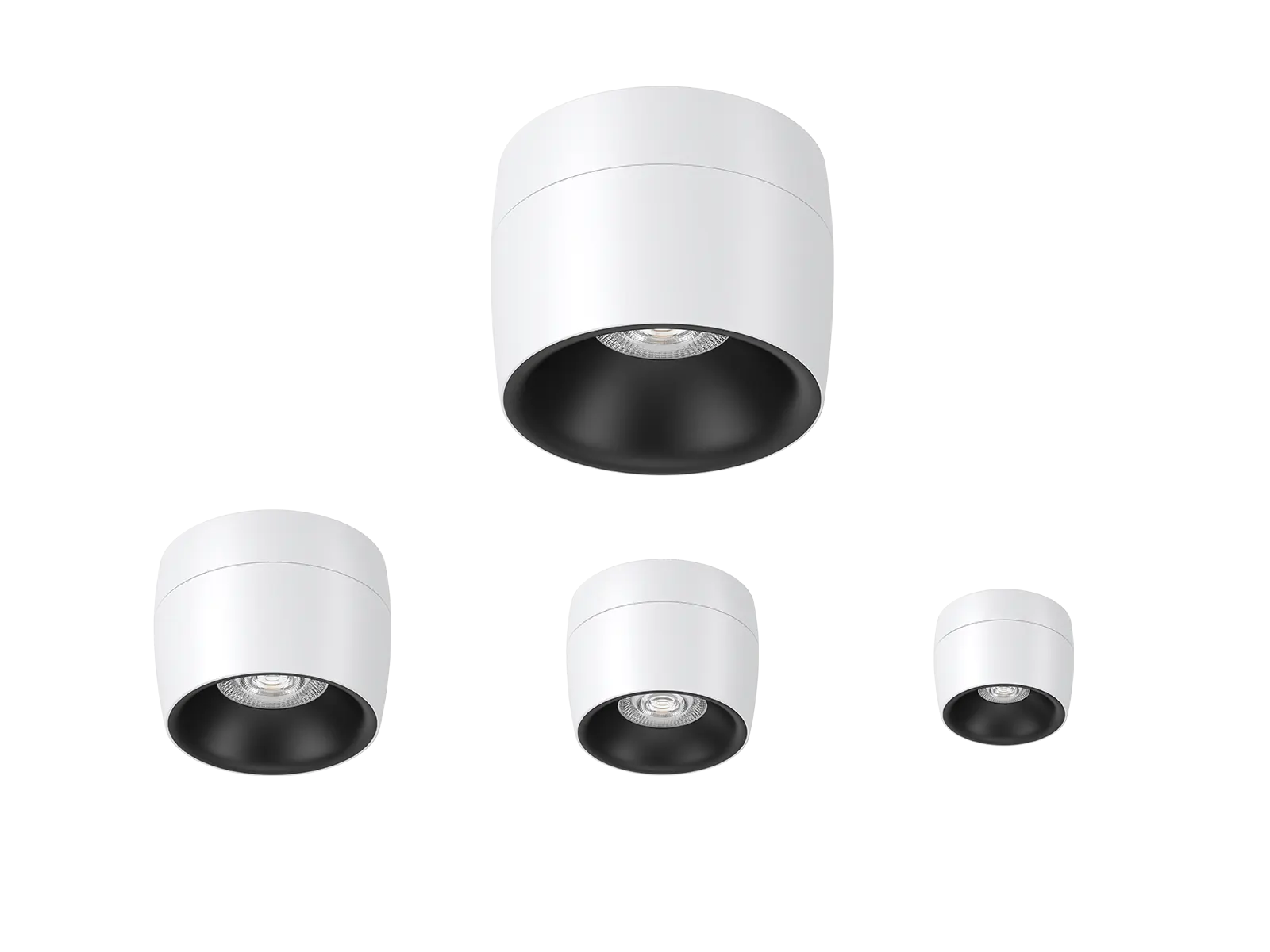

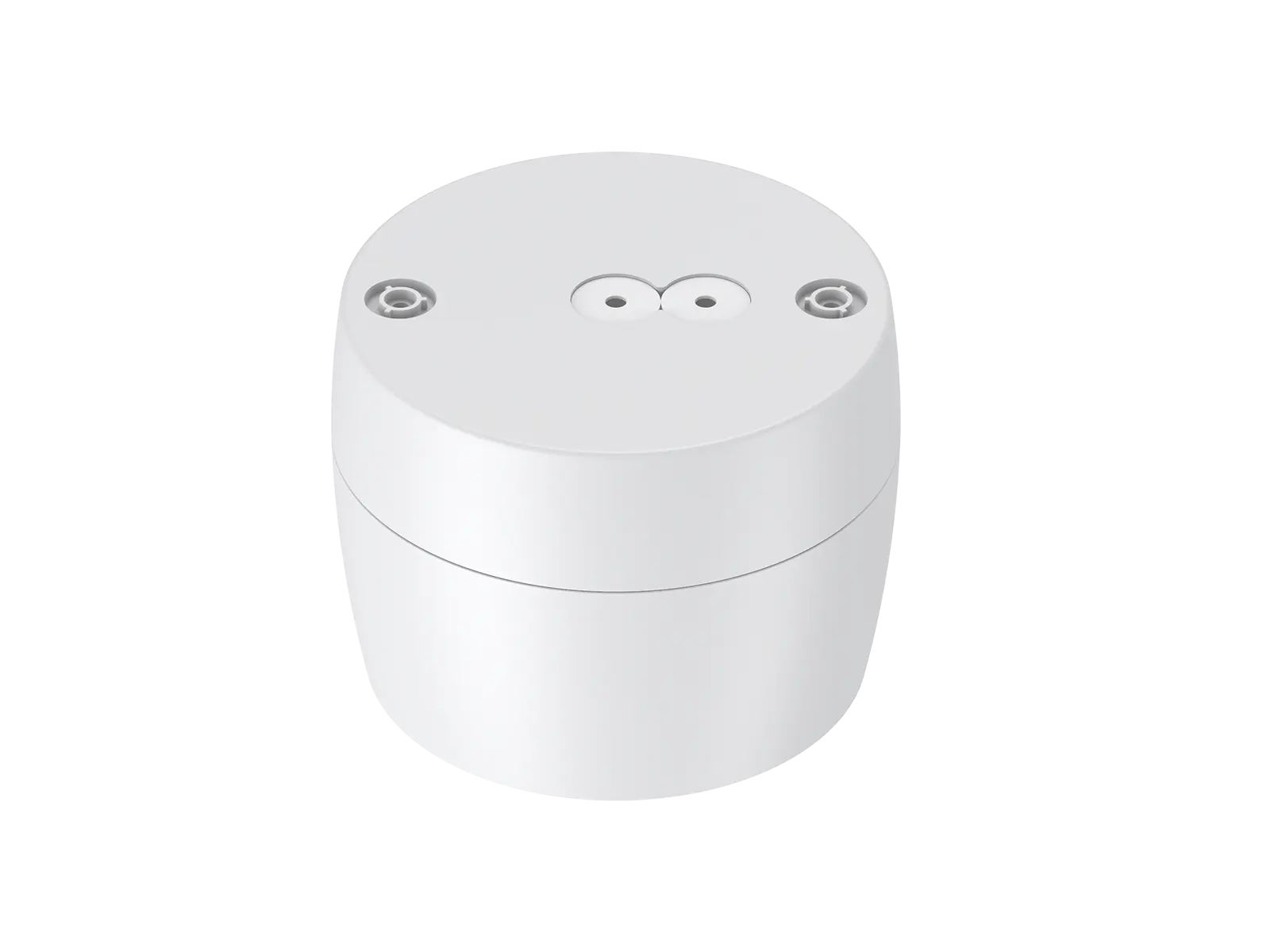

This surface-mounted downlight uses a high-quality Bridgelux COB light source for bright and natural lighting. Its anti-glare shield and lens to reduce glare, achieve UGR<19, for a more comfortable lighting experience. With an ADC12 aluminum housing, it offers excellent heat management performance to ensure a long lifespan. The screwless design lends a stylish, moder n aesthetic. With an IP65 rating, it's fully waterproof and dustproof, making it suitable for various installation environments, both indoors and outdoors.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL461-3-8W | DL461-5-15W | DL461-5-18W | DL461-5-20W | DL461-5-25W | DL461-6-25W | DL461-6-30W | DL461-8-25W | DL461-8-35W | DL461-8-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø95*72 | Ø130*99 | Ø160*122 | Ø230*176 | ||||||||
| Watt(W) | 8W | 15W | 18W | 20W | 25W | 25W | 30W | 25W | 35W | 40W | ||
| Rated Input Voltage | AC/DC 220-240V | |||||||||||
| Input Voltage | AC198-264V | |||||||||||
| LED Module Input | DC30-40V | |||||||||||
| Light Source | COB | |||||||||||
| SDCM | <5 | |||||||||||
| CCT(K) | 1-CCT: 3000K/4000K, 2-CCT: 3000K+4000K | |||||||||||
| CCT Selection DIP Switch | YES | |||||||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | - | - | 2280-2310(24°) 2170-2210(36°) 2370-2410(60°) | - | 2910-2960(24°) 2760-2810(36°) 3040-3090(60°) | 2750-2920(24°) 2790-2970(36°) 3020-3200(60°) | 3310-3520(24°) 3340-3550(36°) 3600-3810(60°) | 3000-3150(24°) 3000-3150(36°) 3000-3150(60°) | 4180-4400(24°) 4180-4400(36°) 4180-4400(60°) | 4500-4730(24°) 4500-4730(36°) 4500-4730(60°) |
| DIM | 720-800(24°) 720-800(36°) 720-800(60°) | - | 2250-2280(24°) 2140-2170(36°) 2340-2380(60°) | - | 3010-3060(24°) 2860-2910(36°) 3150-3200(60°) | 2670-2840(24°) 2720-2890(36°) 2950-3120(60°) | 2880-3090(24°) 2910-3120(36°) 3170-3360(60°) | 2920-3070(24°) 2920-3070(36°) 2920-3070(60°) | 3090-4000(24°) 3090-4000(36°) 3090-4000(60°) | 4160-4400(24°) 4160-4400(36°) 4160-4400(60°) | ||
| DALI | - | 1890-1920(24°) 1800-1830(36°) 1970-2000(60°) | - | 2480-2520(24°) 2360-2400(36°) 2590-2630(60°) | - | 2760-2930(24°) 2810-2980(36°) 3040-3220(60°) | 3350-3560(24°) 3380-3590(36°) 3640-3850(60°) | 3000-3150(24°) 3000-3150(36°) 3000-3150(60°) | 3990-4200(24°) 3990-4200(36°) 3990-4200(60°) | 4400-4640(24°) 4400-4640(36°) 4400-4640(60°) | ||
| Luminous Flux (lm) ±5% CRI90 | 2-CCT | Non-DIM | - | - | 1740-1770(24°) 1670-1700(36°) 1820-1840(60°) | - | 2290-2380(24°) 2070-2130(36°) 2270-2300(60°) | 1970-2050(24°) 1970-2050(36°) 2120-2200(60°) | 2460-2550(24°) 2520-2550(36°) 2640-2730(60°) | 2300-2380(24°) 2300-2380(36°) 2300-2380(60°) | 2940-3010(24°) 2940-3010(36°) 2940-3010(60°) | 3080-3160(24°) 3080-3160(36°) 3080-3160(60°) |
| DIM | 640-700(24°) 640-700(36°) 640-700(60°) | - | 1710-1730(24°) 1640-1660(36°) 1780-1800(60°) | - | 2200-2250(24°) 2100-2130(36°) 2300-2270(60°) | 2070-2130(24°) 2020-2080(36°) 2170-2230(60°) | 2460-2550(24°) 2370-2490(36°) 2550-2670(60°) | 2350-2430(24°) 2350-2430(36°) 2350-2430(60°) | 2760-2840(24°) 2760-2840(36°) 2760-2840(60°) | 3000-3080(24°) 3000-3080(36°) 3000-3080(60°) | ||
| DALI | - | 1470-1490(24°) 1410-1430(36°) 1530-1550(60°) | - | 1820-1860(24°) 1760-1780(36°) 1920-1940(60°) | - | 2100-2150(24°) 2100-2150(36°) 2250-2300(60°) | 2340-2460(24°) 2340-2460(36°) 2640-2700(60°) | 2100-2200(24°) 2100-2200(36°) 2100-2200(60°) | 2900-2980(24°) 2900-2980(36°) 2900-2980(60°) | 3200-3280(24°) 3200-3280(36°) 3200-3280(60°) | ||
| CRI | CRI80(1-CCT)/CRI90(2-CCT) | |||||||||||
| Beam Angle(°) | 24°/36°/60° | |||||||||||
| UGR | <19(5 inch 36°/60°, UGR<21) | |||||||||||
| LED Driver | Built-in, Flicker Free | |||||||||||
| Dimming Option | Triac / DALI(5",6",8") | |||||||||||
| Sensor | NO | |||||||||||
| Emergency Kits | NO | |||||||||||
| Electrical Class | Class I | |||||||||||
| Ingress Protection(IP Rating) | IP65 | |||||||||||
| Impact Resistance(IK Rating) | IK06 | |||||||||||
| Product Finishing | White RAL9016 | |||||||||||
| Optics Material | PC | |||||||||||
| Housing Material | Die-Casting Aluminium | |||||||||||
| Lifetime(hr) | 50,000h | |||||||||||
| Glow wire test(°C) | 750°C | |||||||||||
| Operating Temp.(°C) | -10°C~40°C | |||||||||||
| Storage Temp.(°C) | -10°C~65°C | |||||||||||
| Installation | Surface mount | |||||||||||
