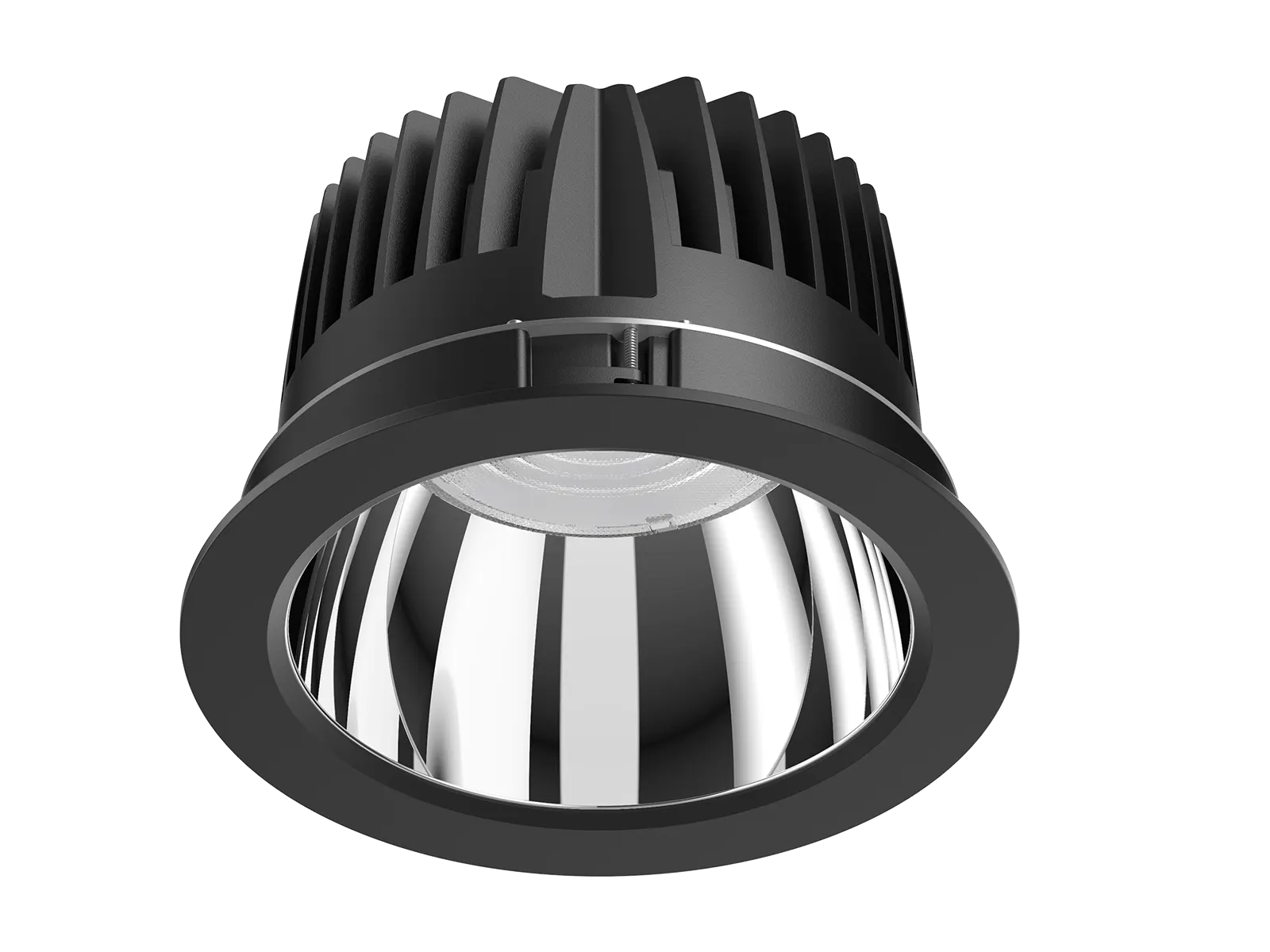

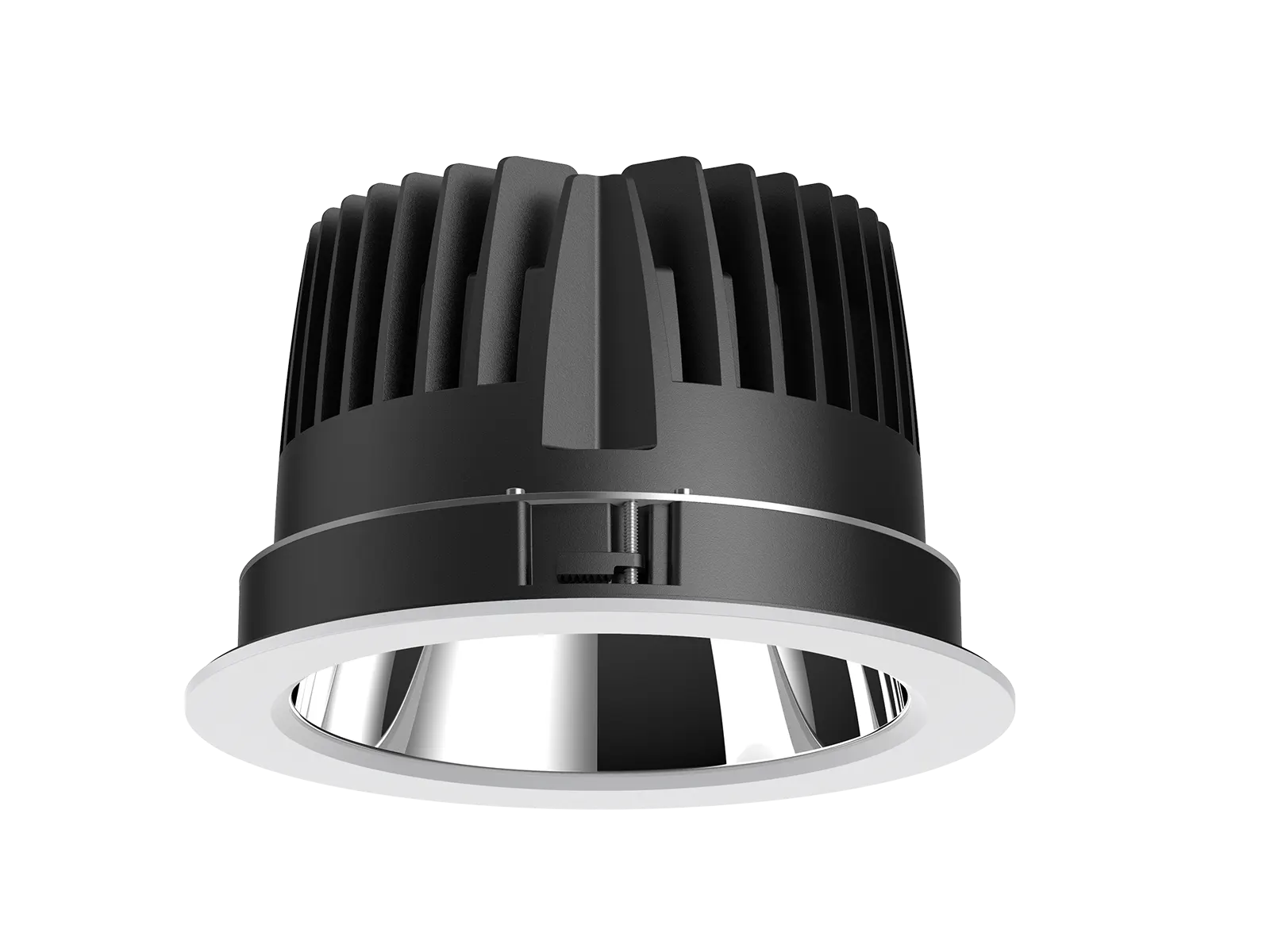

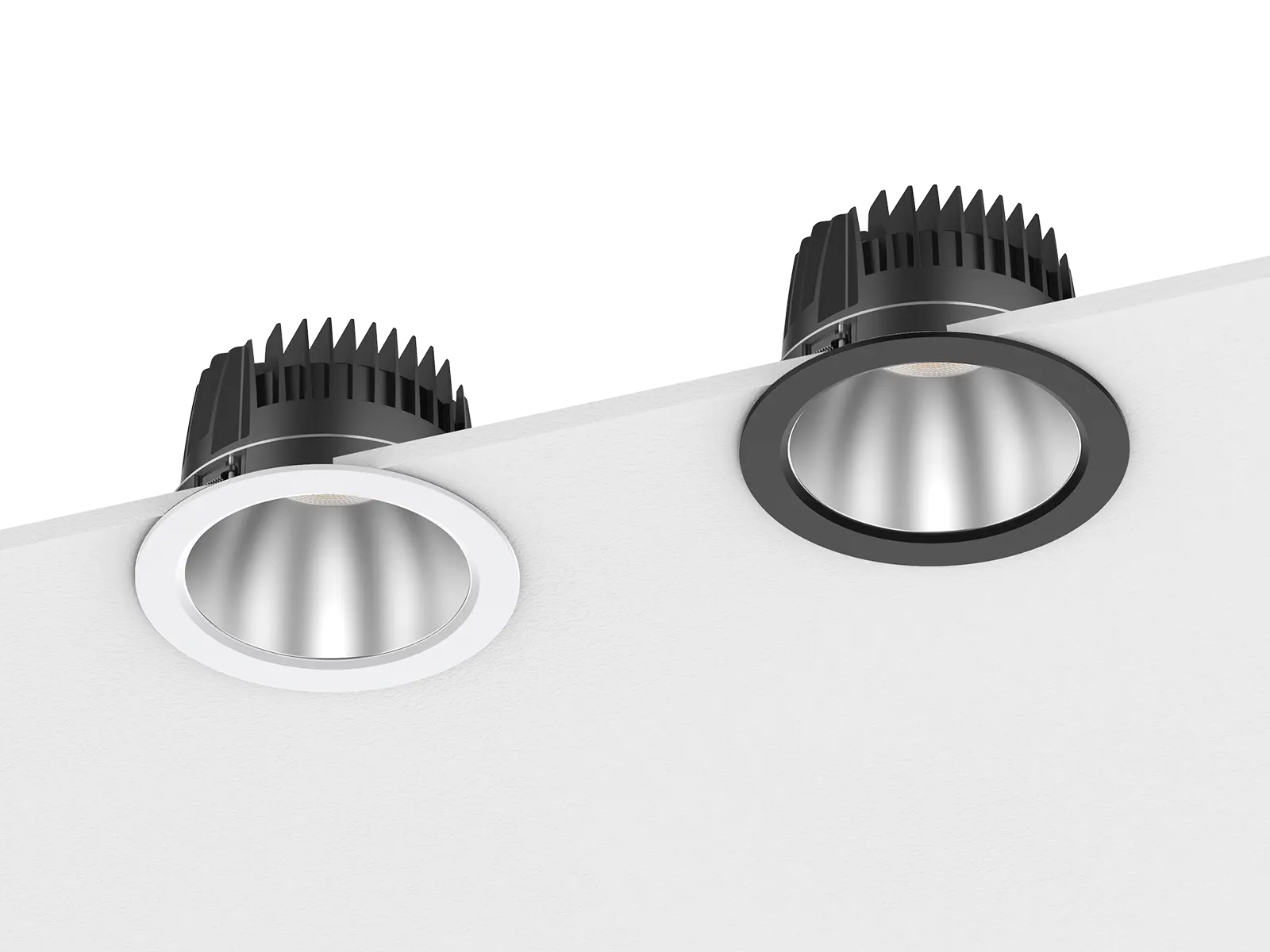

This is a modular downlight that uses high lumen COB LEDs for high efficiency. The ADC12 aluminum housing provides excellent heat management and ensures a long lifespan. With the modular design concept, the optic lens reflectors and trims can be easily replaced to suit a variety of installation environments. The modules can be removed from the front. This recessed downlight can be installed on ceilings with a thickness of 5-20 mm, providing a wider range of installation possibilities.
Applications: It is designed for general lighting applications in workshops, warehouses, shop, supermarkets, etc.
| Code | DL459B-8-36W | DL459B-8-52W | DL459B-8-70W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø240*145 | ||||
| Cutout(mm) | Ø210-225 | ||||
| Watt(W) | 36W | 52W | 70W | ||
| Rated Input Voltage | AC 120-277V | ||||
| Input Voltage | AC 100-305V | ||||
| Light Source | COB | ||||
| SDCM | < 5 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 4700-5050 | 6600-7000 | 9100-9800 |
| DIM | 4700-5050 | 6600-7000 | 9100-9800 | ||
| CRI | 80 | ||||
| Beam Angle (°) | 25° / 40° | ||||
| UGR | <19 | ||||
| LED Driver | Driver built-out | ||||
| Dimming Option | 0-10V | ||||
| Sensor | No | ||||
| Emergency Kits | No | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Black RAL 9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Die-Casting Aluminium | ||||
| Lifetime(hr) | 5,0000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | -20°C~45°C | ||||
| Storage Temp(°C) | -20°C~65°C | ||||
| Installation | Recessed | ||||
