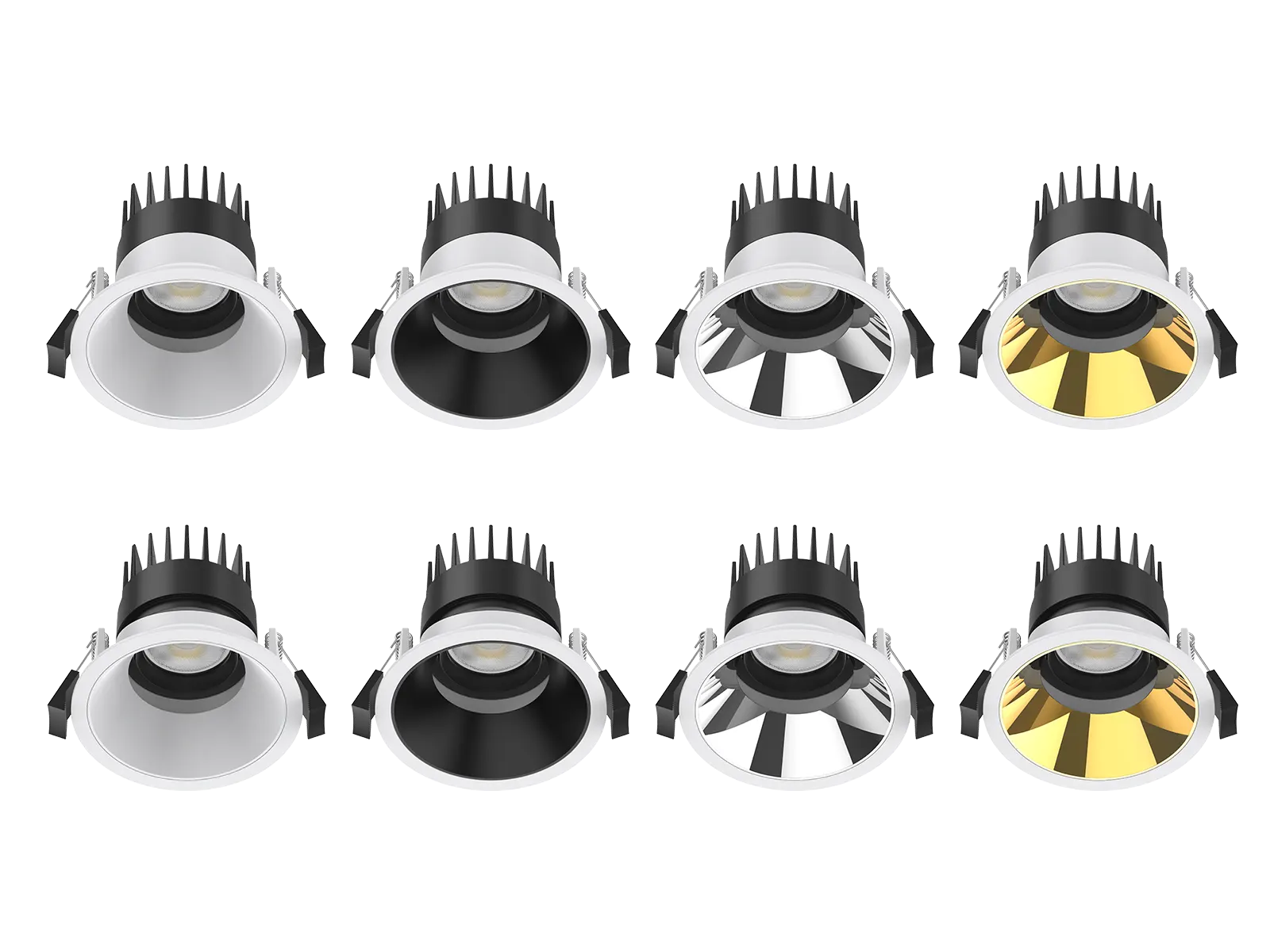

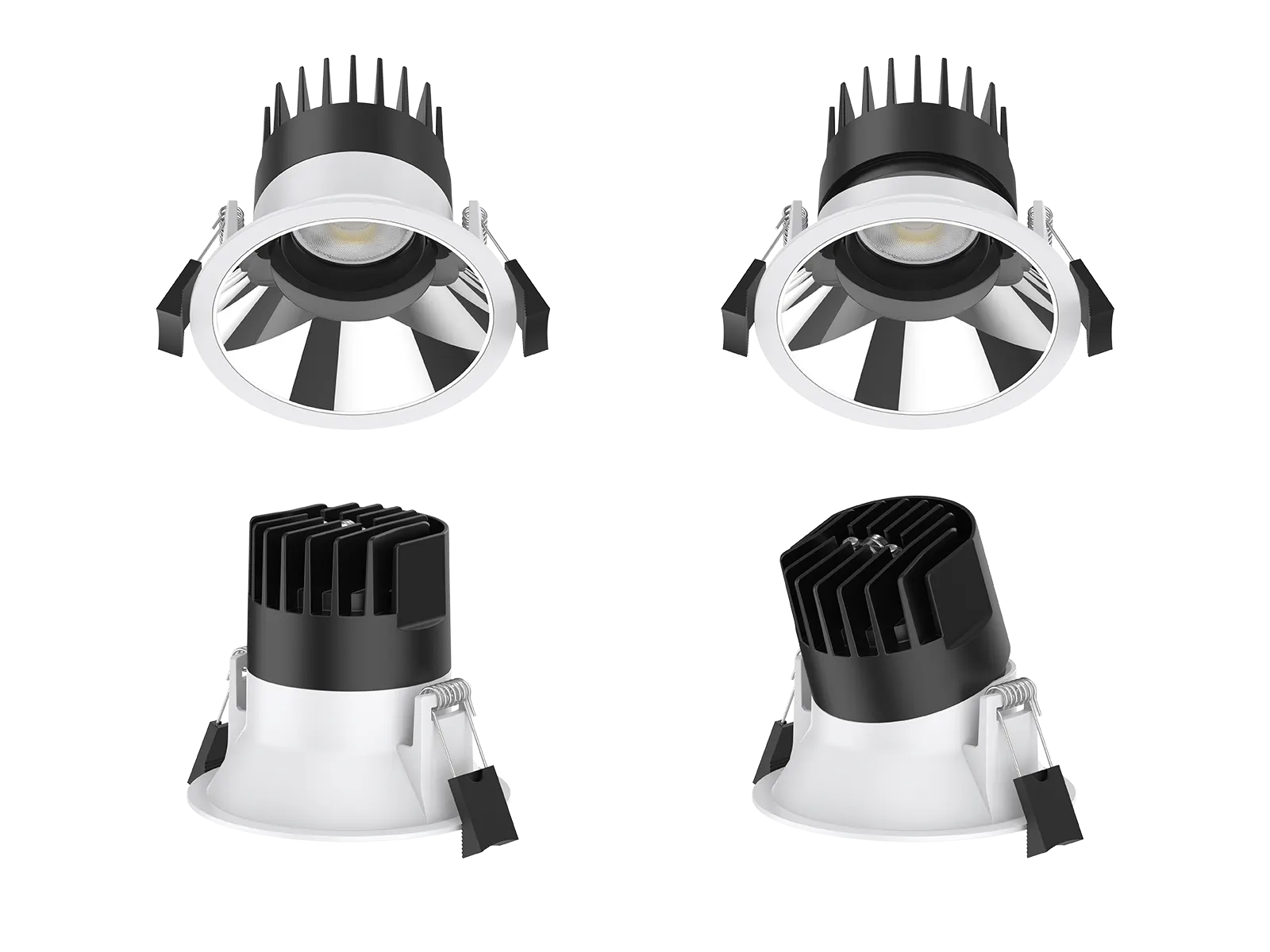

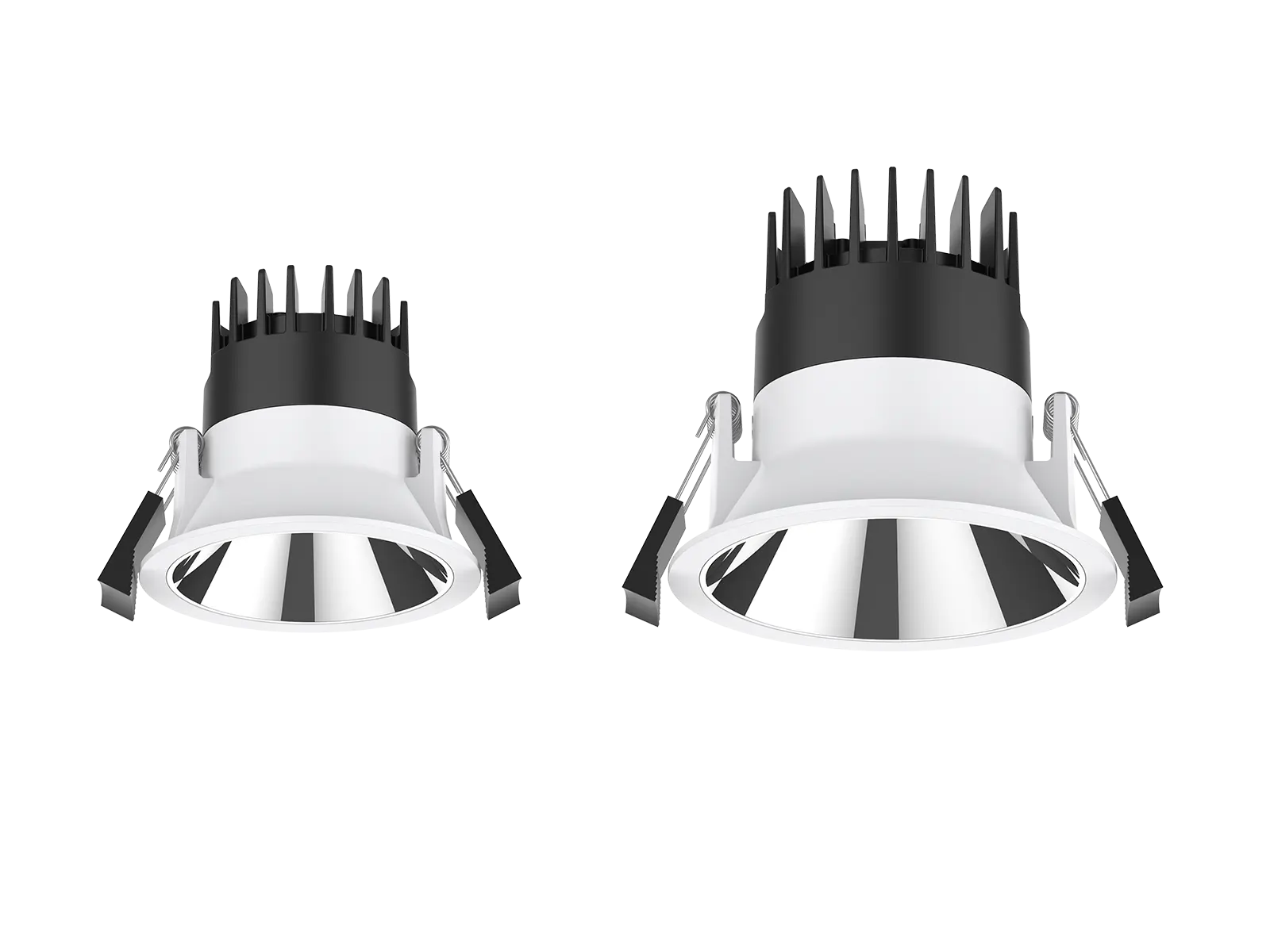

DL458 is a modular downlight with deep reflector and adjustable color temperature. The module bracket has adjustable one and fixed one to meet the different application requirements. The professional lens + deep anti-glare reflector design makes the light spot better. It takes into account both the commercial and residential downlights.
Applications: Suitable for various indoor and outdoor environments with suspended ceilings, such as homes, offices, corridors, hotels, restaurants, etc.
| Code | DL458-2.5-6W | DL458-3-10W | DL458-3-12W | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø77*68 | Ø101*90 | Ø101*90 | ||||||||
| Cutout(mm) | Ø68 | Ø90 | Ø90 | ||||||||
| Watt(W) | 6W | 10W | 12W | ||||||||
| Rated Input Voltage | AC220-240V | ||||||||||
| Input Voltage | AC198-264V | ||||||||||
| LED Module Input | DC32-38V | ||||||||||
| Light Source | COB | ||||||||||
| SDCM | SDCM<5 | ||||||||||
| CCT(K) | 1-CCT: 3000K/4000K 2-CCT: 3000K+4000K | ||||||||||
| CCT Selection | By DIP switch | ||||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 480-490 | 800-830 | 1030-1090 | ||||||
| DIM | 480-490 | 800-830 | 1030-1090 | ||||||||
| 2-CCT | Non-DIM | 430-450 | 660-700 | 810-940 | |||||||
| DIM | 430-450 | 660-700 | 810-940 | ||||||||
| CRI | CRI90 | ||||||||||
| Beam Angle (°) | 24° | 36° | 50° | 24° | 36° | 50° | 24° | 36° | 50° | ||
| UGR | <8 | <15 | <19 | <12 | <19 | <19 | <11 | <14 | <22 | ||
| LED Driver | Built-out, Flicker Free | ||||||||||
| Dimming Option | Triac | ||||||||||
| Electrical Class | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | ||||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||||
| Product Finishing | Black RAL9005, White RAL9016-K7 | ||||||||||
| Optics Material | PC | ||||||||||
| Housing Material | Die-Casting Aluminium | ||||||||||
| Lifetime(hr) | 50,000h | ||||||||||
| Glow wire test(°C) | 750°C | ||||||||||
| Operating Temp.(°C) | -20°C~45°C | ||||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||||
| Installation | Recessed | ||||||||||
