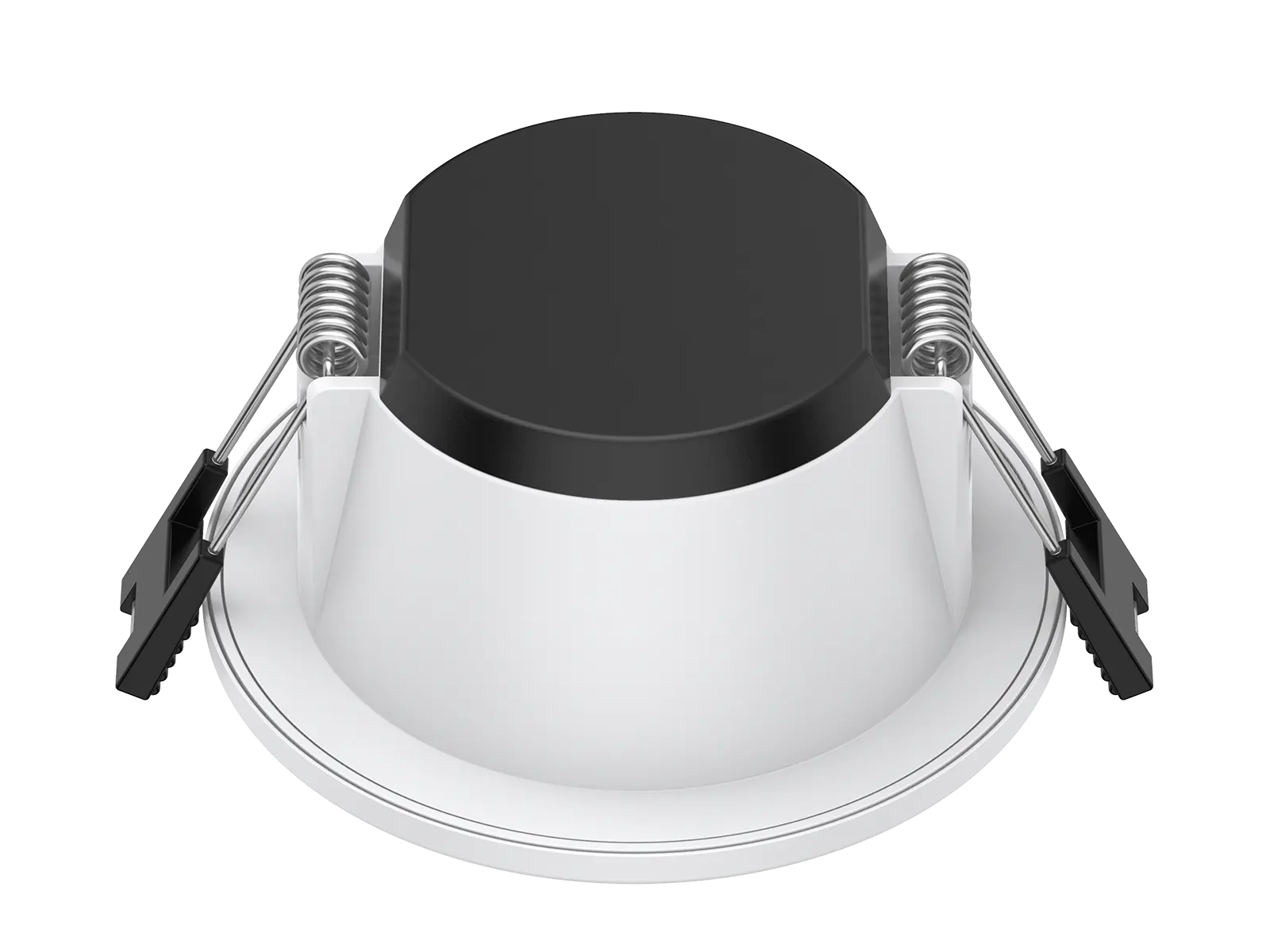

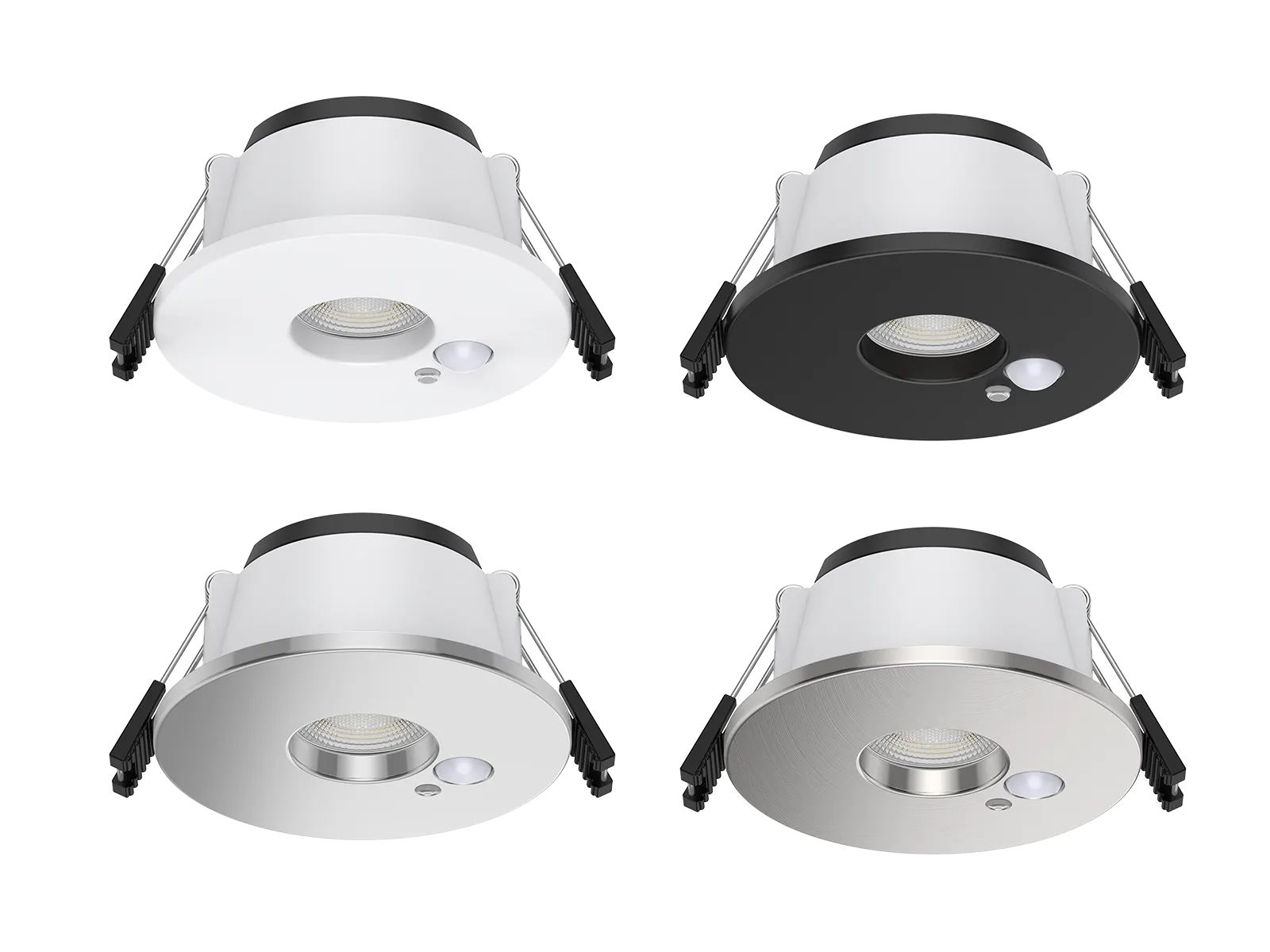

This is a recessed downlight featuring high-lumen SMD LEDs and a 60° beam angle, delivering uniform and efficient illumination. The plastic-coated aluminium housing ensures excellent heat dissipation, enhancing reliability and extending the product lifespan. It offers switchable wattage and CCT via DIP switches, along with a built-in PIR sensor for smart motion detection. Multiple trim colour options are available to suit different design styles. The integrated non-dimmable driver and quick-connect terminal box ensure fast and easy installation.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL451-2.5-6W | ||
|---|---|---|---|
| Dimension(mm) | Ø87*H46 | ||
| Cutout(mm) | 68-75 | ||
| Watt(W) | 6W Max.(6W/4W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | DC15-20V | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 4-CCT: 2700K+3000K+ 4000K+6500K | ||

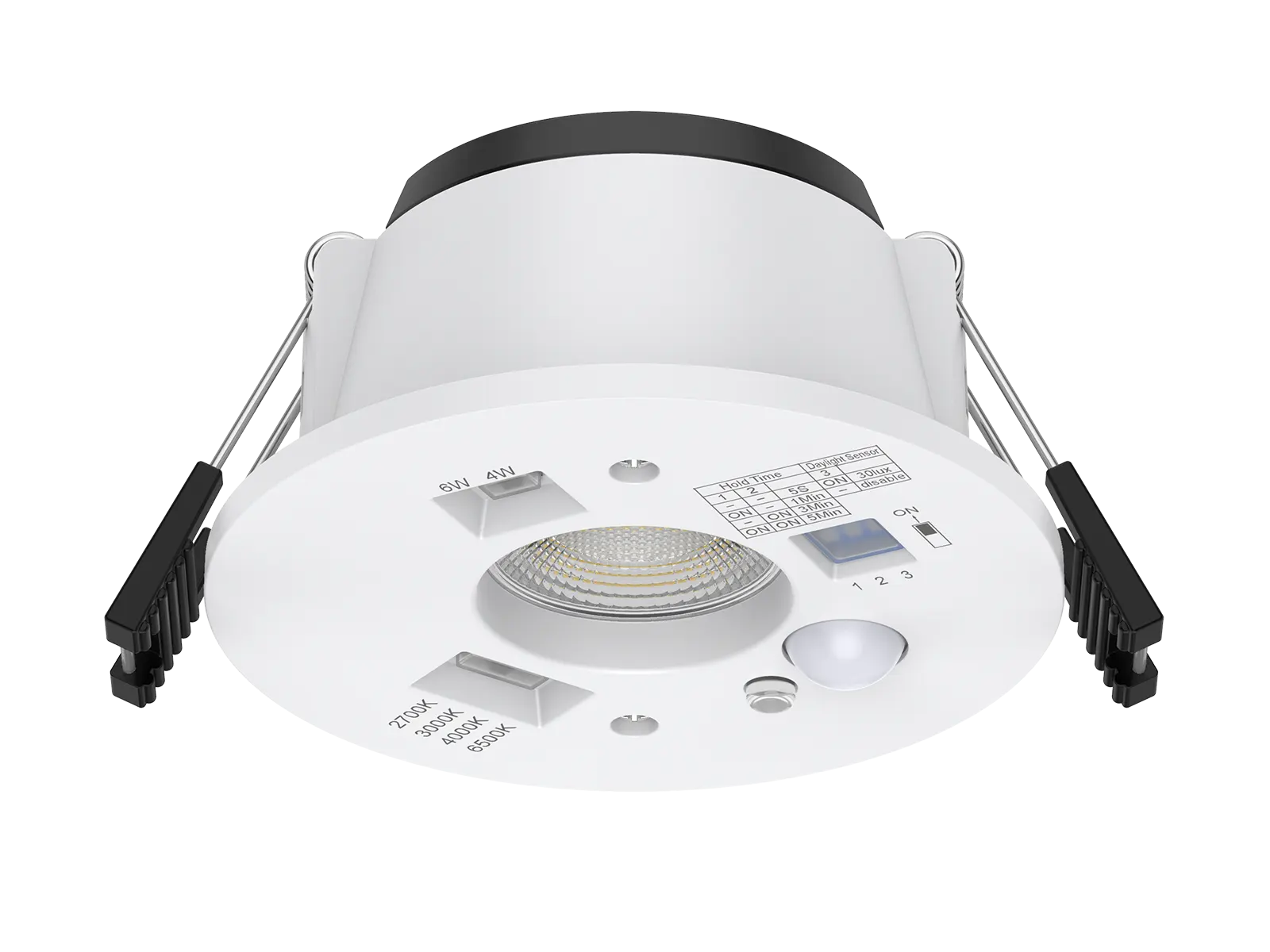

| CCT Selection DIP Switch | YES | ||
| Luminous Flux (lm) ±5% CRI80 | 4-CCT | Non-DIM | 6W: 490-530 4W: 330-370 |
| CRI | CRI 80 | ||
| Beam Angle(°) | 60° | ||
| LED Driver | Built-in, Flickering | ||
| Dimming Option | NO | ||
| Sensor | PIR sensor | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP20 | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | PC | ||
| Housing Material | Plastic coated Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C(25°IC-4) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
