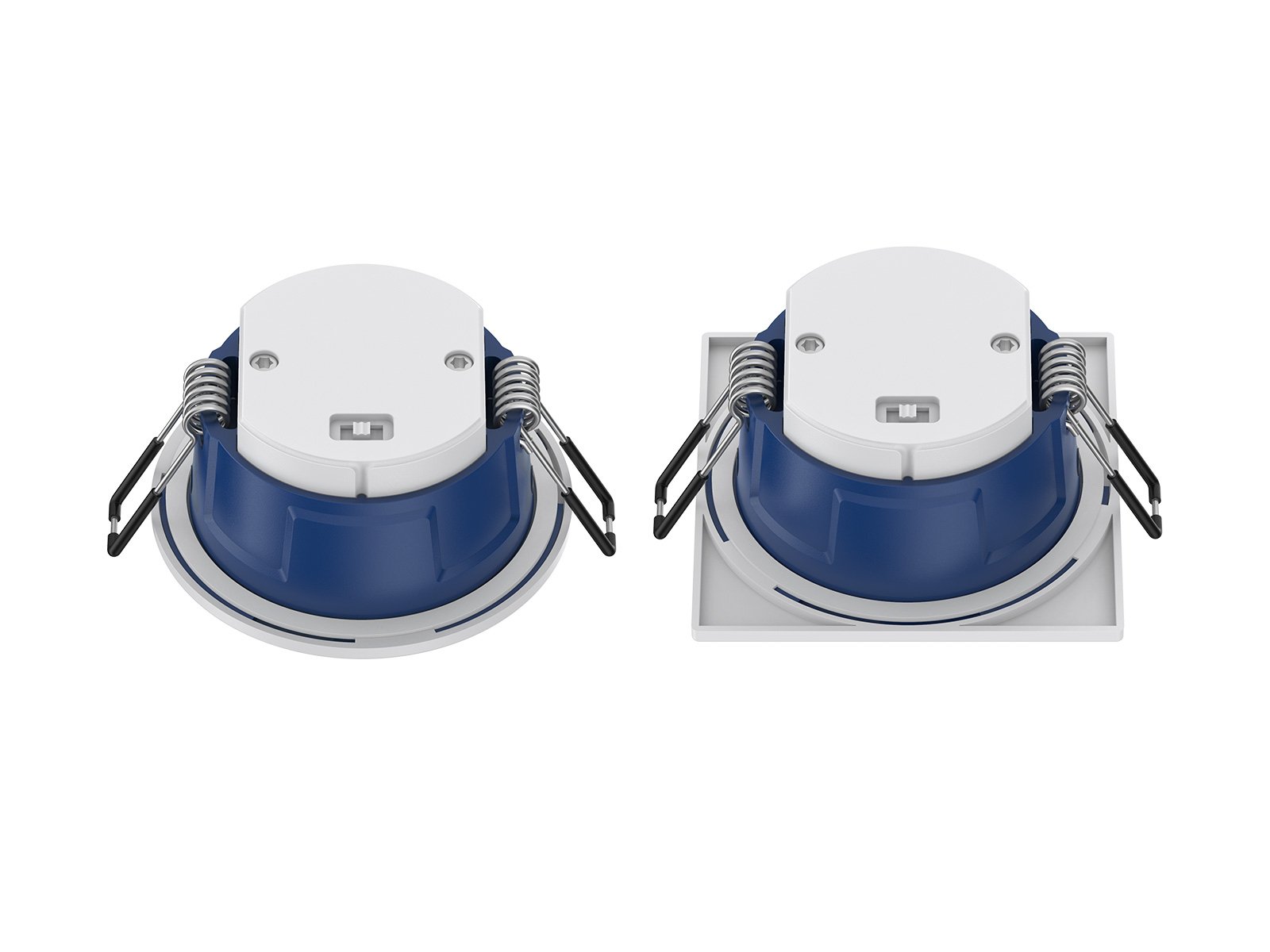

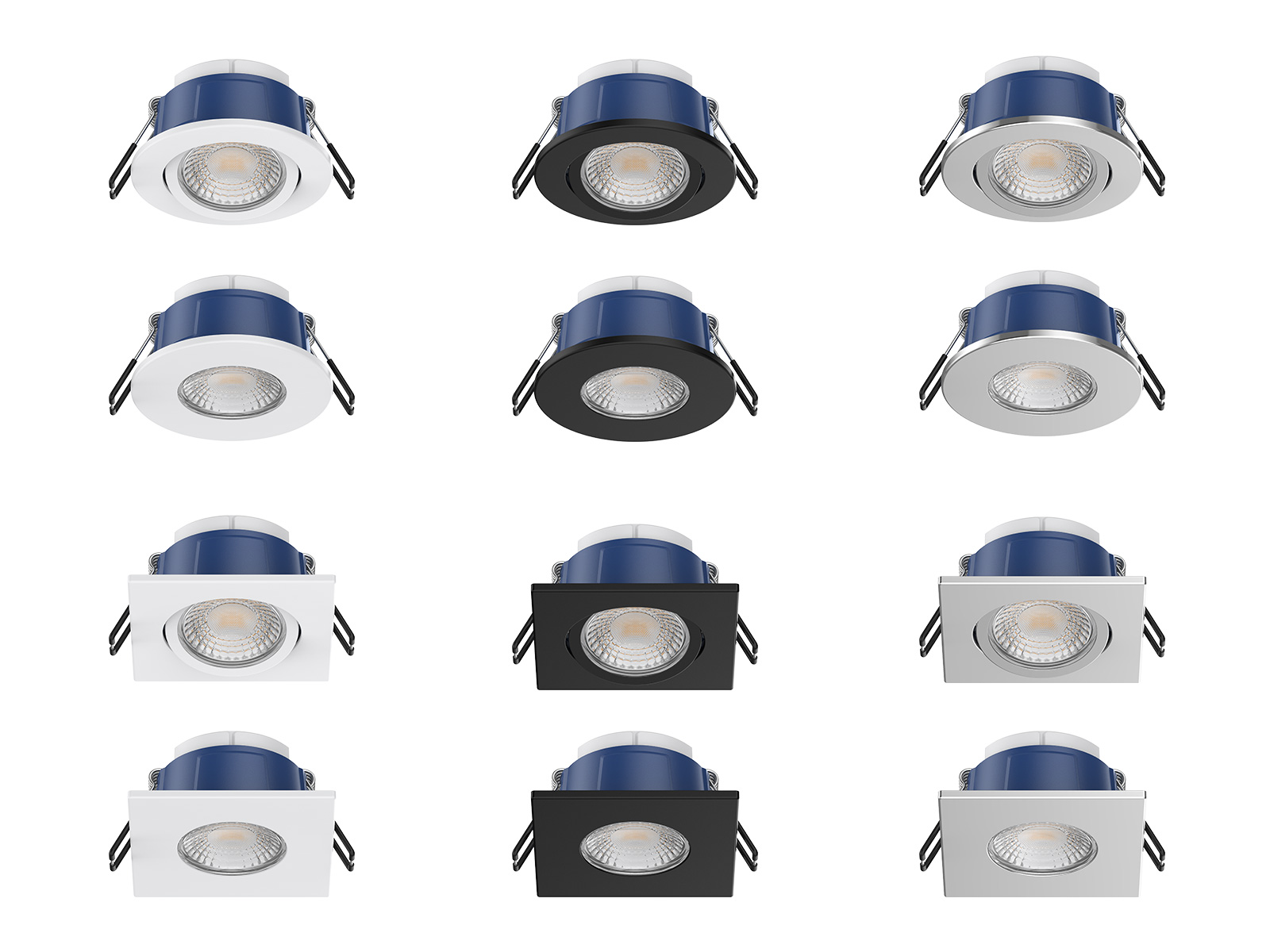

This is a versatile light that can switch between fixed and adjustable head configurations by simply changing the frame ring. 40mm height can fit to more ceilings and can be covered directly under insulation material. It features high-lumen SMD light sources with 3CCT adjustment. The ADC12 aluminum lamp body provides excellent heat dissipation. For quick install, it adopts loop in/out design driver with fast connector.
APPLICATIONS：It is designed for general lighting applications in supermarket, shop, school, hotel etc. It is also widely used for residential lighting areas, such as bedroom, living room, corridors etc.
| CODE | CL444-2.5-5 | CL444S-2.5-5W | |
|---|---|---|---|
| Dimension(mm) | Ø82*H40 | L82*W82*H40 | |
| Cutout(mm) | 68-75 | ||
| Watt(W) | 5W | ||
| Input Voltage | AC230V | ||
| LED Module Input | DC33-38V | ||
| Light Source | SMD | ||
| CCT(K) | 3-CCT: 2700K + 3000K + 4000K | ||
| CCT Selection DIP Switch | YES | ||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% CRI80 | DIM | 520-560 | |
| DIM 3-CCT Luminous Flux (lm) ±5% CRI90 | DIM | 450-480 | |
| Beam Angle (°) | 60° | ||
| Dimming Option | Triac | ||
| Product weight(Kg) | N.W/PC | 0.19 | |
| G.W/PC | 0.29 | ||
| Package weight(Kg) | N.W/CTN | 9.12 | |
| G.W/CTN | 15.2 | ||
| Qty/CTN (PCS) | 48 | ||
| Carton Size(mm) | 500*380*270mm | ||
| 20GP(pcs) | 25344 | ||
| 40HQ(pcs) | 59616 | ||
