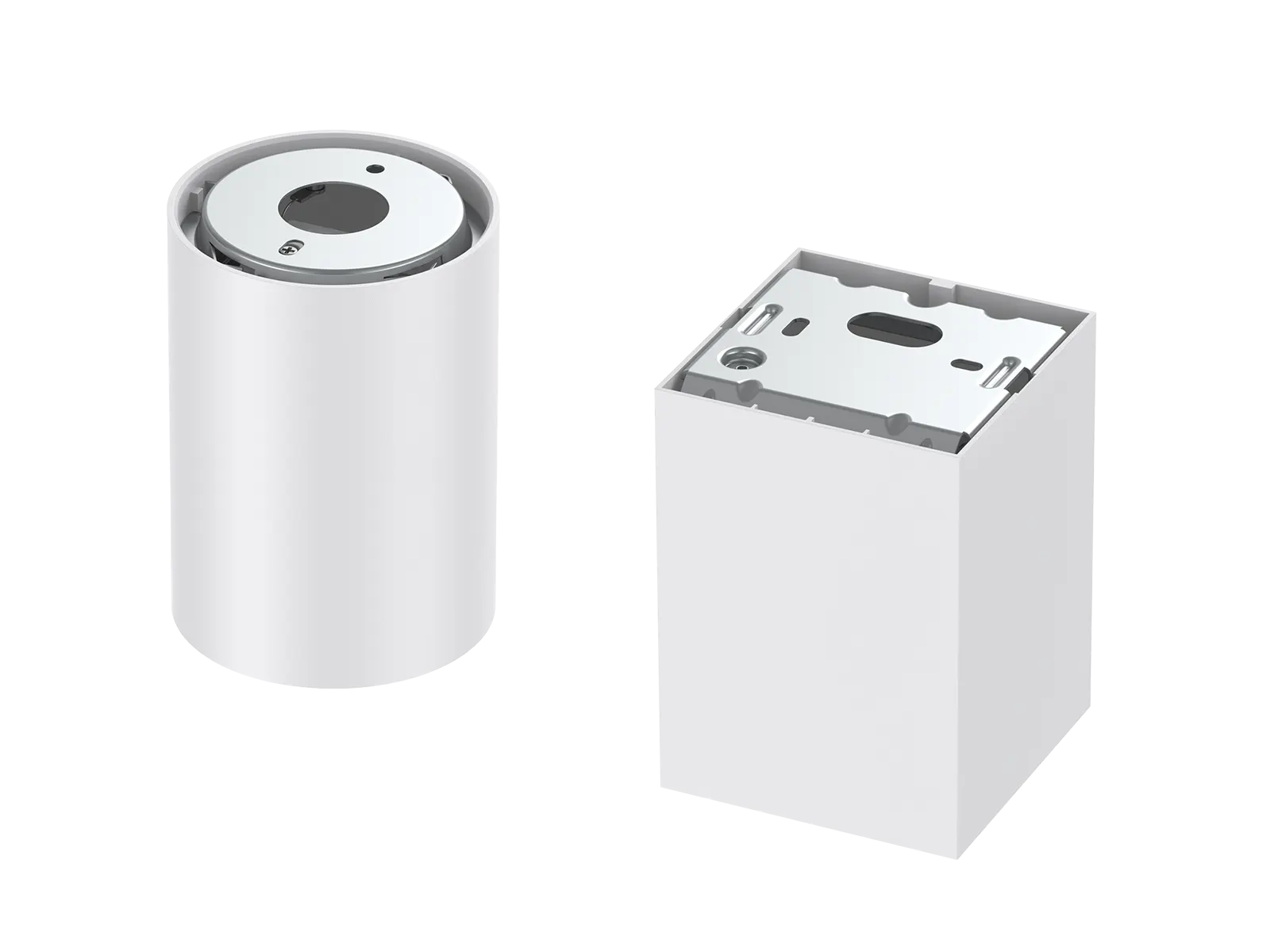

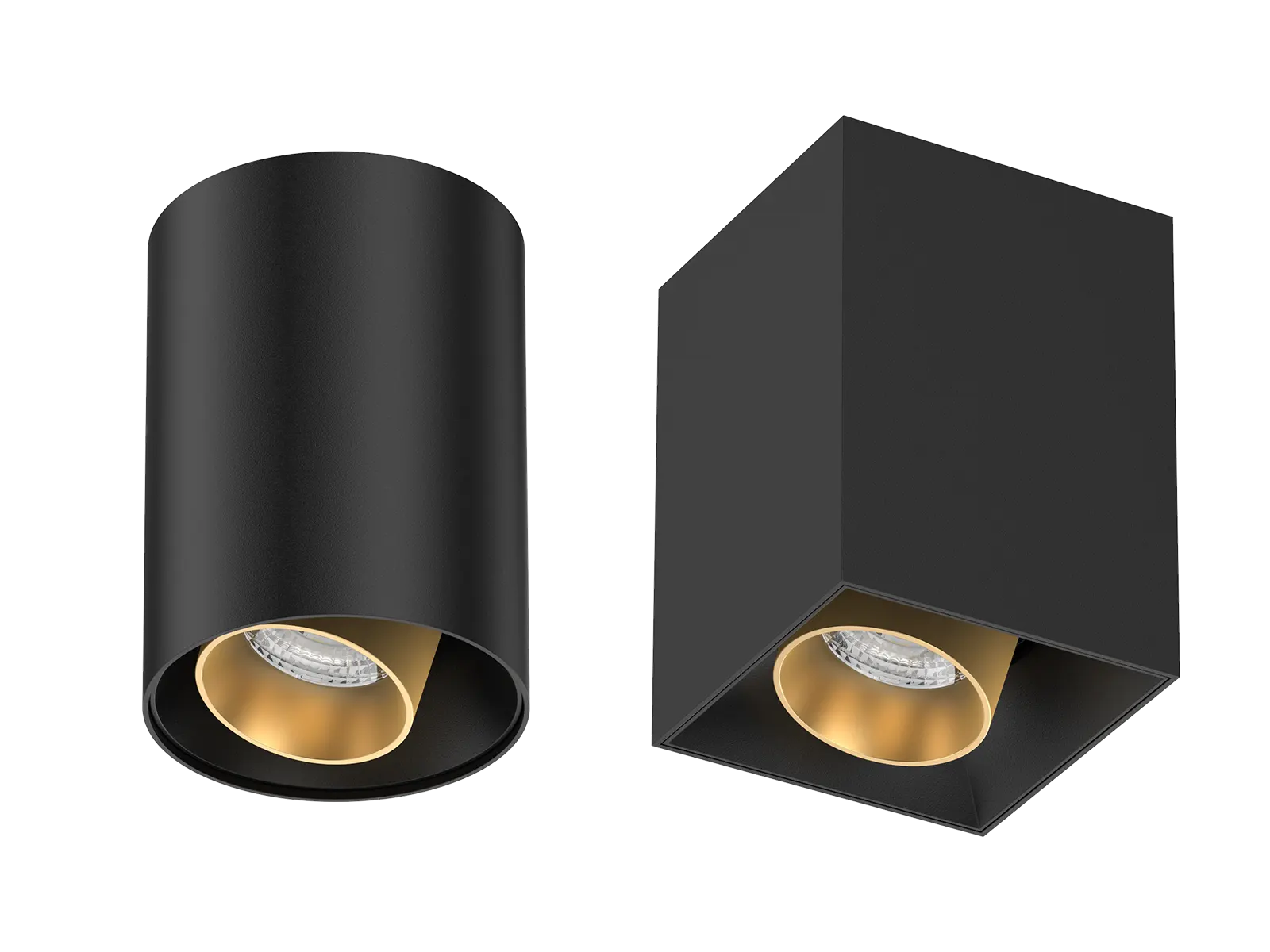

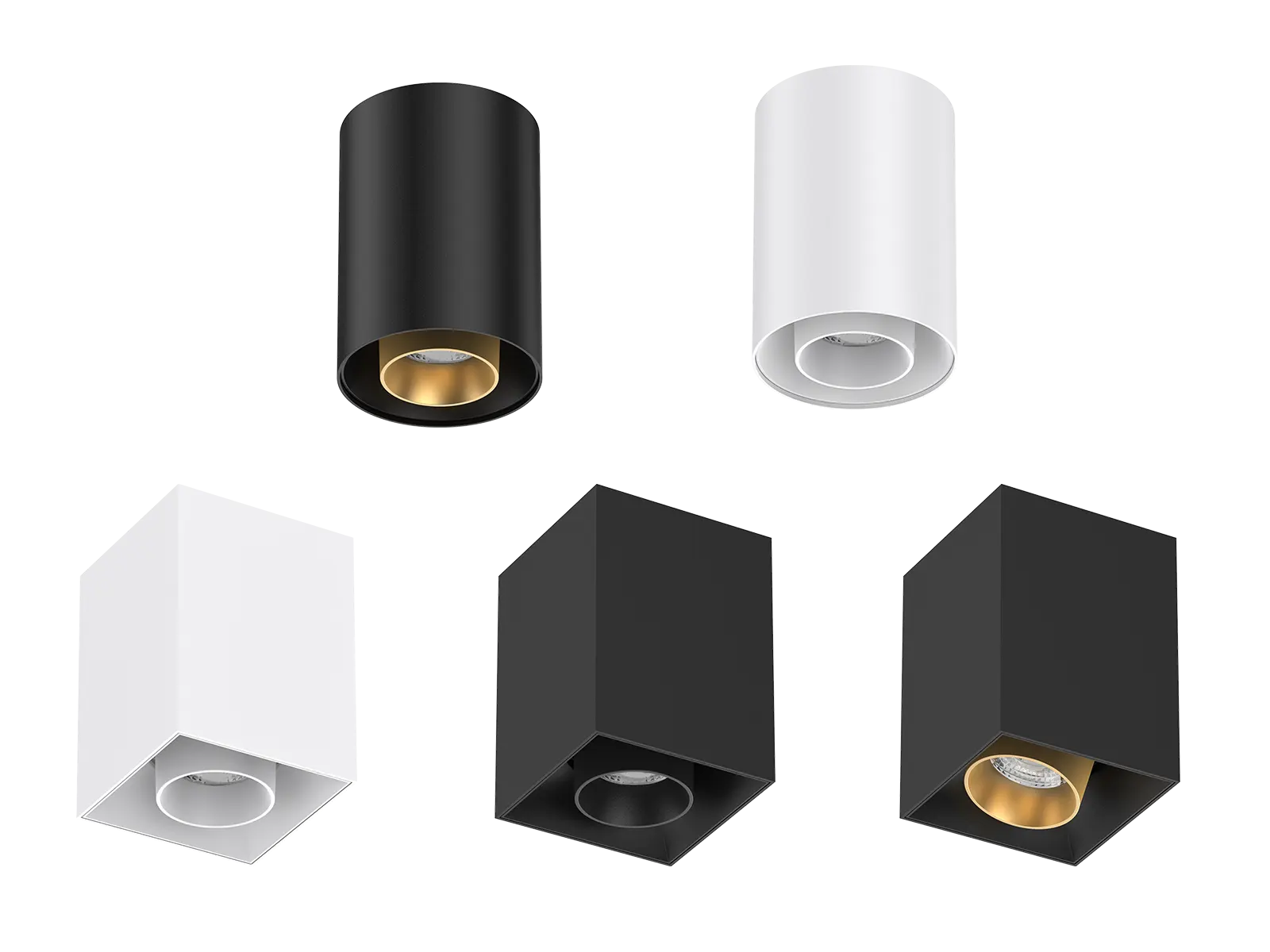

This surface mounted downlight adopts brand COB and high reflection reflector optical components, providing uniform and high lumen output. With an ADC12 aluminum housing, it offers excellent heat management performance to ensure a long lifespan. Adjustable lighting direction with a horizontal rotation of 355°and vertical rotation of 20°, offering all possible lighting effects. The built-in driver solution (dimming and non-dimming versions) ensures excellent dimming compatibility with global brand dimmers. Three different colored front rings are available to meet various customer needs.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| CODE | DL411A-8W | DL411A-10W | DL411B-8W DL411B-10W | |||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*H125 | Ø90*H125 | L90*W90*H125 | L90*W90*H125 | ||
| Watt(W) | 8W | 10W | 8W | 10W | ||
| Input Voltage | AC220-240V | |||||
| Light Source | COB | |||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K / 5000K , 2-CCT: 3000K+4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | - | 850-1100 | - | 940-1040 |
| CRI90 | DIM | - | 780-1010 | - | 860-960 | |
| White trim | 2-CCT | Non-DIM | 710-760 | - | 730-780 | - |
| DIM | 640-690 | - | 660-700 | - | ||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | - | 890-1060 | - | 910-1010 |
| CRI90 | DIM | - | 810-980 | - | 830-930 | |
| Black trim | 2-CCT | Non-DIM | 630-730 | - | 640-760 | - |
| DIM | 560-660 | - | 570-690 | - | ||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | - | 920-1070 | - | 930-1020 |
| CRI90 | DIM | - | 840-990 | - | 850-940 | |
| Gold trim | 2-CCT | Non-DIM | 660-760 | - | 660-740 | - |
| DIM | 590-690 | - | 590-670 | - | ||
| Beam Angle(°) | 36°, 60° | |||||
| UGR | 36°<19, 60°<23 | |||||
| Dimming Option | Triac | |||||
| Product weight(Kg) | N.W/PC | 0.66 | 0.65 | |||
| G.W/PC | 0.77 | 0.76 | ||||
| Package weight(Kg) | N.W/CTN | 9.24 | 9.12 | |||
| G.W/CTN | 10.7 | 10.6 | ||||
| Qty/CTN(PCS) | 12 | 12 | ||||
| Carton Size(cm) | 39.5*23.5*32.5 | 39.5*23.5*32.5 | ||||
| 20GP(pcs) | 11256 | 11256 | ||||
| 40HQ(pcs) | 25920 | 25920 | ||||
