This is a recessed downlight, using high lumen SMD LEDs to achieve high efficiency. PC diffuser with uniform light output and comfortable lighting. The plastic-coated aluminum housing and integrated driver design, which provide good thermal management and great popularity by the excellent dimming effect. The front protection level reaches IP54, which is effectively dustproof and waterproof, and can be used in a variety of environments.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL41-2.5-7W | DL41-3-8W | DL41-4-13W | DL41-6-16W | DL41-8-20W | |
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø85*55 | Ø115*58 | Ø145*61 | Ø190*74 | Ø225*84 | |
| Cutout(mm) | Ø68-75 | Ø90-95 | Ø120-130 | Ø160-170 | Ø195-210 | |
| Watt(W) | 7W | 8W | 13W | 16W | 20W | |
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K+4000K+5700K | |||||

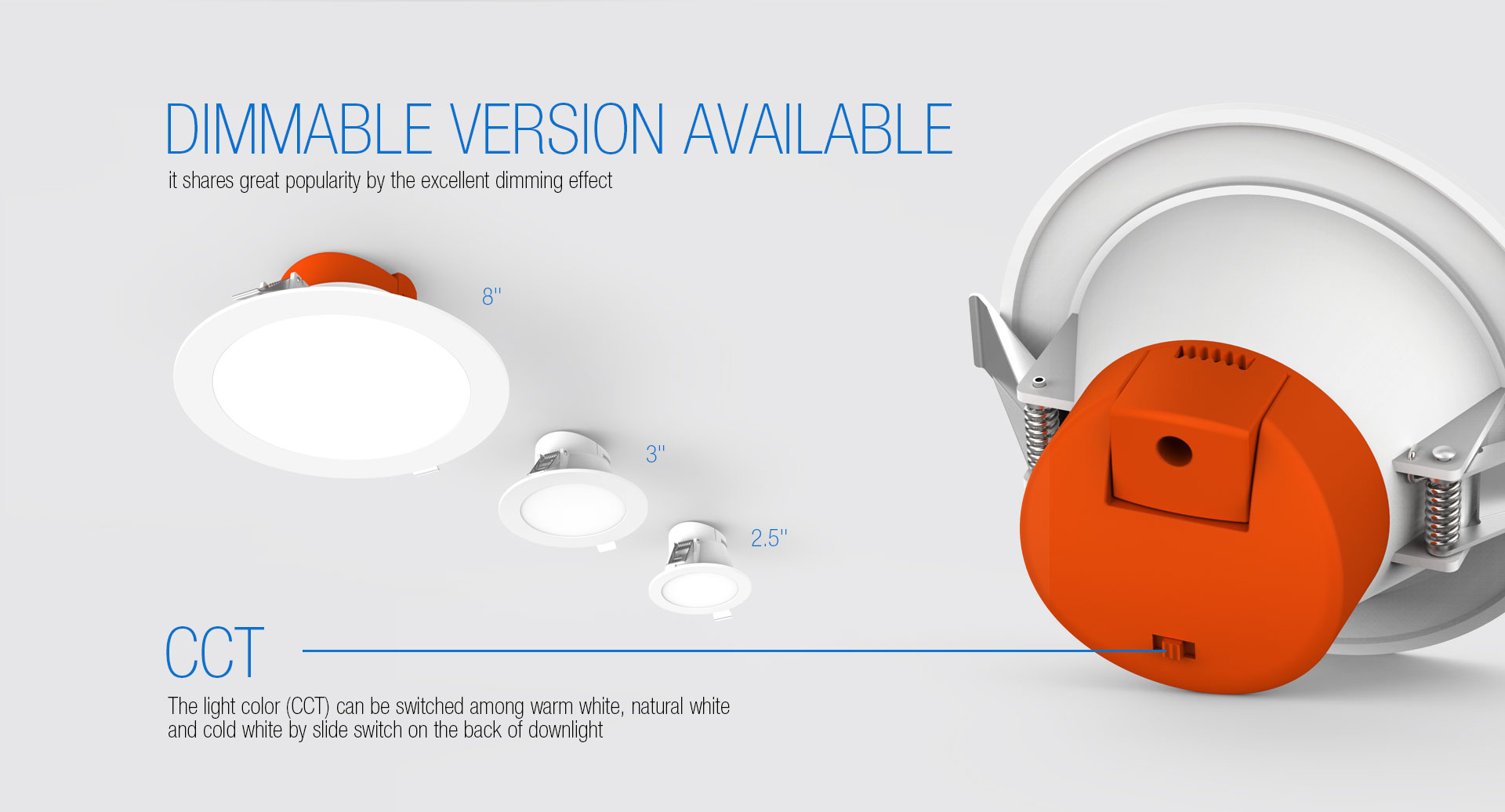

| CCT Selection | By DIP Switch | |||||
| Luminous Flux | 1-CCT | 640-700 | 790-875 | 1200-1310 | 1650-1775 | 2050-2215 |
| (lm) ±5% CRI80 | 3-CCT | 650-725 | 790-875 | 1215-1390 | 1655-1840 | 2050-2350 |
| CRI | CRI 80 | |||||
| Beam Angle(°) | 90° | 100° | ||||
| UGR | - | |||||
| LED Driver | Built-in/Flicker Free | |||||
| Dimming Option | Triac | |||||
| Sensor | - | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP54 Below Ceiling/IP40 Inside Ceiling | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | PA6+AL1060 | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
