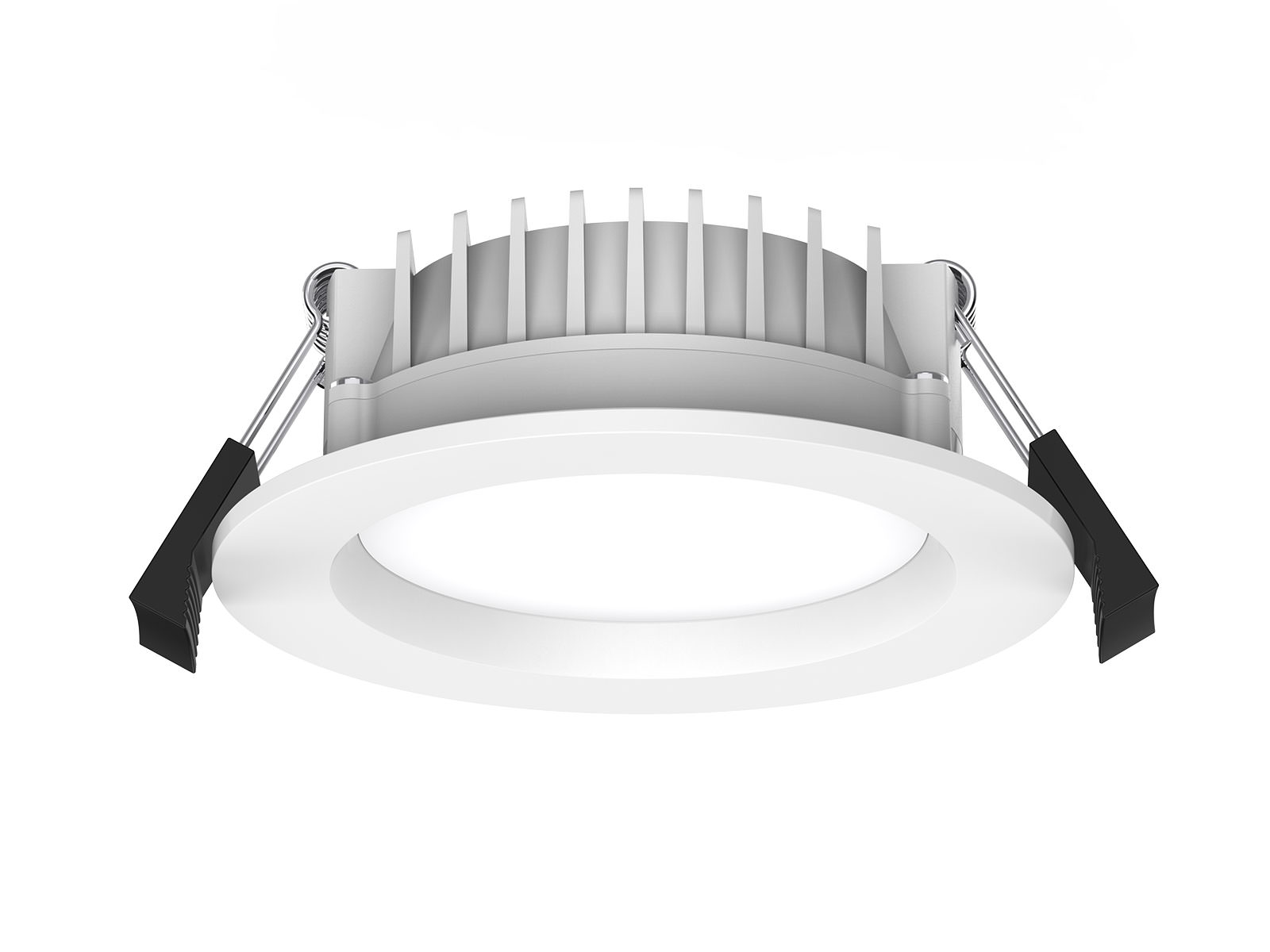

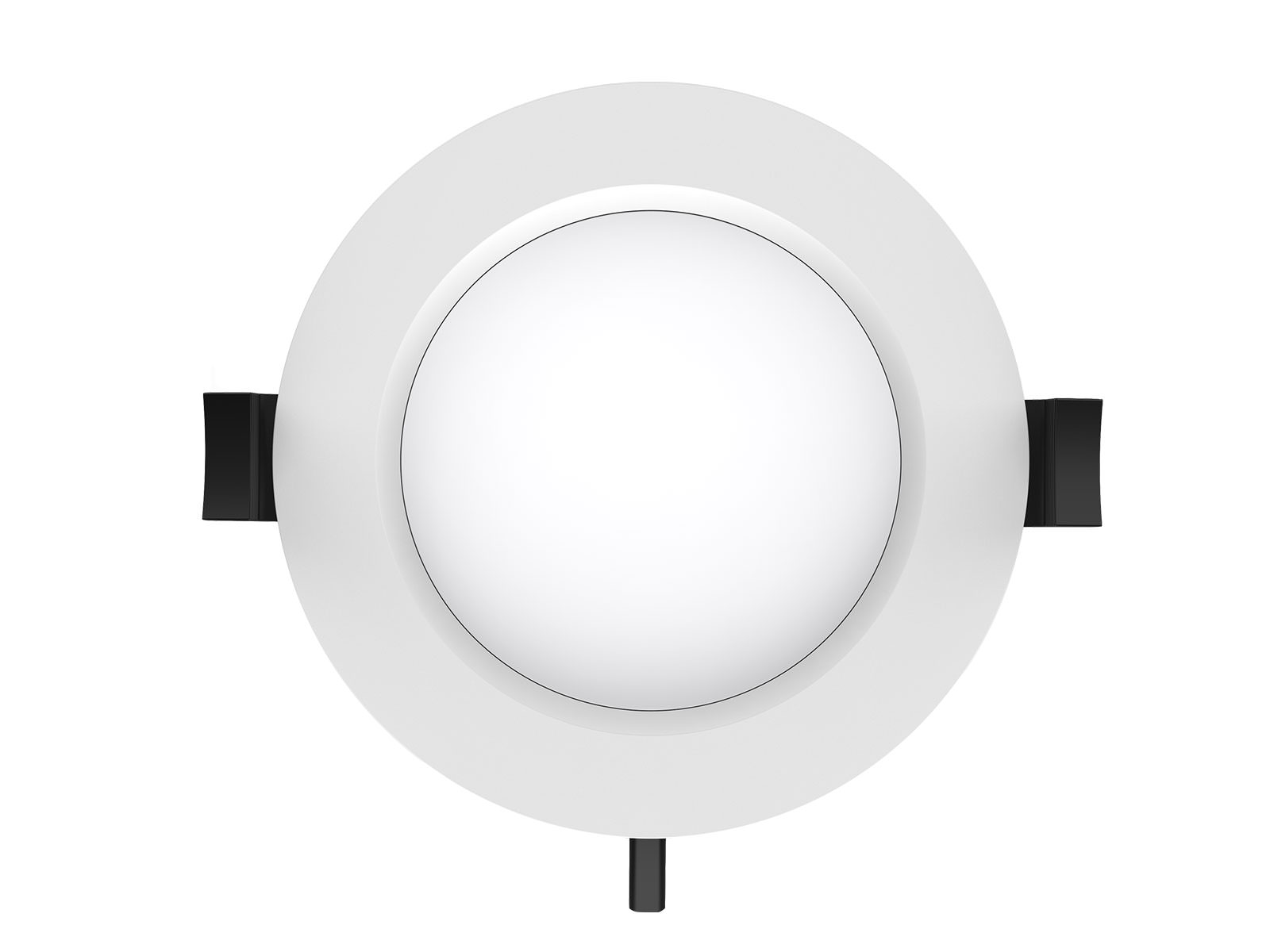

DL299 adopts high lumen SMD LED, PC diffuser with even light output. Plastic coated aluminum housing with external driver design; it is economical and practical downlight version. Dimmable driver shares great popularity by the excellent dimming effect.
Features
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code No. | DL299-3-10W | ||
|---|---|---|---|
| Dimension(mm) | Ø110*45 | ||
| Cutout (mm) | Ø90-95 | ||
| Watt(W) | 10W | ||
| Rated Input Voltage(V) | AC230V | ||
| Input Voltage(V) | AC220-240V | ||
| LED Module Input | DC57-62V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | || 3-CCT: 3000K + 4000K + 5700K | ||
| CCT Selection DIP Switch | Yes | ||
| Non-DIM | - | ||
| DIM | 1-CCT | - | |
| Luminous Flux (lm) ±5% | Non-DIM | - | |
| DIM | 3-CCT | Whtie :700-850 , Black:10% lumen decrease | |
| CRI | 80 | ||
| Beam Angle (°) | 90° | ||
| UGR | - | ||
| LED Driver | Built-out | ||
| Dimming Option | Triac | ||
| Sensor | - | ||
| Emergency Kits | - | ||
| Electrical Class | Class Ⅱ | ||
| Ingress Protection (IP Rating) | IP54(Below Ceiling) IP40(Inside Ceiling) | ||
| Impact Resistance (IK Rating) | - | ||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | ||
| Materials of Optics | PC | ||
| Materials of Housing | Aluminum+PA6 | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 750℃ | ||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||
| Storage Temp. (℃ ) | -20℃ ~65℃ | ||
| Installation | Recessed | ||
