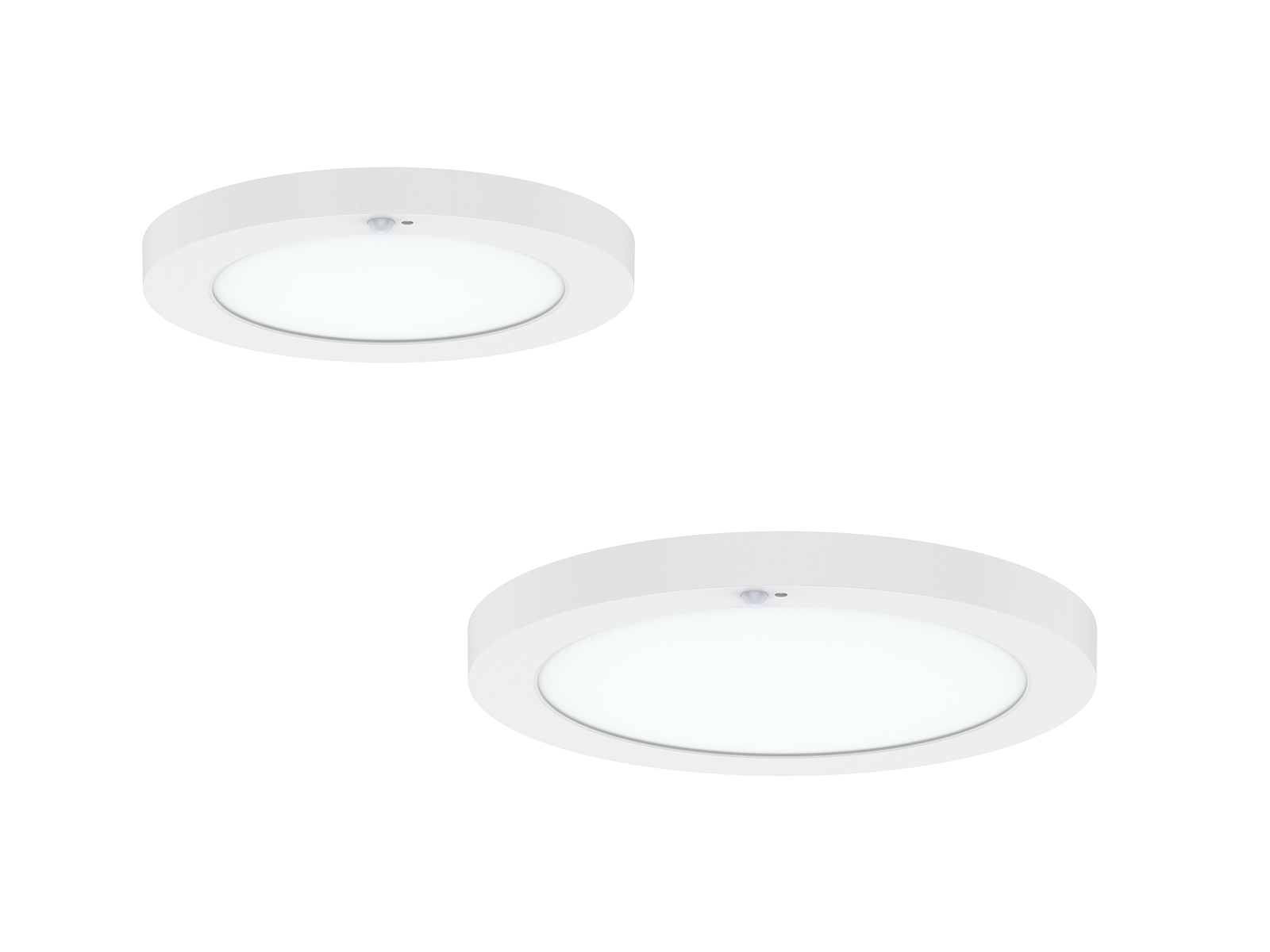

This downlight featured with adjustable cutoutsize. Adopt high lumen SMD LED and edge
lighting design with even light output. AL1060 Aluminum profile provides excellent thermal

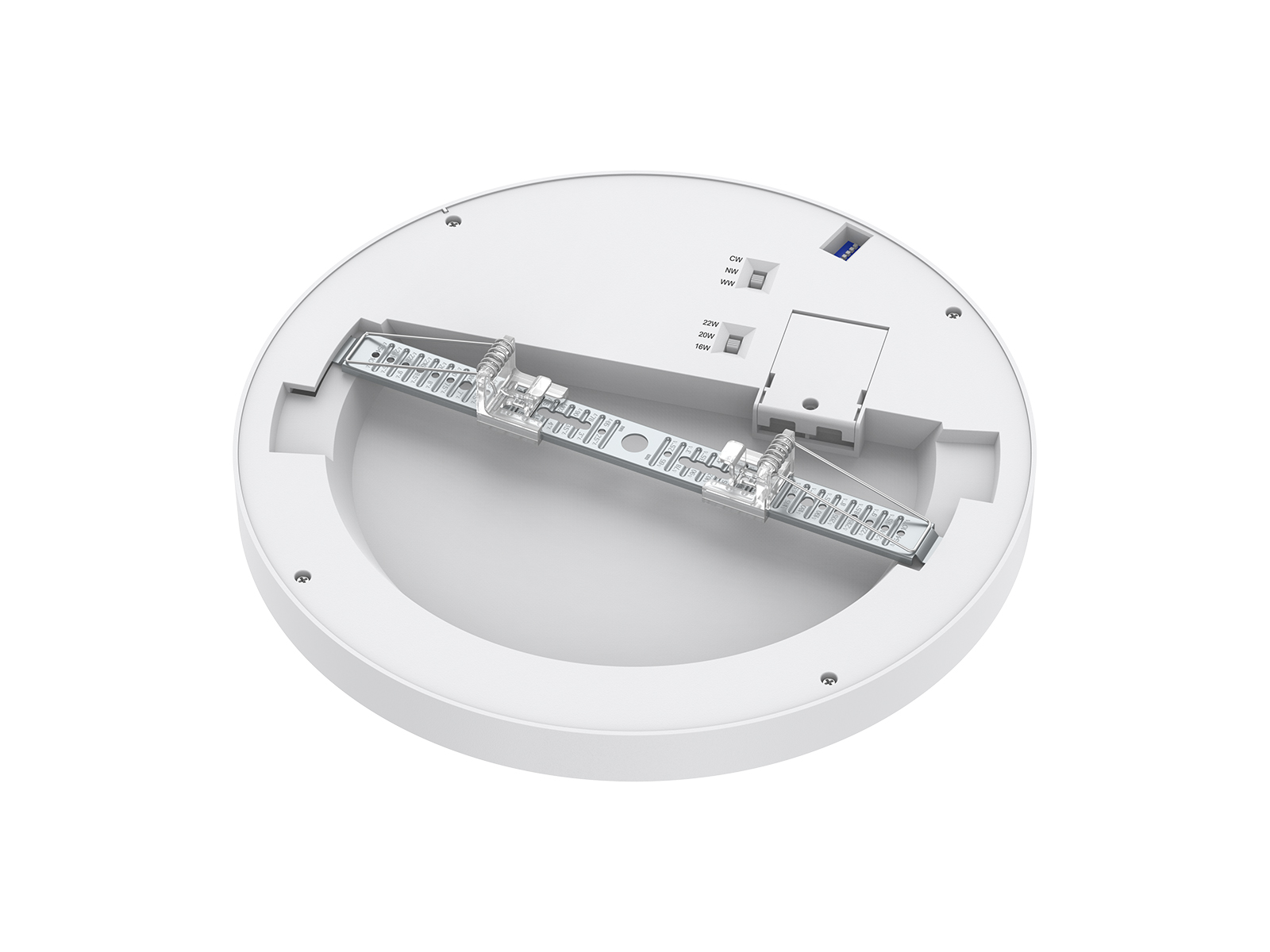

dissipation. Super slim with internal driver and quick connector, very easy for wire connection and installation, it can be widely used in various application. Recessed and surface mounted installation optional.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc
| Code | DL280B-8-16W-SS | DL280B-10-22W-SS |
|---|---|---|
| Dimension(mm) | Ø235*22 | Ø300*25.5 |
| Cutout(mm) | Ø65-205 | Ø120-260 |
| Watt(W) | 10W+13W +16W | 16W+20W +22W |
| Rated Input Voltage | AC220-240V | |
| Input Voltage | AC198V-264V | |
| LED Module Input | - | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |
| CCT Selection DIP Switch | YES | |
| Non-DIM 1-CCT Luminous Flux CRI80 | 10W:870-960 | 16W:1600-1800 |
| 13W:1080-1180 | 20W:1900-2200 | |
| 16W:1250-1400 | 22W:2100-2400 | |
| - | ||
| Non-DIM 3-CCT Luminous Flux CRI80 | 10W:870-960 | 16W:1600-1800 |
| 13W:1080-1180 | 20W:1900-2200 | |
| 16W:1250-1400 | 22W:2100-2400 | |
| CRI | ≥80 | |
| Beam Angle (°) | 120° | |
| LED Driver | Driver built-in | |
| Sensor | PIR sensor | |
| Electrical Class | ClassI I | |
| Ingress Protection(IP Rating) | IP20 | |
| Product Finishing | White RAL 9016 | |
| Optics Material | PS | |
| Housing Material | PC/Aluminium | |
| Lifetime (hr) | 40,000h | |
| Glow wire test (°C) | 650°C | |
| Operating Temp.(°C) | 0°C~25°C | |
| Storage Temp.(°C) | -20°C~50°C | |
| Installation | Surface mount / Recessed | |
