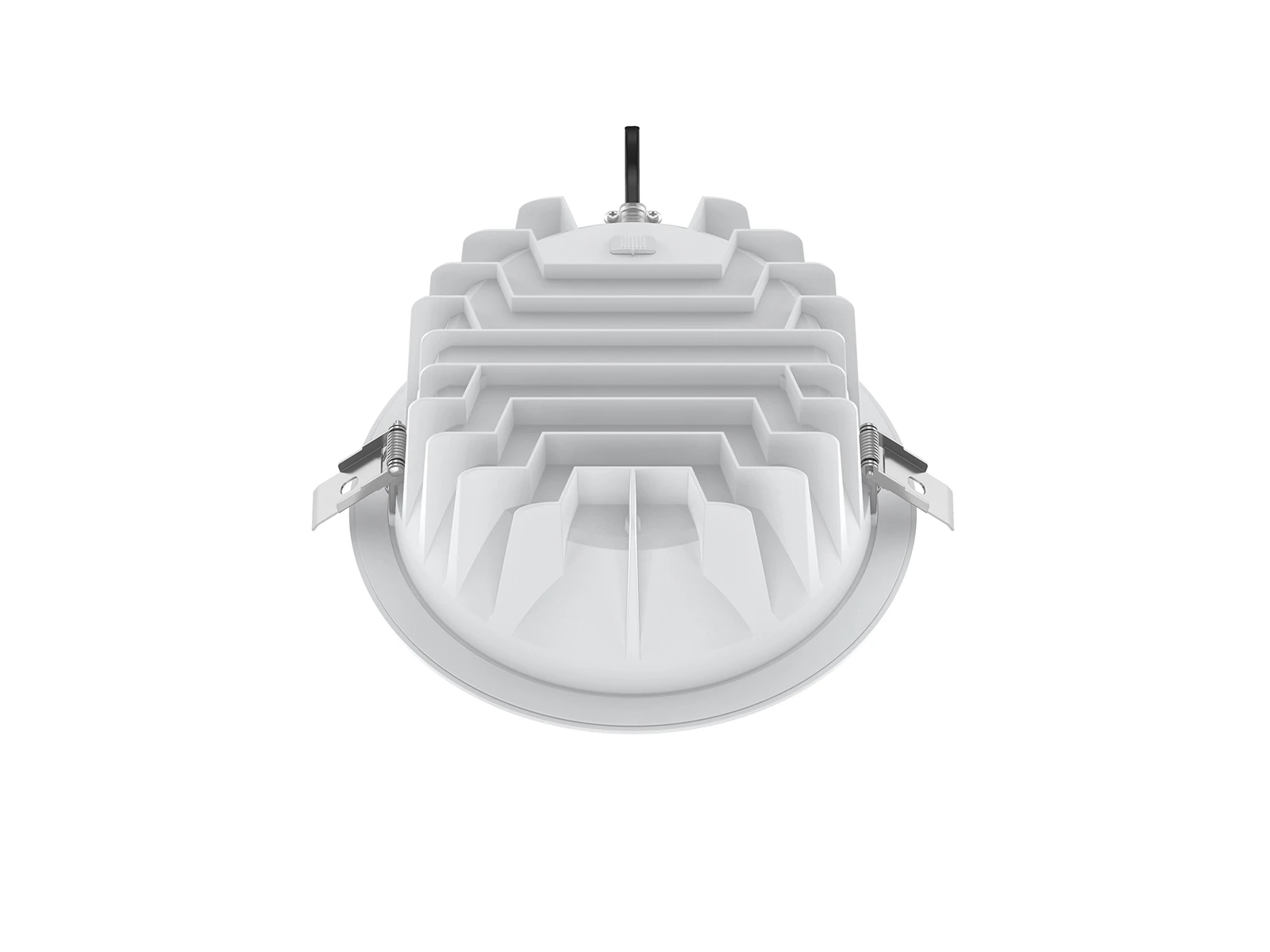

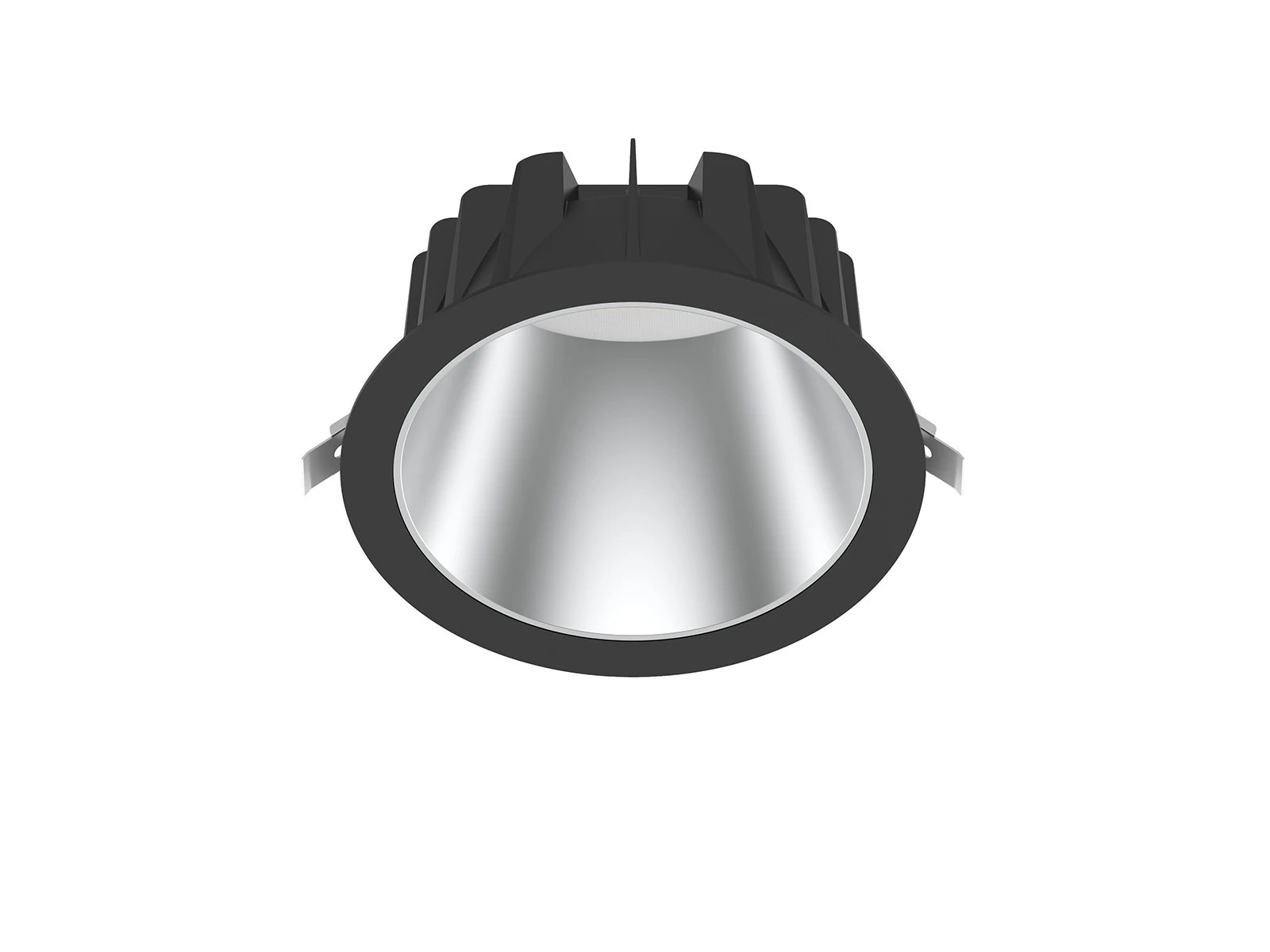

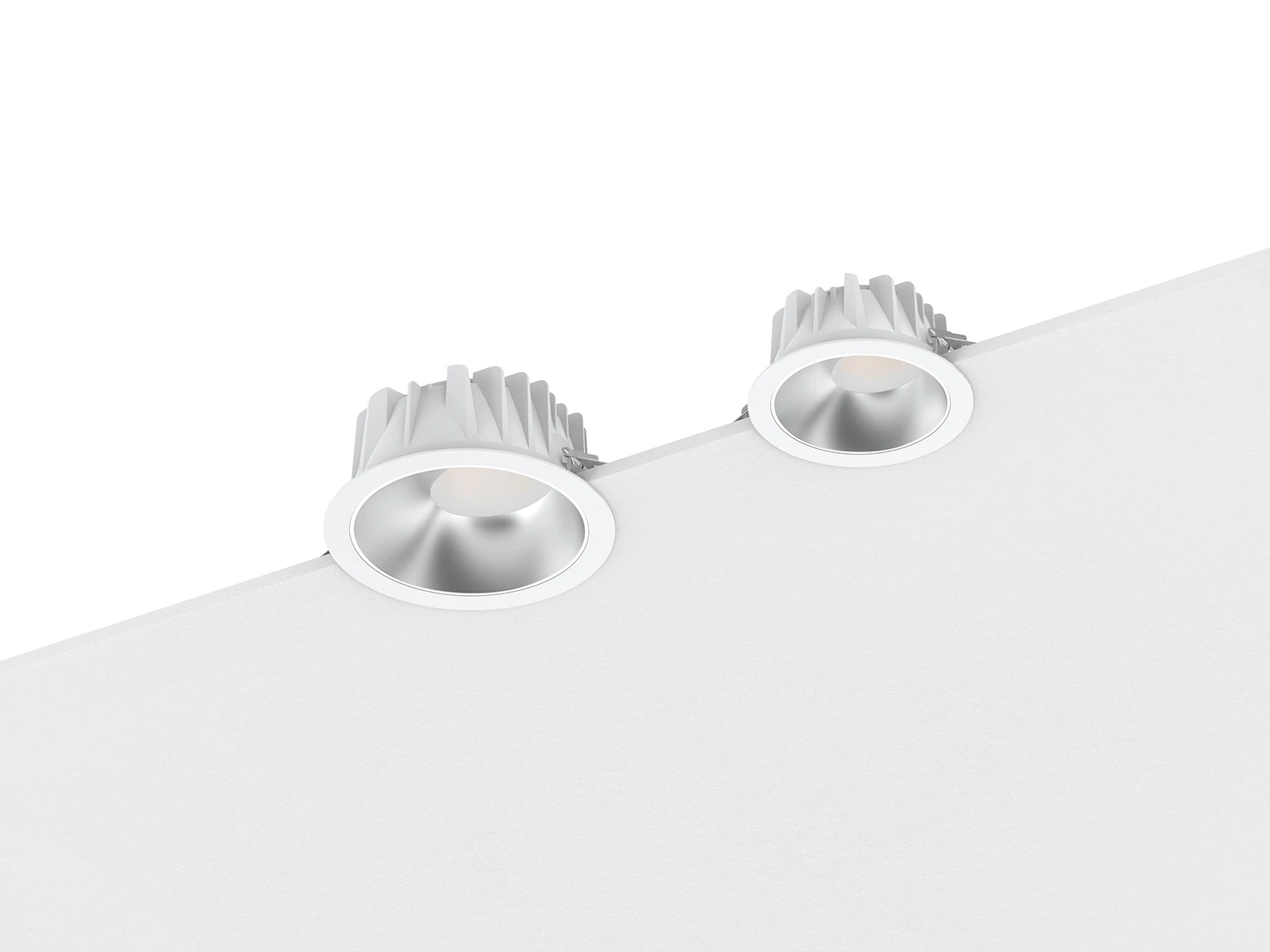

This is a wall-washing recessed downlight, using high-efficiency SMD light source and reflectors with a polarized design to achieve a uniform wall-washing effect. Its deep reflector design and wider shielding angle reduce glare and achieve UGR<19. With an ADC12 aluminum housing, it offers excellent heat management performance to ensure a long lifespan. It perfectly combines professional-grade performance with high cost-effectiveness, and can achieve wall-washing effects without adjusting the angle.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It i s also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL268C-3-10W | DL268C-4-10W | DL268C-4-18W | DL268C-6-18W | DL268C-6-25W | DL268C-8-18W | DL268C-8-25W | DL268C-8-35W | DL268C-8-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø108*H55 | Ø145*H72 | Ø172*H80 | Ø228*H100 | |||||||
| Cutout(mm) | Ø90-95 | Ø125-135 | Ø150-165 | Ø200-210 | |||||||
| Watt(W) | 10W | 10W | 18W | 18W | 25W | 18W | 25W | 35W | 40W | ||
| Rated Input Voltage | AC220-240V | ||||||||||
| Input Voltage | AC198-264V | ||||||||||
| LED Module Input | DC33-38V | ||||||||||
| Light Source | SMD 2835 | ||||||||||
| SDCM | <6 | ||||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5700K || 3-CCT: 3000K + 4000K +5700K | ||||||||||
| CCT Selection DIP Switch | YES | ||||||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 780-830 | 930-980 | 1880-2110 | 1900-2150 | 2500-2700 | 1920-2200 | 2550-2750 | 3655-3855 | 4250-4350 |
| DIM | 780-830 | 930-980 | 1880-2110 | 1900-2150 | 2500-2700 | 1920-2200 | 2550-2750 | 3655-3855 | 4250-4350 | ||
| 3-CCT | Non-DIM | 840-940 | 1030-1120 | 1900-2070 | 1880-2010 | 2550-2770 | 1990-2120 | 2500-2660 | 3510-3720 | 4030-4330 | |
| DIM | 840-940 | 1030-1120 | 1900-2070 | 1825-1915 | 2450-2590 | 1990-2120 | 2450-2545 | 3470-3660 | 3770-4050 | ||
| CRI | 80 | ||||||||||
| Beam Angle (°) | 65° (Asymmetric 25°) | ||||||||||
| UGR | <19 | ||||||||||
| LED Driver | Driver built-out | ||||||||||
| Dimming Option | Triac | ||||||||||
| Sensor | NO | ||||||||||
| Emergency Kits | NO | ||||||||||
| Electrical Class | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | ||||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||||
| Product Finishing | White RAL9016 / Black RAL9005 | ||||||||||
| Optics Material | PC | ||||||||||
| Housing Material | Die-Casting Aluminium | ||||||||||
| Lifetime(hr) | 50,000h | ||||||||||
| Glow wire test(°C) | 750°C | ||||||||||
| Operating Temp(°C) | -20°C~45°C | ||||||||||
| Storage Temp(°C) | -20°C~65°C | ||||||||||
| Installation | Recessed | ||||||||||
