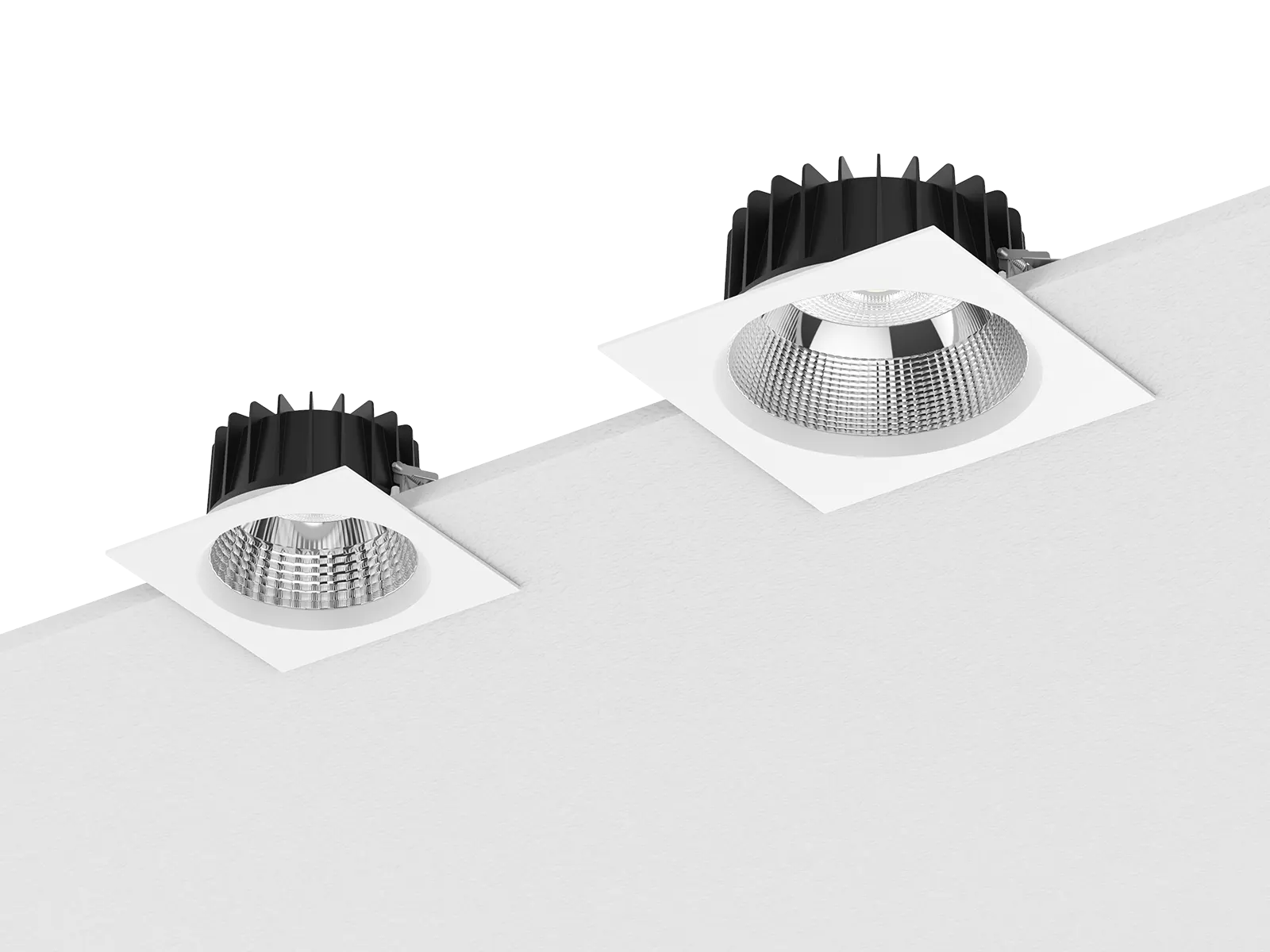

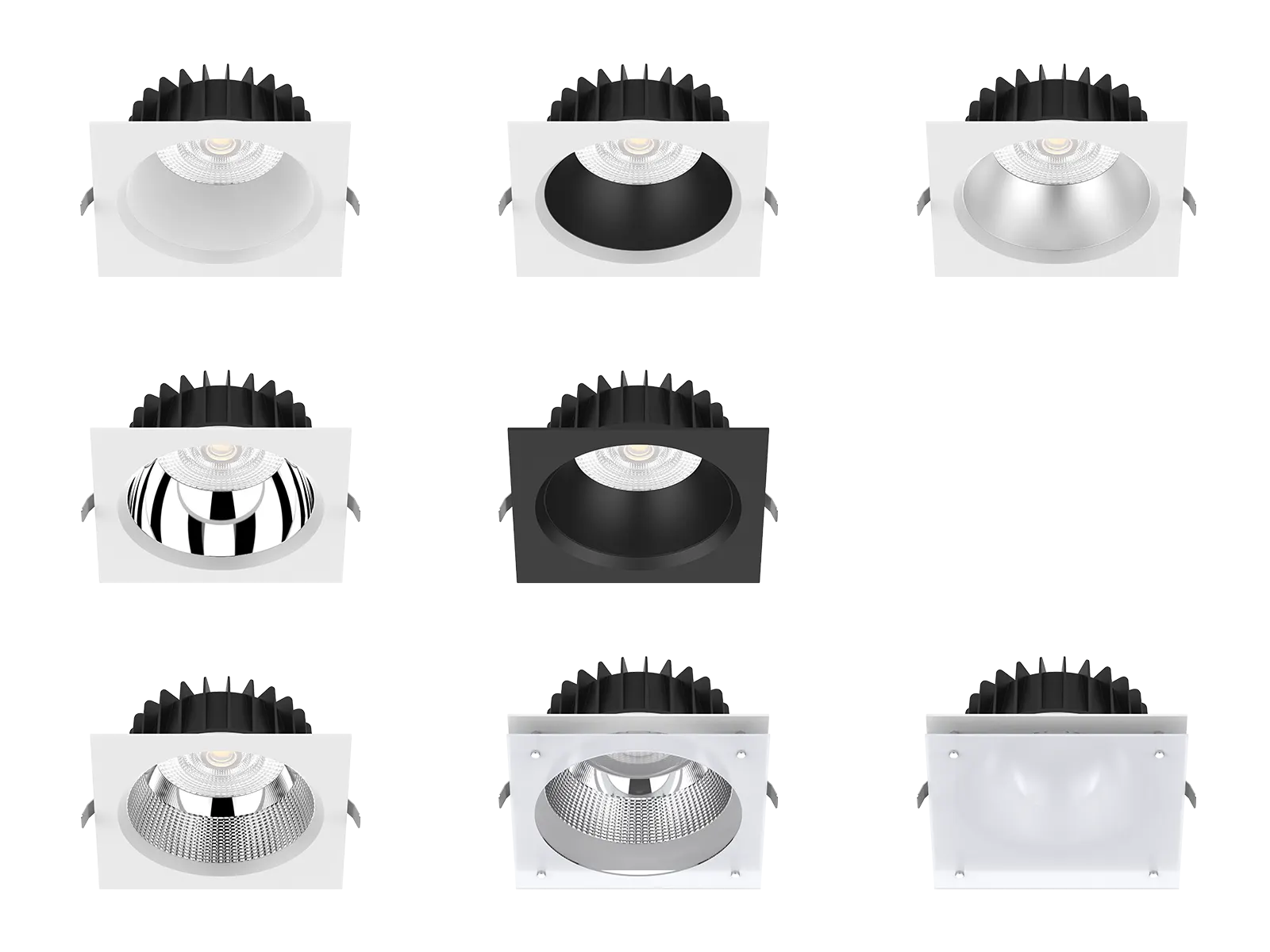

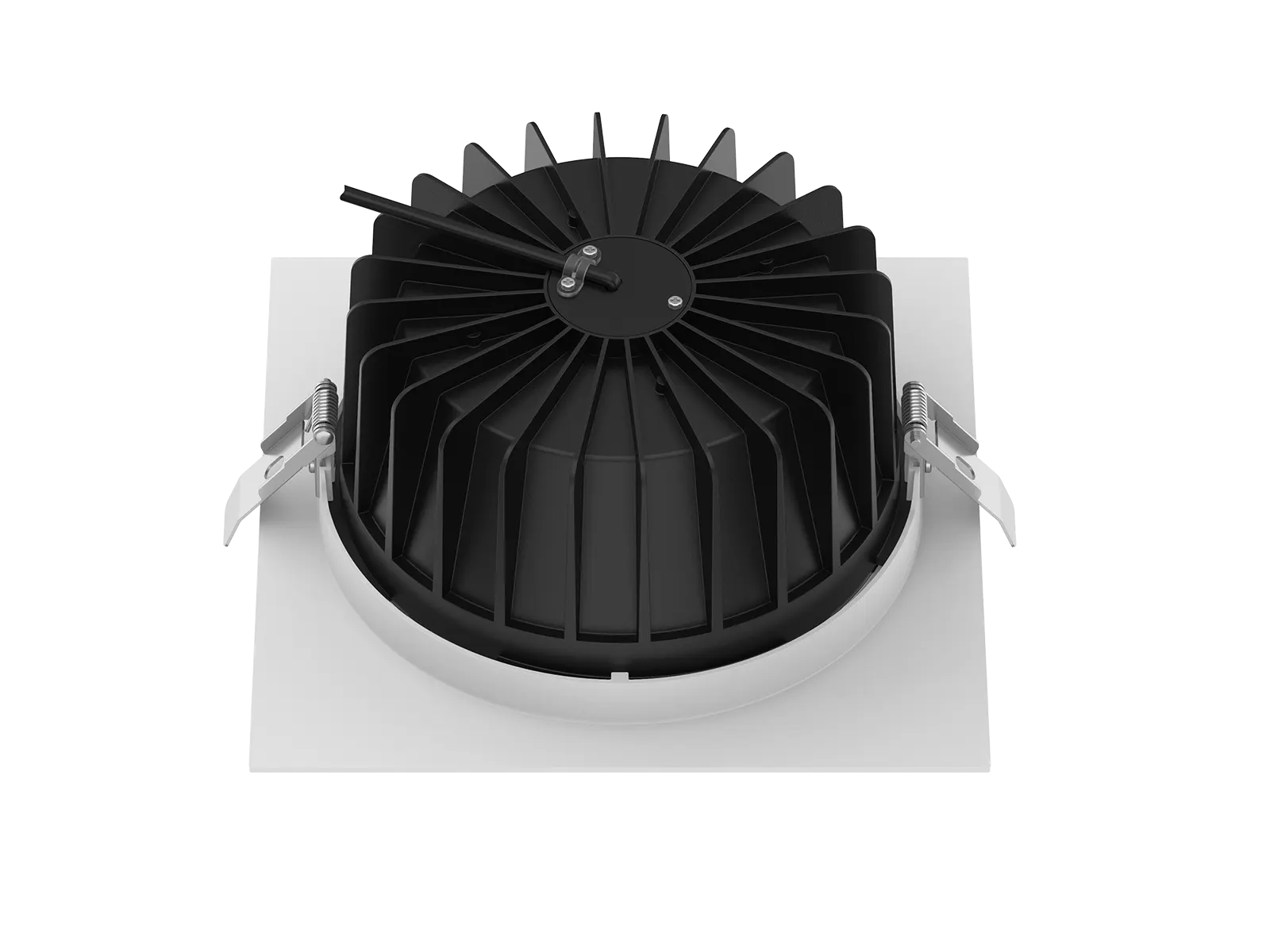

This is a square COB downlight, adopting high lumen COB LED to reach high efficiency. AL6063 aluminum housing provides a great thermal management that ensures a long lifespan, combined with the optic design, it can reach UGR<19 and offers better visual experience. To save on inventory and meet various customer needs, it can facilitate DIY replacement of different reflector and optic lens without requiring any tools. It offers decorative frosted drop glass ring and clear drop glass ring options, providing a softer light output and backlight effect.
Applications: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Code | DL178S-6-18W | DL178S-6-25W | DL178S-6-35W | DL178S-8-18W | DL178S-8-25W | DL178S-8-30W | DL178S-8-35W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | L175*W175*H96 & L175*W175*H118 (drop glass as options) | L230*W230*H105 & L230*W230*H127 (drop glass as options) | |||||||
| Cutout(mm) | Ø150-165 | Ø200-210 | |||||||
| Watt(W) | 18W | 25W | 35W | 18W | 25W | 30W | 35W | ||
| Rated Input Voltage | AC220-240V | ||||||||
| Input Voltage | AC198-264VV | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | SDCM<5 | ||||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K||3-CCT:3000K+ 4000K+5000K | ||||||||
| CCT Selection DIP Switch | YES | ||||||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 2100-2350 | 2800-3200 | 3650-4000 | 2150-2350 | 2980-3250 | - | 3780-4100 |
| DIM | 2000-2250 | 2700-3000 | 3600-3900 | 2000-2300 | 2830-3100 | - | 3600-4000 | ||
| Luminous Flux (lm) ±5% CRI90 | 3-CCT | Non-DIM | - | 2250-2450 | - | - | - | 2900-3200 | - |
| DIM | - | 2150-2300 | - | - | - | 2700-3000 | - | ||
| CRI | 1-CCT: CRI80/3-CCT: CRI90 | ||||||||
| Beam Angle(°) | 24°/36°/60° | ||||||||
| UGR | UGR<19 (not available for 6inch-35W 60°beam angle) | ||||||||
| LED Driver | Driver built-out | ||||||||
| Dimming Option | Triac | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling) IP40(Inside Ceiling) | ||||||||
| Impact Resistance(IK Rating) | IK06 | ||||||||
| Product Finishing | Black RAL9005/White RAL 9016 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Die-Casting Aluminium | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp(°C) | -20°C~45°C | ||||||||
| Storage Temp(°C) | -20°C~65°C | ||||||||
| Installation | Recessed | ||||||||
