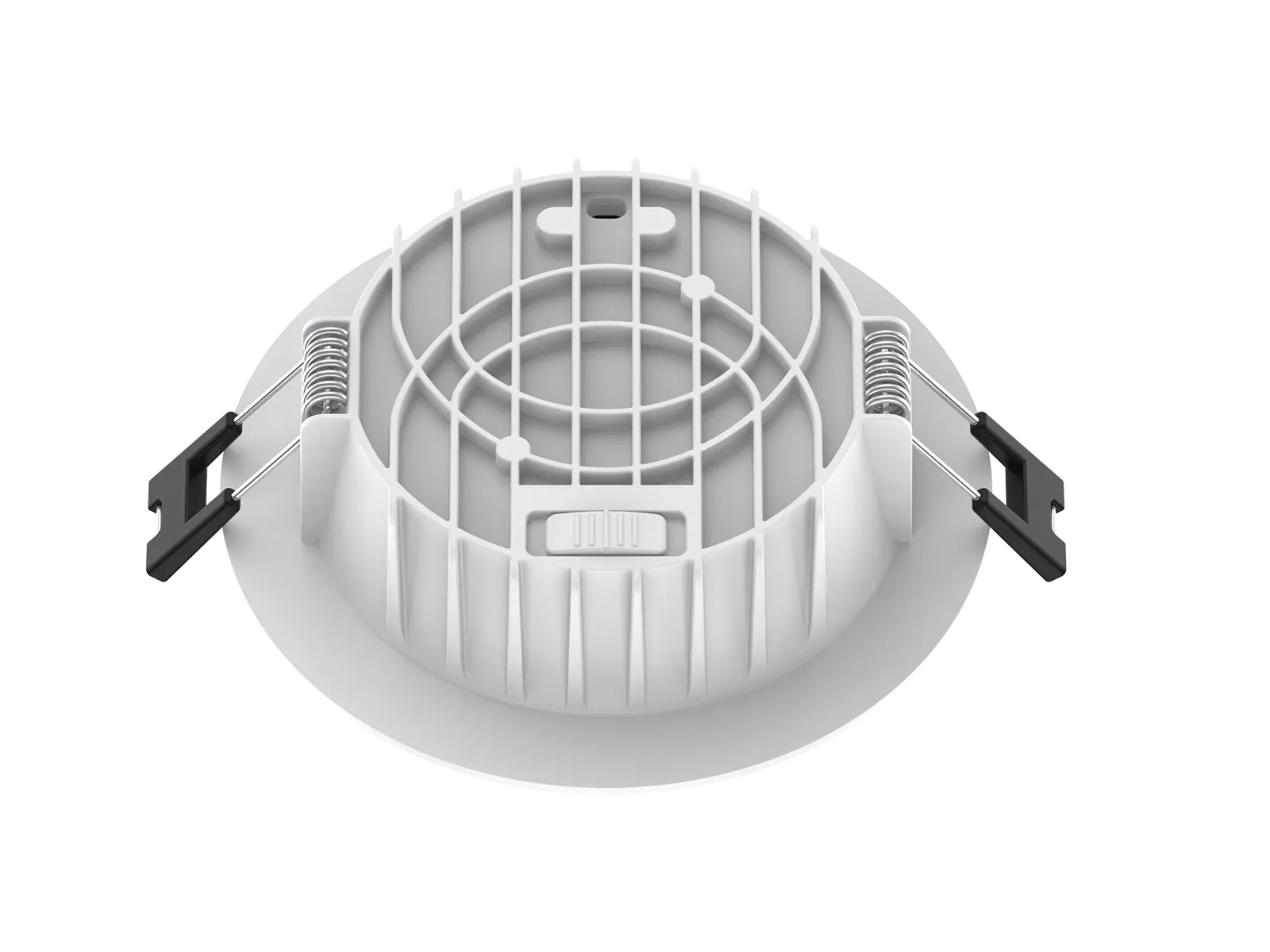

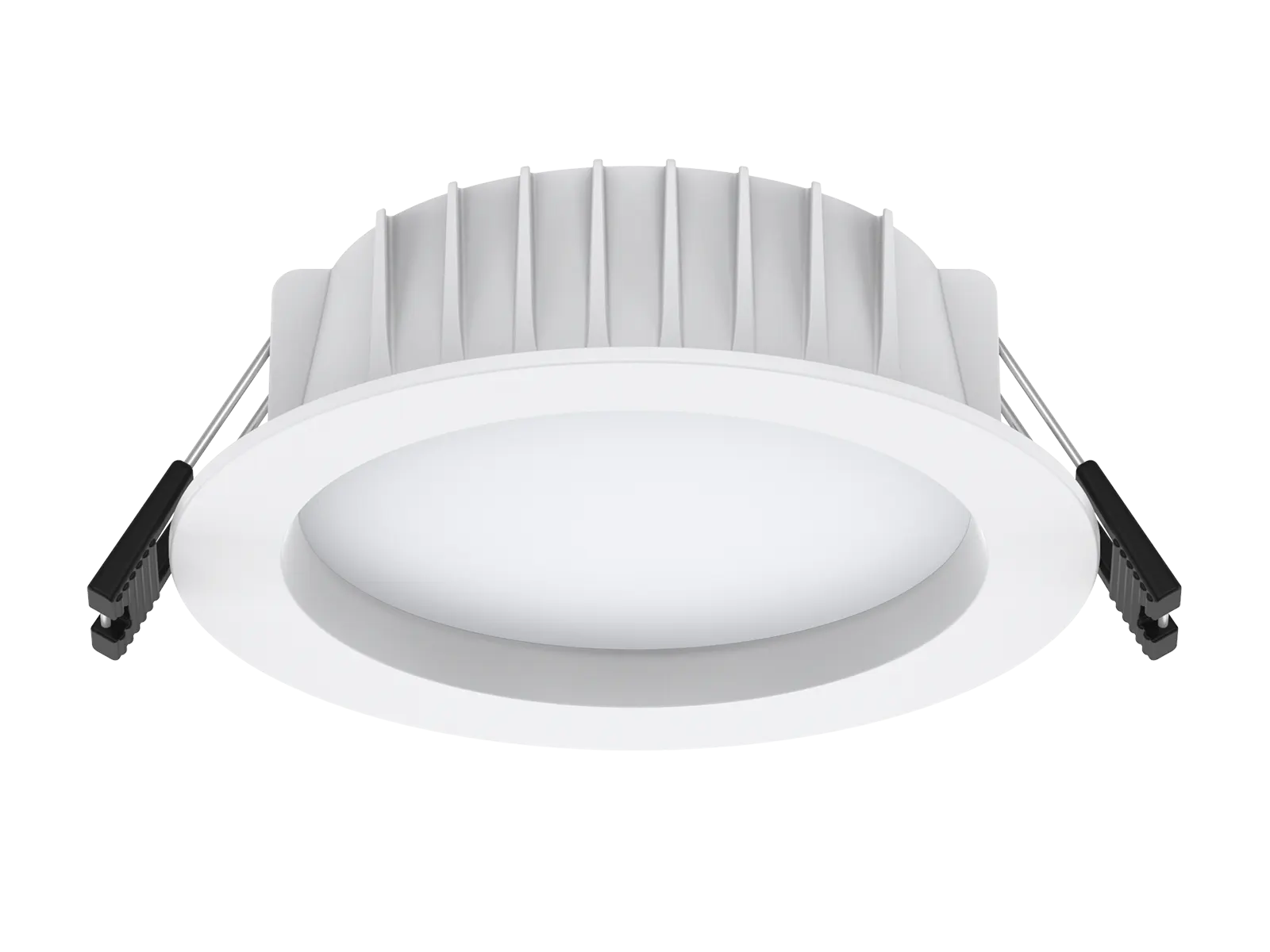

This is a super slim downlight, it adopts high lumen SMD LED, PC diffuser with even light output, the optics use a semi-transparent PC lens that is glare-free. It features a slim profile with a flat version at 30mm and a recessed version at 36mm. Plastic coated aluminum housing with integrated external driver and a 0.6 m Australian plug, offers both cost- effectiveness and excellent heat dissipation.

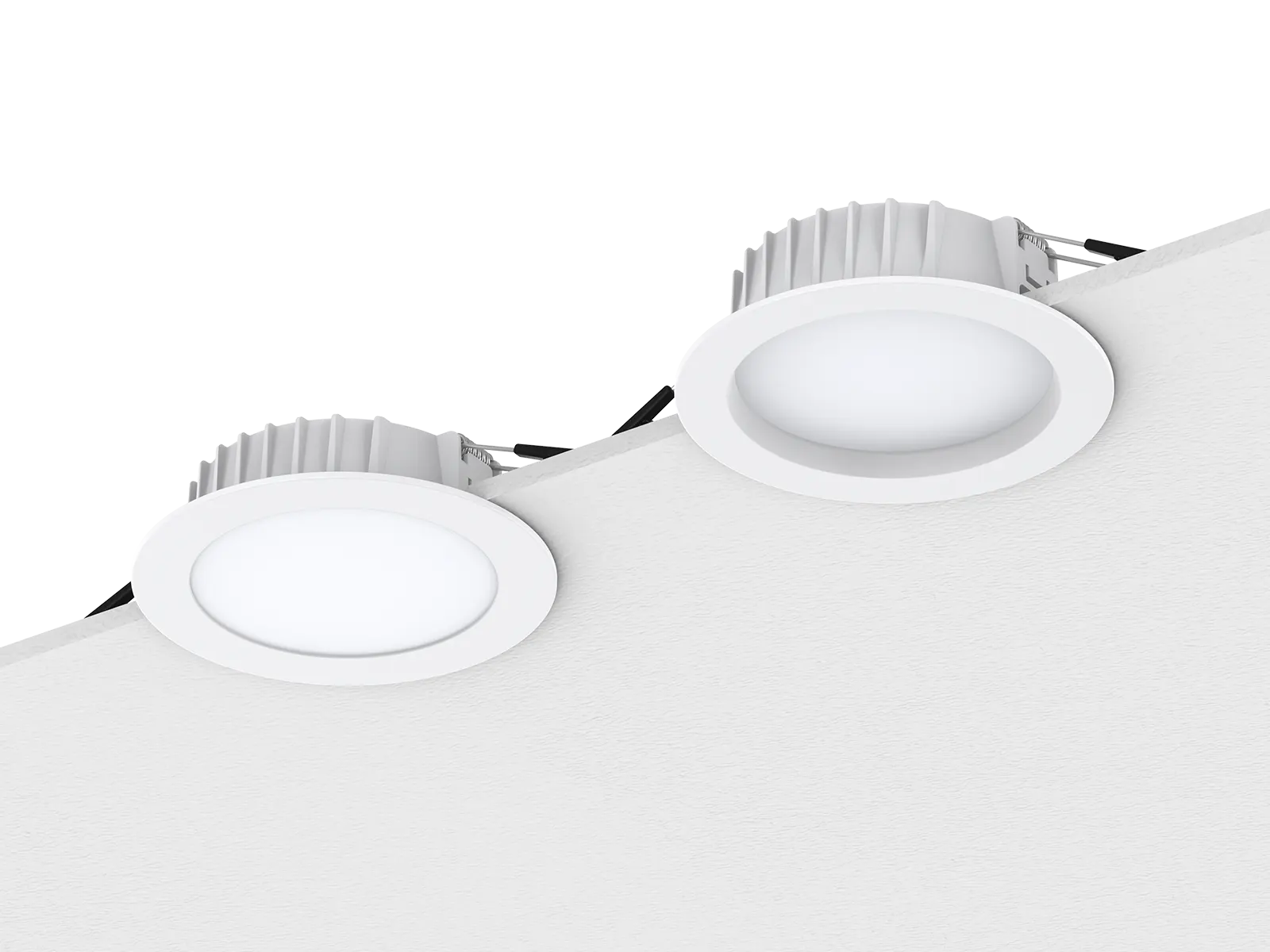

Application Areas: Suitable for a wide range of indoor and semi-outdoor environments, including homes, offices, corridors, hotels, restaurants, shopping malls, and other residential or commercial settings.
| Code | DL137A-3-8W | DL137B-3-8W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø110*H30 | Ø110*H36 | ||
| Cutout(mm) | Ø90-95 | |||
| Watt(W) | 8W | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | ≤ 6 | |||
| CCT(K) | 3000K+4000K+5700K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% CRI80 | 3-CCT | DIM | 810-910 | 720-850 |
| CRI | CRI80 | |||
| Beam Angle(°) | 110° | |||
| LED Driver | Built-out, Flicker Free | |||
| Dimming Option | Triac | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP40(Inside Ceiling) | |||
| Impact Resistance(IK Rating) | IK04 | |||
| Product Finishing | White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | Plastic coated Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~45°C (40° IC rated) | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Recessed | |||
