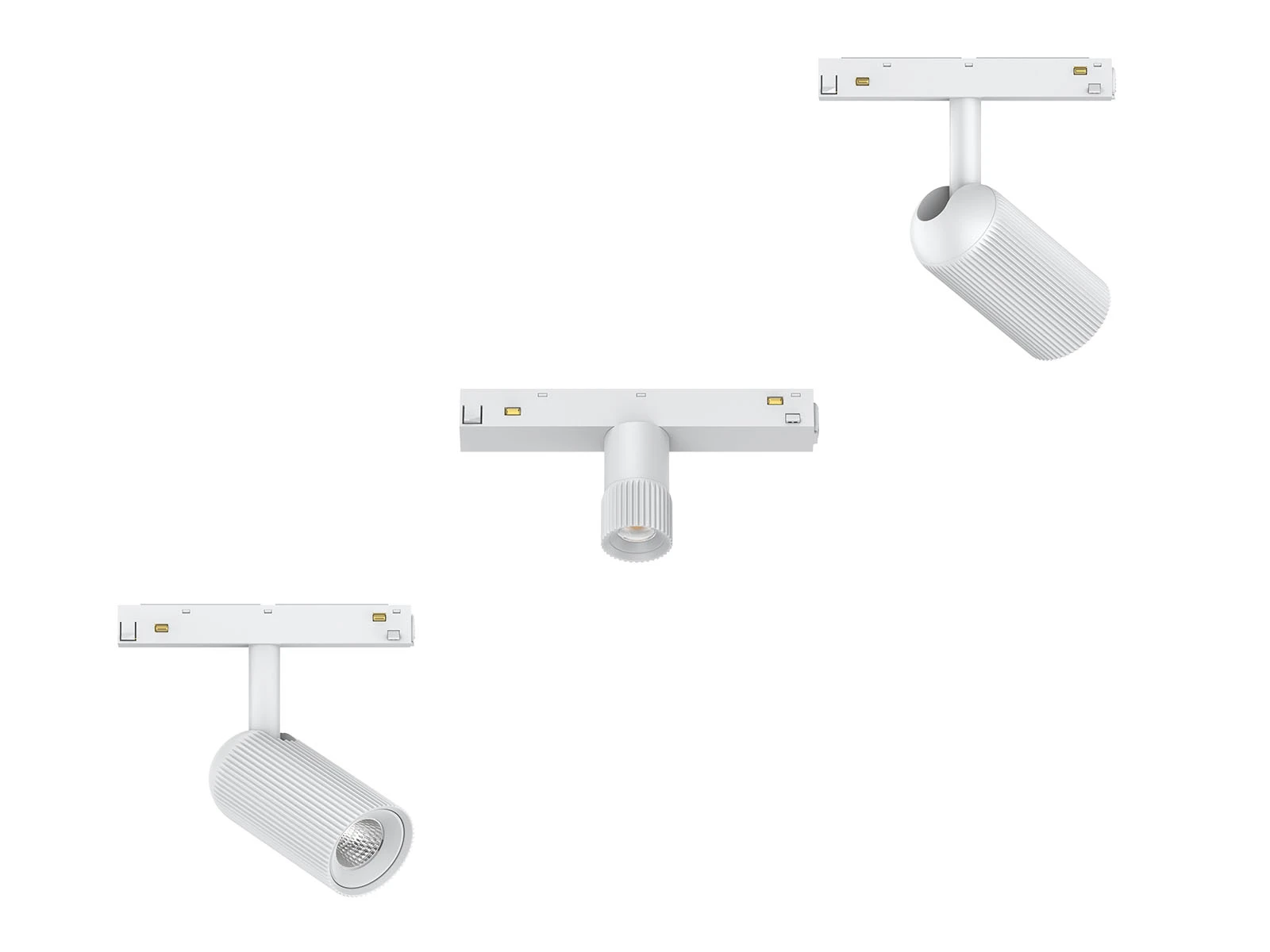

The unique wavy appearance, the clean and tidy surface of the lamp body without any screws, adds an artistic touch and a distinctive visual effect to the entire series. The visually appealing design enhances the aesthetics of the space, while the high-quality lighting performance ensures the optimal lighting effect. The DC48V safe voltage. The metal aluminum lamp body ensures good heat management and longer lifespan. The press-lock design provides a sturdy and reliable structure while making installation easy. Multiple beam angle options are available. Wave spot fixtures allows the lamp head to be adjusted vertically by 90°, adapting to different lighting requirements.
APPLICATIONS: It's widely used in specialty stores, shop windows, exhibition halls, high-end residences, and supermarkets.
| ODE | DC-TL147-25-1.5W | DC-TL147-45-8W | |
|---|---|---|---|
|
Dimension(mm) |
123*26*95 |
122*45*148 |
|
|
Watt(W) |
1.5W Max (1.3W/1W optional) |
8W Max (6W/4.5W optional) |
|
|
Input Voltage |
DC48V |
||
|
Light Source |
SMD |
COB |
|
|
CCT(K) |
1-CCT: 3000K/4000K |
||
|
CCT Selection DIP Switch |
NO |
||
|
Luminous Flux (lm) ±5% CRI90 |
Non-DIM |
1W: 50-80 1.3W: 80-110 1.5W: 110-140 |
8W:710-770 6W:580-640 4.5W:450-500 |
|
DIM |
- |
||
|
Beam Angle (°) |
15°/24°/36°/45° |
24°/36° |
|
|
Dimming Option |
- |
DALI / 0-10V |
|
|
Product weight(Kg) |
N.W/PC |
0.065 |
0.18 |
|
G.W/PC |
0.085 |
0.235 |
|
|
Package weight(Kg) |
N.W/CTN |
3.12 |
6.48 |
|
G.W/CTN |
4.45 |
9.06 |
|
|
Qty/CTN (PCS) |
48 |
36 |
|
|
Carton Size(cm) |
30*27*19.5 |
35*31*35.5 |
|
|
20GP(pcs) |
83424 |
25056 |
|
|
40HQ(pcs) |
197184 |
58464 |
|
