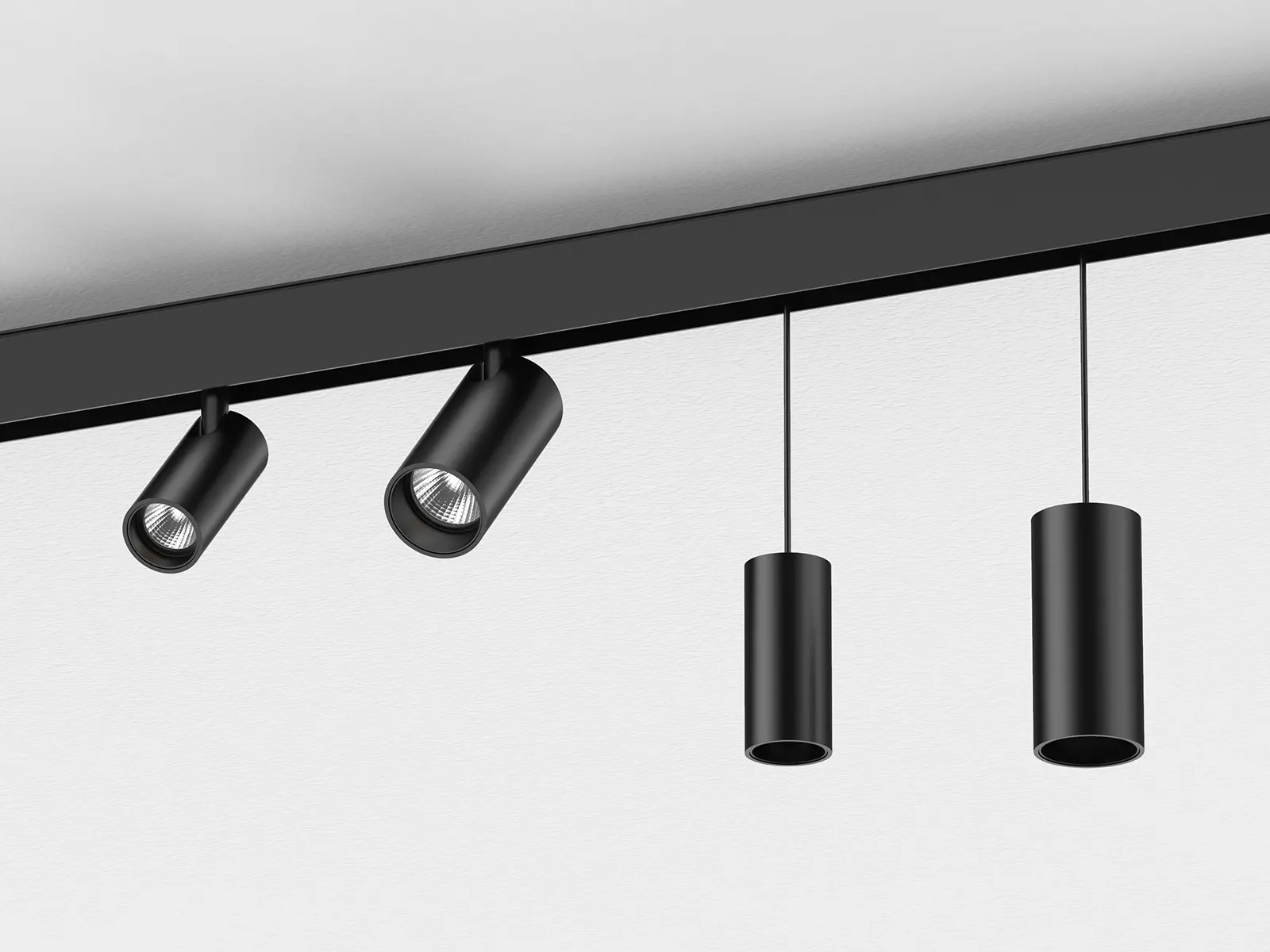

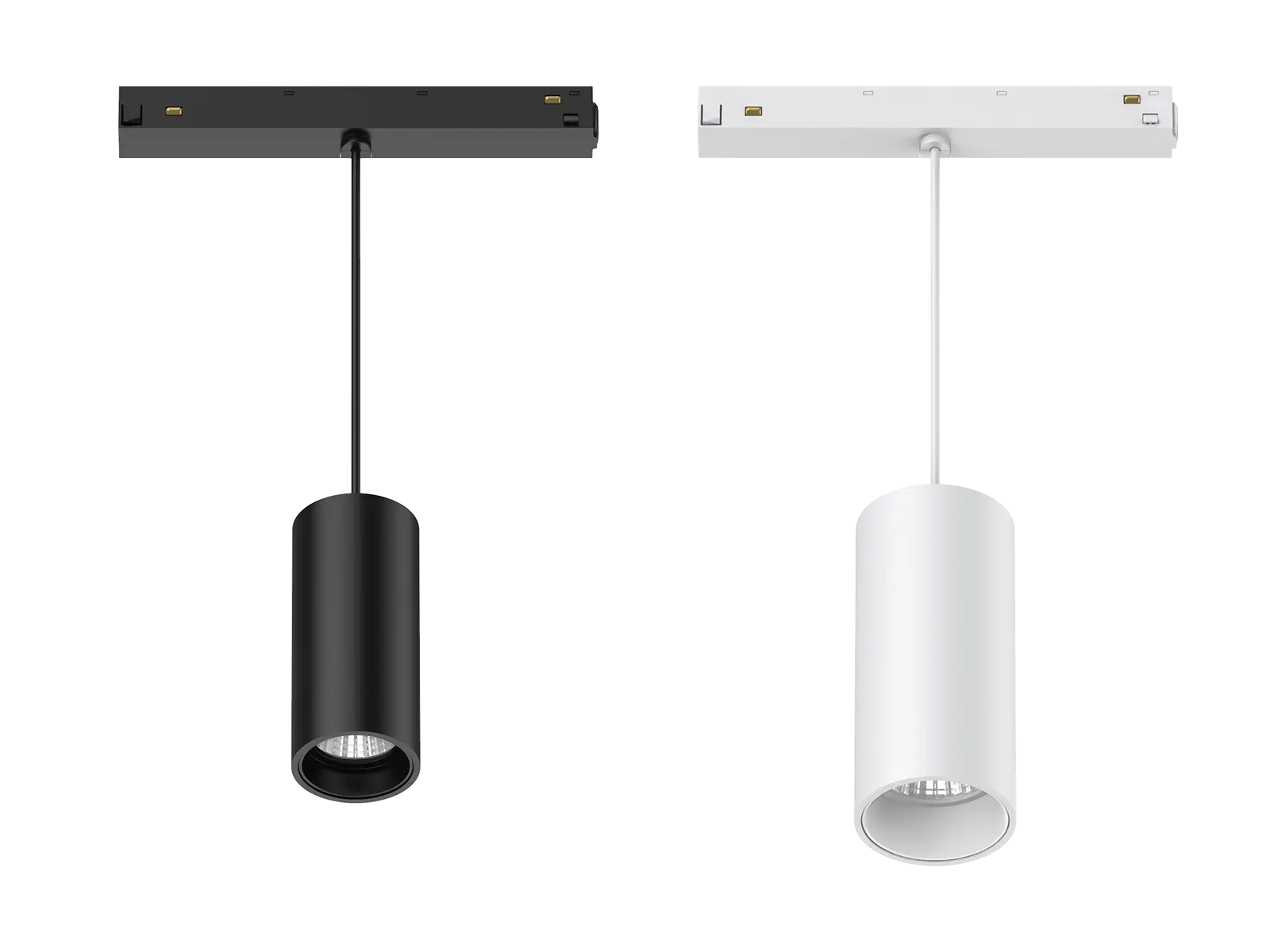

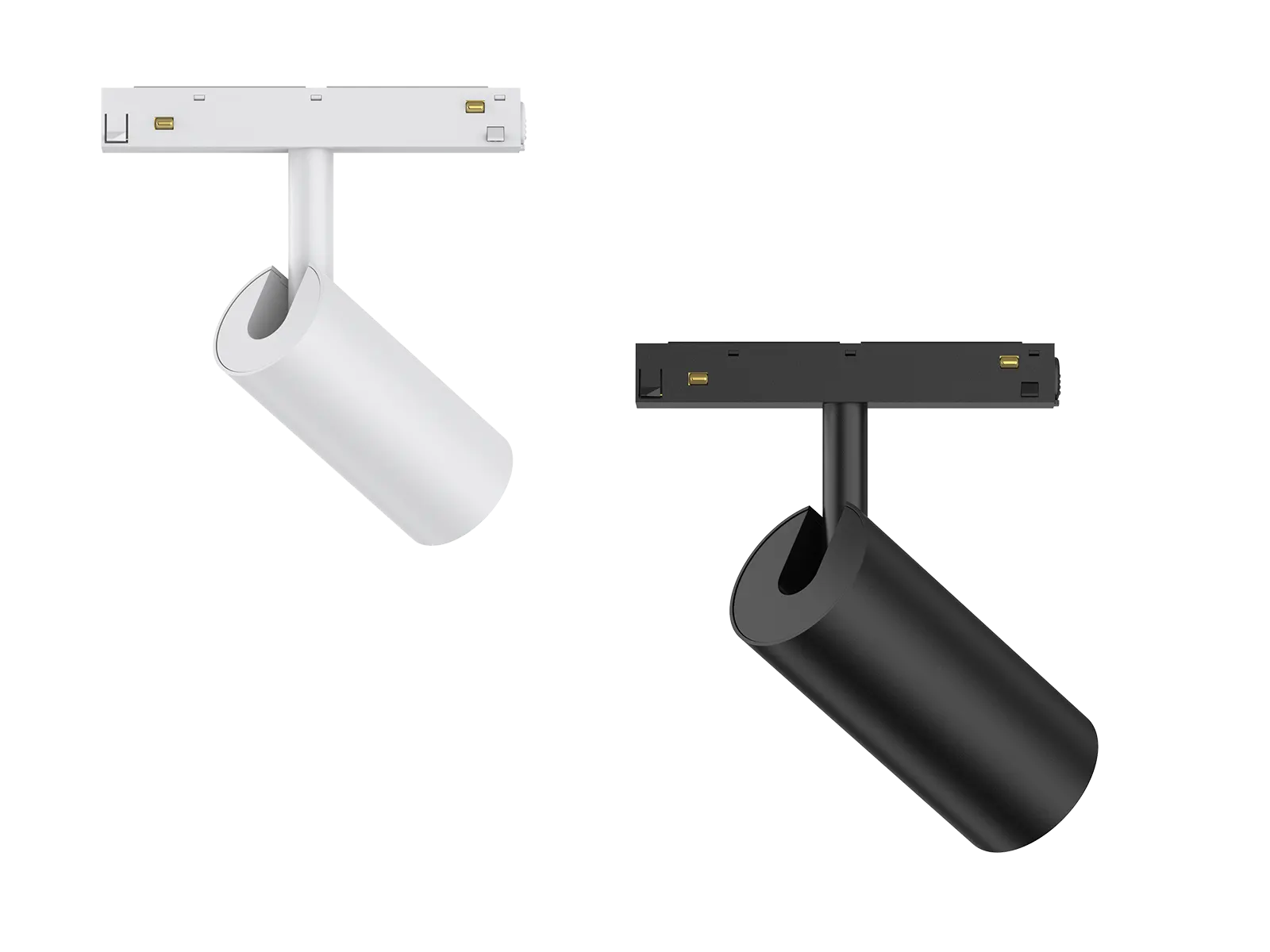

This is a DC48V flat-panel luminaire range. It's modular, elegant and simple, reflecting European style while taking inspiration from the Asian lotus flower. The products offer efficient, adjustable lighting for any setting. With LOTUS, experience the blend of form and function in a modern and straightforward design that illuminates your space sustainably and stylishly. The track profile can accommodate different forms of luminaires and modules, light modules can be interchanged tool free to create new design.
Applications: It's ideal for high-end commercial or residential projects. Particularly suitable in retail stores, art galleries, showroom, show windows, supermarket, home etc.
| Code | DC-TL142C-4090-7W | DC-TL142C-50110-9W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø40*90*120 | Ø50*110*120 | ||
| Watt(W) | 7W Max. (6W/4.5W optional) | 9W Max. (7W/5.5W optional) | ||
| Rated Input Voltage | DC48V | |||
| Input Voltage | DC48V | |||
| Light Source | COB | |||
| SDCM | <5 | |||
| CCT(K) | 1-CCT:2700/ 3000K/4000K | |||
| CCT Selection DIP Switch | NO | |||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | 7W: 620-690 6W: 530-570 4.5W: 390-430 | 9W: 680-750 7W: 530-570 5.5W: 430-460 | 9W: 760-830 7W: 600-660 5.5W: 470-520 |
| CRI | 90 | |||
| Beam Angle(°) | 36° / 45° / 60° | 24° | 36° / 50° | |
| LED Driver | Built-in, Flickering free | |||
| Dimming Option | DALI / 0-10V | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class III | |||
| Ingress Protection(IP Rating) | IP20 | |||
| Impact Resistance(IK Rating) | IK02 | |||
| Product Finishing | White RAL 9016 / Black RAL9005 | |||
| Optics Material | Reflector / PC | |||
| Housing Material | Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp(°C) | -20°C~40°C | |||
| Storage Temp(°C) | -20°C~65°C | |||
| Installation | Track | |||
