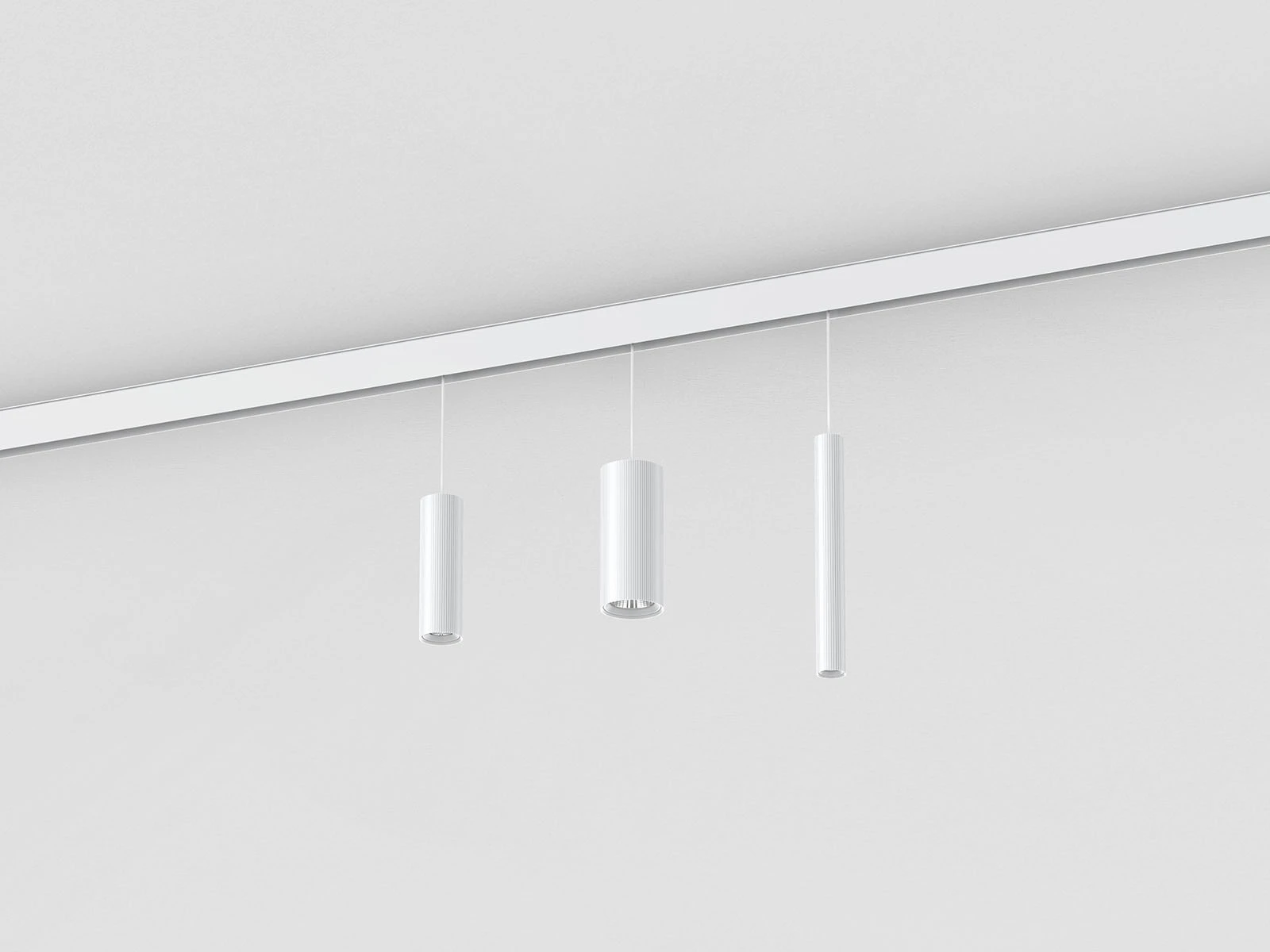

DC PD147 LED Pendant Light Full Display

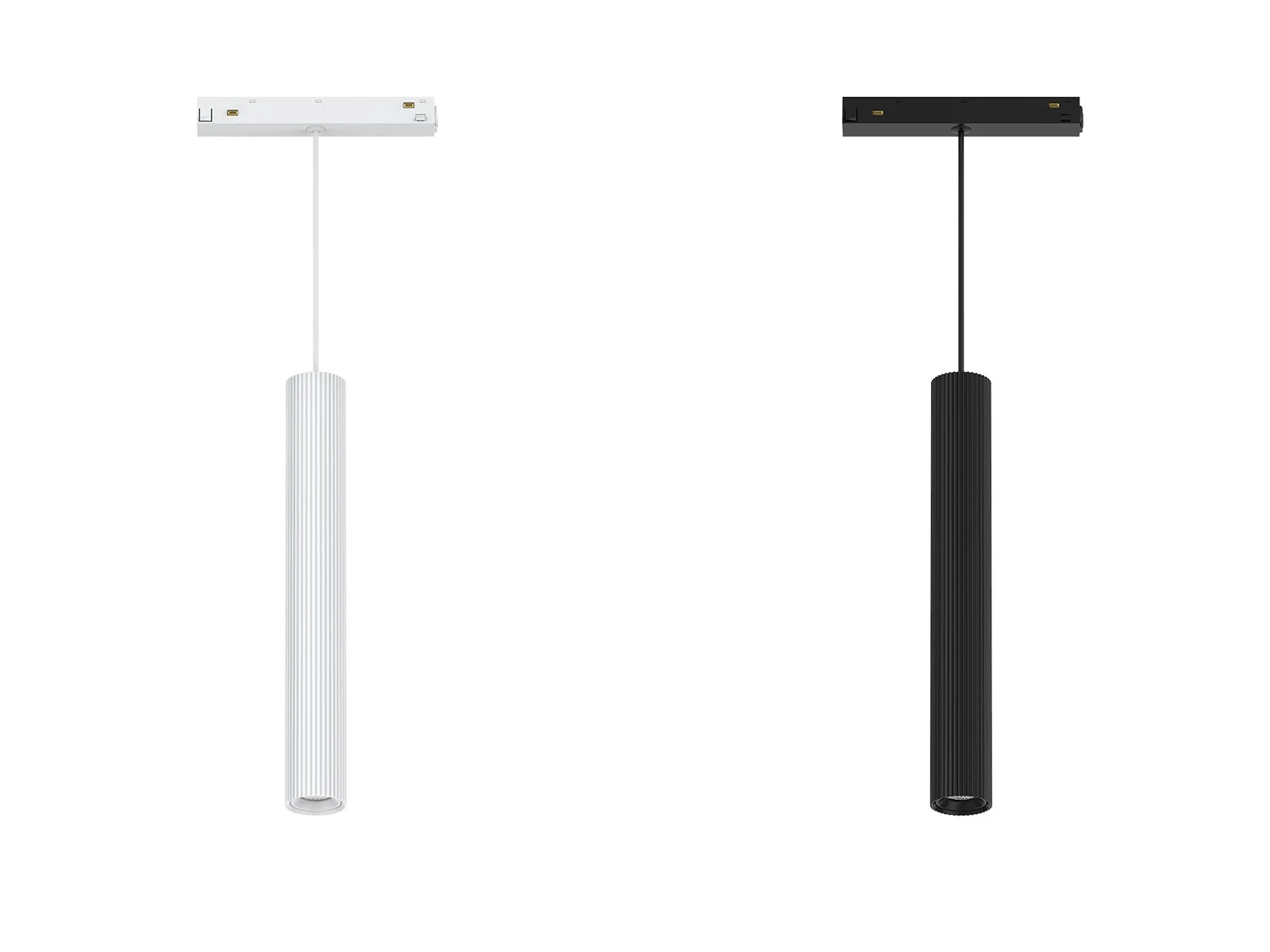

DC PD147 LED Pendant Light Black and White

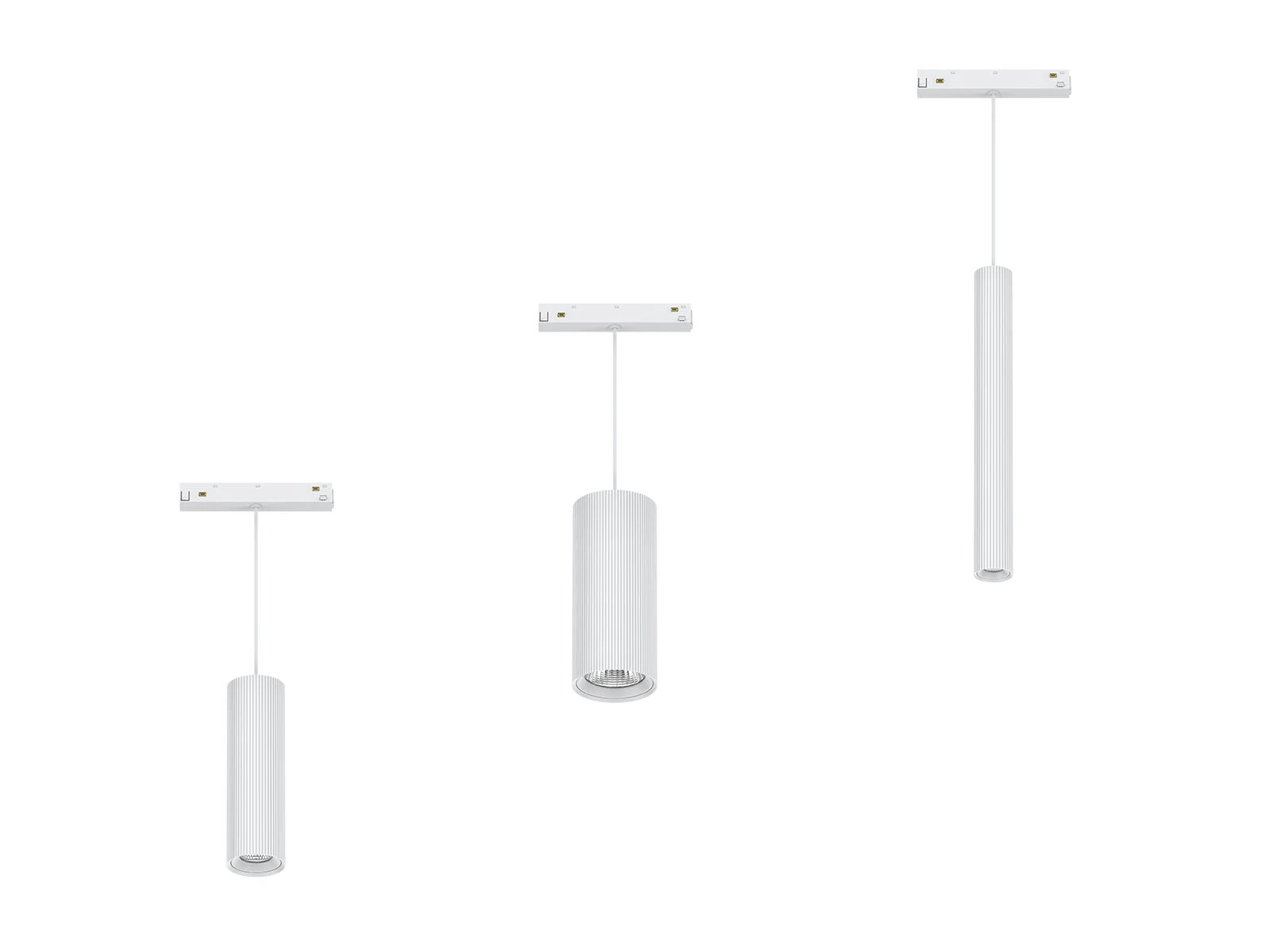

DC PD147 LED Pendant Light Three Types
DC-PD147 LED Pendant Light
DC PD147 LED Pendant Light Full Display
DC PD147 LED Pendant Light Black and White
DC PD147 LED Pendant Light Three Types

DC-PD147 LED Pendant Light

The unique wavy appearance, the clean and tidy surface of the lamp body without any screws, adds an artistic touch and a distinctive visual effect to the entire series. The visually appealing design enhances the aesthetics of the space, while the high-quality lighting performance ensures the optimal lighting effect. The DC48V safe voltage. The metal aluminum lamp body ensures good heat management and longer lifespan. The press-lock design provides a sturdy and reliable structure while making installation easy. Multiple beam angle options are available. Wave suspended series brings the light and the object being illuminated to an appropriate distance, while the lamp itself becomes part of the environmental decoration as it illuminates the space.
  • DC48V low voltage
  • High color rendering CRI90
  • Power box press-lock design, easy installation
  • Widely compatible with market low voltage track systems, such as Powergear, AAG
  • Wattage adjustable
  • Finished color: Black RAL9005, White RAL9016
  • Internal flicker-free driver
  • Dimming option: DALI, 0-10V
APPLICATIONS: It's widely used in specialty stores, shop windows, exhibition halls, high-end residences, and supermarkets.
ODE DC-PD147-45150-8W DC-PD147-30250-8W DC-PD147-65150-11W

Dimension (mm)

122*45*1168

122*30*1268

122*65*1168

Watt(W)

8W Max (6W/4.5W optional)

8W Max (6W/4.5W optional)

11W Max (9W/6.5W optional)

Input Voltage

DC48V

Light Source

COB

CCT(K)

1-CCT: 3000K/4000K

CCT Selection DIP Switch

NO

Luminous Flux (lm) ±5%

CRI90

Non-DIM

8W: 680-740

6W: 550-610

4.5W: 420-470

8W: 590-610

6W: 485-500

4.5W: 380-390

11W: 1120-1240

9W: 910-1000

6.5W: 700-760

DIM

Beam Angle (°)

24° / 36°

Dimming Option

DALI / 0-10V

Product weight(Kg)

N.W/PC

0.24

0.24

0.33

G.W/PC

0.27

0.27

0.37

Package weight(Kg)

N.W/CTN

8.64

5.76

7.92

G.W/CTN

10.19

6.85

9.45

Qty/CTN (PCS)

36

24

24

Carton Size(cm)

35*24.5*32.5

28.5*23.5*26.5

35*28.5*30.5

20GP(pcs)

37044

36096

21504

40HQ(pcs)

84672

81216

48384
