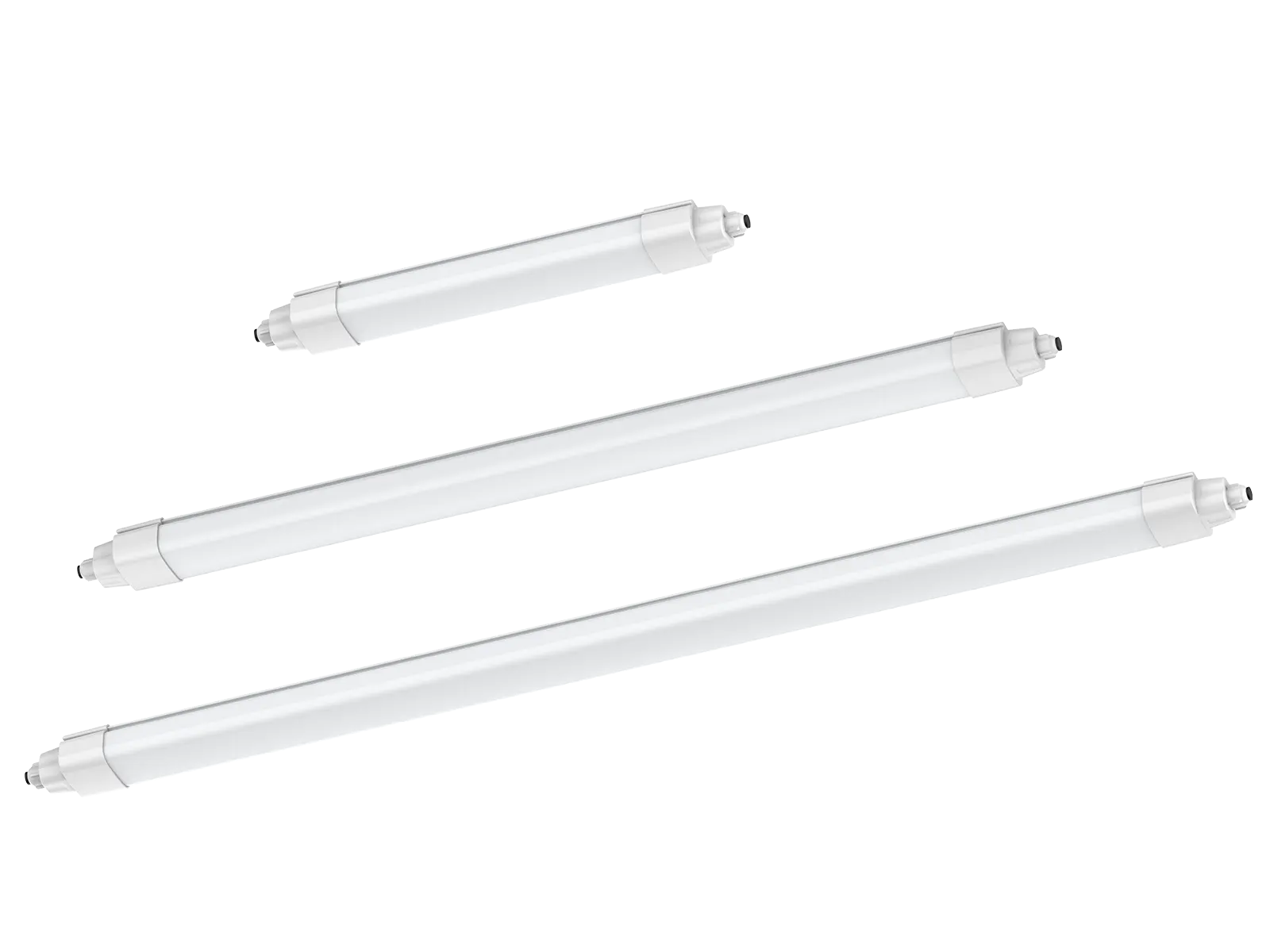

DB68 is a high-quality LED batten with a high luminous efficacy of 115lm/w. With a reliable and robust housing structure (IK10 & IP66), this maximizes endurance and contributes to its long lifetime. With its flexible installation accessories, it can be used in a wide variety of applications. Three sizes in length (700mm 1300mm 1600mm), and various lumens packages, make it to be the ideal replacement for traditional fluorescent batten.
Batten LED light features
• LED batten light IP66, compact design and suitable for both indoor and outdoor applications.
• Elegant outlook with rearwards-directed light to illuminate the ceiling.
• Impact protection: IK10
• LED service life: approx. 50, 000 hours.
• End caps: made of shockproof polycarbonate (PC).
• Extruded PC opal diffuser with inner prisms and UV resistance, providing homogenous light distribution.
• Flexible installation through sliding mounting bracket. Ideal for luminaire replacement.
• Providing through-wiring for further luminaires (safety class II) connection.
• Tool-free mains cable installation on both sides through twist lock fastener cover at both sides.
| Code | DB68A-700-20W | DB68B-700-20W | DB68A-1300-40W | DB68B-1300-40W | DB68A-1600-50W | DB68B-1600-50W |
|---|---|---|---|---|---|---|
| Watt(W) | 20W | 40W | 50W | |||
| Dimension(mm) | 700*78.3*58.6 | 1300*78.3*58.6 | 1600*78.3*58.6 | |||
| Rated Input Voltage(V) | AC230V | |||||
| Input Voltage(V) | AC200-240V | |||||
| LED | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 2100~2300 | 4320~4680 | 5650~6000 | |||
| CRI | 80 | |||||
| Beam Angle (°) | 140° | |||||
| LED Driver | Built-in | |||||
| DIM | No | |||||
| Protection Class | Class Ⅱ | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK10 | |||||
| Finishing color | White RAL 7047 | |||||
| Material | PC | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (°C) | 750℃ | |||||
| Operating Temp.(°C) | -20℃~45℃ | |||||
| Storage Temp.(°C) | -20℃~60℃ | |||||

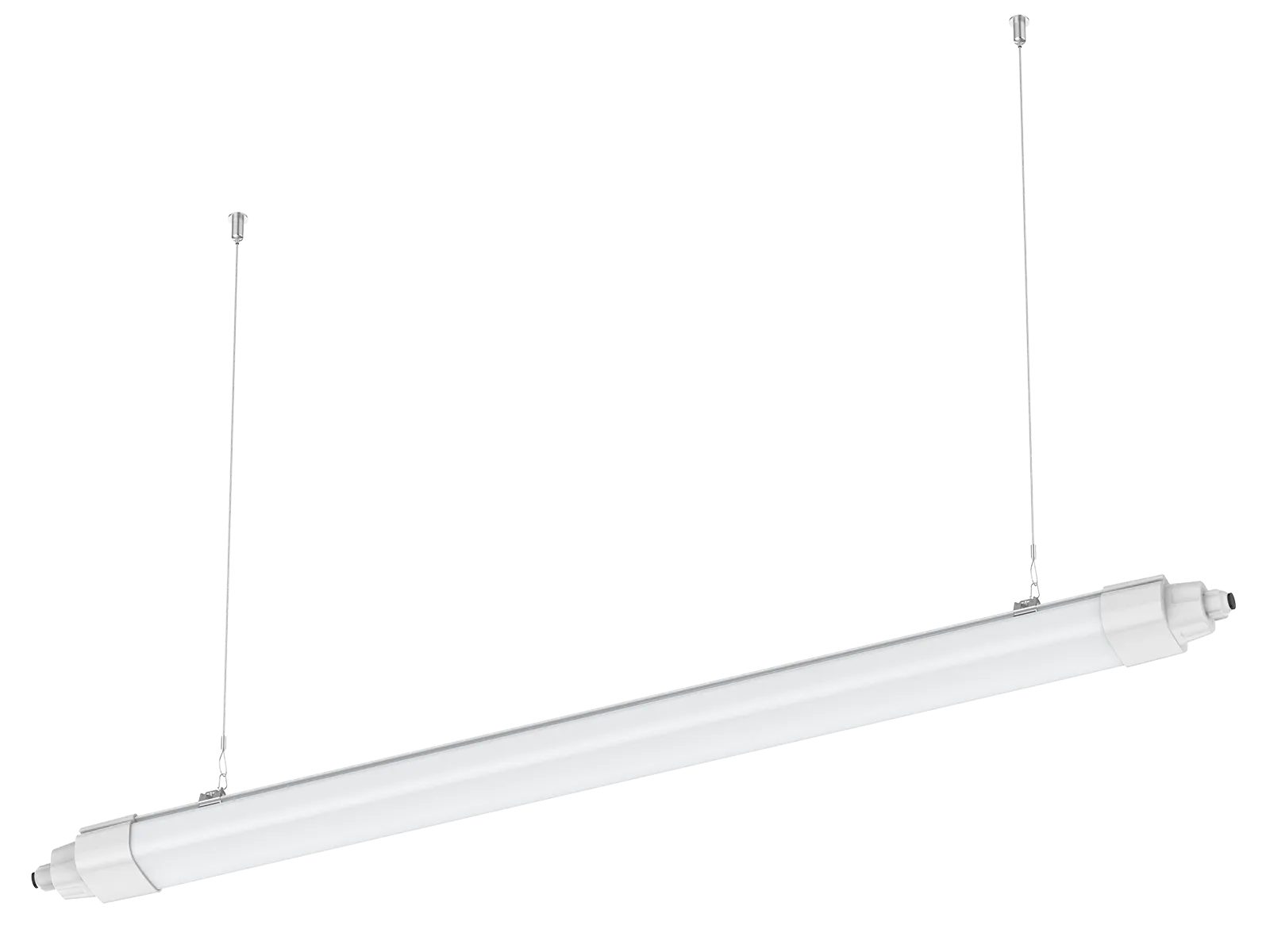

| Installation | Surface mount / Pendant | |||||
