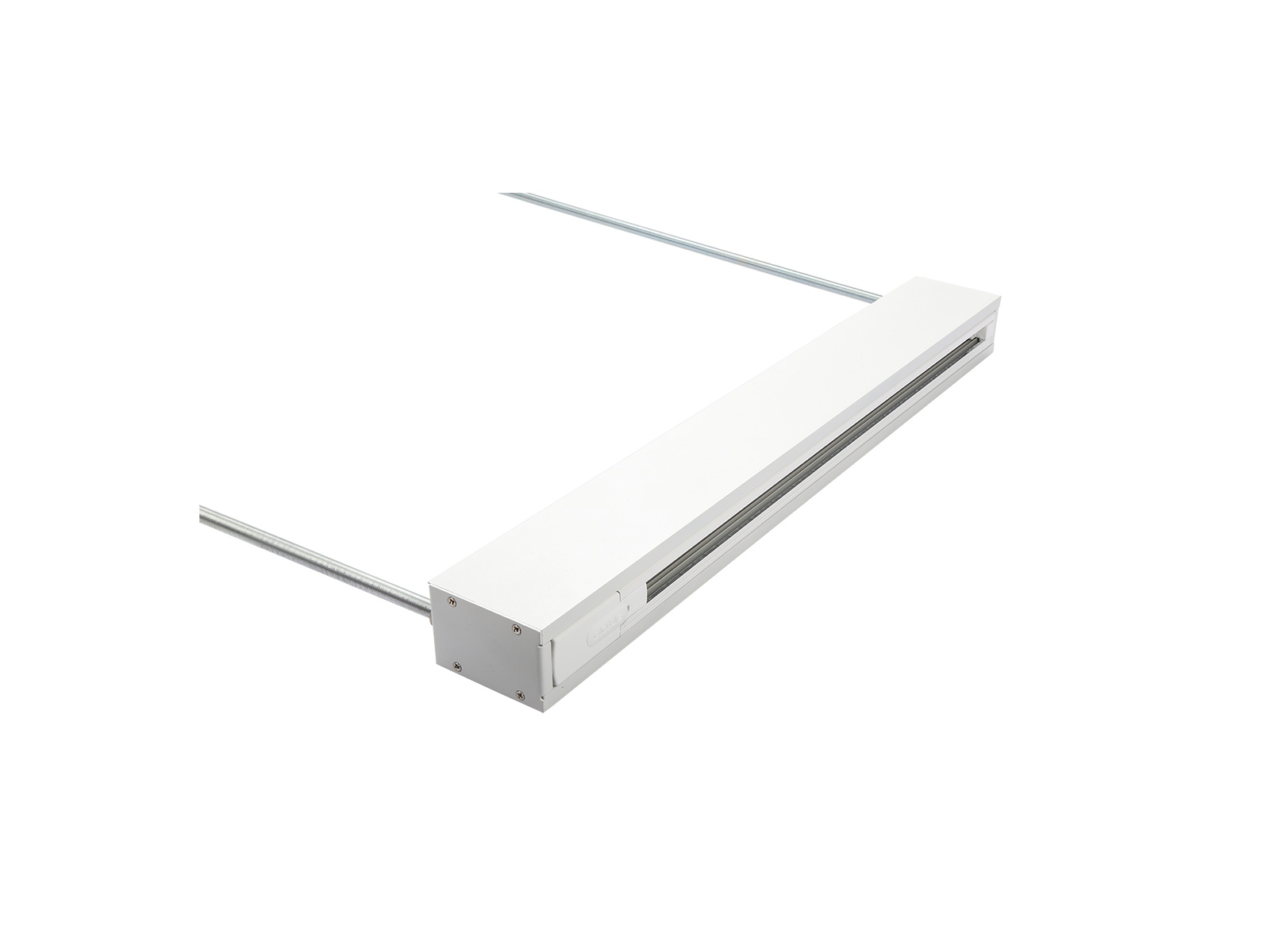

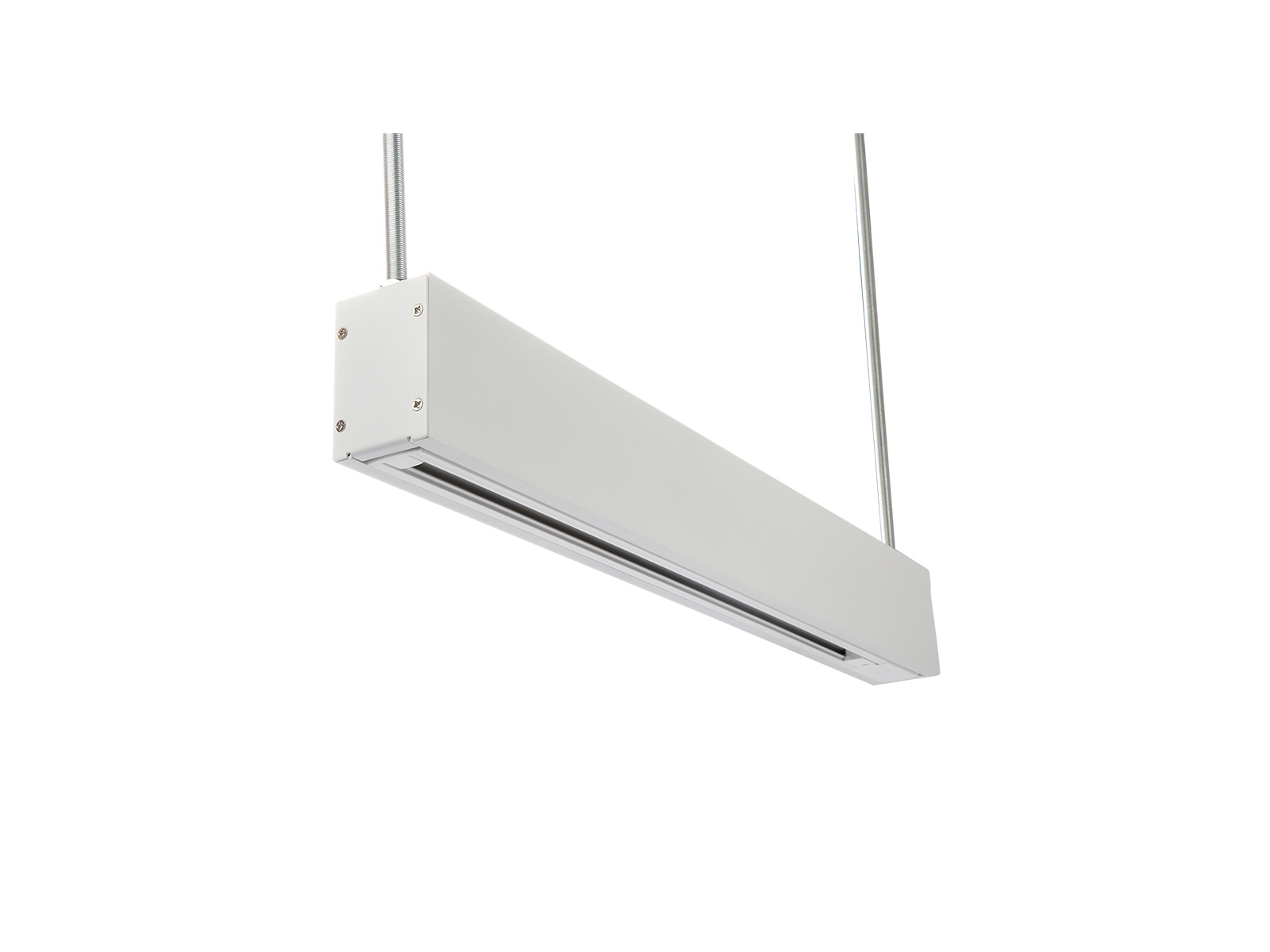

The new suspended batten designed as double-sided lamp, upper side with standard light,under side with additional track light; It can not only with standard suspended installation, but also with splicing connection;Adopts Global track and built-in isolated flicker free 0/1-10V dim driver solution.
LED uplight track light features:
| Model No. | DB38-600-20W | DB38-1200-38W | ||
| Watt(W) | 20W | 38W | ||
| Dimension(mm) | 575*50*76 | 1075*50*76 | ||
| Rated Input Voltage(V) | AC100-277V | |||
| Input Voltage(V) | AC90-305V | |||
| LED | SMD | |||
| SDCM | <3 | |||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | |||
| "Luminous Flux (lm) ±5%" | 1-CCT | Non-DIM | – | |
| DIM | 1700~1800 | 3400~3600 | ||
| CRI | ≥80 | |||
| Beam Angle (°) | 90° | |||
| LED Driver | Built-in | |||
| DIM | 0-10V | |||
| Protection Class | Class Ⅰ | |||
| IP Rating | IP20 | |||
| IK Rating | − | |||
| Finishing color | White RAL9003 | |||
| Material | Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Operating Temp.(°C) | -20℃~45℃ | |||
| Storage Temp.(°C) | -20℃~65℃ | |||
| Installation | Pendant | |||
