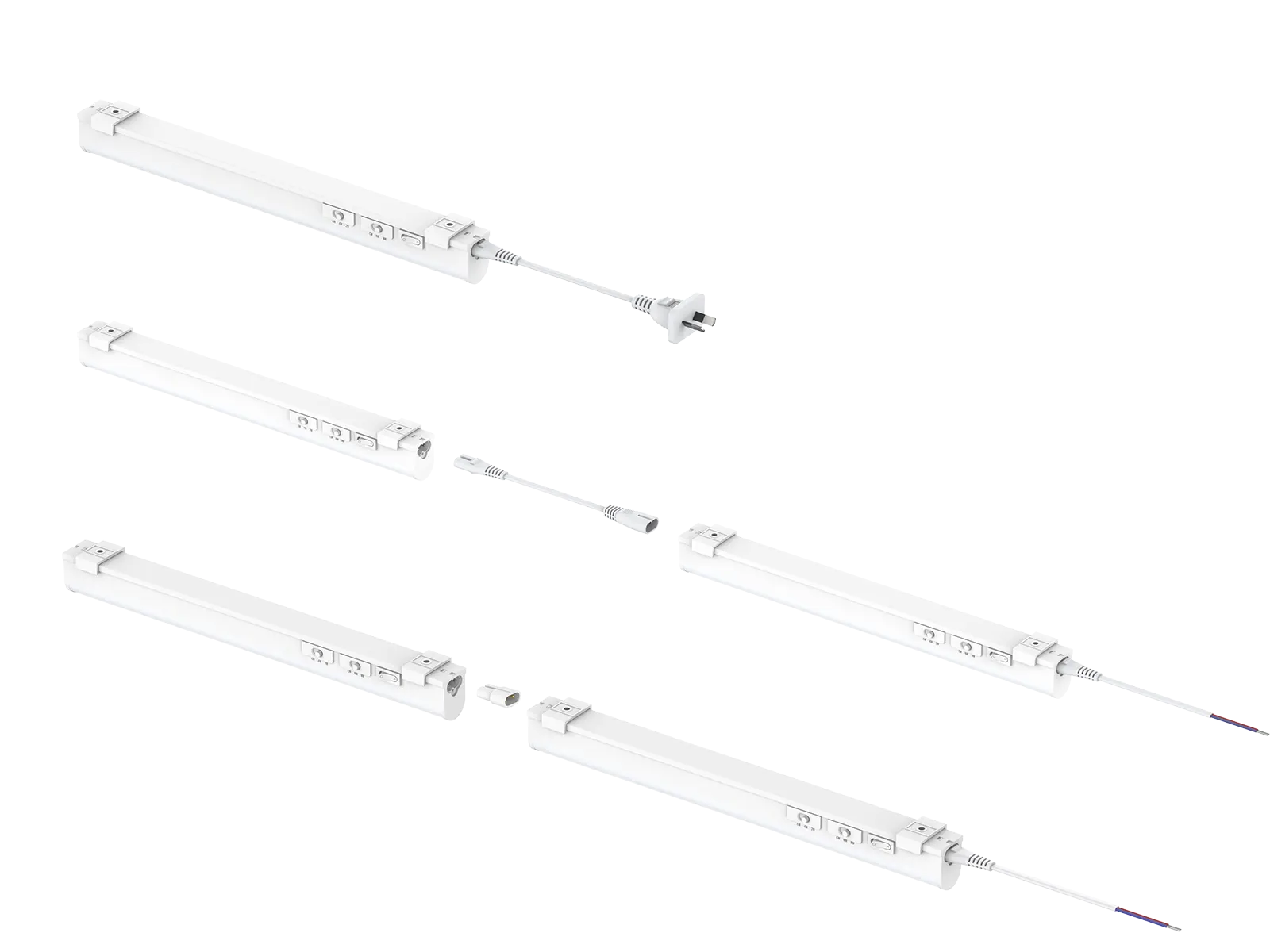

The DB249 G2.0 integrated LED mini batten light series is developed in response to market demands for an all-in-one batten light solution that can replace traditional fluorescent tubes. It aims to meet the need for efficient and convenient lighting upgrades in offices, commercial spaces, and similar environments. The light source, driver, and structural components are integrated into one unit, simplifying installation and maintenance. Wiring is only allowed on the input side, while the output side requires tools to connect extension cables, ensuring greater safety. The L and N poles can be connected arbitrarily without causing a short circuit.
Applications: It is widely used for cabinet, shopping mall, office, car park, station etc. Accessories
| Code | DB249A-350-6W-A3C3 | DB249A-600-10W-A3C3 | DB249A-900-15W-A3C3 | DB249A-1200-18W-A3C3 | DB249A-1500-24W-A3C3 | DB249B-350-6W-A3C3 | DB249B-600-10W-A3C3 | DB249B-900-15W-A3C3 | DB249B-1200-18W-A3C3 | DB249B-1500-24W-A3C3 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

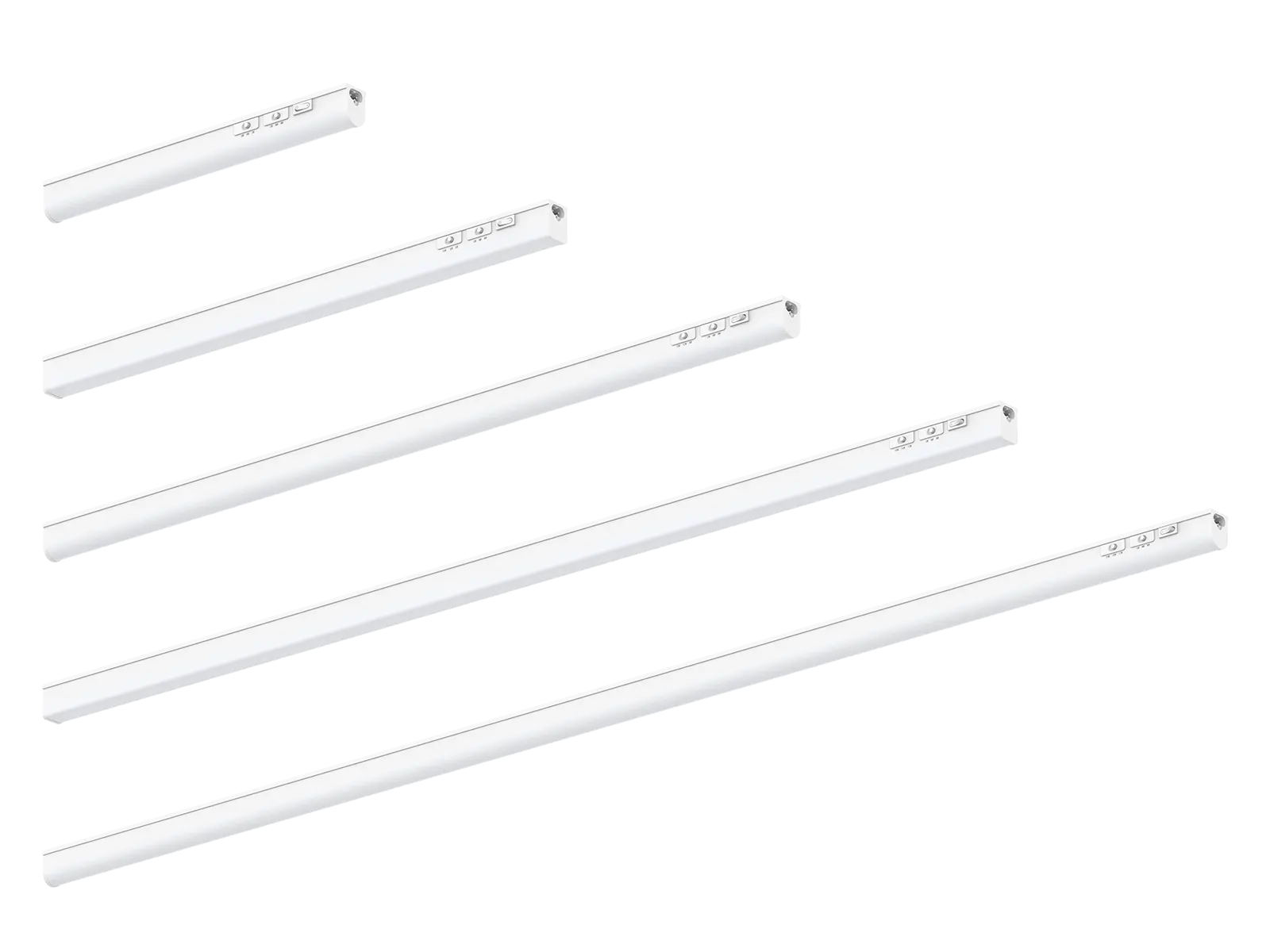

| Dimension(mm) | 350*28*36 | 600*28*36 | 900*28*36 | 1200*28*36 | 1500*28*36 | 350*28*36 | 600*28*36 | 900*28*36 | 1200*28*36 | 1500*28*36 | ||
| Watt(W) | 6W Max. | 10W Max. | 15W Max. | 18W Max. | 24W Max. | 6W Max. | 10W Max. | 15W Max. | 18W Max. | 24W Max. | ||
| (4W/2W optional) | (8W/6W optional) | (12W/9W optional) | (15W/10W optional) | (18W/12W optional) | (4W/2W optional) | (8W/6W optional) | (12W/9W optional) | (15W/10W optional) | (18W/12W optional) | |||
| Rated Input Voltage | AC220-240V | AC220-240V | ||||||||||
| Input Voltage | AC198-264V | AC198-264V | ||||||||||
| Light Source | SMD | SMD | ||||||||||
| SDCM | <6 | <6 | ||||||||||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | 3-CCT: 3000K+4000K+5700K | ||||||||||

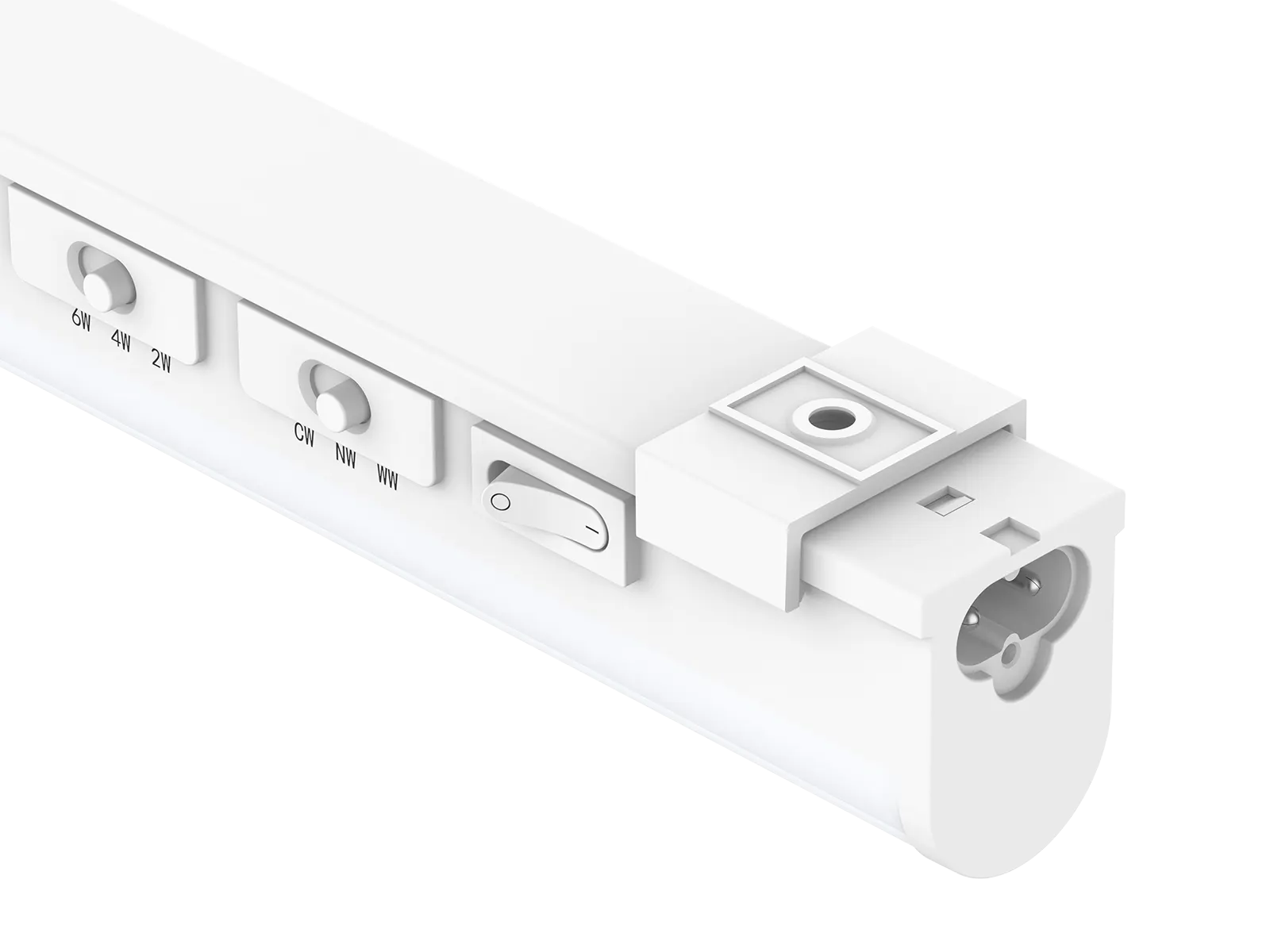

| CCT Selection | By DIP Switch | By DIP Switch | ||||||||||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | 6W: 780-830 | 10W: 1390-1460 | 15W: 2205-2310 | 18W: 2700-2810 | 24W: 3620-3790 | 6W: 750-790 | 10W: 1360-1420 | 15W: 2130-2220 | 18W: 2590-2700 | 24W: 3455-3620 |
| CRI80 | 4W: 490-510 | 8W: 1085-1140 | 12W: 1755-1835 | 15W: 2230-2320 | 18W: 2700-2820 | 4W: 460-495 | 8W: 1065-1120 | 12W: 1700-1770 | 15W: 2140-2230 | 18W: 2575-2695 | ||
| 2W: 200-205 | 6W: 785-820 | 9W: 1305-1360 | 10W: 1450-1505 | 12W: 1780-1850 | 2W: 180-200 | 6W: 770-800 | 9W: 1270-1315 | 10W: 1400-1460 | 12W: 1695-1760 | |||
| CRI | 80 | 80 | ||||||||||
| Beam Angle(°) | 120° | 120° | ||||||||||
| LED Driver | Built-in, Flicker Free | Built-in, Flicker Free | ||||||||||
| Sensor | NO | NO | ||||||||||
| Electrical Class | Class II | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP40 | IP40 | ||||||||||
| Impact Resistance(IK Rating) | IK03 | IK03 | ||||||||||
| Product Finishing | White RAL9016 | White RAL9016 | ||||||||||
| Optics Material | PC | PC | ||||||||||
| Housing Material | PC | PC | ||||||||||
| L80B50 (hr) | 100,000h | 100,000h | ||||||||||
| Lifetime(hr) | 50,000h | 50,000h | ||||||||||
| Glow wire test(°C) | 750°C | 750°C | ||||||||||
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | ||||||||||
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | ||||||||||
| Installation | Ceiling Surface Mount /Wall Mount | Ceiling Surface Mount /Wall Mount | ||||||||||
