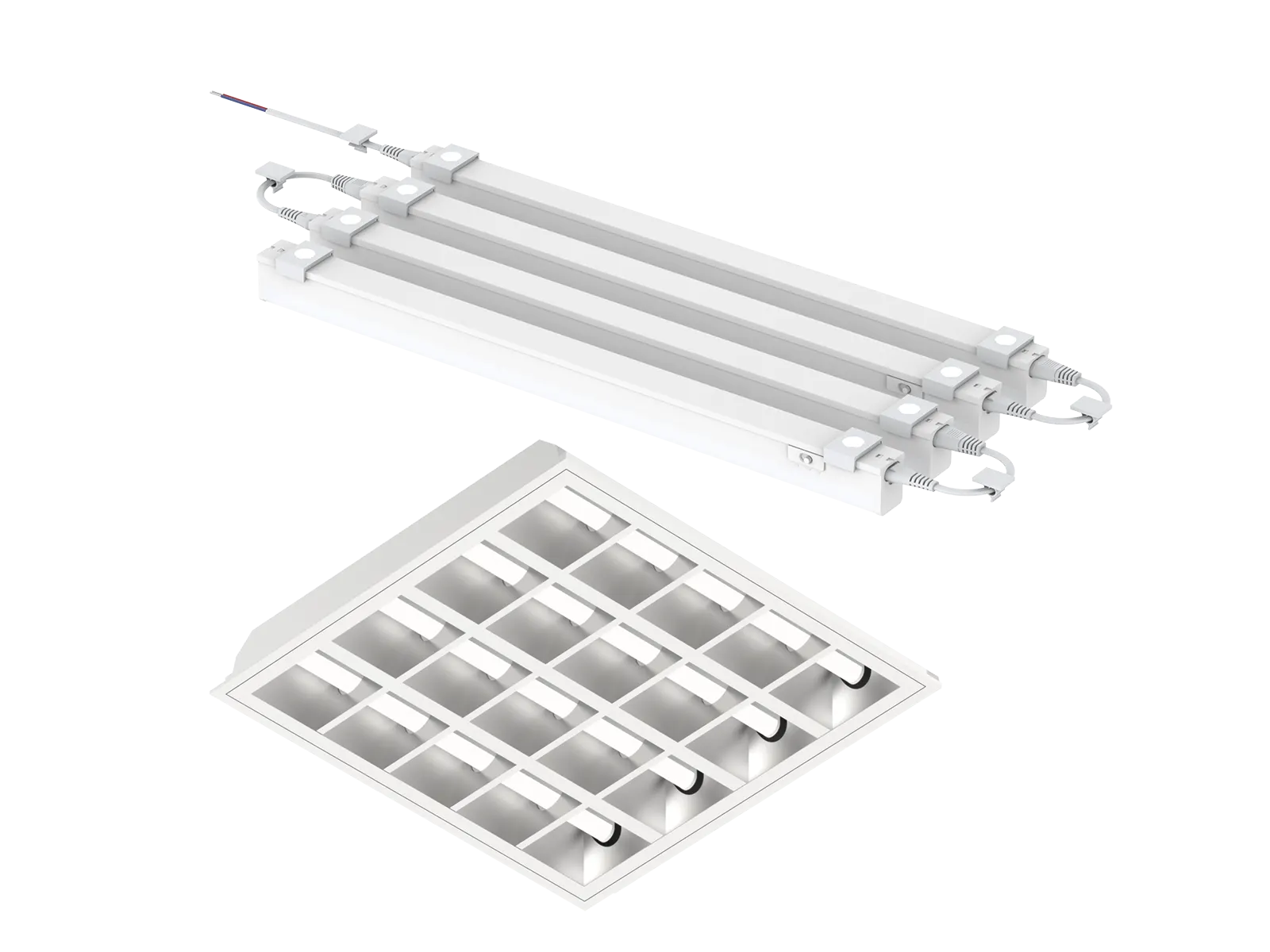

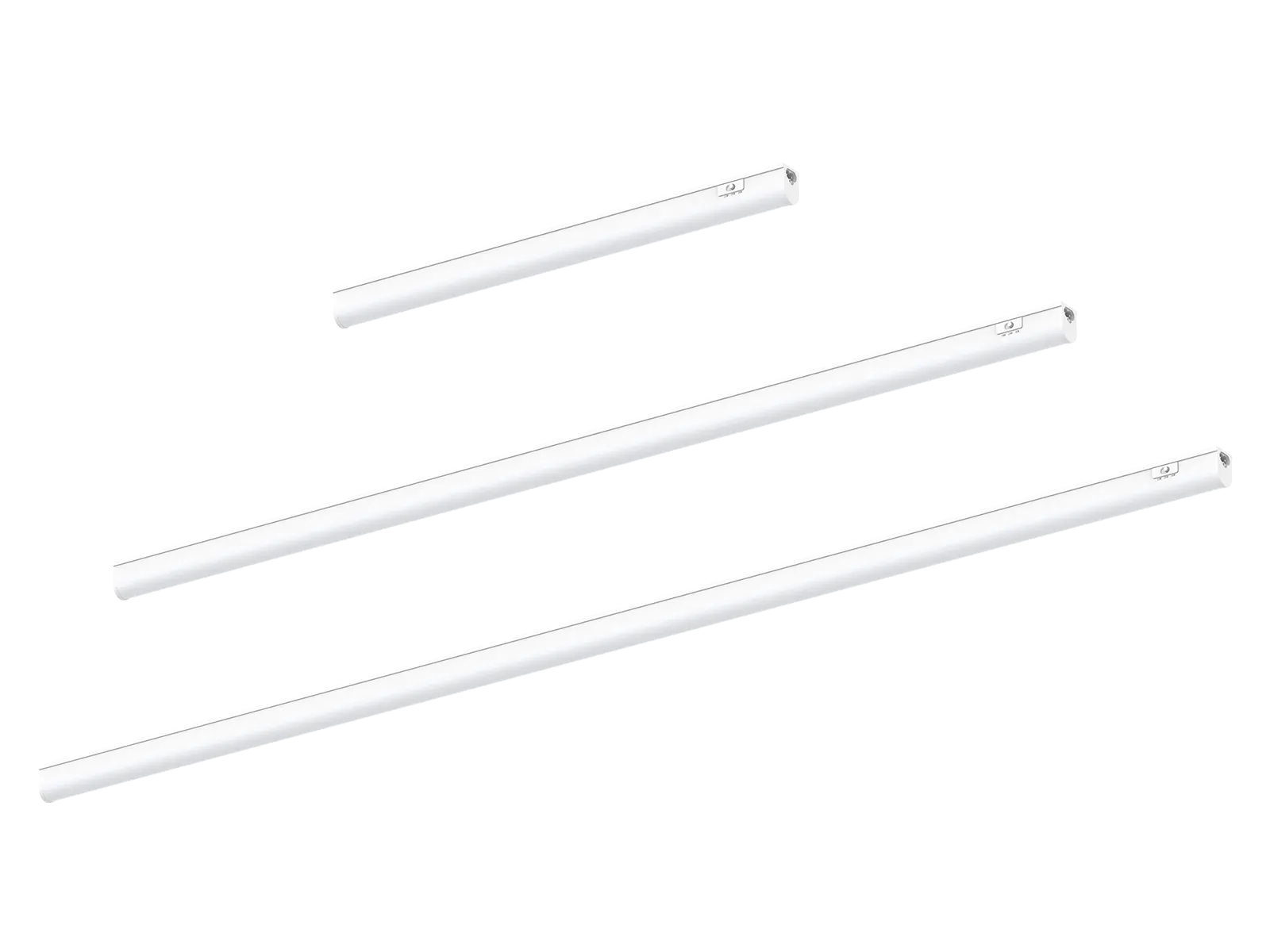

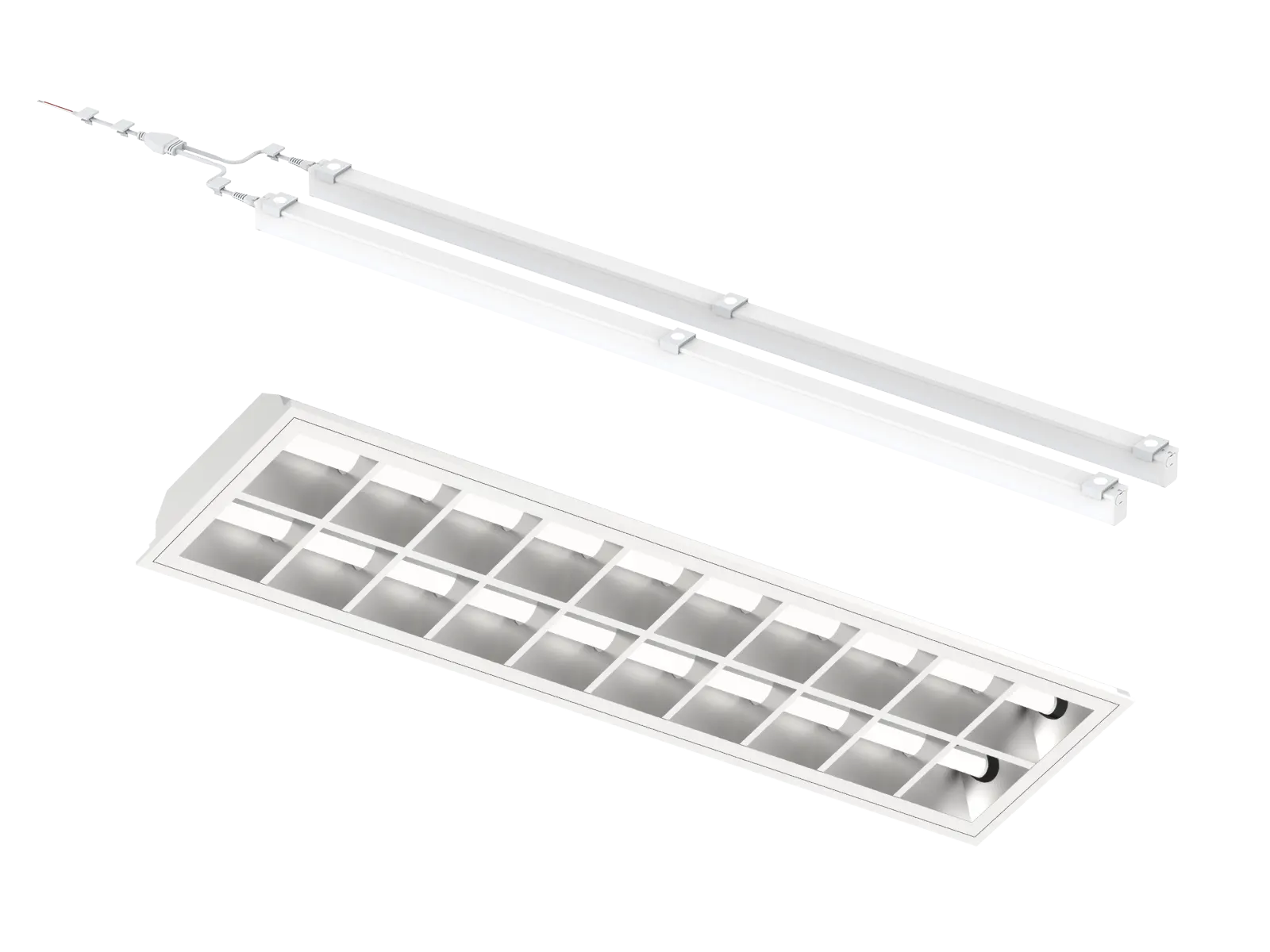

The DB249 G1.0 integrated LED batten light series is developed in response to market demands for a streamlined batten light solution. It is designed to replace traditional tubes in existing light panels, meeting the need for efficient and convenient lighting upgrades in offices, commercial spaces, and similar environments. The light source, driver, and structural components are integrated into one unit, simplifying installation and maintenance. Wiring is only allowed on the input side; the output side requires tools to connect extension cables, ensuring enhanced safety. The L and N poles can be connected arbitrarily without causing a short circuit. This enables direct replacement of traditional light panel systems, offering a quick upgrade for old lighting fixtures without the need for complex modifications.
Applications: It is widely used in shopping mall, office, car park, station etc. Single use Retrofit use
| Code | DB249A-500-15W-A3 | DB249A-1100-30W-A3 | DB249A-1400-35W-A3 | DB249B-500-15W-A3 | DB249B-1100-30W-A3 | DB249B-1400-35W-A3 | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 500*28*36 | 1100*28*36 | 1400*28*36 | 500*28*36 | 1100*28*36 | 1400*28*36 | ||
| Watt(W) | 15W Max.(12W/9W optional) | 30W Max.(24W/18W optional) | 35W Max.(29W/23W optional) | 15W/12W/9W | 30W/24W/18W | 35W/29W/23W | ||
| Rated Input Voltage | AC220-240V | AC220-240V | ||||||
| Input Voltage | AC198-264V | AC198-264V | ||||||
| Light Source | SMD | SMD | ||||||
| SDCM | ≤4 | ≤4 | ||||||
| CCT(K) | 1-CCT: 4000K | 1-CCT: 4000K | ||||||
| Luminous Flux | 1-CCT | Non-DIM | 15W: 2280 | 30W: 4950 | 35W: 5770 | 15W: 2190 | 30W: 4470 | 35W: 5525 |
| (lm) ±5% CRI80 | 12W: 1750 | 24W: 3585 | 29W: 4580 | 12W: 1670 | 24W: 3450 | 29W: 4415 | ||
| 9W: 1385 | 18W: 2895 | 23W: 3865 | 9W: 1330 | 18W: 2790 | 23W: 3770 | |||
| CRI | 80 | 80 | ||||||
| Beam Angle(°) | 120° | 120° | ||||||
| LED Driver | Built-in, Flicker Free | Built-in, Flicker Free | ||||||
| Sensor | NO | NO | ||||||
| Electrical Class | Class II | Class II | ||||||
| Ingress Protection(IP Rating) | IP40 | IP40 | ||||||
| Impact Resistance(IK Rating) | IK03 | IK03 | ||||||
| Product Finishing | White RAL9016 | White RAL9016 | ||||||
| Optics Material | PC | PC | ||||||
| Housing Material | PC | PC | ||||||
| L80B50 (hr) | 100,000h | 100,000h | ||||||
| Lifetime(hr) | 50,000h | 50,000h | ||||||
| Glow wire test(°C) | 750°C | 750°C | ||||||
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | ||||||
| Installation | Ceiling Surface Mount /Wall Mount | Ceiling Surface Mount /Wall Mount | ||||||
