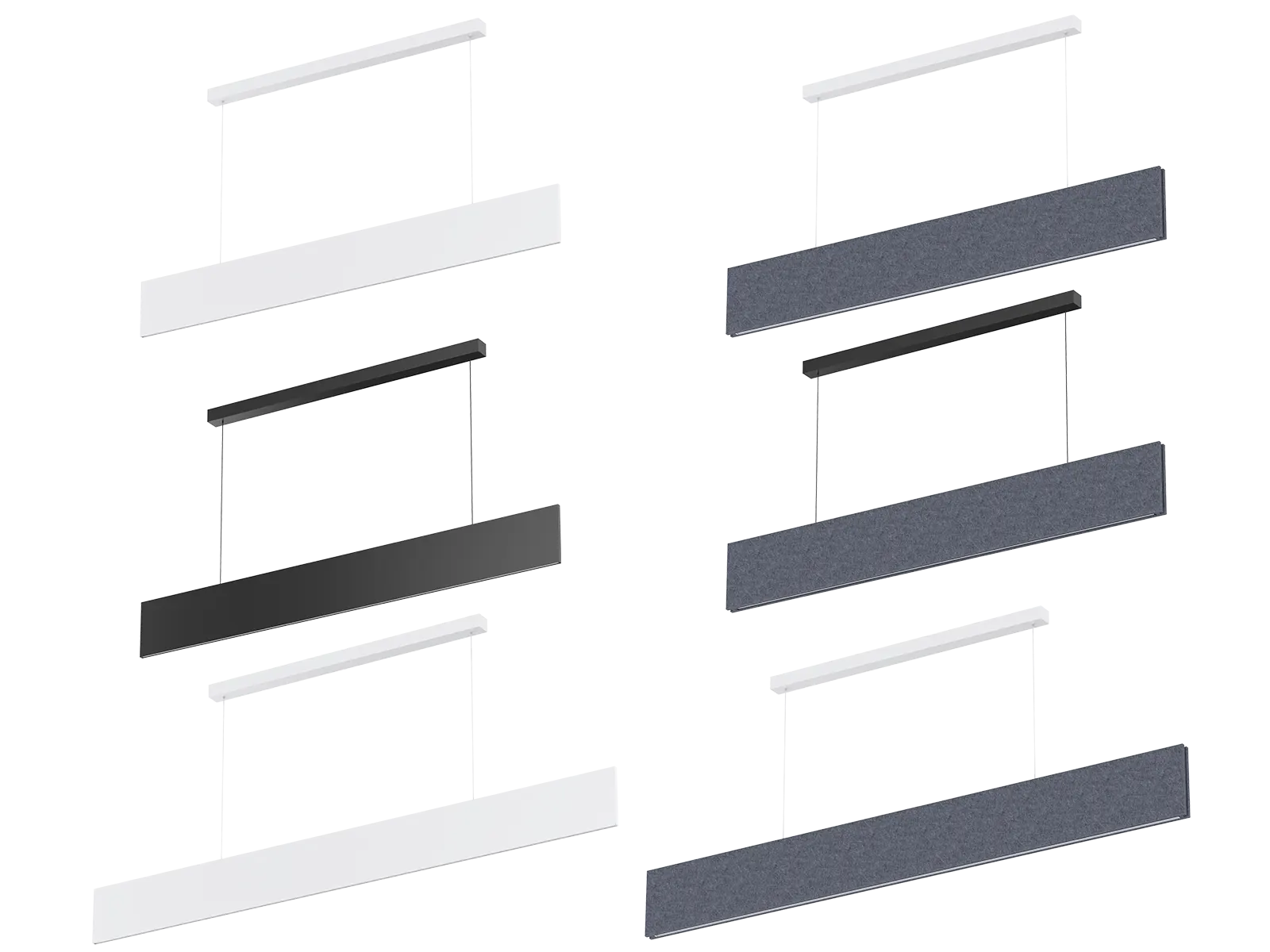

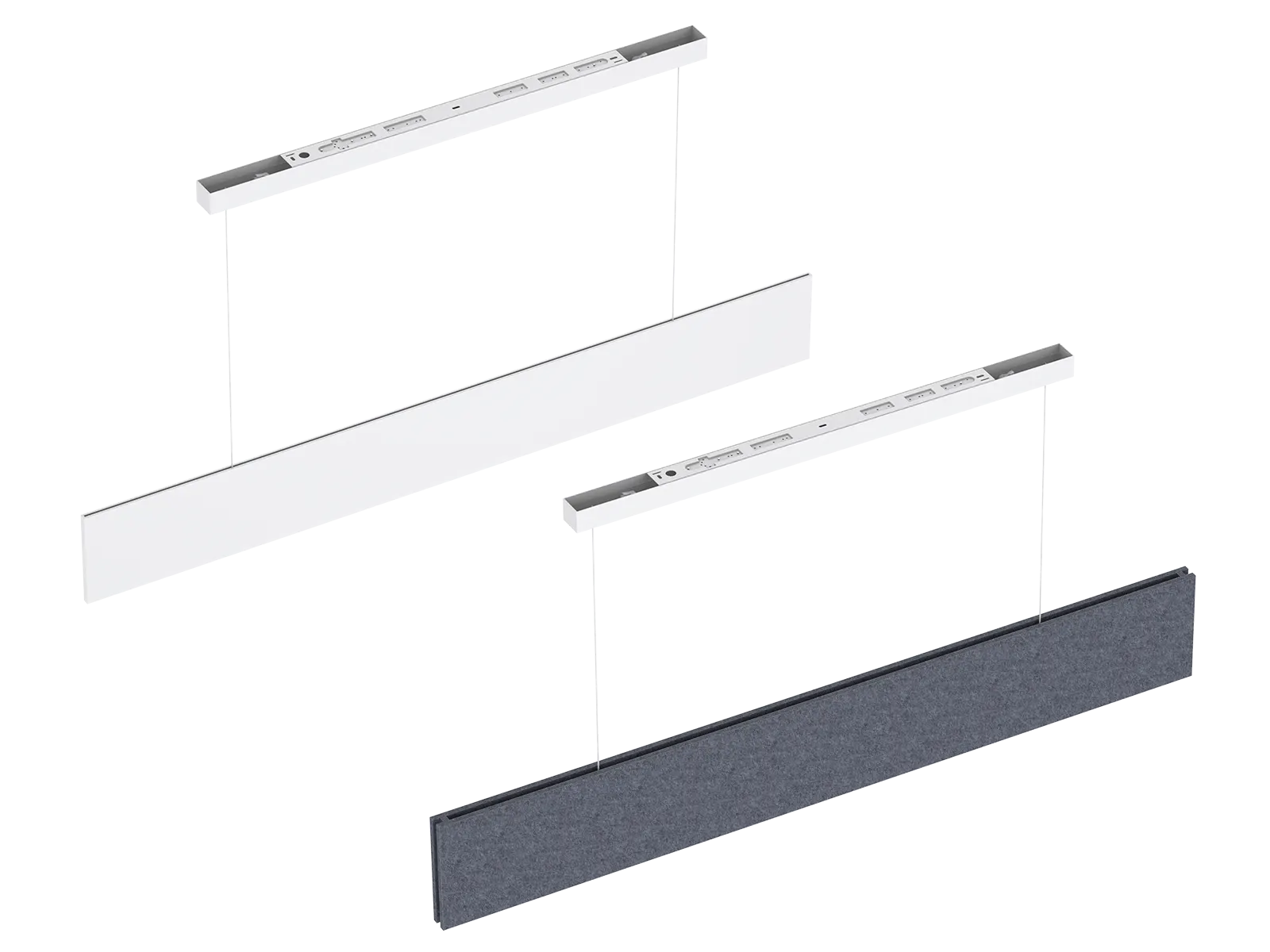

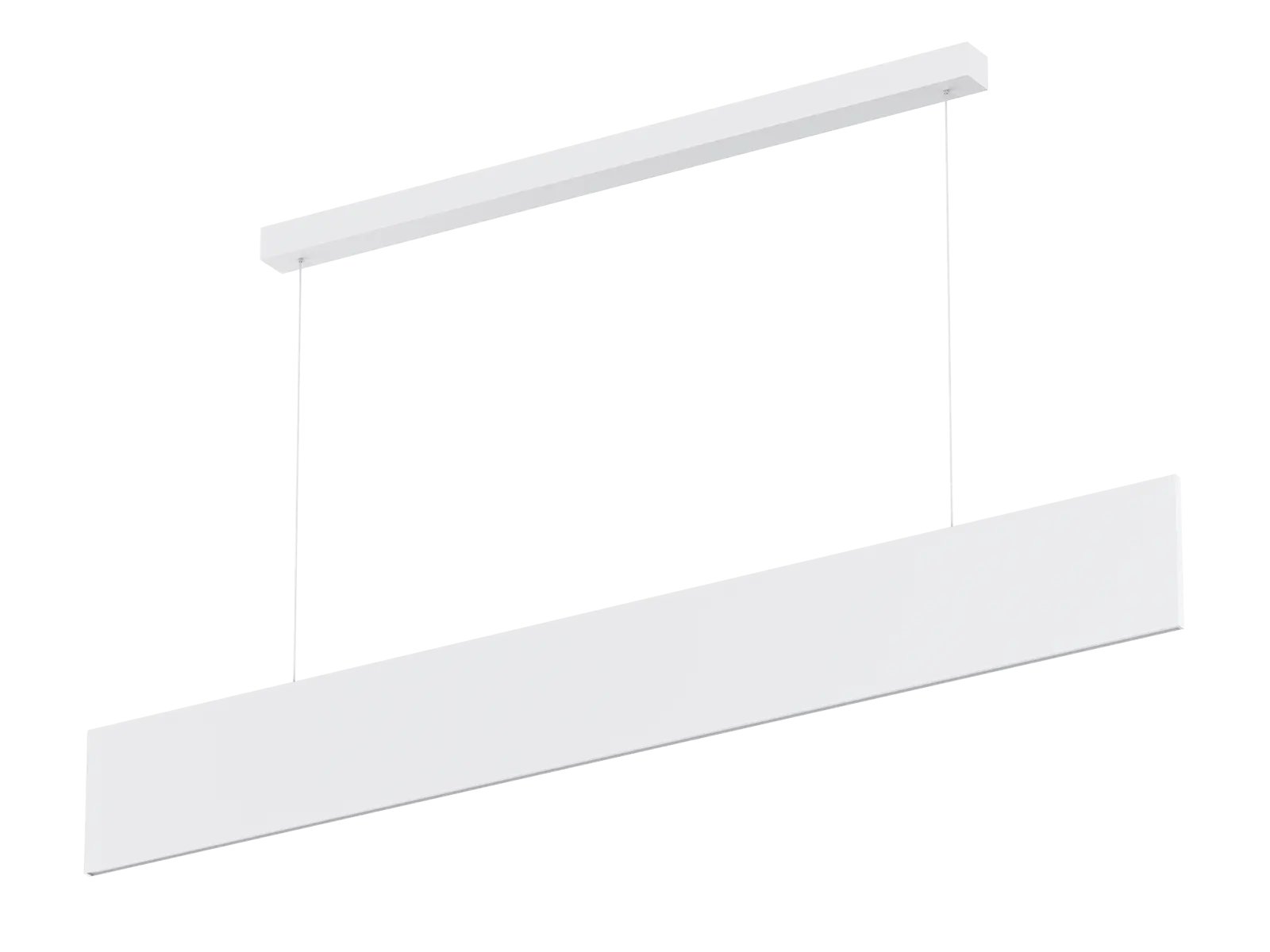

This is an ultra-slim linear pendant light, compact and elegant to blend seamlessly with any space. Featuring direct downward illumination, its housing is crafted from aluminium for a highly textured finish. Paired with acoustic cotton, the structure effectively diffuses unwanted sound waves, achieving frequency absorption and dispersion. This enhances the clarity and richness of sound throughout the space, seamlessly integrating acoustics with contemporary lighting design.
Applications: It is widely used in hotels, cafés, gyms, restaurants, offices and similar establishments.
| Code | DB246-1200-42W | DB246-1500-49W | ||
|---|---|---|---|---|
| Dimension(mm) | L1206*W10.5*H150 | L1506*W10.5*H150 | ||
| Cutout(mm) | - | |||
| Watt(W) | 42W | 49W | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K | |||
| CCT Selection | - | |||
| Luminous Flux | 1-CCT | Non-DIM | 3300-3500 | 4000-4500 |
| (lm) ±5% CRI90 (White) | DALI | 3300-3500 | 4000-4500 | |
| CRI | 90 | |||
| Beam Angle(°) | 100° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | DALl-2+pushDlM | |||
| Sensor | - | |||
| Emergency Kits | - | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP20 | |||
| Impact Resistance(IK Rating) | IK03 | |||
| Product Finishing | White RAL9016, Black RAL9005 | |||
| Optics Material | PC | |||
| Housing Material | Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test (°C) | 650°C | |||
| Operating Temp.(°C) | -20°C~45°C | |||
| Storage Temp.(°C) | -20°C~60°C | |||
| Installation | Pendant | |||
