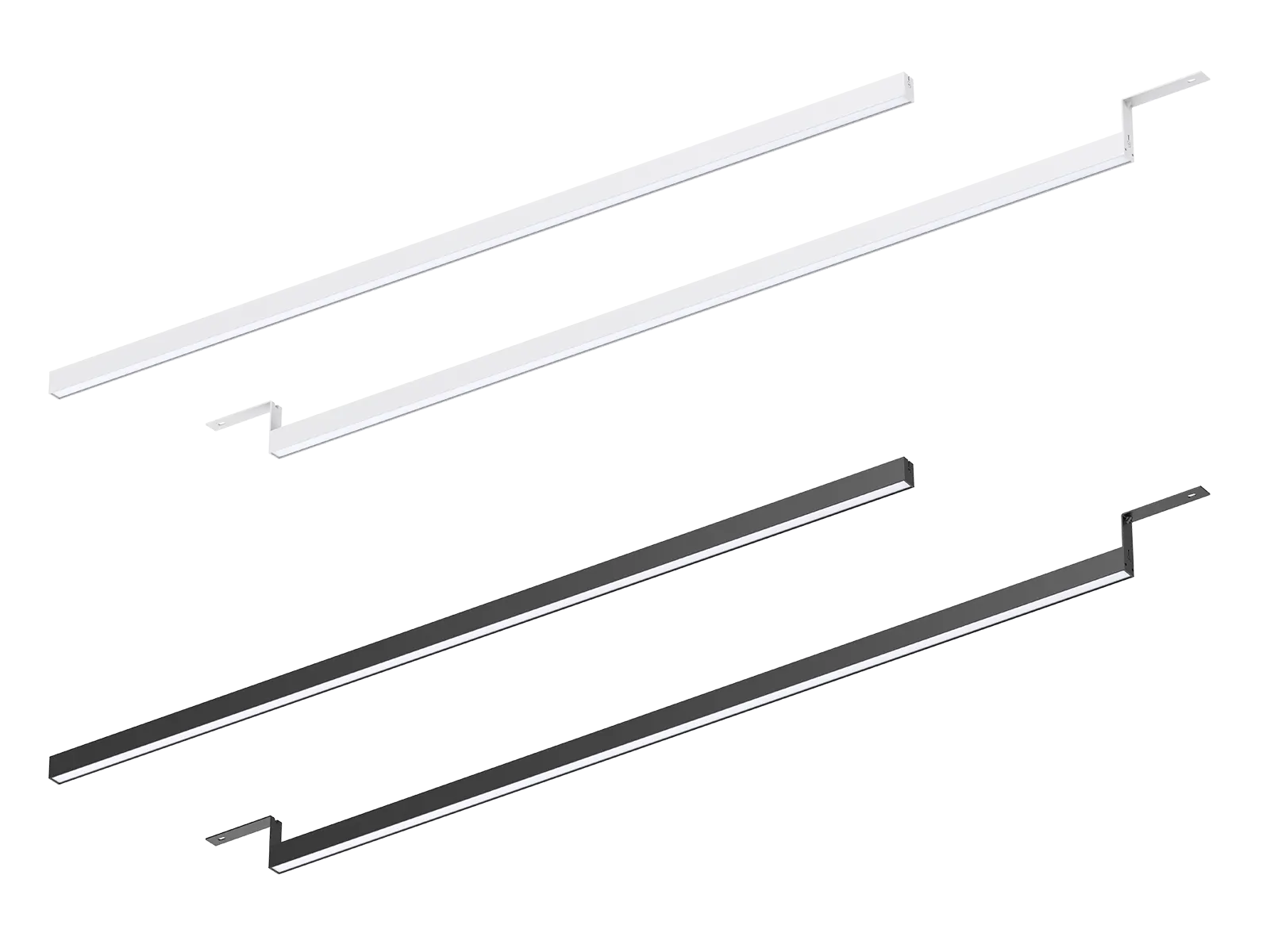

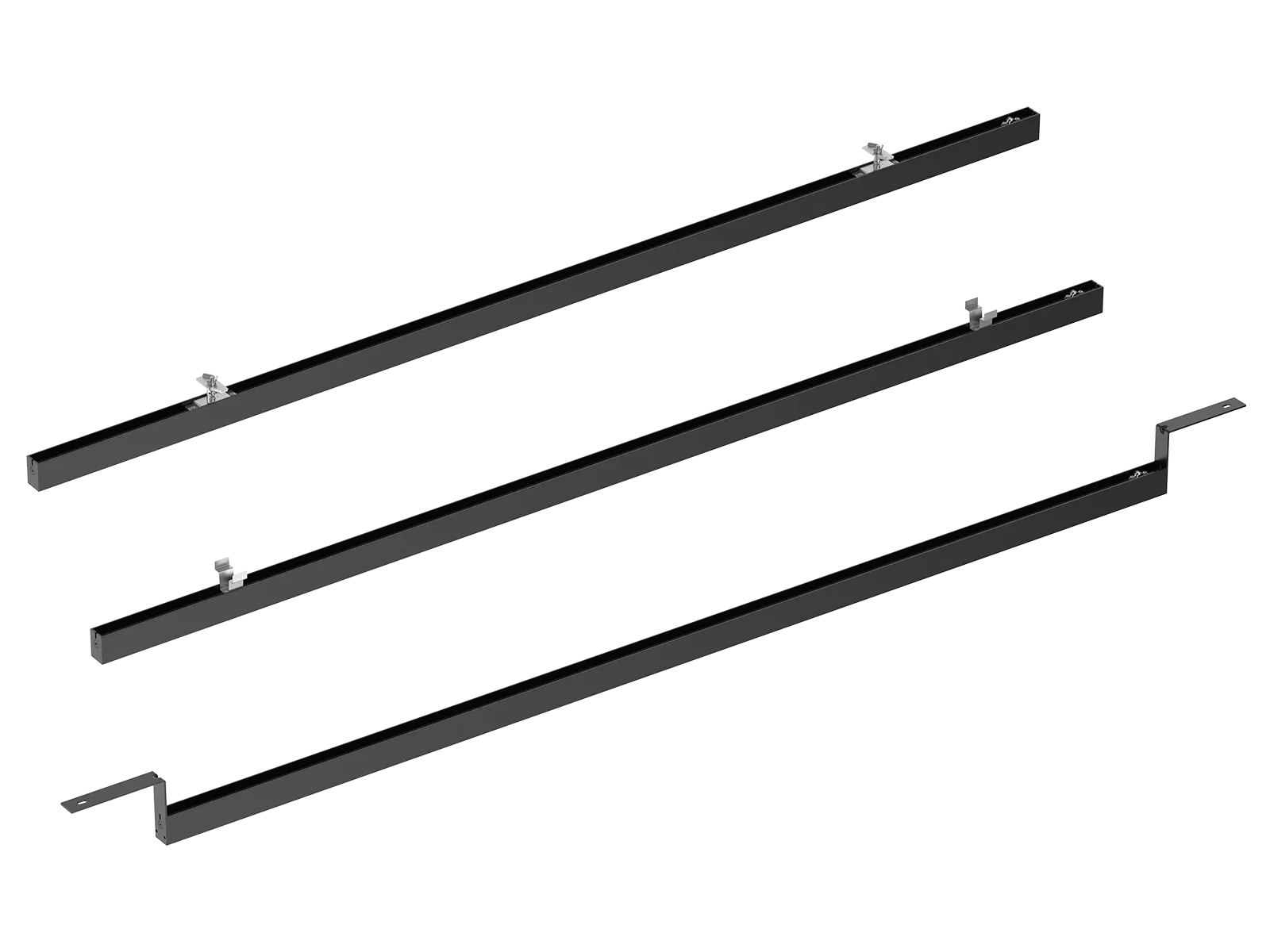

The DB243 series features an ultra‑narrow, minimalist recessed linear light with a compact and refined appearance. The fixture body is made of high‑thermal‑conductivity aluminum for excellent heat dissipation and strong corrosion resistance. It supports three types of recessed mounting brackets. For SAPP climate ceiling systems. Suitable for air flow control in negative plenum ceilings.
Applications: It's widely applicable in various scenarios such as offices, meeting rooms, supermarkets, and other places with SAPP climate ceiling systems.
| Code | DB243A-600-14W | DB243A-1200-30W | DB243A-1500-38W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L598*W20*H30 | L1192*W20*H30 | L1489*W20*H30 | ||
| Cutout(mm) | ‑ | ||||
| Watt(W) | 14W | 30W | 38W | ||
| Rated Input Voltage | AC220‑240V | ||||
| Input Voltage | AC198‑264V | ||||
| LED Module Input | DC30‑40V | DC30‑38V | |||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1‑CCT: 3000K/4000K || 2‑CCT:3000K+4000K | ||||
| CCT Selection | By DIP Switch | ||||
| 1-CCT | Non-DIM | 1450‑1500 | 3000‑3200 | 3900‑4100 | |
| Luminous Flux (lm) ±5% | DALI | 1450‑1500 | 3000‑3200 | 3900‑4100 | |
| CRI80 | 2-CCT | Non-DIM | 1400‑1450 | 2900‑3100 | 3850‑3950 |
| DALI | 1400‑1450 | 2900‑3100 | 3850‑3950 | ||
| CRI | CRI80 | ||||
| Beam Angle(°) | 90° | ||||
| UGR | ‑ | ||||
| LED Driver | Built‑out, Flicker Free | ||||
| Dimming Option | DALl‑2+pushDIM | ||||
| Sensor | ‑ | ||||
| Emergency Kits | ‑ | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK03 | ||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||
| Optics Material | Diffuser/PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | ‑20°C~45°C | ||||
| Storage Temp.(°C) | ‑20°C~65°C | ||||
| Installation | Recessed | ||||
