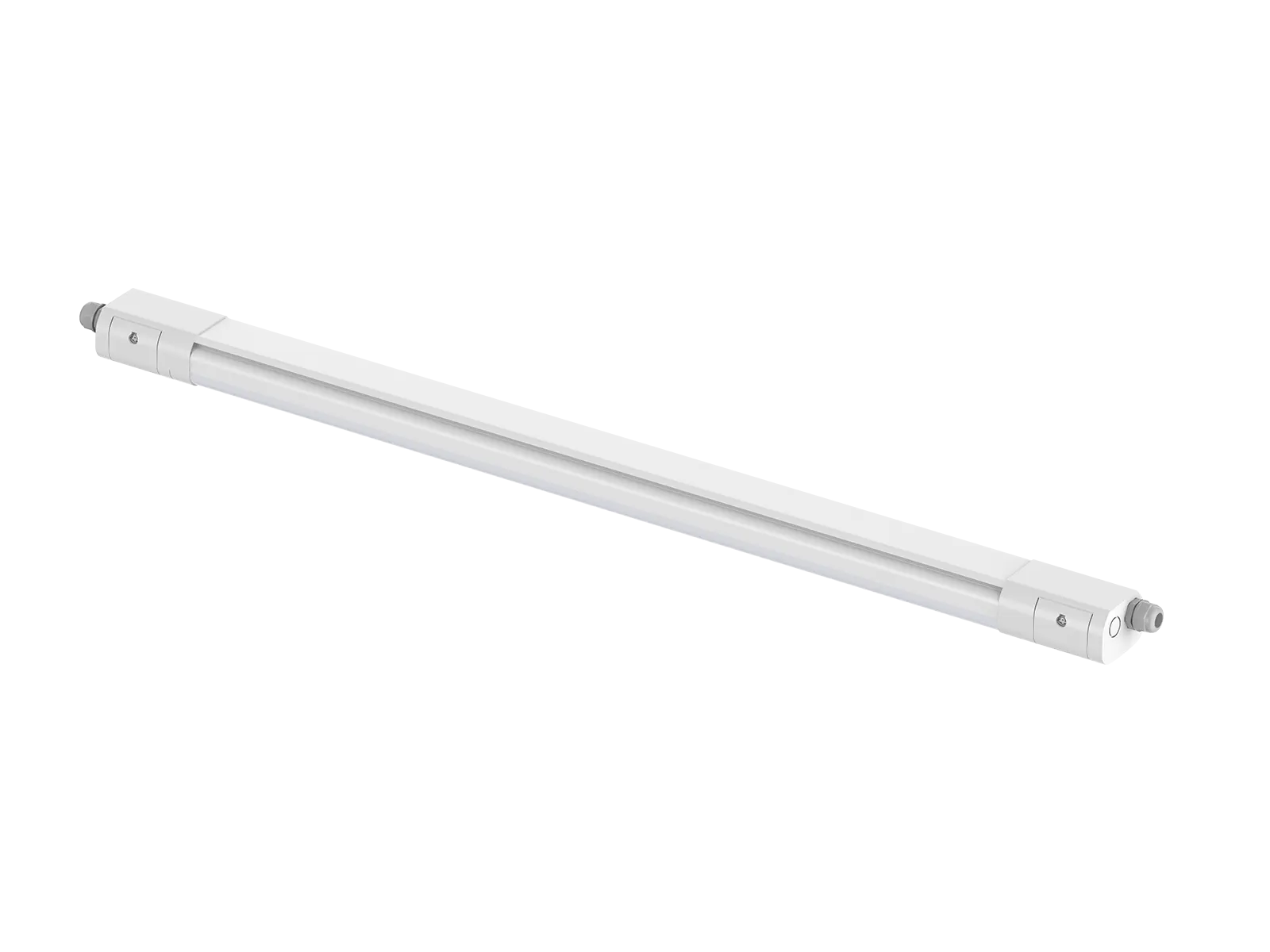

The batten light features a full PC housing with a dual color coextrusion design, delivering IP66 waterproof protection, IK10 impact resistance, and a high efficacy of up to 160 lm/W. It supports DIP switch CCT selection and power tuning for flexible onsite configuration. The end caps adopt a dual side snapfit structure for easy installation, and a reserved knockout allows the use of dual PG glands for loopin/ loopout wiring.
Applications: Suitable for outdoor corridors, parking areas, construction sites, warehouses, and various indoor and outdoor environments.
| Code | DB242-1200-33W-A3 | DB242-1500-50W-A3 | ||
|---|---|---|---|---|
| Dimension(mm) | 1200*76.7*58 | 1500*76.7*58 | ||
| Cutout(mm) | - | |||
| Watt(W) | 33W Max.(33W/27W/22W optional) | 50W Max.(50W/43W/36W optional) | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198V-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 2-CCT: 3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | Non-DIM | 33W:5020-5280 | 50W:7600-8000 | |
| CRI80 | 2-CCT | 27W:4100-4400 | 43W:6500-7000 | |
| 22W:3400-3520 | 36W:5700-6000 | |||
| DALI | 33W: 5400-5800 | 50W: 8000-8500 | ||
| CRI | 80 | |||
| Beam Angle(°) | 110° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | DALl-2+pushDlM | |||
| Sensor | - | |||
| Emergency Kits | NO | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP66 | |||
| Impact Resistance(IK Rating) | IK10 | |||
| Product Finishing | White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | PC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20~45°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||

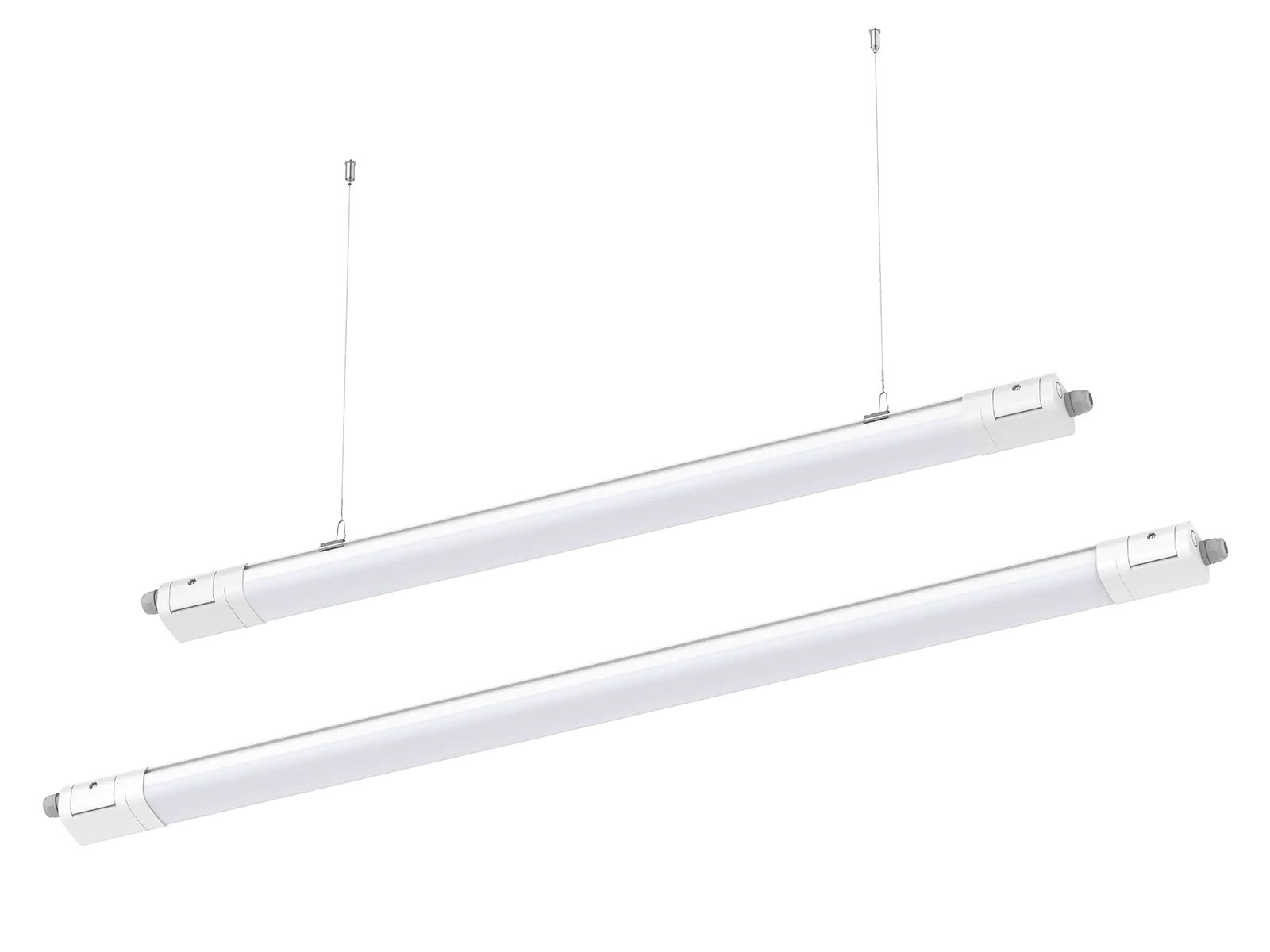

| Installation | Surface mount / Pendant | |||
