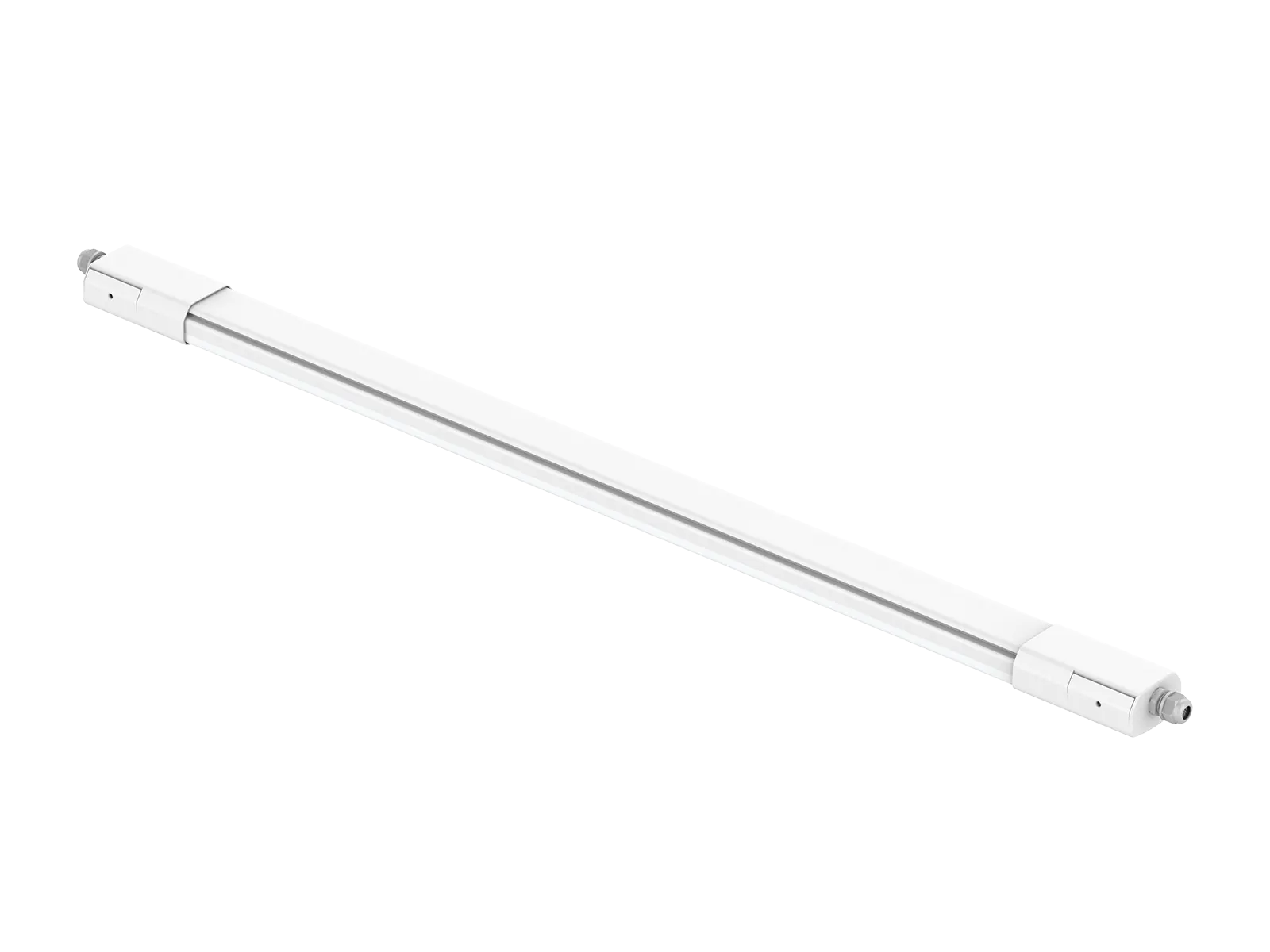

The DB236 batten light features a full PC housing manufactured with a dualcolor coextrusion process. The fixture achieves an overall IP66 waterproof rating and IK10 impact resistance, delivering a high efficacy of up to 150 lm/W. It also supports DIP switch CCT selection and power adjustable. The end caps adopt a dualside snapfit design for easy installation.
Applications: Suitable for outdoor corridors, parking areas, construction sites, warehouses, and various indoor and outdoor environments.
| Code | DB236-1200-30W-A3 | DB236-1500-40W-A3 | ||
|---|---|---|---|---|
| Dimension(mm) | L1297*W73.8*H45mm | L1597*W73.8*H45mm | ||
| Cutout(mm) | - | |||
| Watt(W) | 30W Max.(30W/25W/15W optional) | 40W Max.(40W/35W/25W optional) | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198V-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | |||

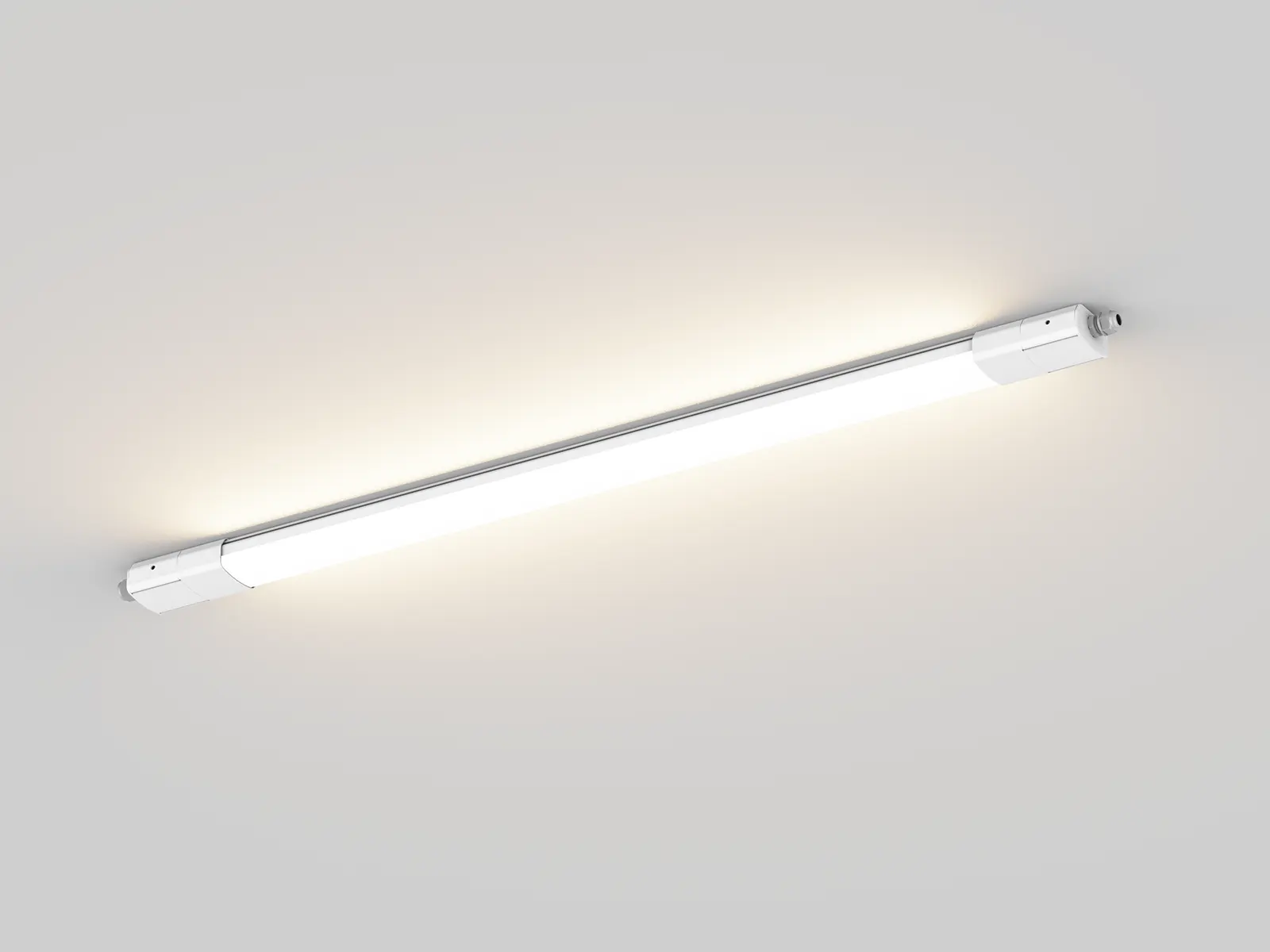

| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | 30W:4100-4300 | 40W:5400-5700 |
| CRI80 | 25W:3410-3580 | 35W:4720-4980 | ||
| 15W:2000-2100 | 25W:3550-3700 | |||
| CRI | 80 | |||
| Beam Angle(°) | 110° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | NO | |||
| Sensor | - | |||
| Emergency Kits | NO | |||
| Electrical Class | Class II | |||
| Ingress Protection(IP Rating) | IP66 | |||
| Impact Resistance(IK Rating) | IK10 | |||
| Product Finishing | White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | PC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20~45°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||

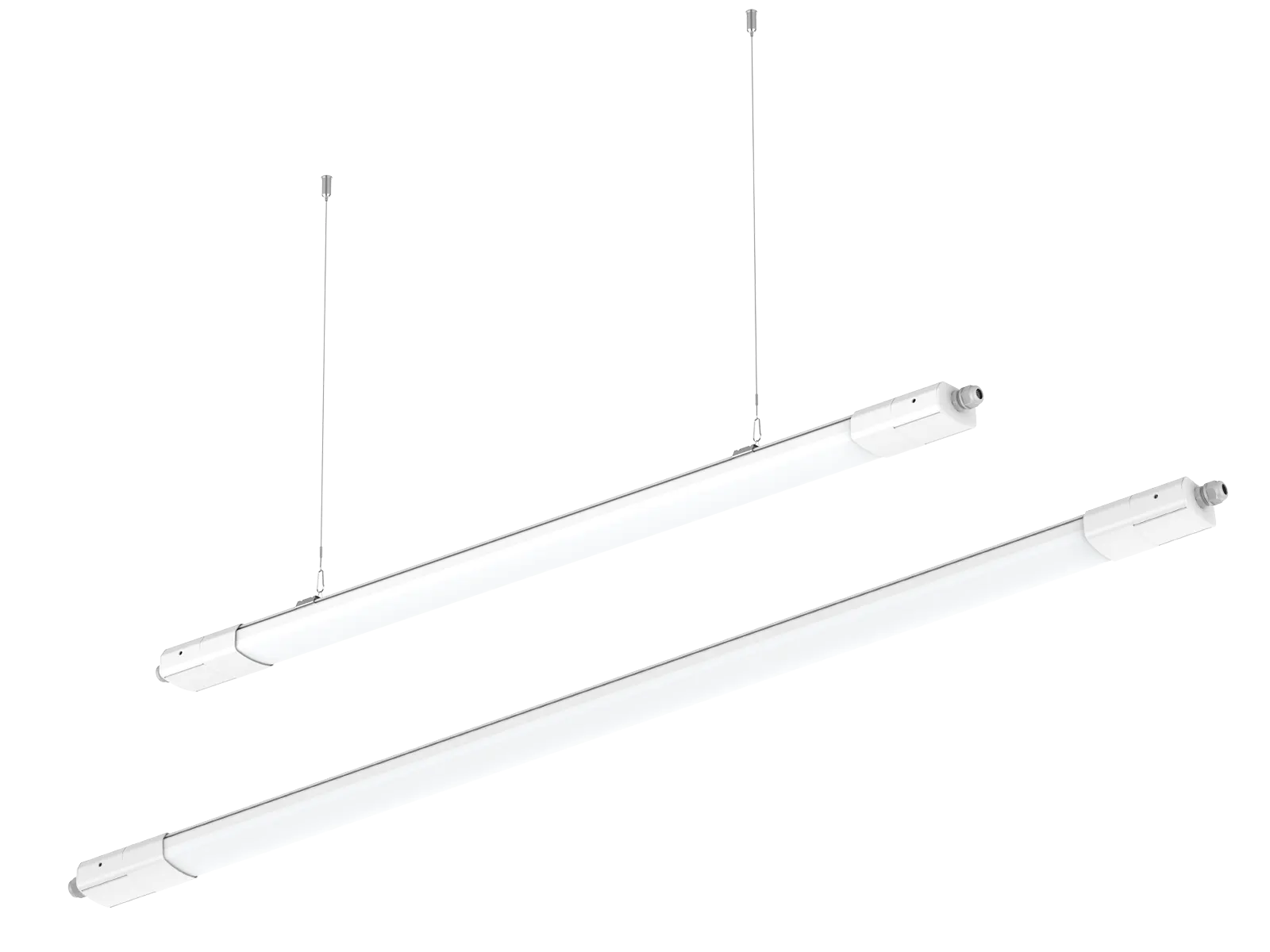

| Installation | Surface mount/pendant | |||
