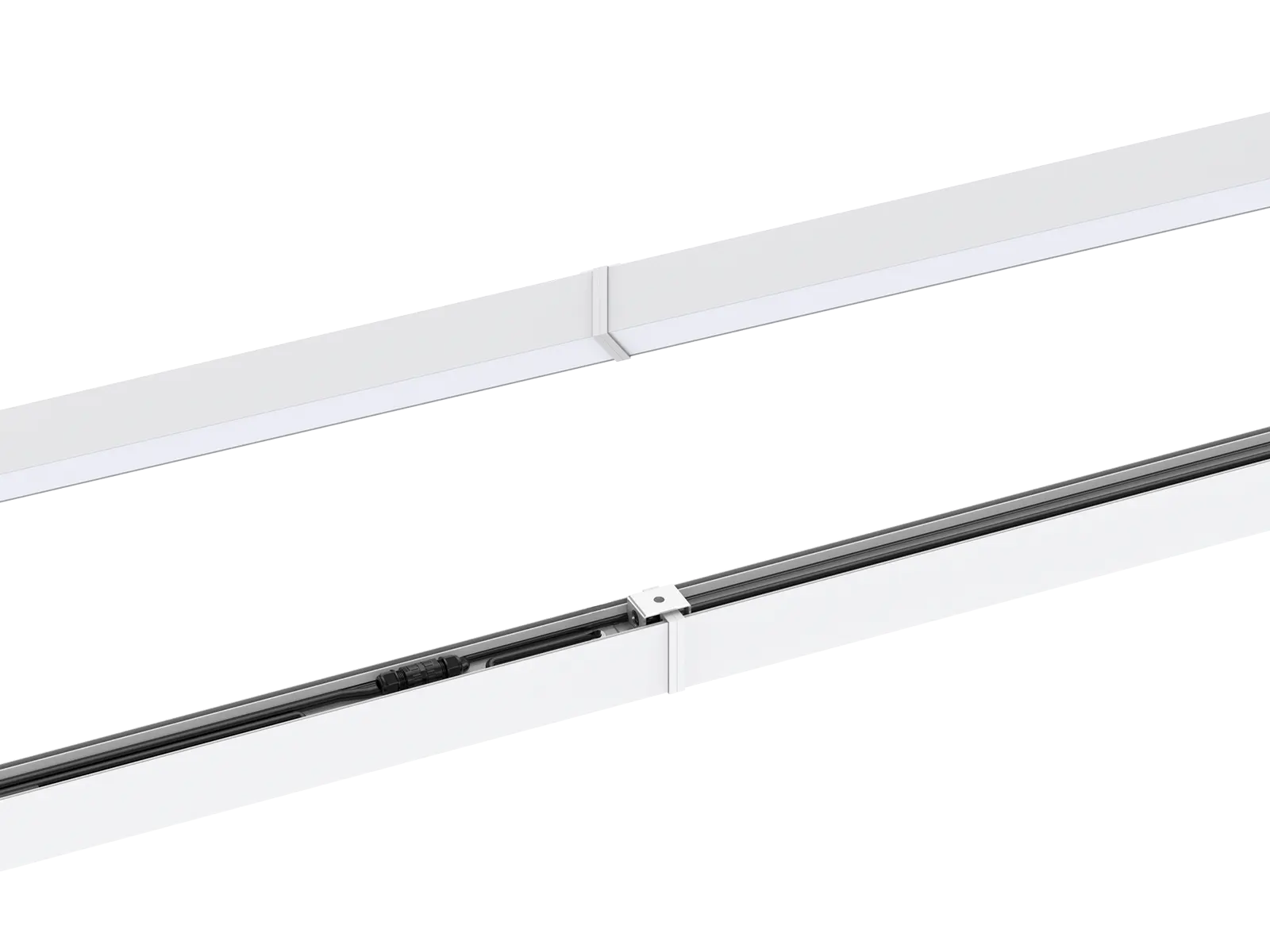

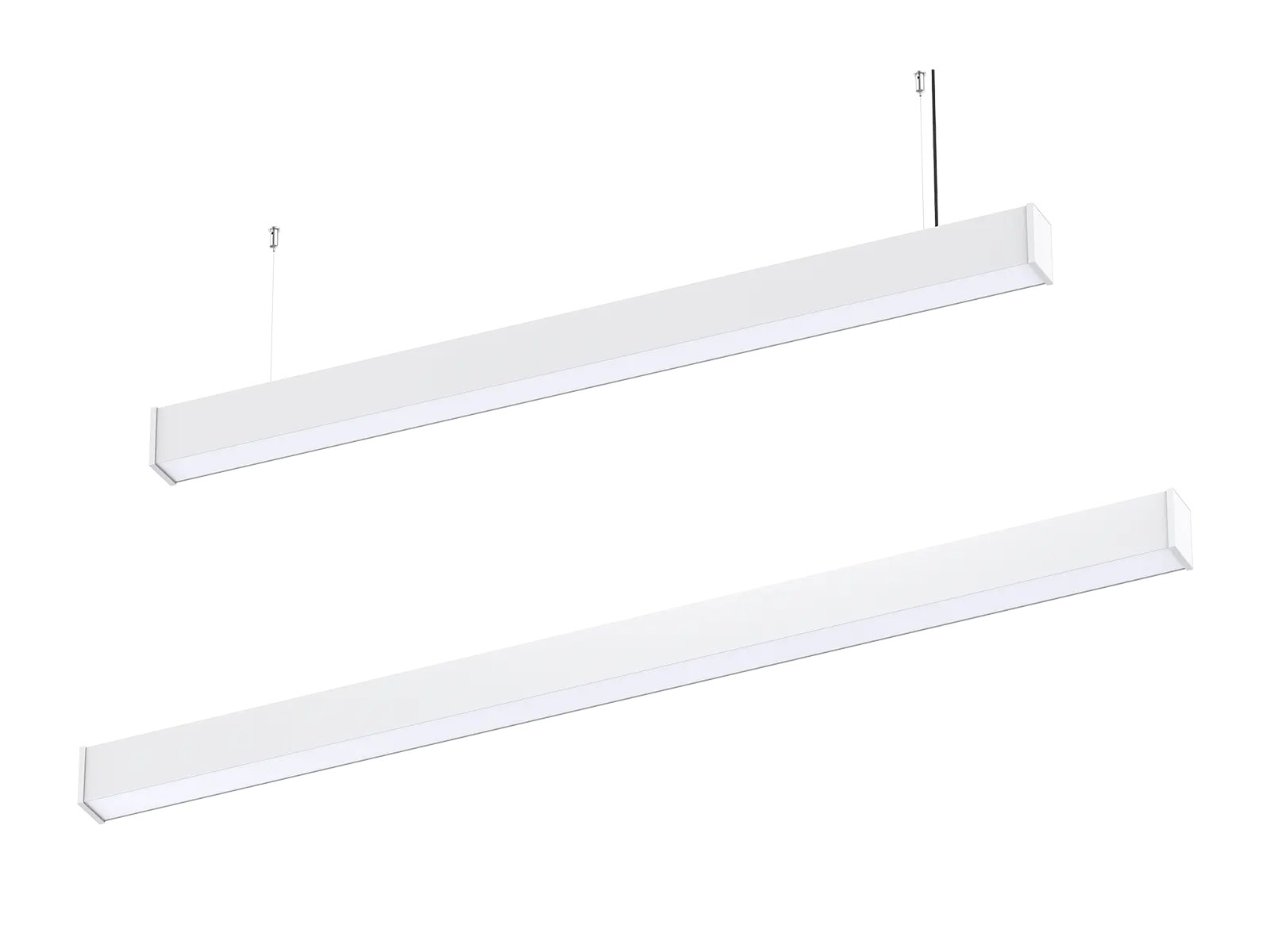

The IP65 Waterproof LED linear is designed to withstand harsh weather conditions, making it an ideal lighting solution for outdoor spaces. Its waterproof seal ensures complete protection against rain and snow, while its robust casing guarantees durability and longevity. The milky white PC diffuser creates a uniform lighting effect. This versatile product supports various installation methods, including pendant, surface mount, wall mount installation. It also supports straight-line splicing for surface mount and pendant installation.
Applications: It is suitable for semi-outdoor locations with high waterproof requirements, such as factories, warehouses, workshops, ships, parking lots, shopping malls, and hotels.
| Code | DB235A-600-18W | DB235A-1200-38W | DB235A-1500-45W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L612*W61*H85 | L1212*W61*H85 | L1512*W61*H85 | ||
| Watt(W) | 18W | 38W | 45W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 2-CCT: 3000K+4000K | ||||
| CCT Selection | By DIP Switch | ||||
| Luminous Flux (lm) ±5% | 2-CCT | Non-DIM | 2100-2320 | 4550-5030 | 5210-5760 |
| CRI80 | DALI | 2100-2320 | 4550-5030 | 5210-5760 | |
| CRI | 80 | ||||
| Beam Angle(°) | 110° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | DALl-2+push DlM | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK08 | ||||
| Product Finishing | White RAL9016 / Black RAL9005 | ||||
| Optics Material | Diffuser/PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20~45°C | ||||
| Storage Temp.(°C) | -20~65°C | ||||
| Installation | Ceiling Surface Mount/ Pendant/ Wall Mount | ||||
