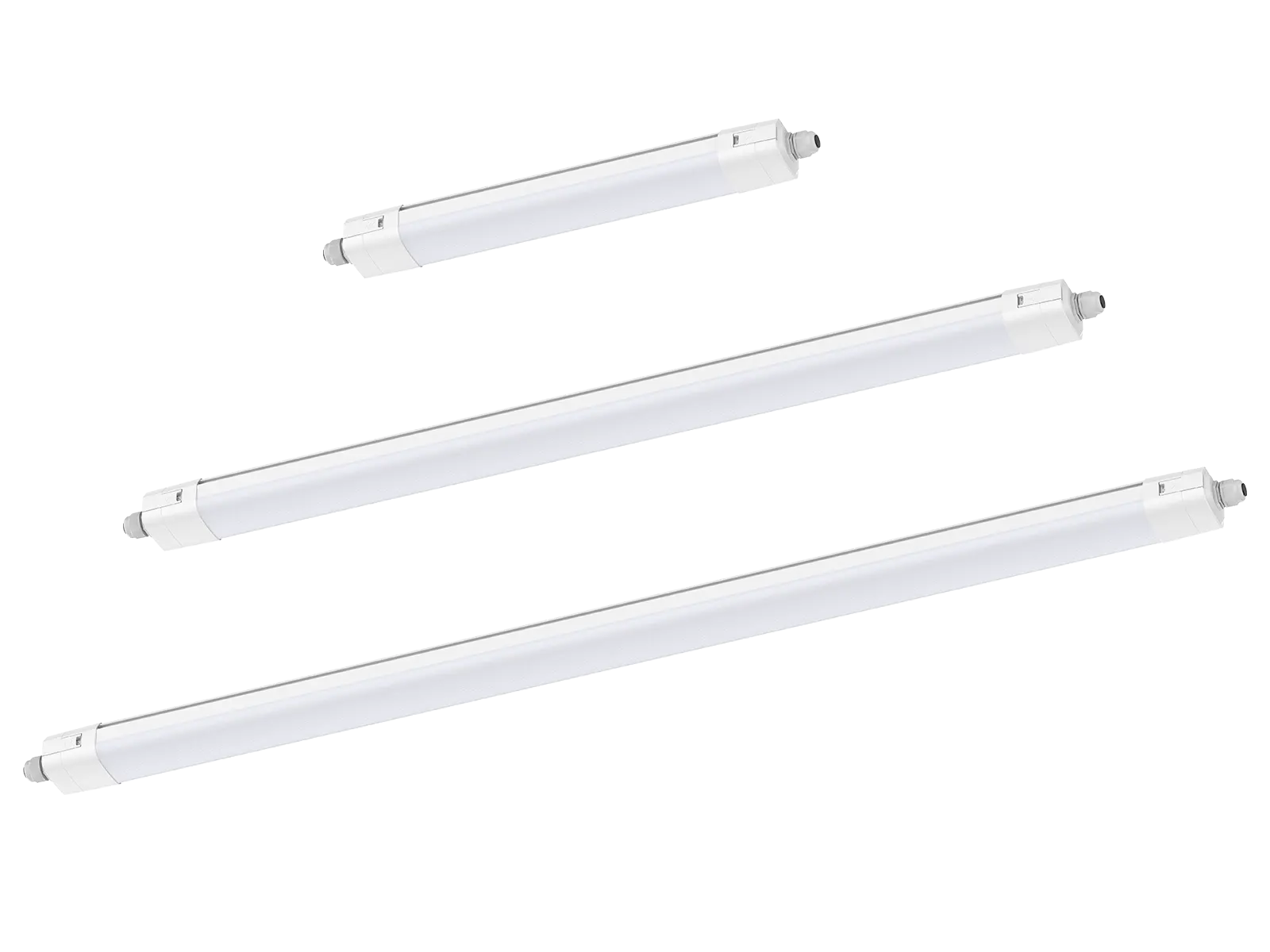

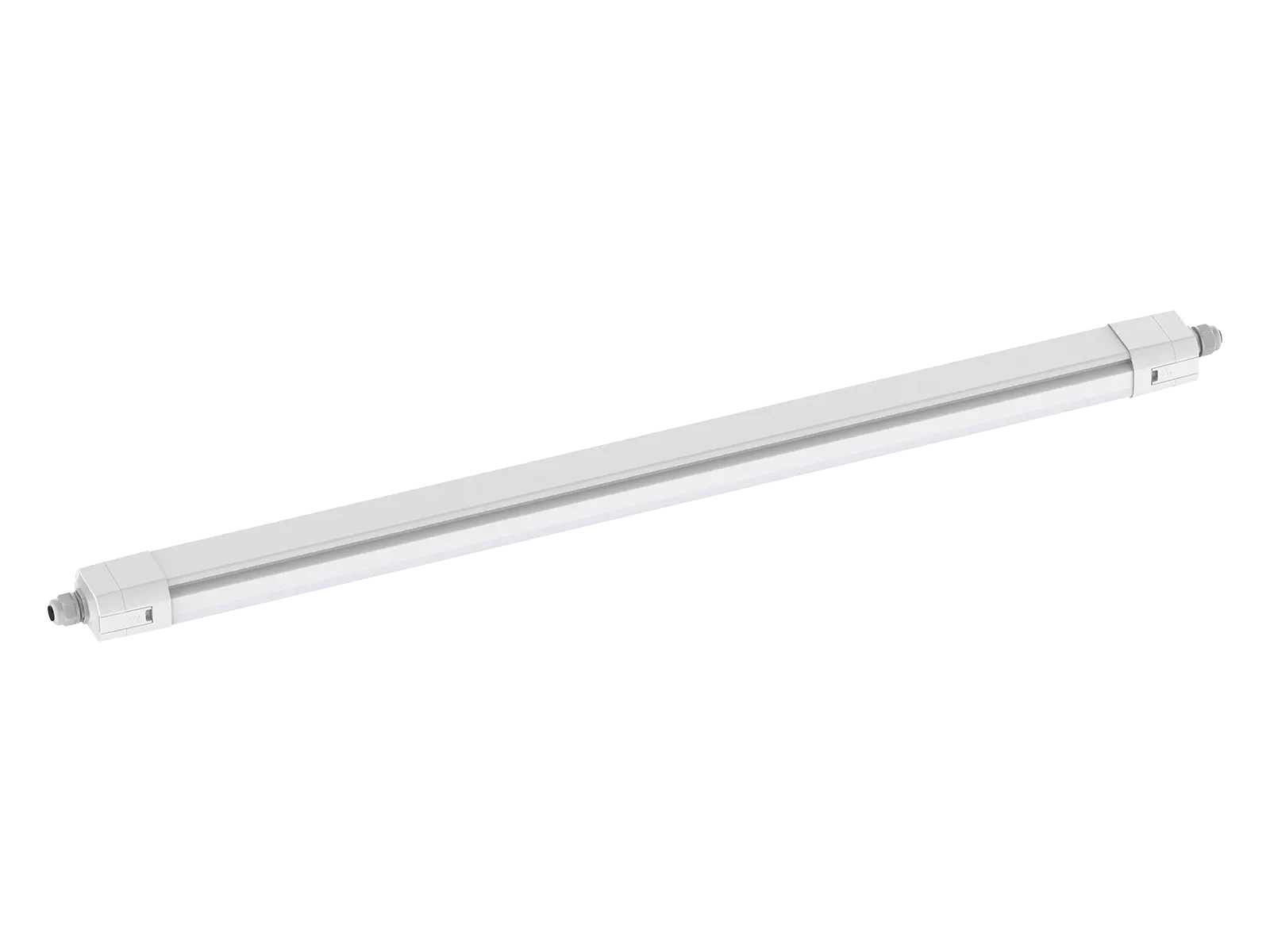

The DB234 batten light has an full PC body with an IP66 waterproof rating and IK10 impact resistance. It delivers a high luminous efficacy of up to 160lm/W. The whole series supports universal voltage non-dimming and DALI dimming. Its modular design allows for replaceable light boards and power supplies. Wiring is quick and easy thanks to the fast-press terminal block with a pull-out fixing structure. It also supports series connection.
Applications: Widely applicable for both indoor and outdoor spaces such as corridors, parking lots, construction sites, and warehouses.
| Code | DB234A-600-20W | DB234A-1200-38W | DB234A-1500-52W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 600*76.7*58 | 1200*76.7*58 | 1500*76.7*58 | ||
| Watt(W) | 20W | 38W | 52W | ||
| Rated Input Voltage | AC120-277V | ||||
| Input Voltage | AC100-305V | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 2880-3200 | 5470-6080 | 7400-8320 |
| DALI | 2880-3200 | 5470-6080 | 7400-8320 | ||
| CRI | CRI80 | ||||
| Beam Angle(°) | 110° | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | DALI 2.0+PUSH | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP66 | ||||
| Impact Resistance(IK Rating) | IK10 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | Diffuser/PC | ||||
| Housing Material | PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 850°C for PC cover, 750°C for end caps | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||

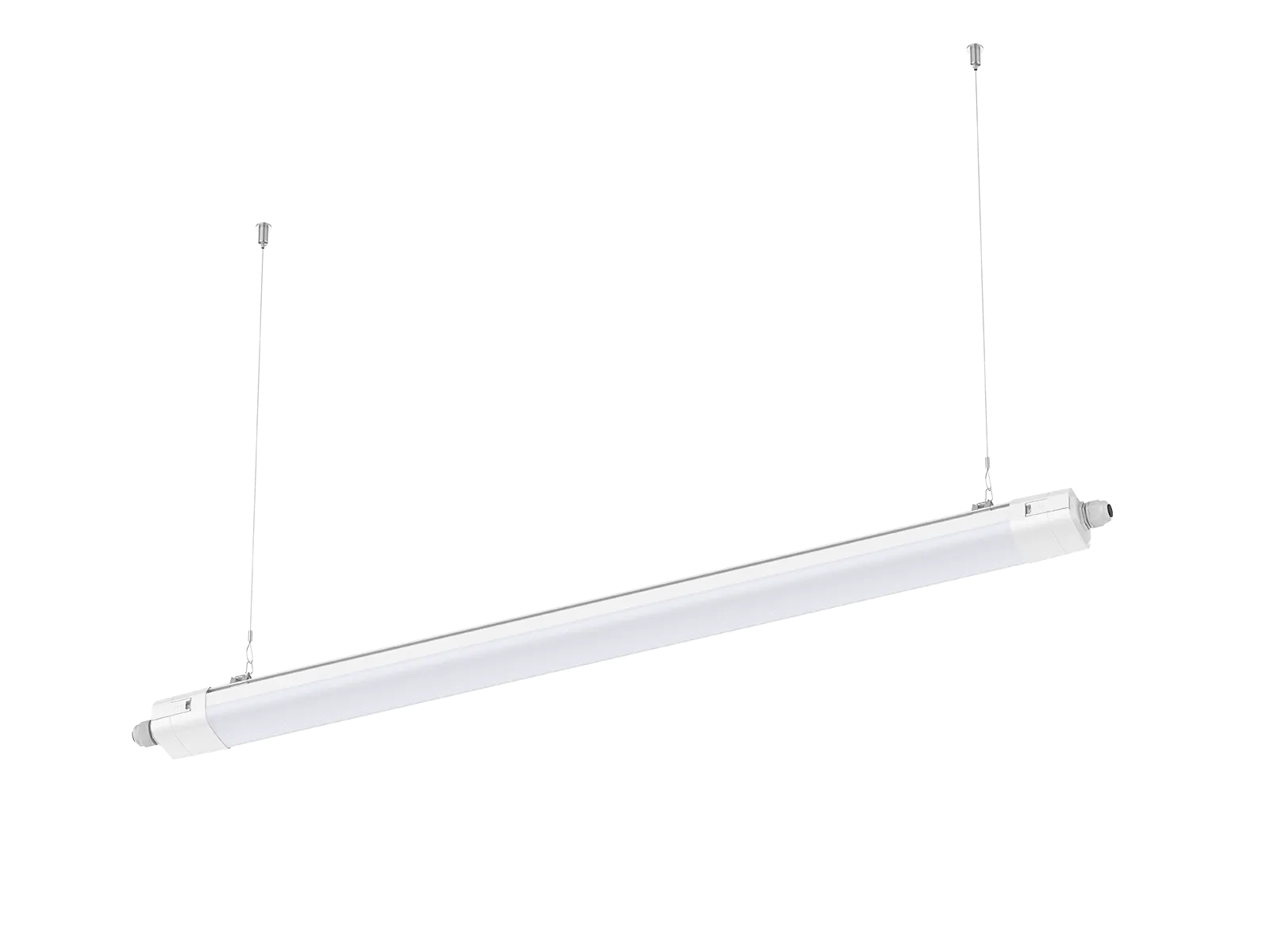

| Installation | Ceiling Surface Mount/Pendant | ||||
