It is a linear light with a minimalist, strip-like design. Its housing is made from high-thermal conductivity aluminum for strong corrosion resistance, and the surface is available in a sandy finish. It offers great versatility, with support for: internal manual DIP switches to adjust power, and color temperature, meeting the needs of various scenarios. Various shape splicing, including straight, L-shaped, T-shaped, cross shaped, 120-degree angle. Using high-efficiency LED chips and a high-transparency PC lampshade, the luminous efficacy can reach 120lm/W. The lampshade can be made into a roll for DIY applications.
Applications: It is suitable for a variety of settings, including offices, conference rooms, supermarkets etc.
| Code | DB230A-600-14W-A4-G2.0 | DB230A-1200-28W-A4-G2.0 | DB230A-1500-36W-A4-G2.0 | DB230A-2400-56W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Watt(W) | Direct | 14W Max. | 28W Max. | 36W Max. | 56W Max. | |
| (12W/11W/8W optional) | (26W/23W/20W optional) | (33W/30W/27W optional) | (52W/46W/40W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 14W: 1500-1600 | 28W: 3400-3500 | 36W: 4150-4250 | 56W: 6800-7000 | |||
| Non-DIM | 12W: 1200-1300 | 26W: 3100-3200 | 33W: 3800-3900 | 52W: 6200-6400 | ||
| 1-CCT | 11W: 1100-1200 | 23W: 2700-2800 | 30W: 3500-3600 | 46W: 5400-5600 | ||
| 8W: 900-1050 | 20W: 2300-2450 | 27W: 3200-3300 | 40W: 4600-4900 | |||
| Luminous Flux (lm) ±5% | 28W: 3400-3500 | 36W: 4150-4250 | 56W: 6800-7000 | |||
| CRI80 | DALI | _ | 26W: 3100-3200 | 33W: 3800-3900 | 52W: 6200-6400 | |
| 23W: 2700-2800 | 30W: 3500-3600 | 46W: 5400-5600 | ||||
| 20W: 2300-2450 | 27W: 3200-3300 | 40W: 4600-4900 | ||||
| 14W: 1500-1600 | 28W: 3400-3500 | 36W: 4150-4250 | 56W: 6800-7000 | |||
| Non-DIM | 12W: 1200-1300 | 26W: 3100-3200 | 33W: 3800-3900 | 52W: 6200-6400 | ||
| 2-CCT | 11W: 1100-1200 | 23W: 2700-2800 | 30W: 3500-3600 | 46W: 5400-5600 | ||
| 8W: 900-1050 | 20W: 2300-2450 | 27W: 3200-3300 | 40W: 4600-4900 | |||
| 28W: 3400-3500 | 36W: 4150-4250 | 56W: 6800-7000 | ||||
| DALI | _ | 26W: 3100-3200 | 33W: 3800-3900 | 52W: 6200-6400 | ||
| 23W: 2700-2800 | 30W: 3500-3600 | 46W: 5400-5600 | ||||
| 20W: 2300-2450 | 27W: 3200-3300 | 40W: 4600-4900 | ||||
| CRI | 80 | |||||
| Beam Angle(°) | Direct 100° | |||||
| UGR | - | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||

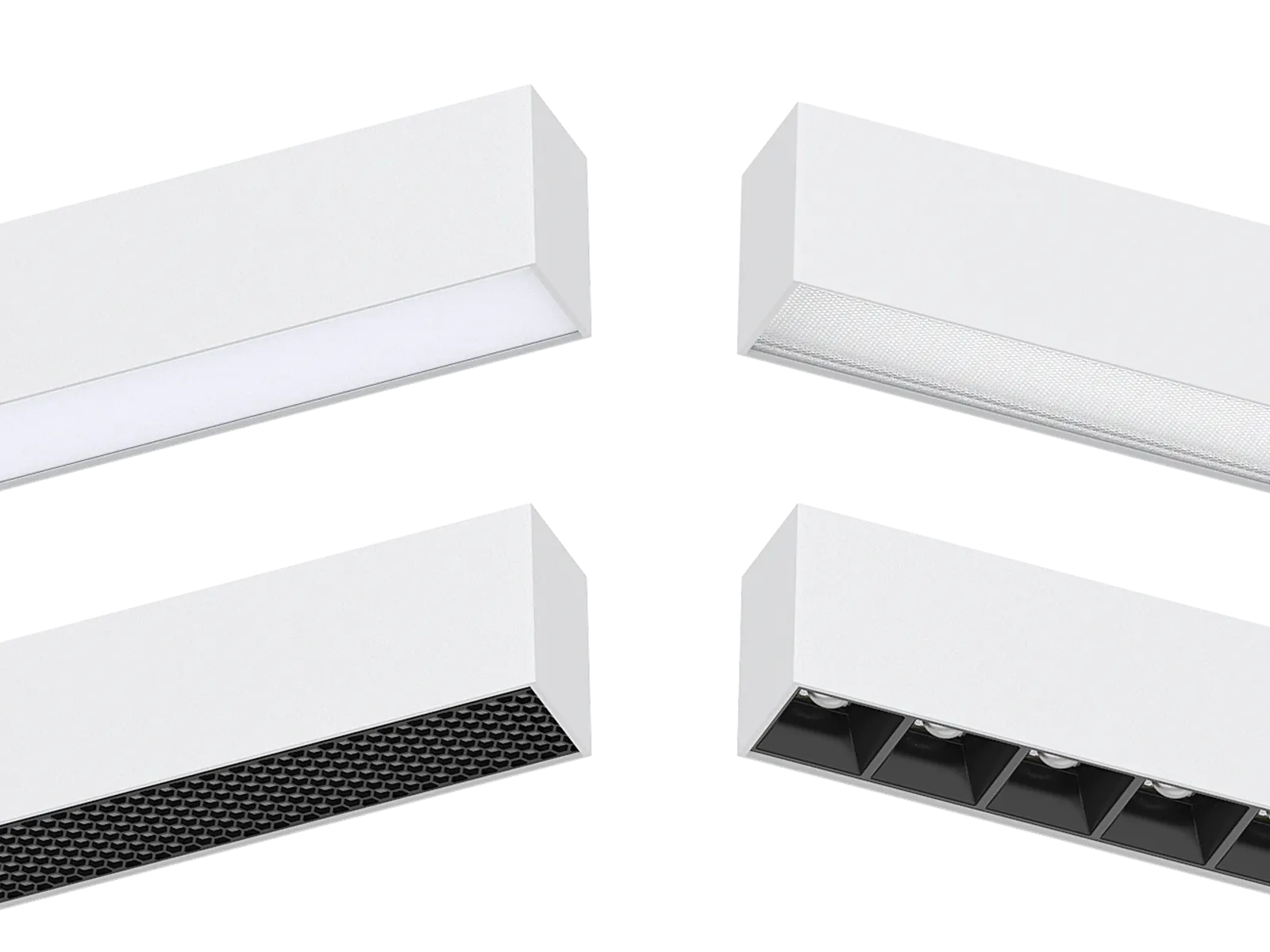

| Optics Material | Diffuser/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||

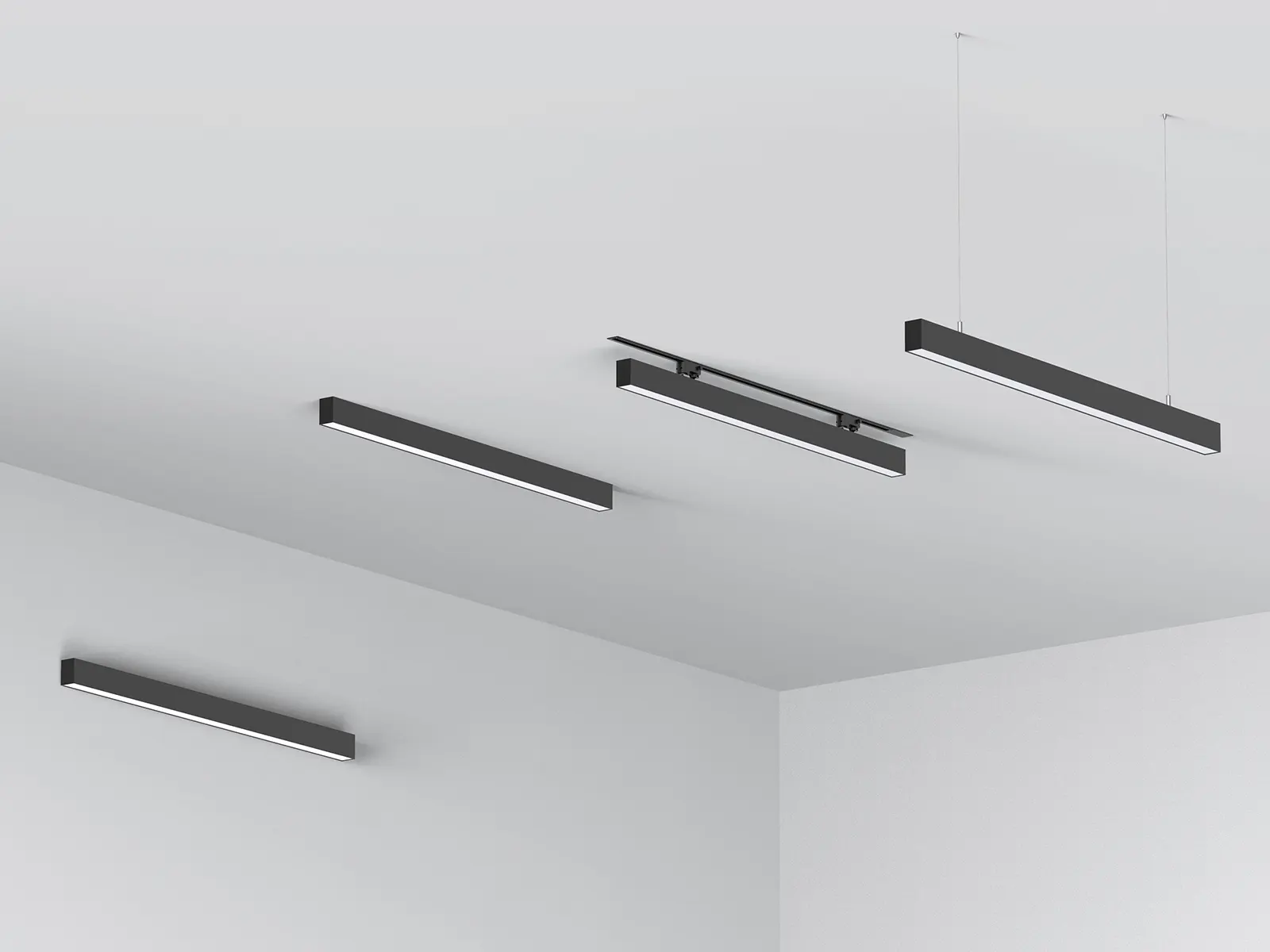

| Installation | Ceiling Surface Mount/Pendant/Wall Mount/Track | |||||
| Code | DB230A-600-20W-A4-G2.0 | DB230A-1200-40W-A4-G2.0 | DB230A-1500-50W-A4-G2.0 | DB230A-2400-80W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Direct | 14W Max. | 28W Max. | 36W Max. | 56W Max. | ||
| Watt(W) | (12W/11W/8W optional) | (26W/23W/20W optional) | (33W/30W/27W optional) | (52W/46W/40W optional) | ||
| Indirect | 6W Max. | 12W Max. | 14W Max. | 24W Max. | ||
| (4W/3W/2W optional) | (11W/10W/8W optional) | (13W/12W/10W optional) | (22W/20W/16W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 20W: 2200-2400 | 40W: 4800-5000 | 50W: 5700-6000 | 80W: 9600-10000 | |||
| Non-DIM | 16W: 1800-1950 | 37W: 4400-4650 | 46W: 5300-5600 | 74W: 8800-9300 | ||
| 1-CCT | 14W: 1600-1700 | 33W: 4000-4150 | 42W: 4900-5100 | 66W: 8000-8300 | ||
| 10W: 1200-1300 | 28W: 3400-3550 | 37W: 4400-4600 | 56W: 6800-7100 | |||
| Luminous Flux (lm) ±5% | 40W: 4800-5000 | 50W: 5700-6000 | 80W: 9600-10000 | |||
| CRI80 | DALI | - | 37W: 4400-4650 | 46W: 5300-5600 | 74W: 8800-9300 | |
| 33W: 4000-4150 | 42W: 4900-5100 | 66W: 8000-8300 | ||||
| 28W: 3400-3550 | 37W: 4400-4600 | 56W: 6800-7100 | ||||
| 20W: 2200-2400 | 40W: 4800-5000 | 50W: 5700-6000 | 80W: 9600-10000 | |||
| Non-DIM | 16W: 1800-1950 | 37W: 4400-4650 | 46W: 5300-5600 | 74W: 8800-9300 | ||
| 2-CCT | 14W: 1600-1700 | 33W: 4000-4150 | 42W: 4900-5100 | 66W: 8000-8300 | ||
| 10W: 1200-1300 | 28W: 3400-3550 | 37W: 4400-4600 | 56W: 6800-7100 | |||
| 40W: 4800-5000 | 50W: 5700-6000 | 80W: 9600-10000 | ||||
| DALI | - | 37W: 4400-4650 | 46W: 5300-5600 | 74W: 8800-9300 | ||
| 33W: 4000-4150 | 42W: 4900-5100 | 66W: 8000-8300 | ||||
| 28W: 3400-3550 | 37W: 4400-4600 | 56W: 6800-7100 | ||||
| CRI | 80 | |||||
| Beam Angle(°) | Direct 100°, indirect 95° | |||||
| UGR | - | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | Diffuser/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount/Pendant/Wall Mount/Track | |||||
| Code | DB230B-600-14W-A4-G2.0 | DB230B-1200-28W-A4-G2.0 | DB230B-1500-36W-A4-G2.0 | DB230B-2400-56W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Watt(W) | Direct | 14W Max. | 28W Max. | 36W Max. | 56W Max. | |
| (12W/11W/8W optional) | (26W/23W/20W optional) | (33W/30W/27W optional) | (52W/46W/40W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 14W: 1400-1500 | 28W: 3100-3300 | 36W: 3850-4050 | 56W: 6200-6600 | |||
| Non-DIM | 12W: 1250-1300 | 26W: 2850-3000 | 33W: 3600-3800 | 52W: 5700-6000 | ||
| 1-CCT | 11W: 1050-1150 | 23W: 2500-2600 | 30W: 3300-3500 | 46W: 5000-5200 | ||
| 8W: 850-950 | 20W: 2200-2400 | 27W: 2950-3100 | 40W: 4400-4800 | |||
| 28W: 3100-3300 | 36W: 3850-4050 | 56W: 6200-6600 | ||||
| Luminous Flux (lm) ±5% | DALI | _ | 26W: 2850-3000 | 33W: 3600-3800 | 52W: 5700-6000 | |
| CRI80 | 23W: 2500-2600 | 30W: 3300-3500 | 46W: 5000-5200 | |||
| 20W: 2200-2400 | 27W: 2950-3100 | 40W: 4400-4800 | ||||
| 14W: 1400-1500 | 28W: 3100-3300 | 36W: 3850-4050 | 56W: 6200-6600 | |||
| Non-DIM | 12W: 1250-1300 | 26W: 2850-3000 | 33W: 3600-3800 | 52W: 5700-6000 | ||
| 2-CCT | 11W: 1050-1150 | 23W: 2500-2600 | 30W: 3300-3500 | 46W: 5000-5200 | ||
| 8W: 850-950 | 20W: 2200-2400 | 27W: 2950-3100 | 40W: 4400-4800 | |||
| 28W: 3100-3300 | 36W: 3850-4050 | 56W: 6200-6600 | ||||
| DALI | _ | 26W: 2850-3000 | 33W: 3600-3800 | 52W: 5700-6000 | ||
| 23W: 2500-2600 | 30W: 3300-3500 | 46W: 5000-5200 | ||||
| 20W: 2200-2400 | 27W: 2950-3100 | 40W: 4400-4800 | ||||
| CRI | 80 | |||||
| Beam Angle(°) | Direct 75° | |||||
| UGR | UGR<22 | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | Prismatic Diffuser/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount /Pendant /Wall Mount /Track | |||||
| Code | DB230B-600-20W-A4-G2.0 | DB230B-1200-40W-A4-G2.0 | DB230B-1500-50W-A4-G2.0 | DB230B-2400-80W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Direct | 14W Max. | 28W Max. | 36W Max. | 56W Max. | ||
| Watt(W) | (12W/11W/8W optional) | (26W/23W/20W optional) | (33W/30W/27W optional) | (52W/46W/40W optional) | ||
| Indirect | 6W Max. | 12W Max. | 14W Max. | 24W Max. | ||
| (4W/3W/2W optional) | (11W/10W/8W optional) | (13W/12W/10W optional) | (22W/20W/16W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 20W: 2150-2300 | 40W: 4550-4850 | 50W: 5500-5800 | 80W: 9100-9700 | |||
| Non-DIM | 16W: 1700-1900 | 37W: 4200-4450 | 46W: 5200-5400 | 74W: 8400-8900 | ||
| 1-CCT | 14W: 1550-1650 | 33W: 3800-4000 | 42W: 4800-5000 | 66W: 7600-8000 | ||
| 10W: 1150-1250 | 28W: 3300-3450 | 37W: 4300-4500 | 56W: 6600-6900 | |||
| Luminous Flux (lm) ±5% | 40W: 4500-4750 | 50W: 5500-5800 | 80W: 9100-9500 | |||
| CRI80 | DALI | _ | 37W: 4150-4400 | 46W: 5200-5400 | 74W: 8400-8900 | |
| 33W: 3750-3950 | 42W: 4800-5000 | 66W: 7600-8000 | ||||
| 28W: 3250-3400 | 37W: 4300-4500 | 56W: 6500-6800 | ||||
| 20W: 2150-2300 | 40W: 4550-4850 | 50W: 5500-5800 | 80W: 9100-9700 | |||
| Non-DIM | 16W: 1700-1900 | 37W: 4200-4450 | 46W: 5200-5400 | 74W: 8400-8900 | ||
| 2-CCT | 14W: 1550-1650 | 33W: 3800-4000 | 42W: 4800-5000 | 66W: 7600-8000 | ||
| 10W: 1150-1250 | 28W: 3300-3450 | 37W: 4300-4500 | 56W: 6600-6900 | |||
| 40W: 4500-4750 | 50W: 5500-5800 | 80W: 9100-9500 | ||||
| DALI | _ | 37W: 4150-4400 | 46W: 5200-5400 | 74W: 8400-8900 | ||
| 33W: 3750-3950 | 42W: 4800-5000 | 66W: 7600-8000 | ||||
| 28W: 3250-3400 | 37W: 4300-4500 | 56W: 6500-6800 | ||||
| CRI | 80 | |||||
| Beam Angle(°) | Direct 75°, indirect 95° | |||||
| UGR | UGR<22 | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | Prismatic Diffuser/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount /Pendant /Wall Mount /Track | |||||
| Code | DB230D-600-14W-A4-G2.0 | DB230D-1200-30W-A4-G2.0 | DB230D-1500-36W-A4-G2.0 | DB230D-2400-60W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Watt(W) | Direct | 14W Max. | 30W Max. | 36W Max. | 60W Max. | |
| (12W/11W/8W optional) | (28W/25W/22W optional) | (33W/30W/27W optional) | (56W/50W/44W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 14W: 1750-1850 | 30W: 3700-3900 | 36W: 4400-4550 | 60W: 7400-7800 | |||
| Non-DIM | 12W: 1400-1500 | 28W: 3450-3600 | 33W: 4050-4150 | 56W: 6900-7200 | ||
| 1-CCT | 11W: 1250-1350 | 25W: 3100-3200 | 30W: 3700-3750 | 50W: 6200-6400 | ||
| 8W: 1000-1100 | 22W: 2700-2800 | 27W: 3350-3450 | 44W: 5400-5600 | |||
| Luminous Flux (lm) ±5% | 30W: 3700-3900 | 36W: 4400-4550 | 60W: 7400-7800 | |||
| CRI80 | DALI | _ | 28W: 3450-3600 | 33W: 4050-4150 | 56W: 6900-7200 | |
| 25W: 3100-3200 | 30W: 3700-3750 | 50W: 6200-6400 | ||||
| 22W: 2700-2800 | 27W: 3350-3450 | 44W: 5400-5600 | ||||
| 14W: 1750-1850 | 30W: 3700-3900 | 36W: 4400-4550 | 60W: 7400-7800 | |||
| Non-DIM | 12W: 1400-1500 | 28W: 3450-3600 | 33W: 4050-4150 | 56W: 6900-7200 | ||
| 2-CCT | 11W: 1250-1350 | 25W: 3100-3200 | 30W: 3700-3750 | 50W: 6200-6400 | ||
| 8W: 1000-1100 | 22W: 2700-2800 | 27W: 3350-3450 | 44W: 5400-5600 | |||
| 30W: 3700-3900 | 36W: 4400-4550 | 60W: 7400-7800 | ||||
| DALI | _ | 28W: 3450-3600 | 33W: 4050-4150 | 56W: 6900-7200 | ||
| 25W: 3100-3200 | 30W: 3700-3750 | 50W: 6200-6400 | ||||
| 22W: 2700-2800 | 27W: 3350-3450 | 44W: 5400-5600 | ||||
| CRI | CRI80 | |||||
| Beam Angle(°) | Direct 65° | |||||
| UGR | UGR<19 | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | Reflector/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount /Pendant /Wall Mount /Track | |||||
| Code | DB230D-600-20W-A4-G2.0 | DB230D-1200-42W-A4-G2.0 | DB230D-1500-50W-A4-G2.0 | DB230D-2400-84W-A4-G2.0 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L605*W46*H70 | L1205*W46*H70 | L1445*W46*H70 | L2405*W46*H70 | ||
| Direct | 14W Max. | 30W Max. | 36W Max. | 60W Max. | ||
| Watt(W) | (12W/11W/8W optional) | (28W/25W/22W optional) | (33W/30W/27W optional) | (56W/50W/44W optional) | ||
| Indirect | 6W Max. | 12W Max. | 14W Max. | 24W Max. | ||
| (4W/3W/2W optional) | (11W/10W/8W optional) | (13W/12W/10W optional) | (22W/20W/16W optional) | |||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K/5700K || 2-CCT: 3000K+4000K | |||||
| CCT Selection | By DIP Switch | |||||
| 20W: 2500-2650 | 42W: 5250-5450 | 50W: 6200-6600 | 84W: 10500-10900 | |||
| Non-DIM | 16W: 2000-2150 | 40W: 5000-5200 | 46W: 5700-6000 | 80W: 10000-10400 | ||
| 1-CCT | 14W: 1800-1900 | 35W: 4400-4600 | 42W: 5200-5400 | 70W: 8800-9200 | ||
| 10W: 1250-1350 | 30W: 3850-4000 | 37W: 4800-5050 | 60W: 7700-8000 | |||
| Luminous Flux (lm) ±5% | 42W: 5250-5450 | 50W: 6200-6600 | 84W: 10500-10900 | |||
| CRI80 | DALI | _ | 40W: 5000-5200 | 46W: 5700-6000 | 80W: 10000-10400 | |
| 35W: 4400-4600 | 42W: 5200-5400 | 70W: 8800-9200 | ||||
| 30W: 3850-4000 | 37W: 4800-5050 | 60W: 7700-8000 | ||||
| 20W: 2500-2650 | 42W: 5250-5450 | 50W: 6200-6600 | 84W: 10500-10900 | |||
| Non-DIM | 16W: 2000-2150 | 40W: 5000-5200 | 46W: 5700-6000 | 80W: 10000-10400 | ||
| 2-CCT | 14W: 1800-1900 | 35W: 4400-4600 | 42W: 5200-5400 | 70W: 8800-9200 | ||
| 10W: 1250-1350 | 30W: 3850-4000 | 37W: 4800-5050 | 60W: 7700-8000 | |||
| 42W: 5250-5450 | 50W: 6200-6600 | 84W: 10500-10900 | ||||
| DALI | _ | 40W: 5000-5200 | 46W: 5700-6000 | 80W: 10000-10400 | ||
| 35W: 4400-4600 | 42W: 5200-5400 | 70W: 8800-9200 | ||||
| 30W: 3850-4000 | 37W: 4800-5050 | 60W: 7700-8000 | ||||
| CRI | CRI80 | |||||
| Beam Angle(°) | Direct 65°, indirect 95° | |||||
| UGR | UGR<19 | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | - | 0-10V/DAL2+pushDIM | ||||
| Sensor | - | Microwave sensor/ PIR sensor | ||||
| Emergency Kits | - | YES | - | |||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||
| Optics Material | Reflector/PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Ceiling Surface Mount /Pendant /Wall Mount /Track | |||||
