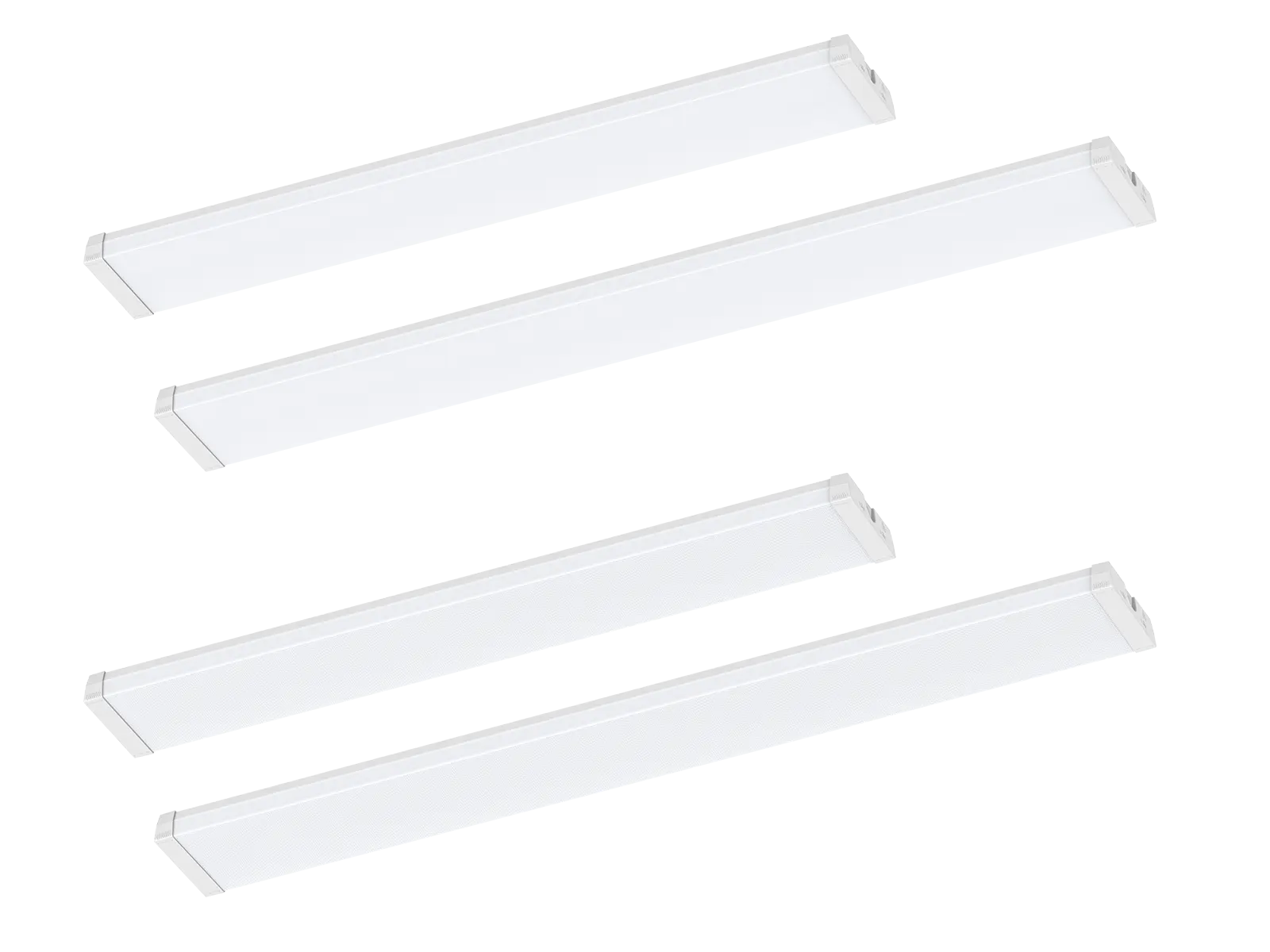

The Modular LED Batten is the ultimate synthesis of Minimalist Design and Adaptable Performance, delivering an efficient and reliable lighting solution for any space. Thanks to our innovative modular architecture, easily snap-on functional modules like Emergency Backup or PIR Sensor. Get "One Fixture, Multiple Uses" to precisely meet complex project needs without buying separate units. The fixture features a high-transmittance optical diffuser for soft, uniform light. It achieves high efficiency while delivering exceptionally low glare, ensuring a comfortable visual environment that saves energy and protects eyesight. Equipped with high- quality flicker-free drivers, this batten provides stable, reliable light output that completely eliminates the visual strain caused by flicker, making it ideal for prolonged use. Available in 1.2m and 1.5m options, it offers a full spectrum of control, from standard single CCT and Multi-CCT to advanced DALI 2.0 Digital and PUSH Dimming.
Application: It is designed for general lighting applications such as classrooms, libraries, workshop, showroom, warehouse, factory, supermarket etc.
| Code | DB228A-1200-38W-A4 | DB228A-1500-38W-A4 | |||
|---|---|---|---|---|---|
| Dimension(mm) | 1200*165*50 | 1500*165*50 | |||
| Cutout(mm) | - | ||||
| Watt(W) | 38W@Max (optional:33W/29W/24W) | ||||
| Rated Input Voltage | AC 220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K+5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| 38W: 4750-5050 | 38W: 4750-5050 | ||||
| Non-DIM | 33W: 4150-4350 | 33W: 4150-4350 | |||
| 1-CCT | 29W: 3700-3850 | 29W: 3700-3850 | |||
| 24W: 3000-3150 | 24W: 3000-3150 | ||||
| 38W: 4650-5000 | 38W: 4650-5000 | ||||
| Luminous Flux (lm) ±5% | DALI | 33W: 4050-4200 | 33W: 4050-4200 | ||
| CRI80 | 29W: 3600-3750 | 29W: 3600-3750 | |||
| 24W: 2900-3050 | 24W: 2900-3050 | ||||
| 38W: 4550-4800 | 38W: 4550-4800 | ||||
| Non-DIM | 33W: 4000-4150 | 33W: 4000-4150 | |||
| 3-CCT | 29W: 3500-3700 | 29W: 3500-3700 | |||
| 24W: 2900-3050 | 24W: 2900-3050 | ||||
| 38W: 4450-4700 | 38W: 4450-4700 | ||||
| DALI | 33W: 3900-4050 | 33W: 3900-4050 | |||
| 29W: 3400-3600 | 29W: 3400-3600 | ||||
| 24W: 2850-3000 | 24W: 2850-3000 | ||||
| CRI | CRI80 | ||||
| Beam Angle(°) | 120° | ||||
| UGR | - | ||||
| LED Driver | Driver built-in, Flicker Free | ||||

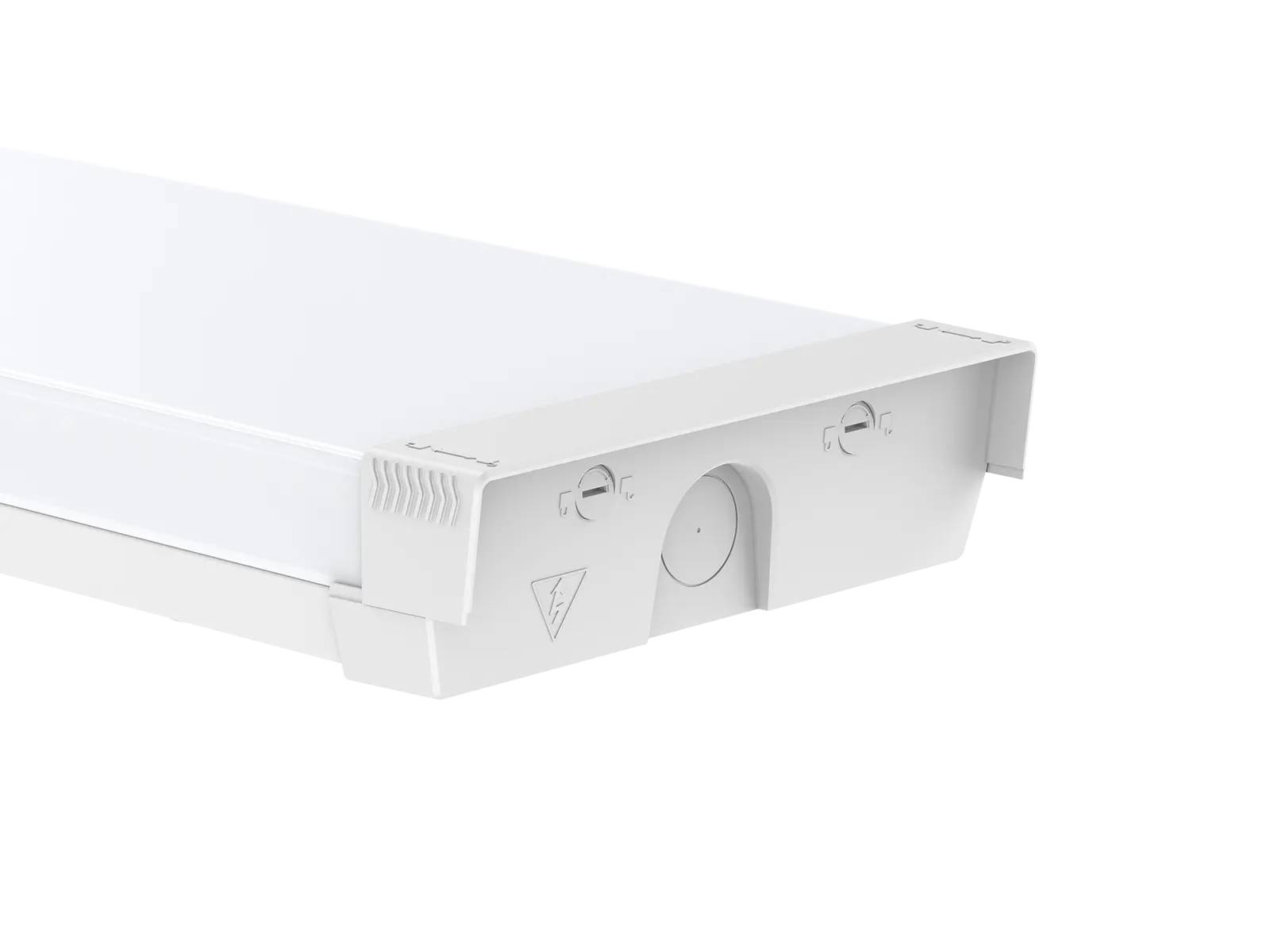

| Dimming Option | DALl-2+pushDlM | ||||
| Sensor | Microwave sensor / Daylight sensor | ||||
| Emergency Kits | YES | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP44(Surface mount) / IP40(Pendant) | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PC | ||||
| Housing Material | SPCC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||

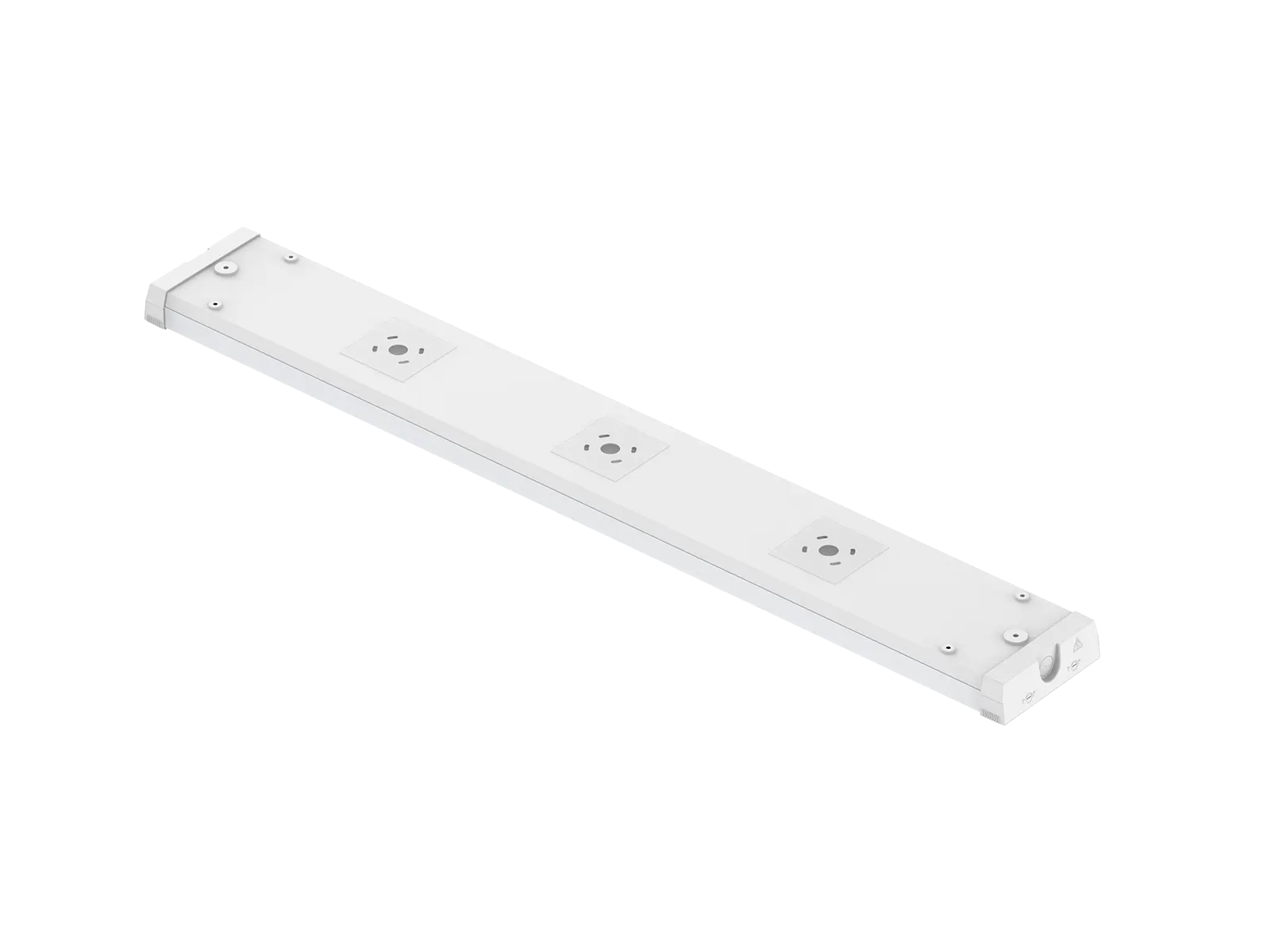

| Installation | Surface mount/ Pendant | ||||
