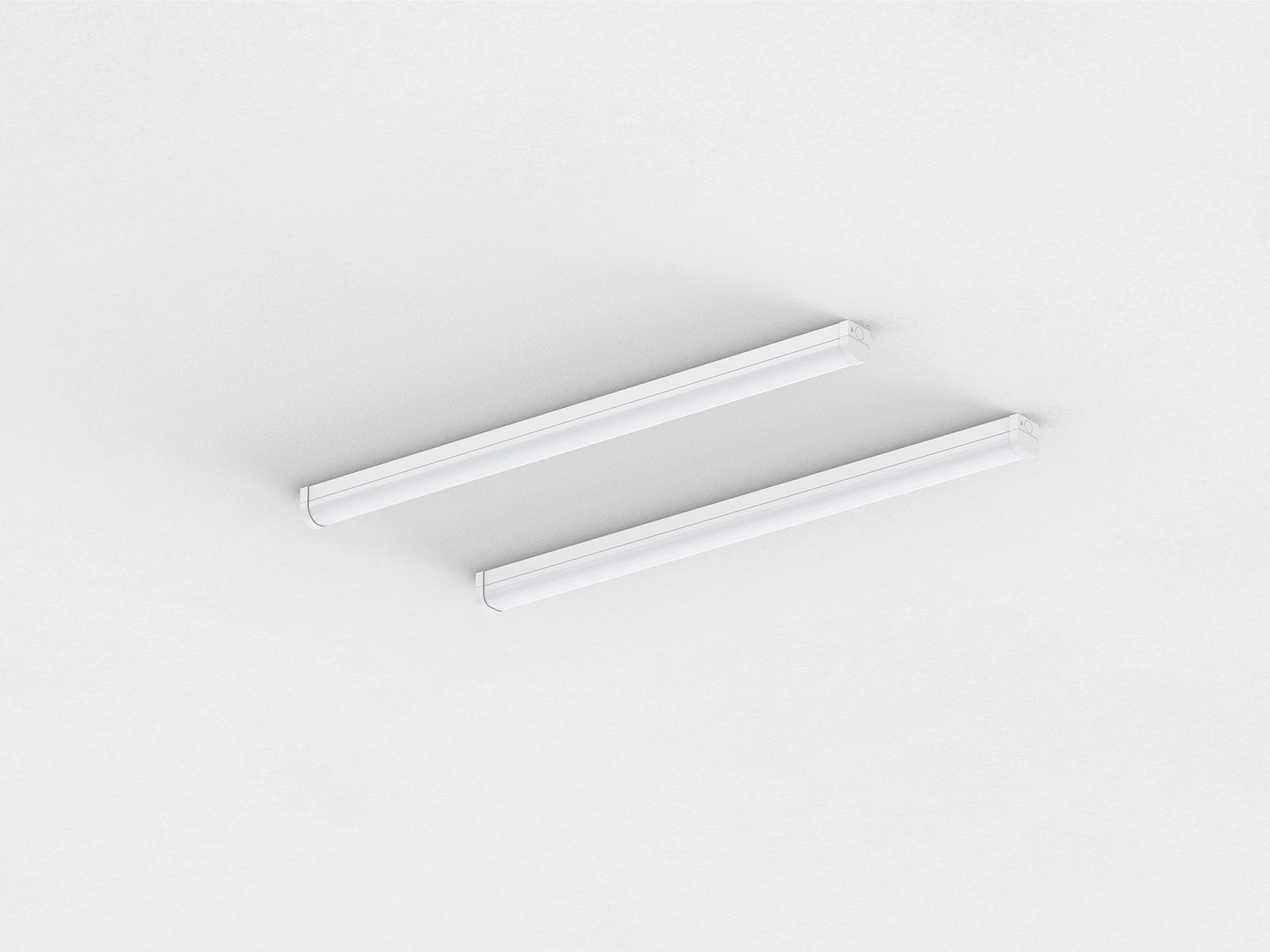

It is a high-quality, high-efficacy batten light. It features a screw-free, sleek, and modern design. The modular structure allows customers to freely combine modules to meet various functional requirements, thereby reducing inventory. The PC diffuser uses a dual-color extrusion process, and the luminous part incorporates an internal stripe design to enhance the uniformity of light output. This product offers a wide range of functionalities, including single color temperature, adjustable color temperature, emergency and microwave sensor.
Application Areas: It is widely applicable in various settings such as workshops, warehouses, parking lots, factories, shopping malls, and supermarkets.
| Code | DB226A/B-600-20W-A4 | DB226A/B-1200-40W-A4 | DB226A/B-1500-50W-A4 | DB226A/B-1800-60W-A4 | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L600*W64*H65 | L1200*W64*H65 | L1500*W64*H65 | L1800*W64*H65 | ||
| Watt(W) | 20W@max (optional:16W/13W/10W) | 40W@max (optional:35W /25W/20W) | 50W@max (optional:40W /35W/25W) | 60W@max (optional:50W /40W/30W) | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K+4000K+5700K | |||||

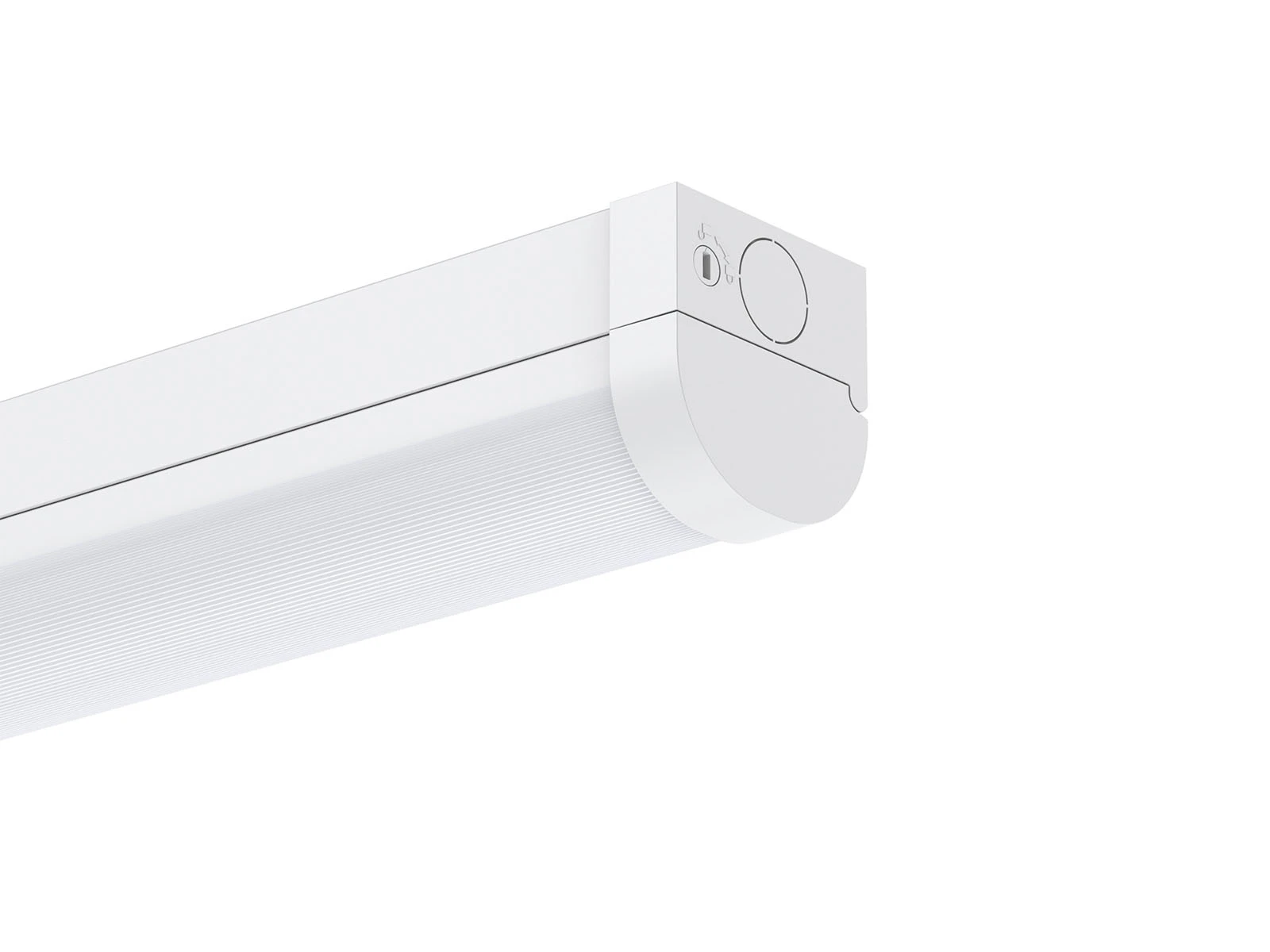

| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 20W: 2750-2950 16W: 2150-2350 13W: 1750-1950 10W: 1400-1550 | 40W: 5600-6000 35W: 4950-5250 25W: 3550-3850 20W: 2900-3200 | 50W: 7000-7500 40W: 5650-6100 35W: 4950-5400 25W: 3750-4050 | 60W: 8400-9000 50W: 7000-7500 40W: 5600-6000 30W: 4500-4900 |
| 3-CCT | Non-DIM | 20W: 2750-2950 16W: 2150-2350 13W: 1750-1950 10W: 1400-1550 | 40W: 5600-6000 35W: 4950-5250 25W: 3550-3850 20W: 2900-3200 | 50W: 7000-7500 40W: 5650-6100 35W: 4950-5400 25W: 3750-4050 | 60W: 8400-9000 50W: 7000-7500 40W: 5600-6000 30W: 4500-4900 | |
| CRI | CRI80 | |||||
| Beam Angle (°) | 120° | |||||
| LED Driver | Built-in, Flicker Free | |||||

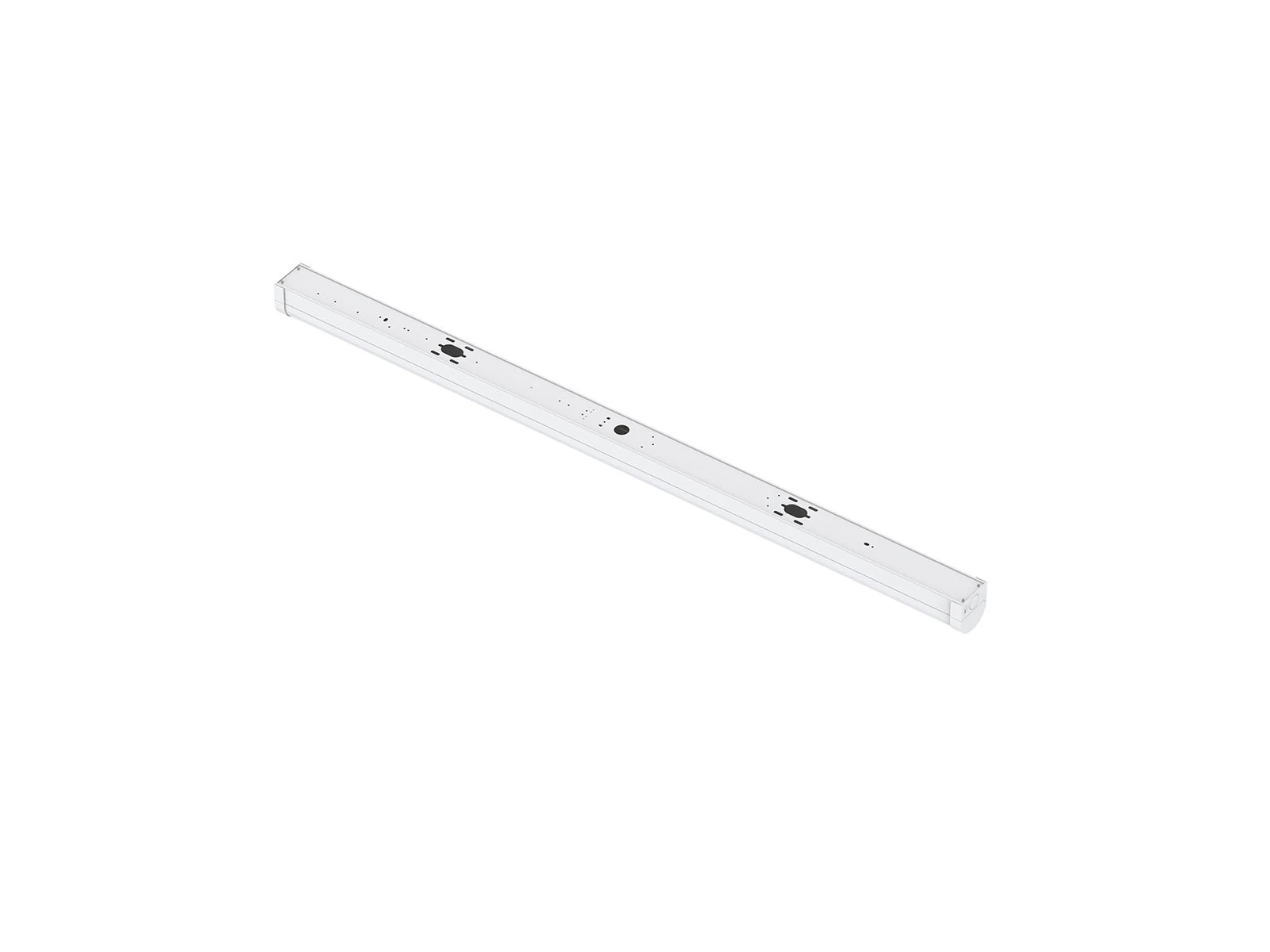

| Sensor | - | Microwave sensor | ||||
| Emergency Kits | - | YES | ||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | Metal | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test (°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~40°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Surface mount / Pendant | |||||
