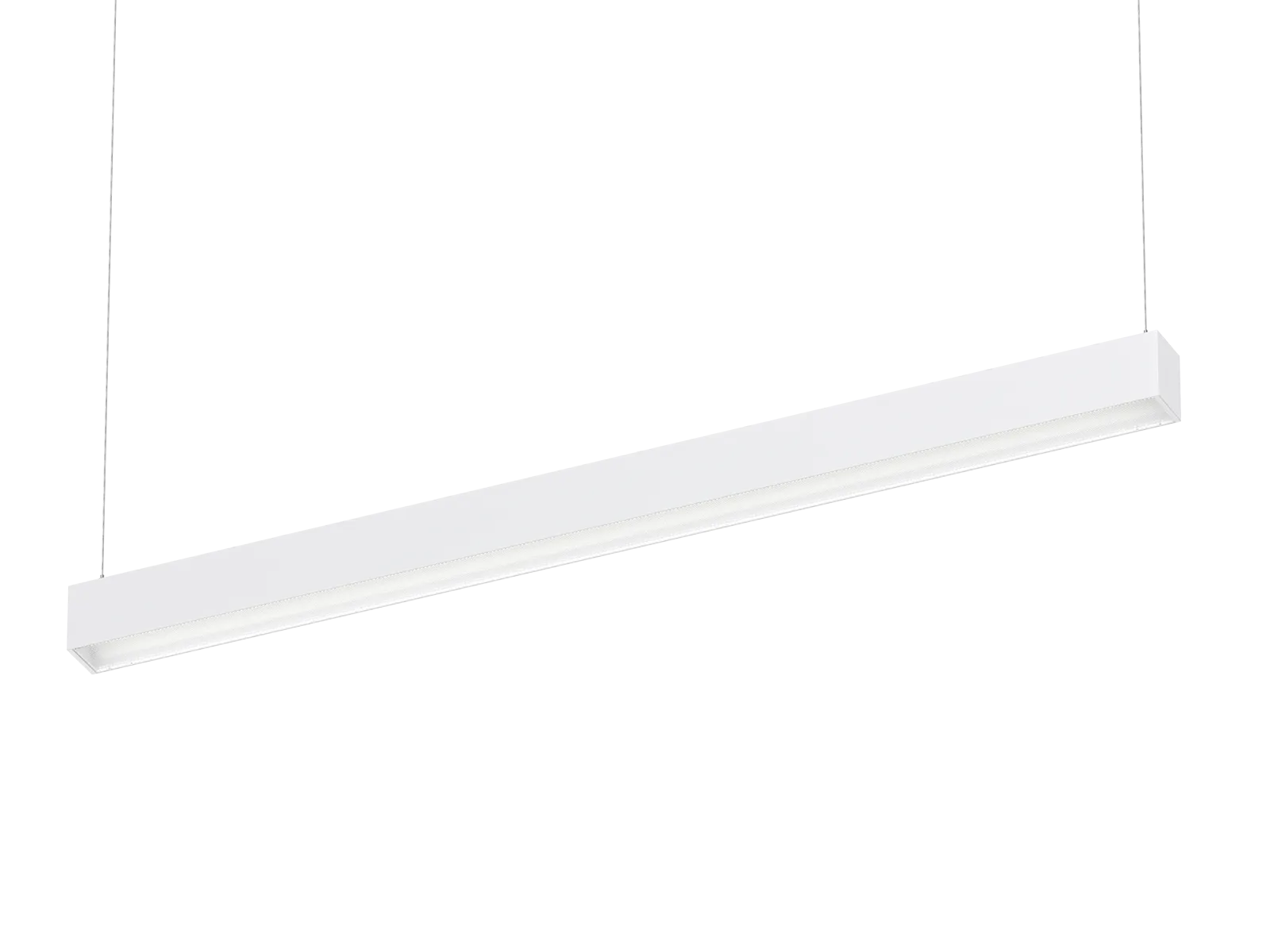

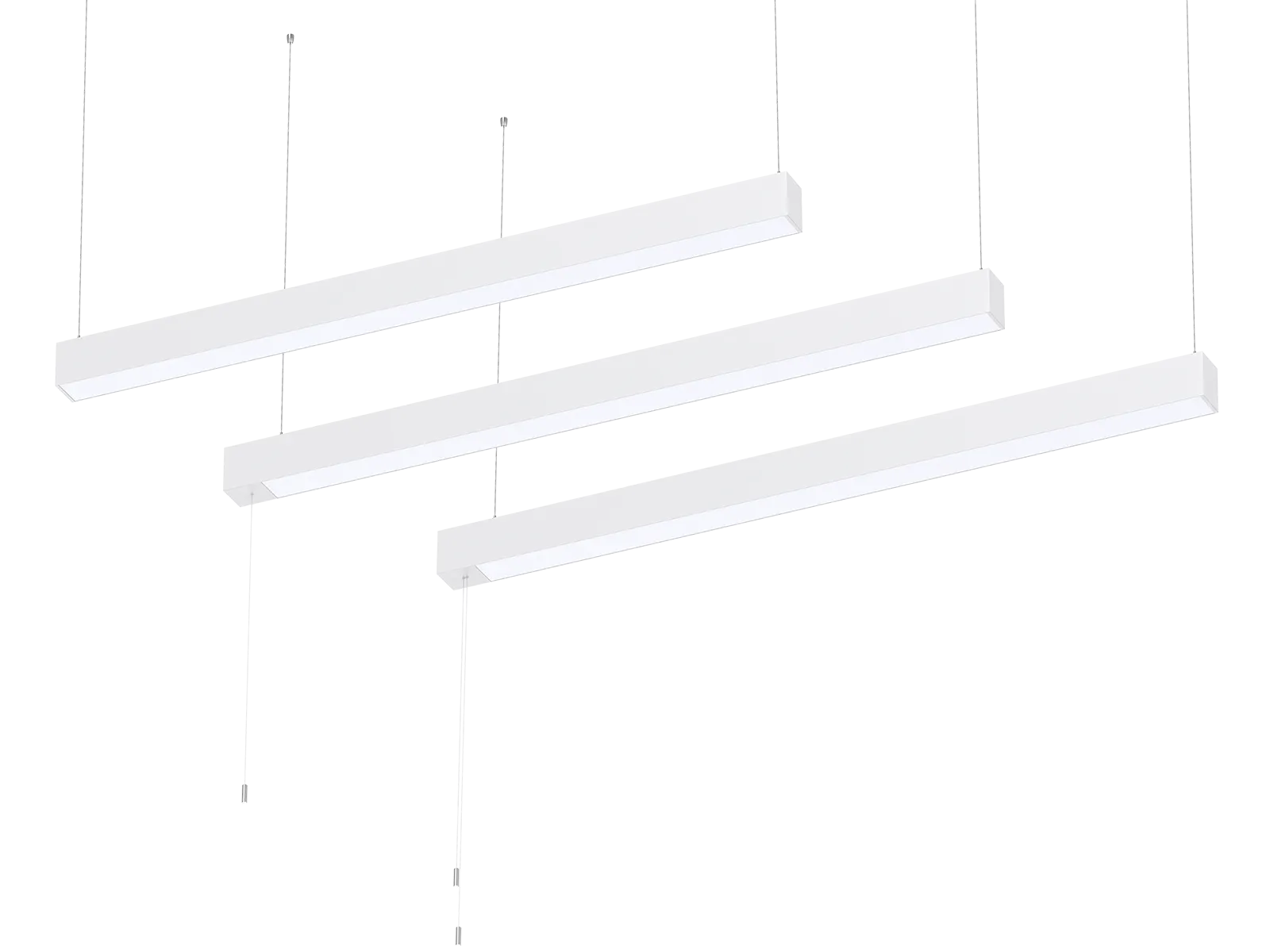

The DB223 is a linear light with dual pull-cord dimming. It adopts BOKE power supply with dual DALI functionality and dual pull-cords, allowing to easily control the brightness of the direct and indirect lighting separately. It features high-lumen SMD light source and flicker-free, high-efficiency driver, resulting in excellent lumen output. The aluminum housing provides superior thermal management.
Application Areas: This product can be widely applied in offices, shopping malls, supermarkets, gyms, and other similar locations.

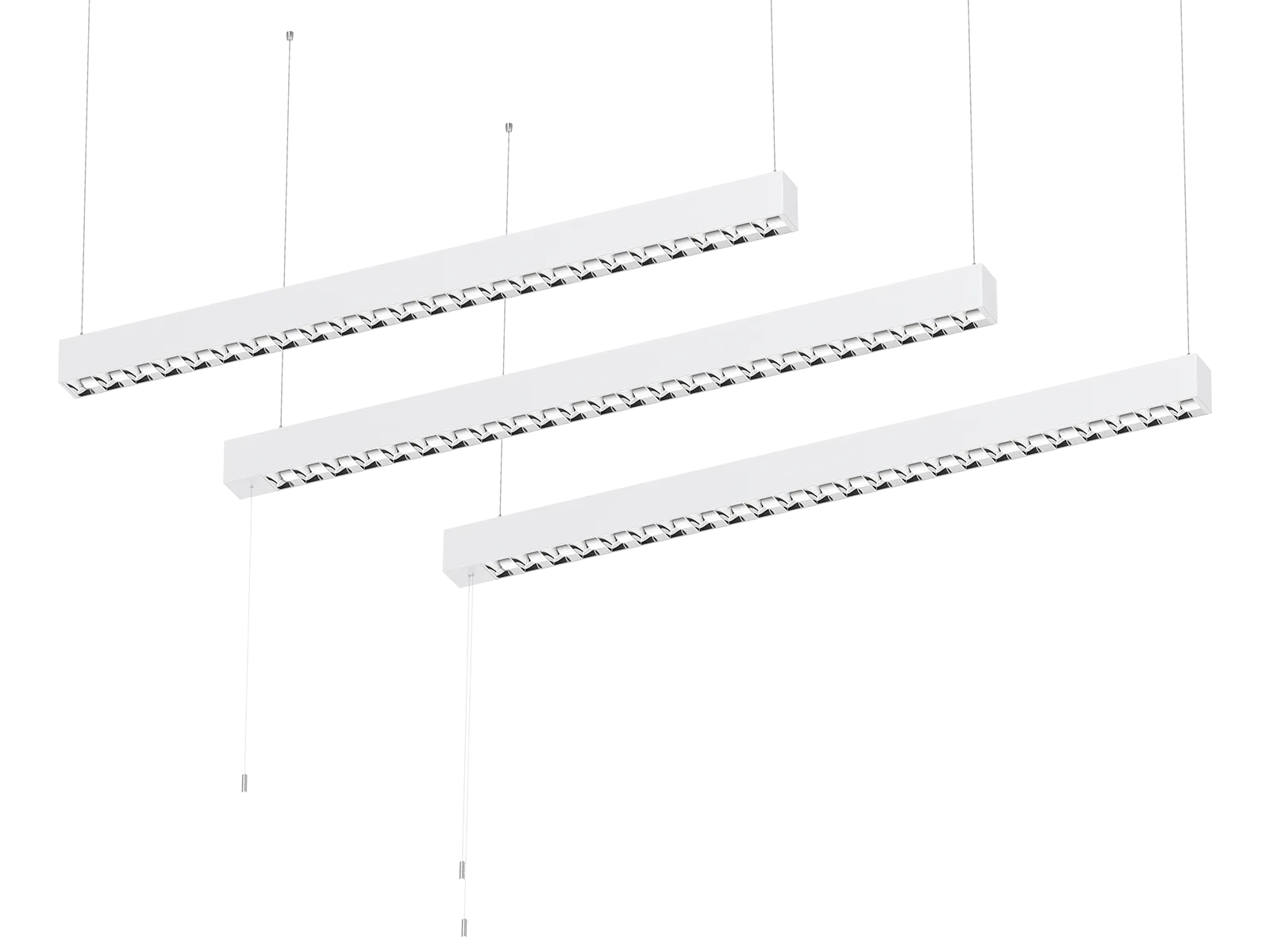

| Code | Opal diffuser | Prismatic diffuser | Louver reflector | |||||
|---|---|---|---|---|---|---|---|---|
| DB223A-1200-40W | DB223A-1500-49W | DB223A-1200-40W | DB223A-1500-49W | DB223B-1200-41W | DB223B-1500-49W | |||
| Dimension(mm) | 1271*57*76 | 1571*57*76 | 1271*57*76 | 1571*57*76 | 1271*57*76 | 1571*57*76 | ||
| Watt(W) | 26.5W Direct 13.5W Indirect | 30W Direct 19W Indirect | 26.5W Direct 13.5W Indirect | 30W Direct 19W Indirect | 27.5W Direct 13.5W Indirect | 30W Direct 19W Indirect | ||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198V-264V | |||||||
| Light Source | SMD | |||||||
| SDCM | <3 | |||||||
| CCT(K) | 2-CCT: 3000K+4000K | |||||||
| CCT Selection | By DIP Switch | |||||||
| Luminous Flux (lm) ±5% CRI80 | 2-CCT | DIM | 5200-5900 | 6500-7350 | 4500-5100 | 6000-6700 | 5200-6000 | 6400-7200 |
| CRI | CRI80 | |||||||
| Beam Angle(°) | Direct 110°, Indirect 100° | Direct 75°, Indirect 100° | Direct 65°, Indirect 100° | |||||
| UGR | - | UGR<19 | UGR<16 | |||||
| LED Driver | Built-in, Flicker Free | |||||||
| Dimming Option | PushDIM | |||||||
| Emergency Kits | NO | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection(IP Rating) | IP20 | |||||||
| Impact Resistance(IK Rating) | IK03 | - | IK03 | |||||
| Product Finishing | White RAL9016 | |||||||
| Optics Material | Diffuser / PC | Diffuser / PS | Reflector / PC | |||||
| Housing Material | Aluminium | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | 650°C | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~60°C | |||||||
| Installation | Pendant | |||||||
