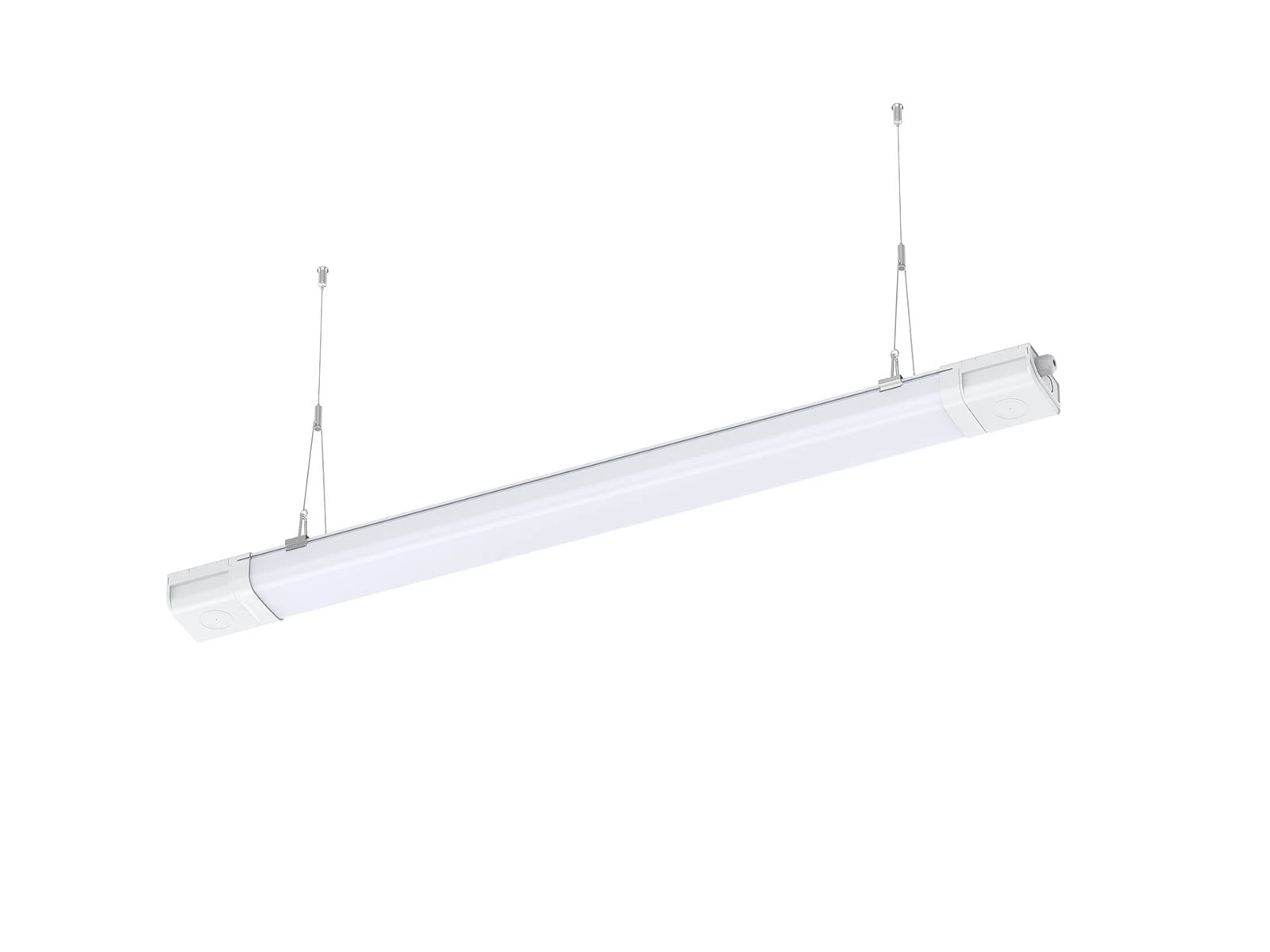

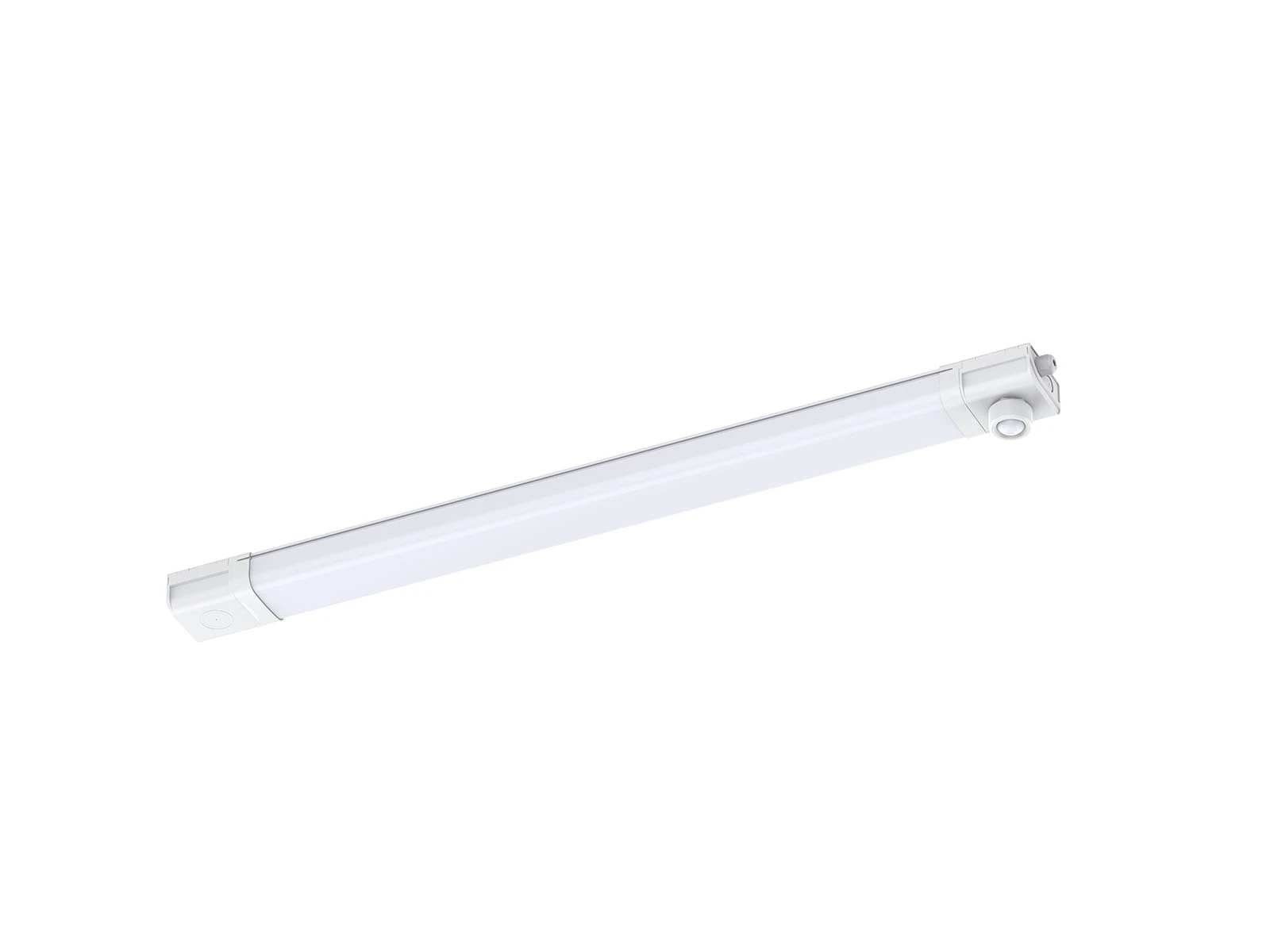

This item is a wide-body tri-proof batten with convenient and fast loop in loop out connecting. The infrared and microwave sensor modules are replaceable which can better save the user's overall cost. Surface mount and pendant installation make the application more extensive.
Application Areas: Widely used in factories, warehouses, workshops, ships, parking lots and other places with high lighting performance requirements.
| Code | DB218A-600-21W | DB218A-1219-48W | DB218A-1500-58W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L600*W103*H58 | L1219*W103*H58 | L1500*W103*H58 | ||
| Watt(W) | 21W Max. (11W optional) | 48W Max. (24W optional) | 58W Max. (28W optional) | ||
| Rated Input Voltage | AC 220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K+4000K+5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 21W:2680-2800 11W: 1430-1480 | 48W: 6550-6900 24W: 3400-3550 | 58W: 8200-8750 28W: 4300-4560 |
| DALI | - | 48W: 6550-6900 24W: 3400-3550 | 58W: 8200-8750 28W: 4300-4560 | ||
| 3-CCT | Non-DIM | 21W:2680-2800 11W: 1430-1480 | 48W: 6550-6900 24W: 3400-3550 | 58W: 8200-8750 28W: 4300-4560 | |
| DALI | - | 48W: 6550-6900 24W: 3400-3550 | 58W: 8200-8750l 28W: 4300-4560 | ||
| CRI | 80 | ||||
| Beam Angle(°) | 110° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | NO | DALI | |||
| Emergency Kits | YES | ||||
| Electrical Class | Class Ⅱ | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK10(standard), IK06(Emergency function) | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PC | ||||
| Housing Material | PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | -20-45°C | ||||
| Storage Temp(°C) | -20-65°C | ||||
| Installation | Surface mount / Pendant | ||||
| Code | DB218B-1219-50W | DB218B-1500-60W | ||
|---|---|---|---|---|
| Dimension(mm) | L1219*W103*H58 | L1500*W103*H58 | ||
| Watt(W) | 50W Max. (28W optional) | 60W Max. (32W optional) | ||
| Rated Input Voltage | AC 220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K+4000K+5700K | |||
| CCT Selection DIP Switch | YES | |||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 50W: 6843-7196 28W: 4100-4450 | 60W: 8265-8812 32W: 4950-5150 |
| 3-CCT | Non-DIM | 50W: 6843-7196 28W: 4100-4450 | 60W: 8265-8812 32W: 4950-5150 | |
| CRI | 80 | |||
| Beam Angle(°) | 110° | |||
| LED Driver | Driver built-in | |||
| Dimming Option | NO | |||

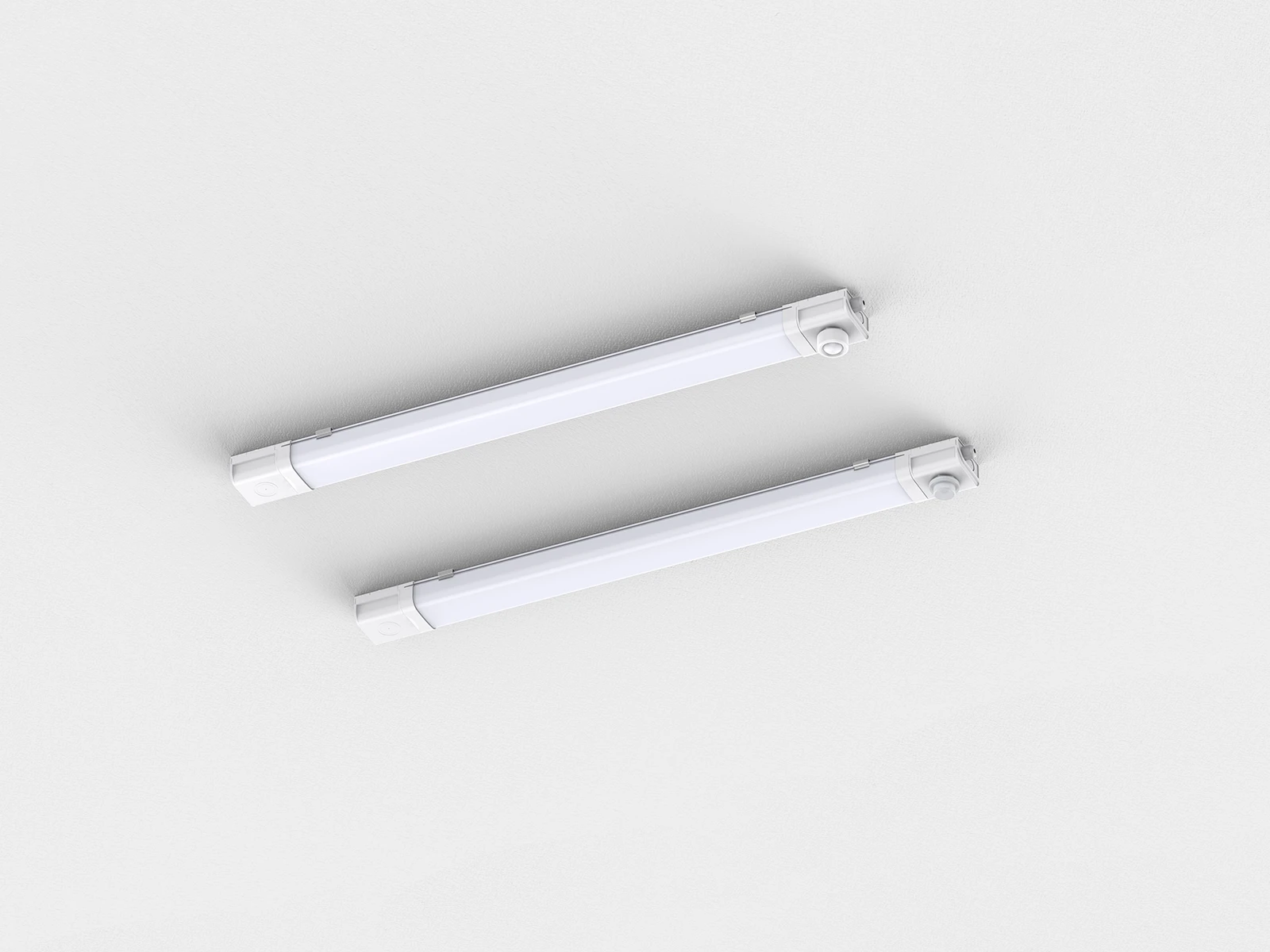

| Sensor | Microwave sensor / PIR sensor | |||
| Emergency Kits | YES | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection(IP Rating) | IP65 | |||
| Impact Resistance(IK Rating) | IK10(standard), IK06( Sensor or Emergency function) | |||
| Product Finishing | White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | PC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp(°C) | -20-45°C | |||
| Storage Temp(°C) | -20-65°C | |||
| Installation | Surface mount / Pendant | |||
